Description
Imperial Pro Series 60" Gas Range with Full-Width Griddle & Double Convection Ovens
Model IR-G60-CC • 160,000 BTU • NSF, CE, CSA Flame & StarBring powerhouse production to a single station. The Imperial Pro Series IR-G60-CC unites a 60-inch, 3/4-inch thick griddle with two high-efficiency convection ovens—saving floorspace while boosting throughput in demanding commercial kitchens.
Key Features

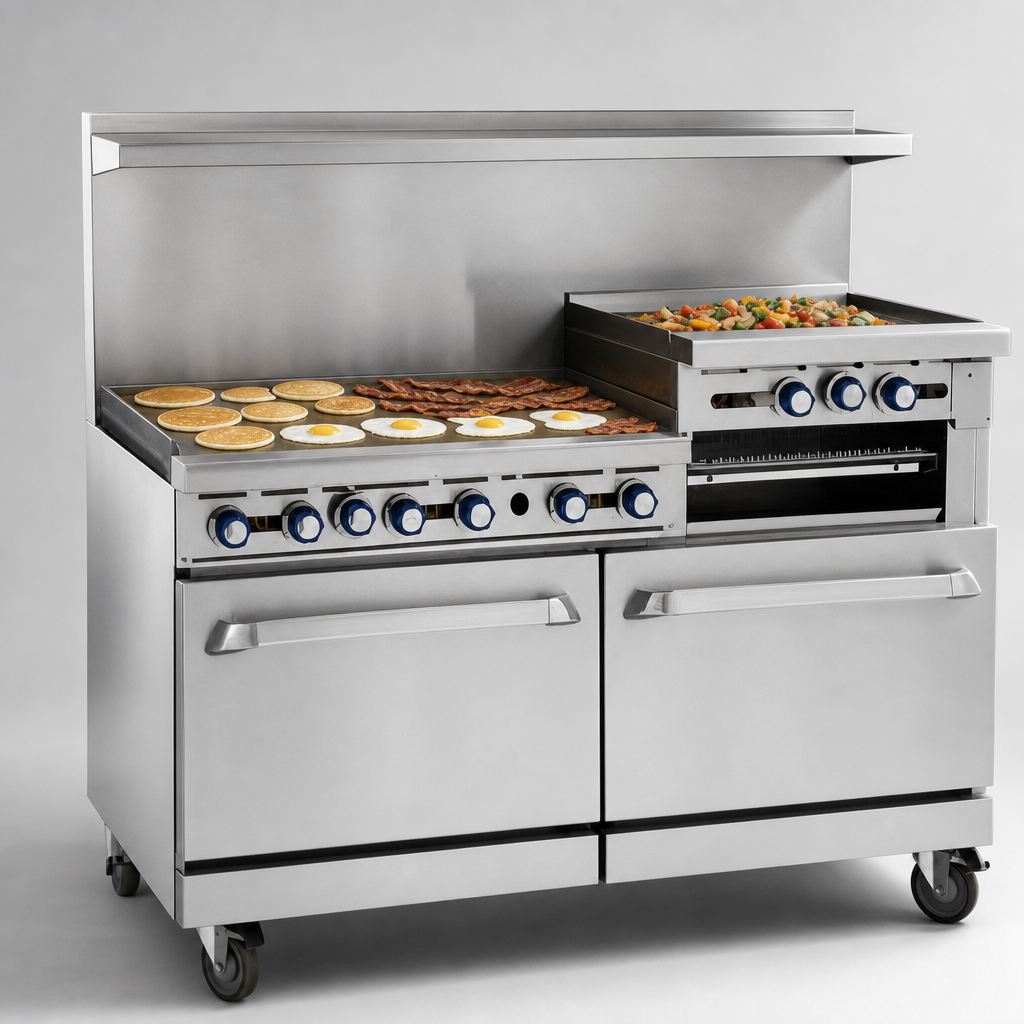

- One-piece 60" wide griddle plate—3/4" (19 mm) polished steel for fast recovery and easy seasoning.
- 20,000 BTU burner every 12" with integrated heat deflectors delivers even edge-to-edge temperatures.
- 3" wide front grease trough feeds a large, removable grease can for quick, safe disposal.
- Dual 30,000 BTU convection ovens, each driven by a 1/2 HP blower for faster, more even baking and roasting.
- Chef-Depth porcelain oven cavities (26-1/2" W × 22-1/2" D × 14" H) accept full-size sheet pans left-to-right or front-to-back.
- Three chrome racks per oven with multiple rack positions (six racks total).
- All stainless-steel front, sides, 22" high backguard with shelf, 3-1/2" landing ledge & kick plate.
- Manual gas valves give cooks immediate flame control—no complex electronics.
- 6" heavy-duty legs with adjustable feet; locking casters optional.
Built-In Advantages
- Saves space by replacing a stand-alone griddle and two ovens.
- Convection technology cuts cook times and reduces food shrinkage.
- Porcelain oven liners, lift-off griddle plate and removable crumb tray simplify cleanup.
- Backed by Imperial’s 1-year parts & labor warranty for worry-free operation.
Specifications
Model | IR-G60-CC |
---|---|
Gas Type | Natural or Propane (field convertible) |
Total Input | 160,000 BTU/hr • 47 kW |
Griddle Size | 60" W × 21" D • 3/4" thick steel |
Oven Configuration | 2 × Convection, 30,000 BTU each, 1/2 HP fan motor |
Oven Interior (each) | 26-1/2" W × 22-1/2" D × 14" H |
Oven Racks Supplied | 3 chrome racks per oven (6 total) |
Electrical | 120 V, 1-phase, 6 A (fans & ignition) |
Gas Connection | 3/4" NPT • 5" W.C. NG / 10" W.C. LP |
Overall Dimensions | 60" W × 31-1/2" D × 56-1/2" H (to top of backguard) |
Shipping Weight | Approx. 1,225 lb / 556 kg |
Certifications | NSF • CE • CSA Flame & Star |
What’s Included
- Large removable grease can & full-width oven drip trays
- Six heavy-duty chrome oven racks
- Installation & operation manuals
- One-year parts & labor warranty
