Imperial (Middleby) IR-G48-XB Pro Series Gas Ranges
Description

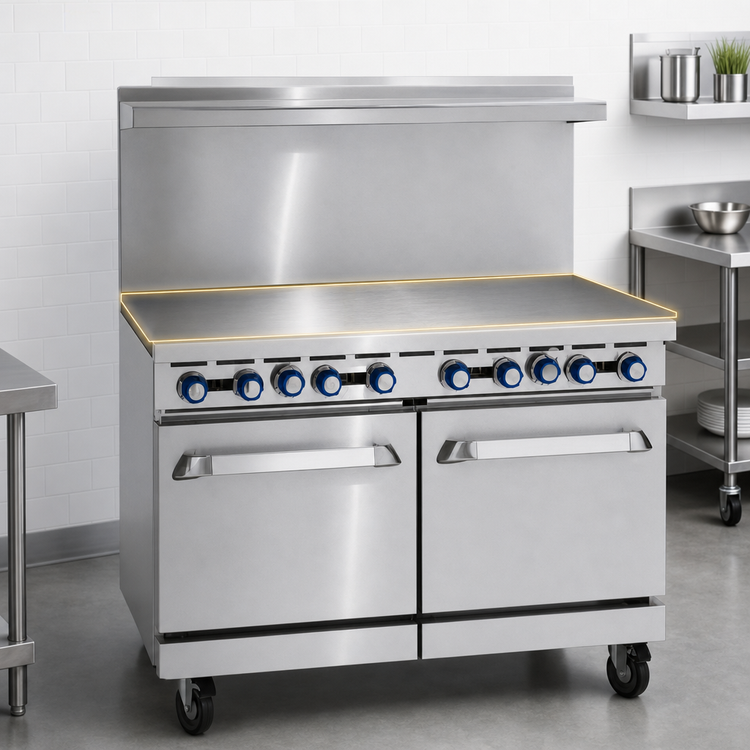

Imperial Pro Series 48" Gas Griddle Range with Oven & Cabinet
Model IR-G48 • 115,000 BTUTurn a single 48" footprint into a high-production workhorse. The Imperial Pro Series combines a full-width ¾" steel griddle, a porcelain-lined bake oven and a convenient storage cabinet—ideal for diners, concessions, hotels or any kitchen that needs serious versatility without adding extra equipment.
Top Features

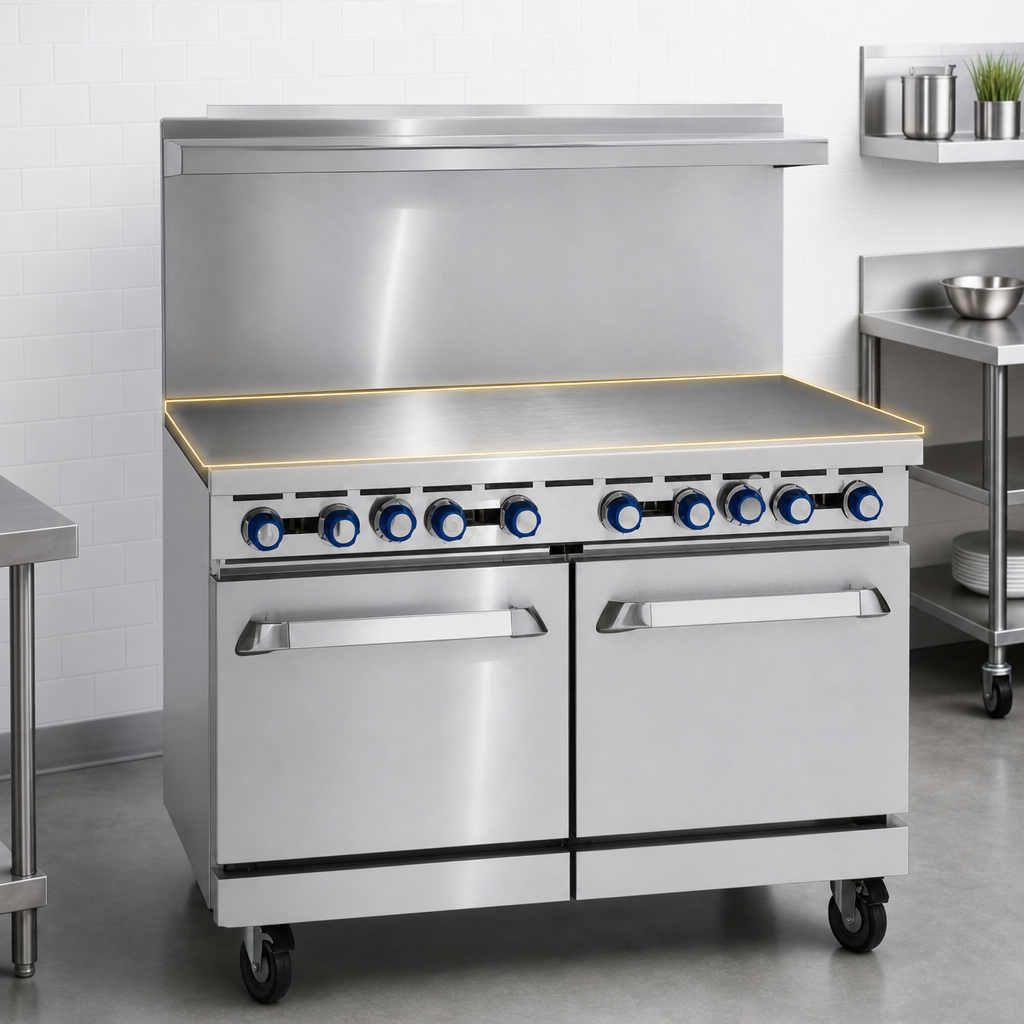

- 3⁄4" (19 mm) highly polished steel plate with 21" cook depth for fast recovery and even heat.
- Four 20,000 BTU burners under the plate, each with a heat deflector every 12" for edge-to-edge consistency.
- 3" wide front grease trough plus large removable grease can & full-width crumb tray for quick clean-ups.
- Standard gas oven (27,000 BTU) with porcelain sides, deck and door lining.
- Includes one chrome rack; multiple rack positions fit 18" × 26" sheet pans left-to-right.
- Open stainless cabinet with bottom shelf keeps sheet pans and utensils close at hand.
- Durable stainless front, sides, backsplash, high-shelf, 3½" landing ledge and kick plate.
- Heavy-duty 6" legs with adjustable feet for easy leveling.
- Manual control valves—simple, dependable and field-serviceable.
Specifications
| Width | 48" (1219 mm) |
|---|---|
| Depth (to front of ledge) | 31 ½" (800 mm) |
| Overall height (to shelf) | 56 ½" (1435 mm) |
| Griddle surface | 48" W × 21" D • ¾" thick polished steel |
| Total input | 115,000 BTU/hr (natural or LP) |
| Oven interior | 20" W × 26" D × 14" H (Space-Saver) |
| Gas connection | ¾" NPT rear manifold Natural 5" W.C. • LP 10" W.C. |
| Electrical | None required (manual ignition) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1 year parts & labor (factory-authorized service) |
Matching salamanders, cheese melters and charbroilers are available to create a seamless Pro Series cookline. Contact us for accessories and custom configurations.
Built to Last
Imperial fabricates every Pro Series range in the USA with fully welded stainless frames, cast-aluminum knobs and lift-off components that simplify day-to-day maintenance. When uptime and performance matter, chefs trust Imperial.
Installation & Clearances
- For non-combustible walls: 0" side & rear clearance.
- For combustible walls: provide 8" (203 mm) clearance.
- Legs or casters are required on non-combustible floors, or maintain a 2" curb overhang.
- Ships for natural gas; easily field-convertible to LP (kit included).
