Imperial (Middleby) IR-G36T-E-C Pro Series Electric Ranges
Description
Imperial Pro Series 36" Electric Restaurant Range
All-Griddle Top • Convection Oven Base • Model IR-G36T-E-C
Bring powerhouse performance to your cookline with the Imperial Pro Series 36" electric range. A heavy-duty polished steel griddle and a high-speed convection oven deliver the speed, consistency and cleanability today’s busy kitchens demand—all in a single, stainless-steel workhorse.
Why You’ll Love It
- 36" Thermostatic Griddle – One-piece, 21" deep polished steel plate provides even heat and fast recovery across the full surface.

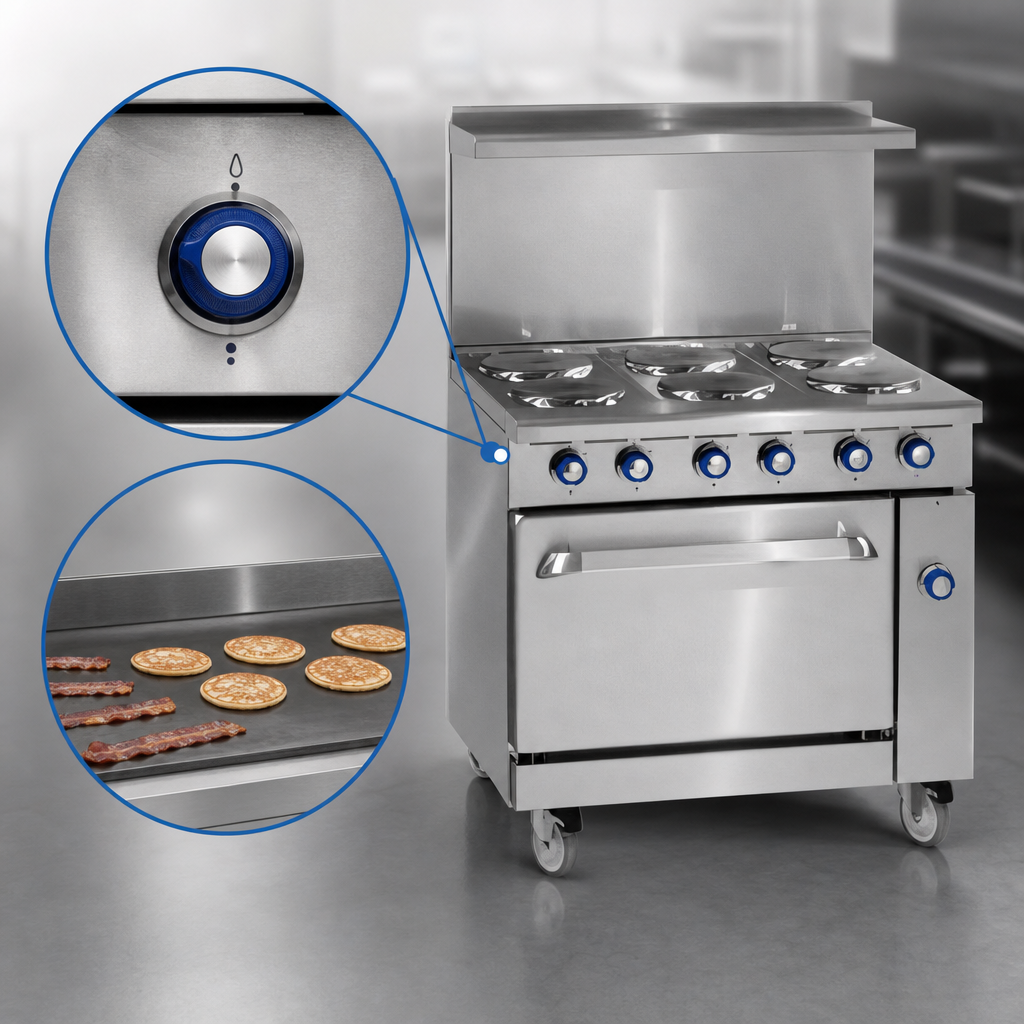

- Precise Temperature Control – Individual thermostat controls for each 12" section let you dial in exact cooking zones.
- High-Performance Convection Oven – 5.3 kW element & ¼ HP blower cook evenly, reduce shrinkage and drop cook times.
- Generous Oven Capacity – Porcelain-lined 26½" W × 22½" D × 14" H cavity fits full-size 18" × 26" sheet pans front-to-back.
- Easy Clean-Up – 4" wide grease trough, removable grease can and smooth plate edges streamline end-of-shift maintenance.
- All-Stainless Exterior – Front, sides, backguard, landing ledge & kick plate stand up to daily commercial abuse.
- Adjustable 6" Legs – Level the unit on uneven floors; casters optional.
- Certifications – cETLus, ETL-Sanitation & CE listed for safety and sanitation.
Technical Specifications
| Model | IR-G36T-E-C (Pro Series) |
|---|---|
| Equipment Type | 36" Electric Restaurant Range, Griddle Top, Convection Oven Base |
| Griddle Surface | 36" W × 21" D polished steel, thermostatic |
| Grease Management | 4" W trough with removable grease can |
| Oven Interior (WxDxH) | 26½" × 22½" × 14" (673 × 572 × 356 mm) |
| Oven Element / Motor | 5.3 kW element with ¼ HP blower |
| Oven Racks | 3 chrome racks, 5 positions |
| Temperature Range | 150 °F – 500 °F (65 °C – 260 °C) |
| Total Connected Load | 14.3 kW |
| Voltage Options* | 208 V / 240 V / 480 V, 1 φ or 3 φ |
| Exterior Dimensions | 36" W × 31¼" D × 36" H to cooktop |
| Ship Weight | ≈ 705 lb (320 kg) |
| Construction | Stainless steel front, sides, backguard, landing ledge & kick plate; welded & polished seams |
| Legs | 6" heavy-duty, adjustable |
| Certifications | cETLus, ETL-Sanitation, CE |
| Warranty | 1-year parts & labor |
Installation Notes
- For use on non-combustible floors; 0" side/rear clearance to non-combustible surfaces.
- Maintain 6" side/rear clearance from combustible walls.
- Legs or casters are required for countertop or curb-mounted installation.
- *Specify voltage and phase when ordering. Field wiring must be completed by a licensed electrician.
Imperial reserves the right to modify specifications without notice. Always refer to the installation manual for full details.
