Imperial (Middleby) IR-G36-XB Pro Series Gas Ranges
Description
Imperial Pro Series 36" Gas Griddle Range — Cabinet Base
Model IR-G36-XB | 60,000 BTU (18 kW)Engineered for high-volume kitchens, the Imperial IR-G36-XB delivers a full 36" of responsive griddle power plus the convenience of an open cabinet base. Heavy-duty stainless construction, even heat distribution and easy-clean features make this range a true workhorse for diners, food trucks, concessions and line-up suites alike.
Key Benefits
- 3/4" (19 mm) highly polished steel griddle plate, 21" deep for maximum heat retention.
- Three 20,000 BTU burners (one every 12") produce a total of 60,000 BTU / 18 kW.

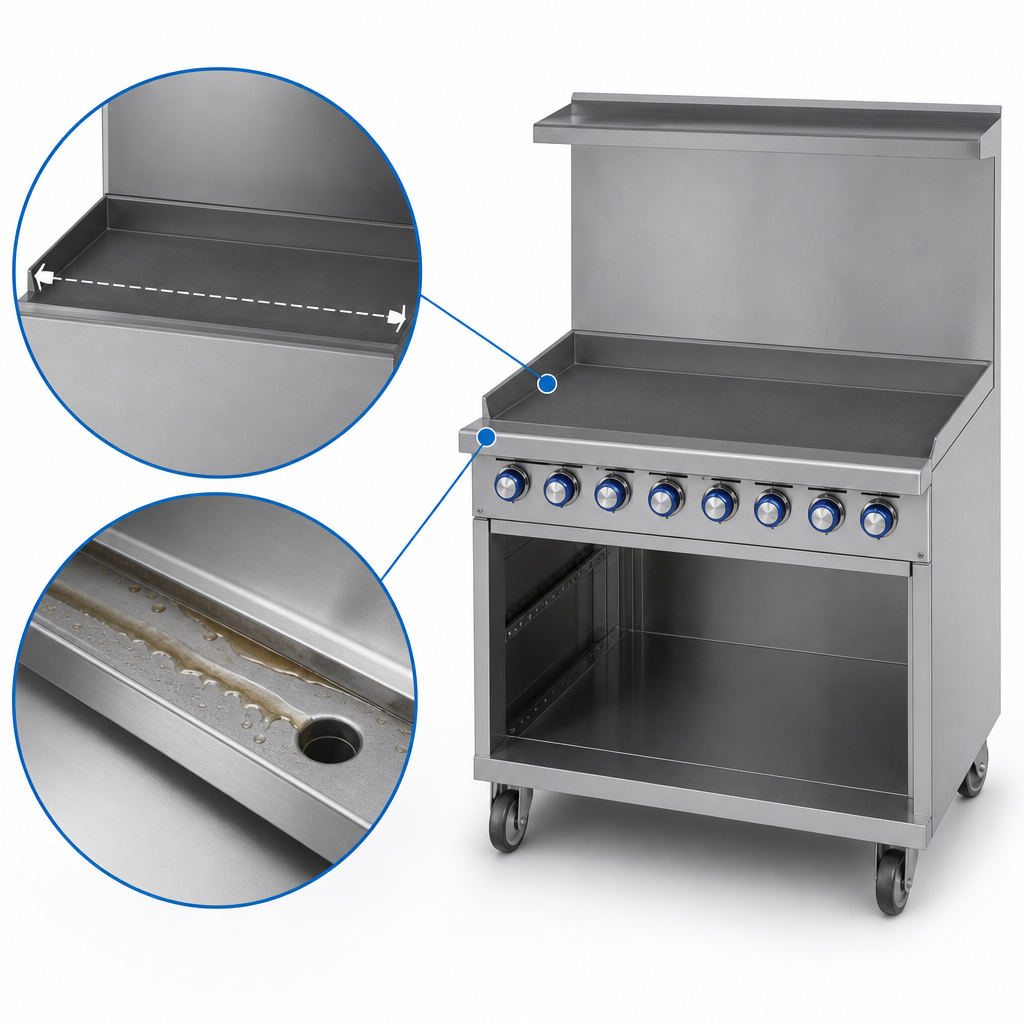

- Integral 3" wide grease trough funnels runoff to an oversized, removable grease can.
- Open cabinet base keeps sheet pans, stock pots or smallwares within arm’s reach.
- All-stainless exterior (front, sides, backguard/shelf, 3.5" landing ledge & kick plate) with welded, polished seams.
- Cast-iron grate supports and cast-aluminum control knobs built to stand up to daily abuse.
- Standing pilots provide instant ignition; one per burner.
- 6" (152 mm) adjustable stainless steel legs standard; 6" swivel casters optional.
- NSF, CE, CSA Flame & CSA Star listed for sanitation and gas safety.
- Backed by Imperial’s 1-year parts & labor warranty.
Technical Specifications
| Cooking surface | 36" W × 21" D (914 × 533 mm) |
|---|---|
| Plate thickness | 3/4" (19 mm) steel |
| Total input | 60,000 BTU / 18 kW (3 × 20,000 BTU) |
| Overall dimensions | 36" W × 31-1/2" D × 56-1/2" H (914 × 800 × 1435 mm) |
| Base type | Open stainless cabinet (no oven) |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | Natural 5" W.C. | LP 10" W.C. |
| Clearances | 0" sides/rear to non-combustibles; 8" (203 mm) to combustibles |
| Shipping weight | 595 lb (269 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Factory Options & Accessories
- 6" or 11" stainless steel backguards; stub-back configuration
- Thermostatic, chrome-plated or grooved griddle surfaces
- Griddle safety valve
- Mounting channels for salamander or cheese melter
- 6" locking casters
- Quick-disconnect gas hose & shut-off valve
Specifications and design are subject to change without notice. Photos may show optional accessories.
