Imperial (Middleby) IR-G24-XB Pro Series Gas Ranges

Imperial Pro Series 24" Gas Griddle Range – 40,000 BTU

When kitchen space is at a premium, the Imperial Pro Series 24" griddle range delivers uncompromising fire-power in a slim, single-section footprint. A ¾" polished steel plate, twin 20,000 BTU burners and a rugged, all-stainless cabinet keep pace with breakfast rushes, burger builds and late-night menus—shift after shift.

Chef-Focused Performance

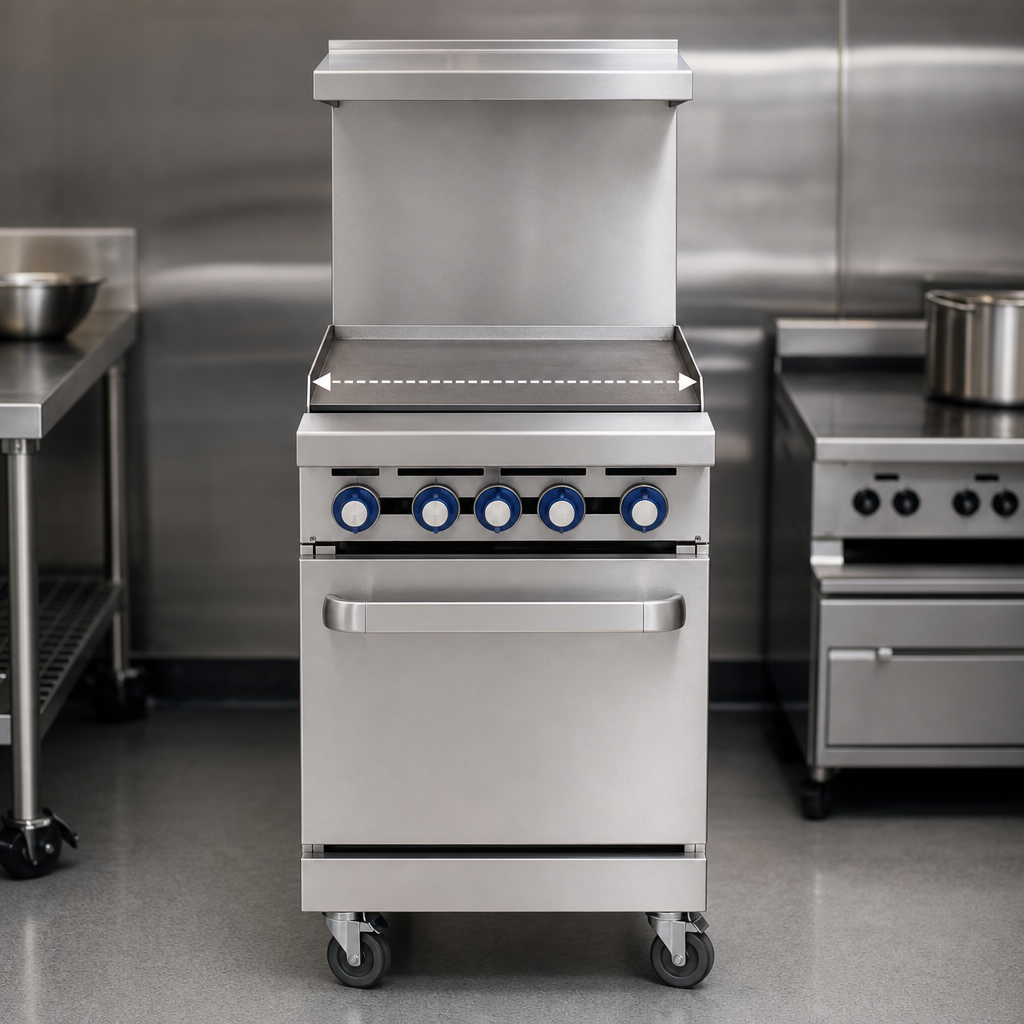

• 24" (610 mm) wide griddle with ¾" (19 mm) highly polished steel plate for superior heat retention & fast recovery.

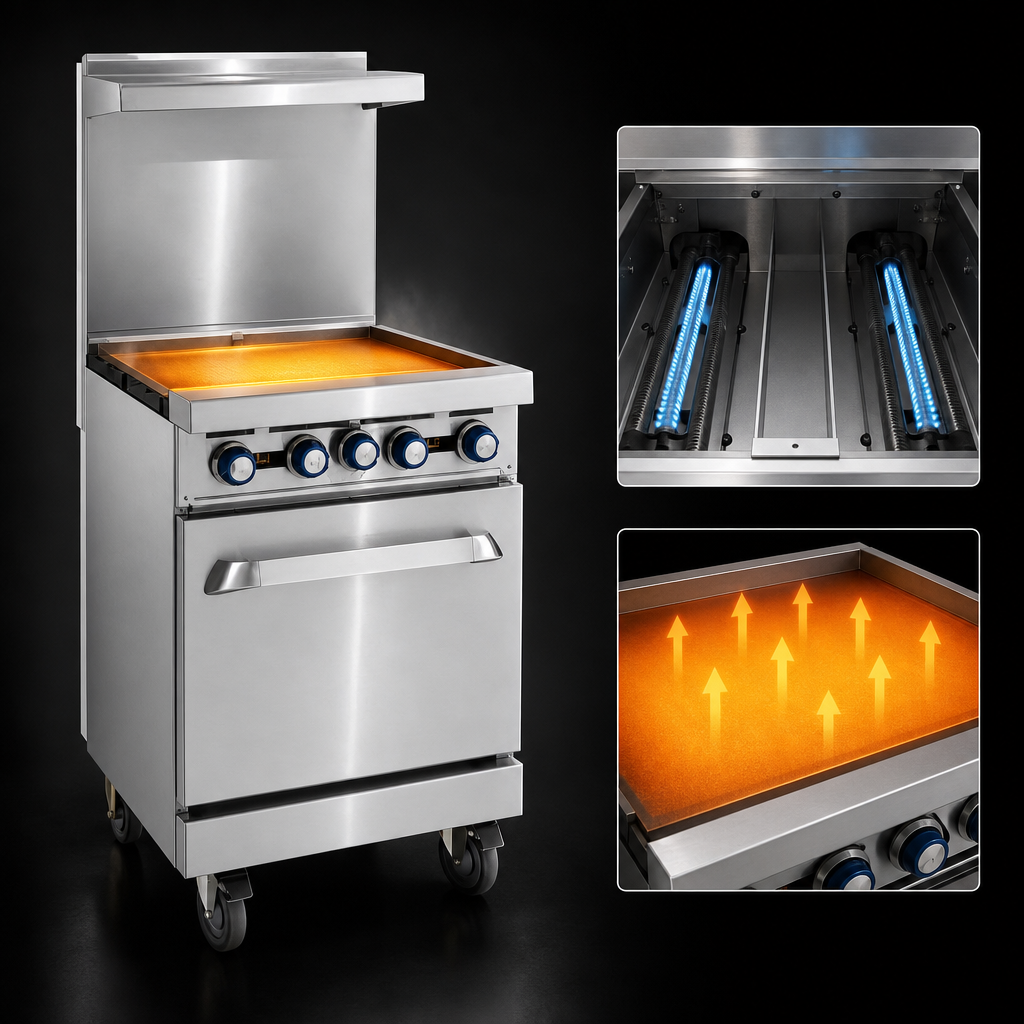

• (2) 20,000 BTU burners (40,000 BTU / 12 kW total) with heat deflector every 12" for even surface temps.
• 3" (76 mm) wide stainless grease trough funnels to an extra-large removable grease can for quick clean-ups.
• Full-width removable crumb tray catches drips and debris underneath the plate.

Built to Withstand the Line

• Stainless steel front, sides, backguard, landing ledge (3.5" deep) & kick plate—welded and polished for long-life durability.
• Cabinet-base (XB) configuration adds dry storage without increasing footprint.
• 6" (152 mm) heavy-duty legs with adjustable feet; optional 6" casters available.
• Durable cast–aluminum control knobs survive the daily grind.

Compliance & Peace of Mind

• Certified: CSA Flame, CSA Star, NSF, CE
• 1-year parts & labor warranty backed by Imperial’s nationwide service network.

Technical Specifications

Optional accessories: 6" or 11" backguards, grooved or thermostatic griddle plate, quick-disconnect hose, casters, and salamander/cheese-melter mounting channels. Contact us for details.
