Imperial (Middleby) IR-8-XB Pro Series Gas Ranges
Description

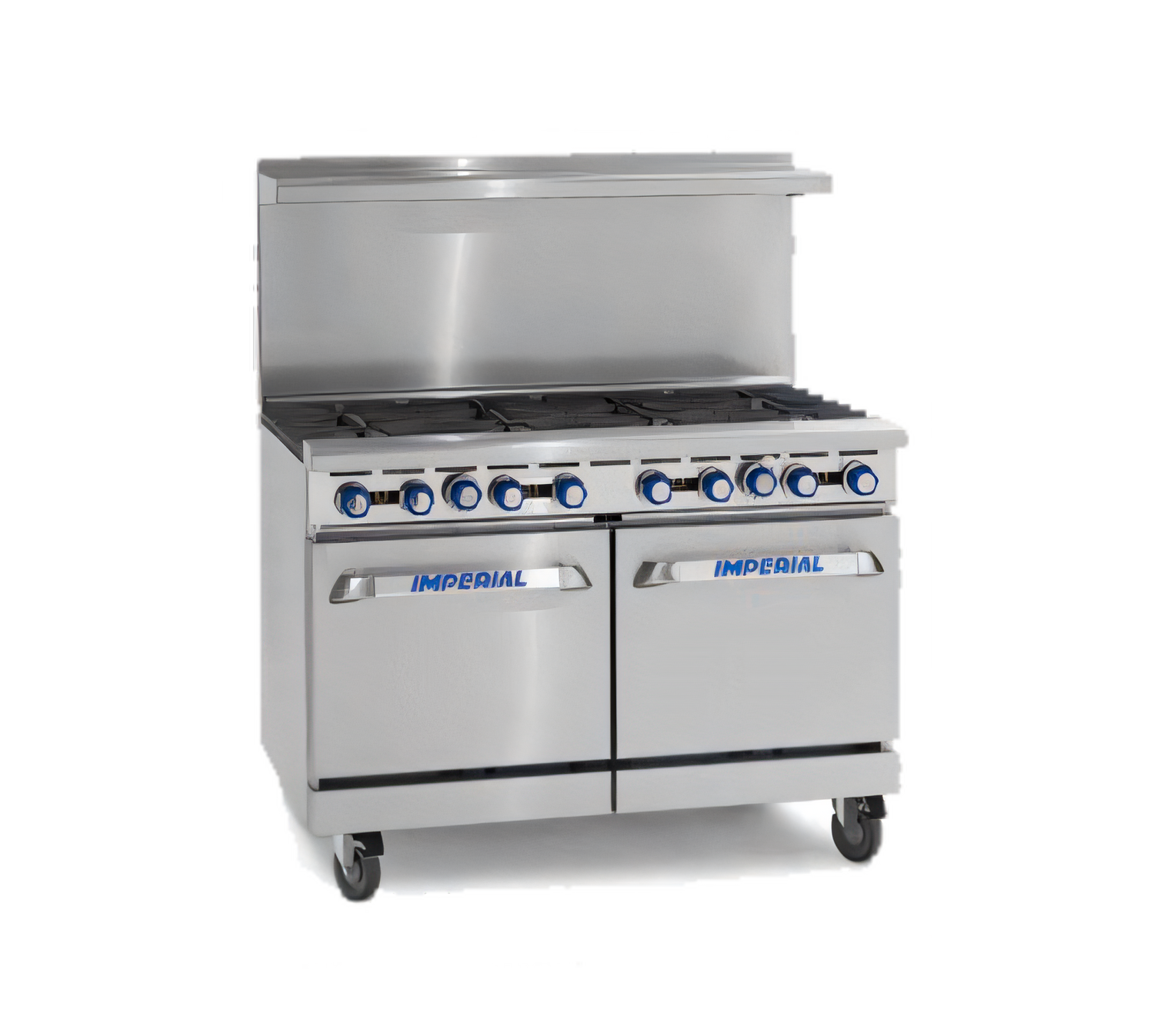

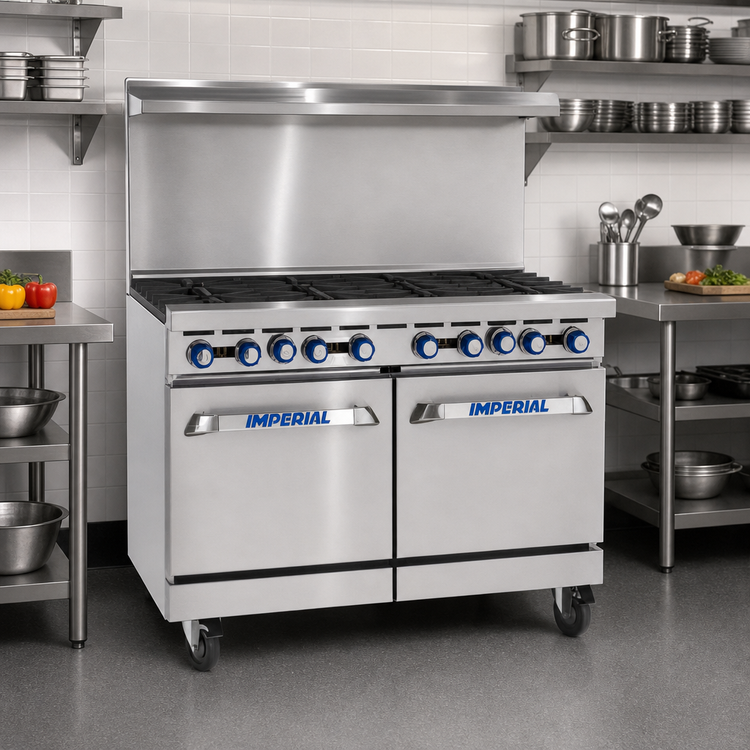

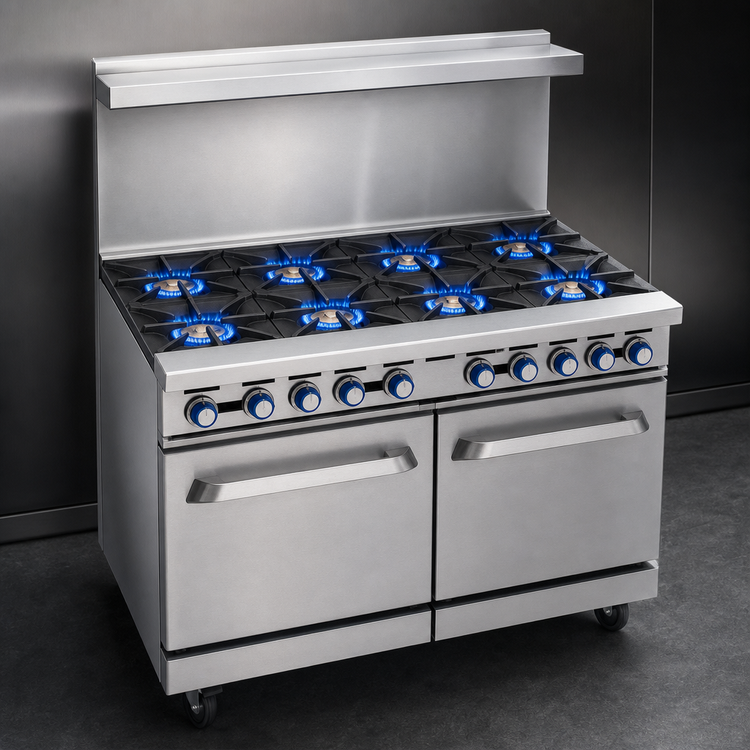

Pro Series 48" Gas Restaurant Range – 8 Open Burners, Standard Oven & Cabinet Base
Imperial (Middleby) • Model IR-8-XB • 291,000 BTUBuilt for the busiest commercial kitchens, Imperial’s Pro Series 48" range delivers legendary burner power, heavy-duty construction and the everyday convenience chefs need to keep service moving. A space-saving oven, eight PyroCentric™ burners and an open storage base come together in one rugged, stainless-steel workhorse.
Performance & Convenience

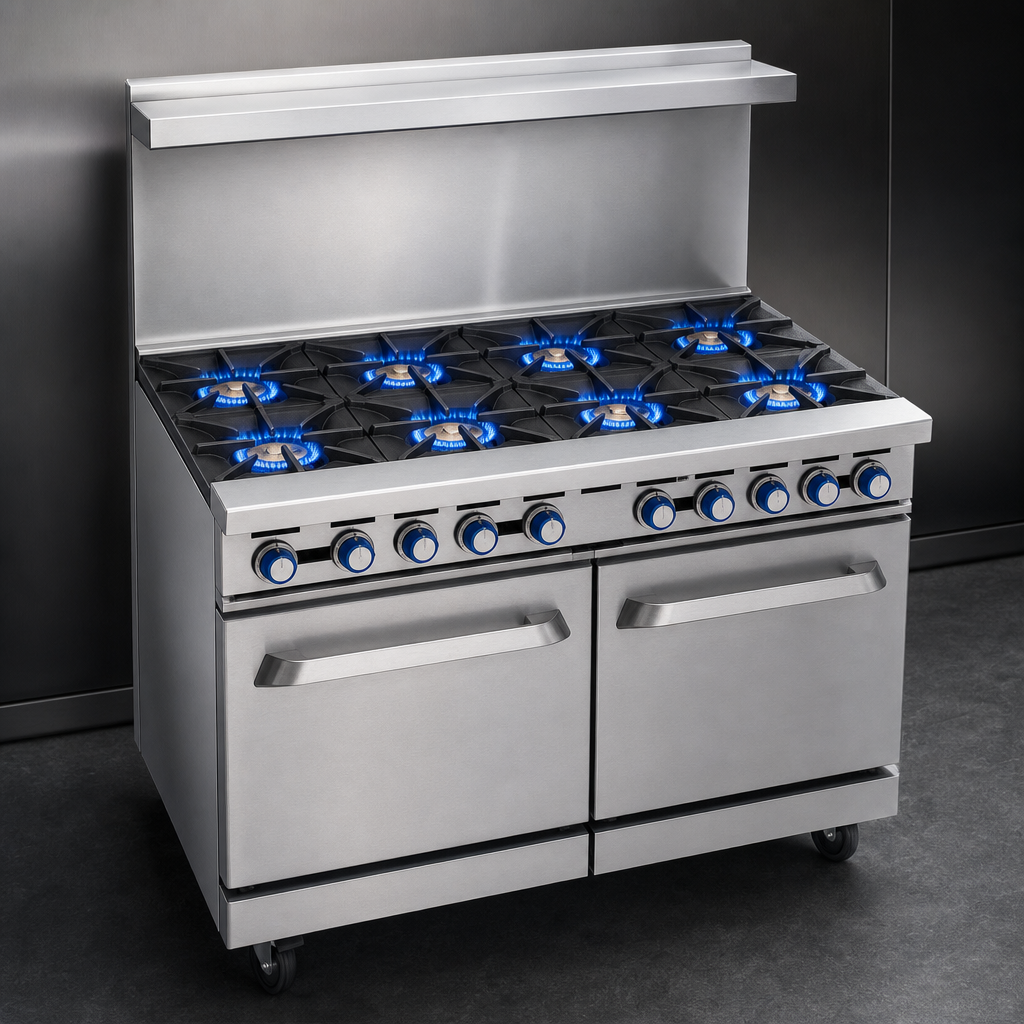

- Eight 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer setting.
- Two rings of flame per burner ensure even, edge-to-edge heating.
- Lift-off, anti-clog burners and full-width crumb tray simplify clean-up.
- Cast-iron top grates (12" × 12" front, 12" × 13" rear) let stock pots slide effortlessly across sections.
- 27,000 BTU Space-Saver oven with porcelainized interior and one chrome rack.
- Open cabinet base keeps sheet pans, sauté pans and utensils within arm’s reach.
- All-stainless front, sides, 3.5" landing ledge, backguard and high-shelf resist corrosion and dents.
- 6" heavy-duty legs with adjustable feet for secure, level installation.

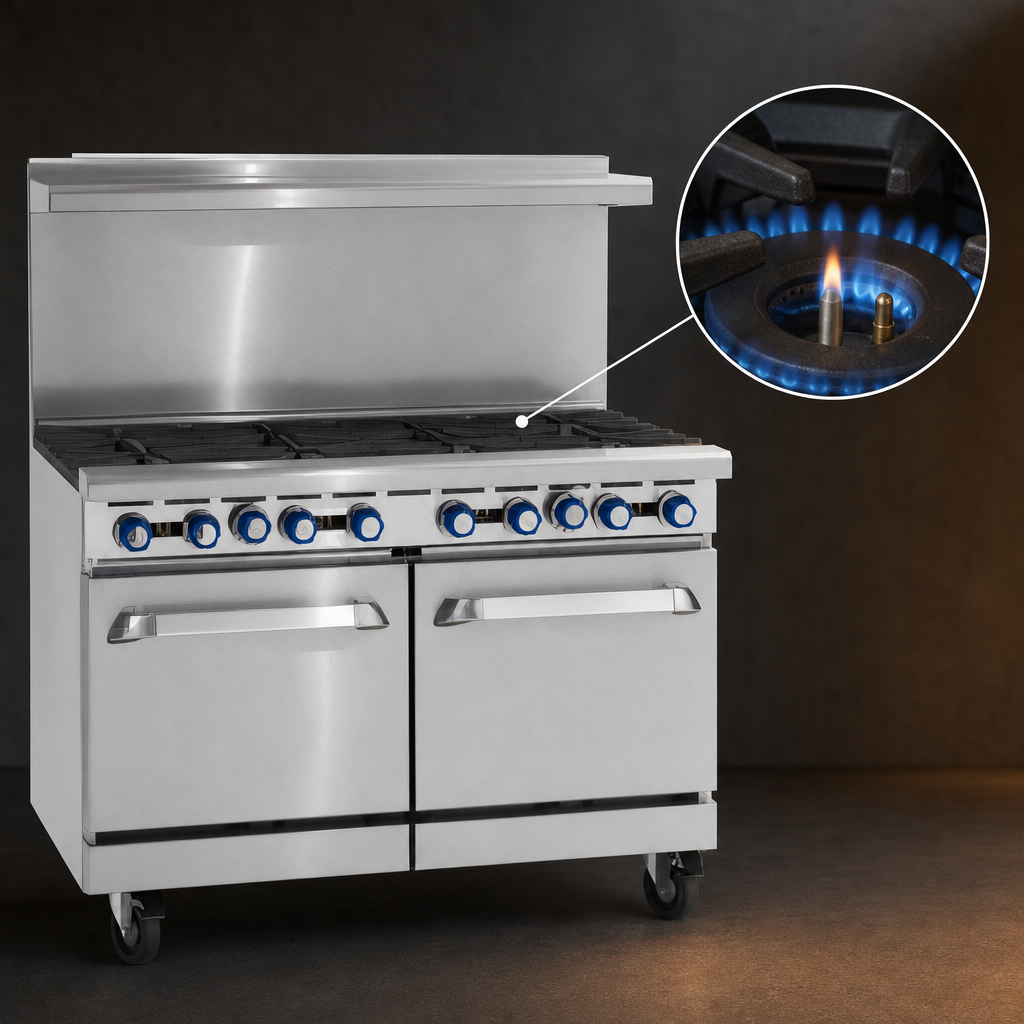

- Individual standing pilots for instant burner ignition.
- NSF, CE, CSA Flame & Star certified for safety and sanitation.
Technical Specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Depth | 31-1/2" (800 mm) |
| Height (to backguard) | 56-1/2" (1435 mm) |
| Total gas input | 291,000 BTU/hr (85 kW) |
| Open burners | 8 × 32,000 BTU with 7,000 BTU simmer |
| Oven interior | 20" W × 26" D × 14" H • 1 chrome rack |
| Oven output | 27,000 BTU/hr |
| Gas connection | 3/4" NPT • 5" WC (NG) / 10" WC (LP) |
| Shipping weight | ≈ 640 lb (290 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1 year parts & labor |
Looking for griddle tops, convection ovens or additional racks? Imperial Pro Series ranges are available in dozens of configurations—ask your representative for details.
Preserve capital and get cooking faster—flexible equipment financing is available through Middleby. Ask us how to apply in minutes.
