Imperial (Middleby) IR-8-G24 Pro Series Gas Ranges
Description

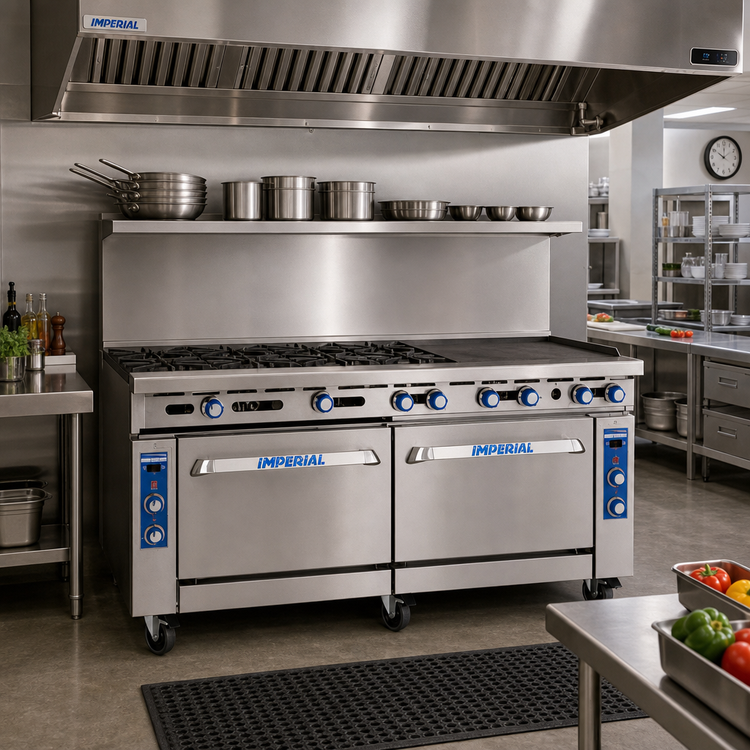

Imperial Pro Series™ 72" Gas Restaurant Range
Model IR-8-G24 – 8 Open Burners | 24" Griddle | 2 Standard OvensBring multi-station versatility to the line without sacrificing power. The Pro Series IR-8-G24 combines Imperial’s high-performance PyroCentric™ burners, a heavy-duty ¾" steel griddle and two full-size ovens in one rugged, stainless-steel platform that is ready for breakfast, lunch and dinner rushes.
Top Reasons Chefs Choose the IR-8-G24
- 386,000 BTU total output – instant recovery during peak service

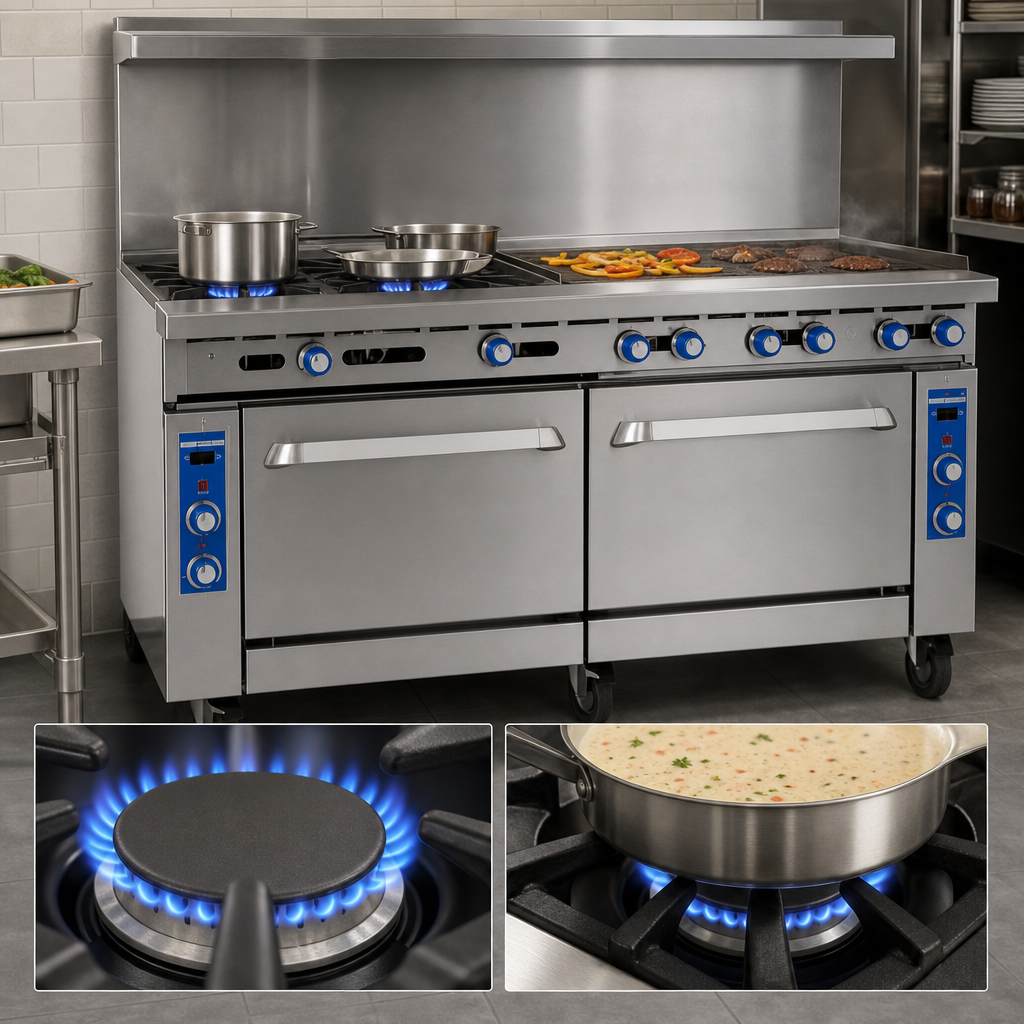

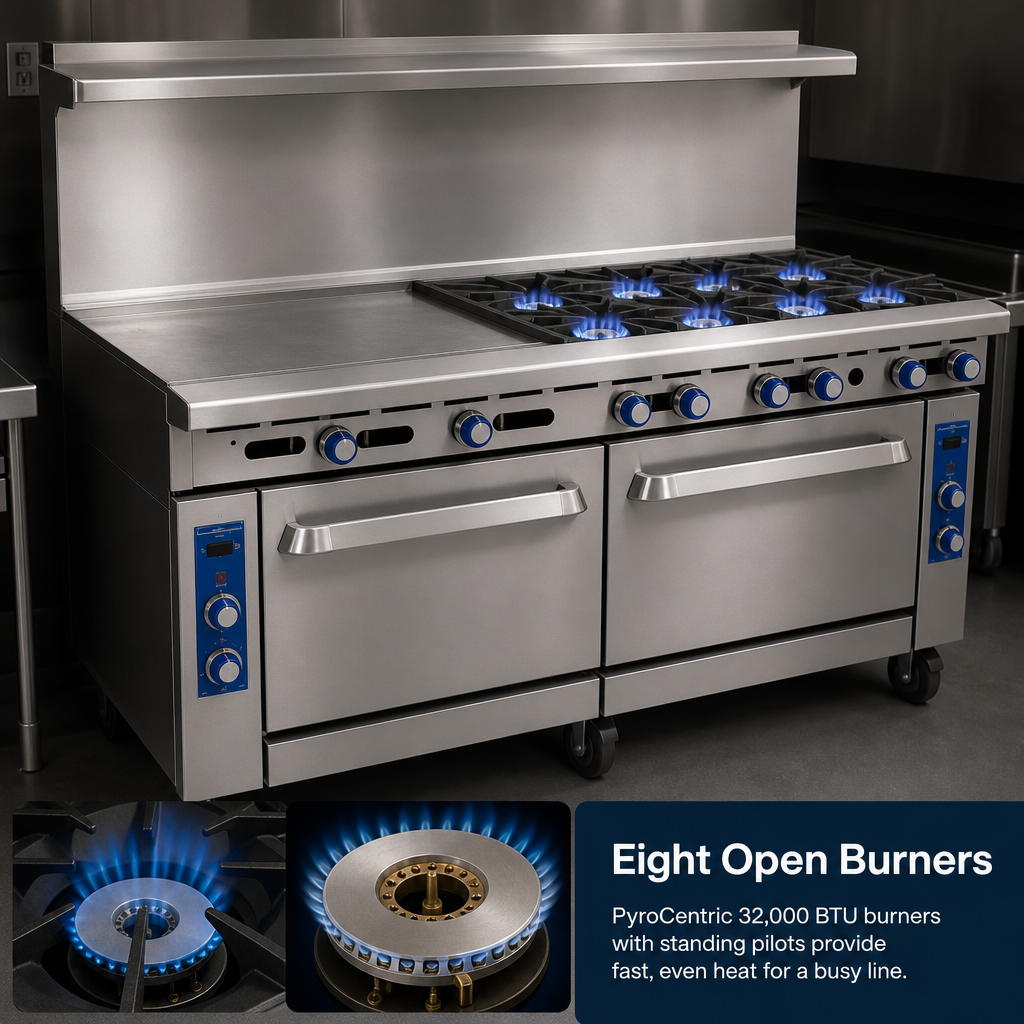

- Eight 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer setting
- 24" (610 mm) griddle with highly polished ¾" steel plate for even heat retention
- Dual chef-depth standard ovens each accept full-size 18" × 26" sheet pans left-to-right or front-to-back
- All-stainless exterior, welded and polished for a sanitary, professional finish
- Full-width 3.5" landing ledge keeps plating space right at the range
- Removable cast-iron grates, crumb tray, grease trough and grease pan for lightning-fast cleanup
- Certified NSF, CE, CSA Flame & Star for broad code compliance
Open Burner Performance
- Two concentric rings of flame deliver even heat distribution
- Anti-clog design lifts off in seconds—no screws or gaskets
- One standing pilot per burner for reliable, instant ignition
Griddle Advantages
- 20,000 BTU burner every 12" with integral heat deflectors
- 3" wide front trough channels grease into an extra-large, removable can
- Optional thermostatic or grooved plate controls available
Dual Standard Ovens
- 35,000 BTU linear burner & Imperial heat deflector for even cavity temps
- Cavity size: 26-1/2" W × 26" D × 14" H (673 × 660 × 356 mm)
- Porcelainized interior sides, deck and door liner for easy wipe-down
- One chrome rack included per oven; additional racks optional
Specifications
| Overall Width | 72" (1829 mm) |
|---|---|
| Depth / Height | 31-1/2" D × 56-1/2" H (800 × 1435 mm) to top of backguard |
| Total Gas Input | 386,000 BTU / 113 kW |
| Open Burners | 8 × 32,000 BTU (9 kW) each |
| Griddle Surface | 24" W × 21" D, ¾" polished steel |
| Ovens | 2 Standard, 35,000 BTU each, manual controls |
| Gas Connection | ¾" NPT rear manifold; natural 5.0" WC / propane 10.0" WC |
| Clearances | 0" sides & rear to non-combustible; 8" to combustible |
| Unit Weight (crated) | 1,185 lb / 536 kg |
| Legs | 6" stainless, adjustable feet (casters optional) |
| Certifications | NSF • CE • CSA Flame • CSA Star |
| Warranty | 1-year parts & labor (factory authorized service) |
Popular options: thermostatic griddle control, grooved plate, 6" or 11" backguards, wok or sauté burner heads, ¾" gas shut-off valve with quick-disconnect hose and caster kit. Contact our team for details and lead times.
