Imperial (Middleby) IR-8-G24-CC Pro Series Gas Ranges
Description

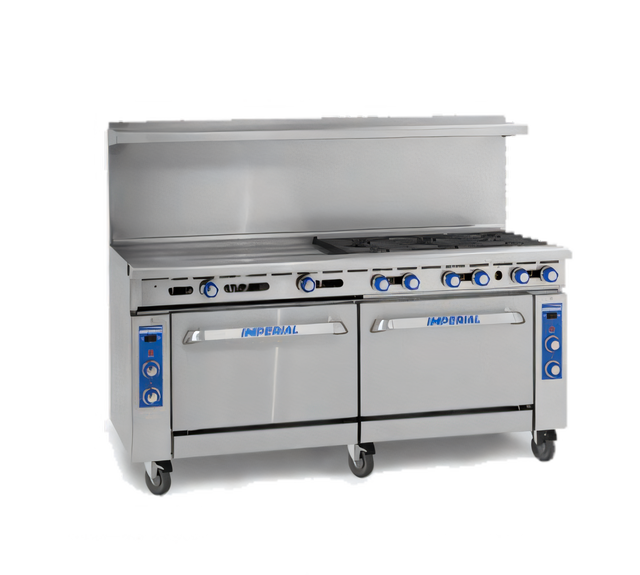

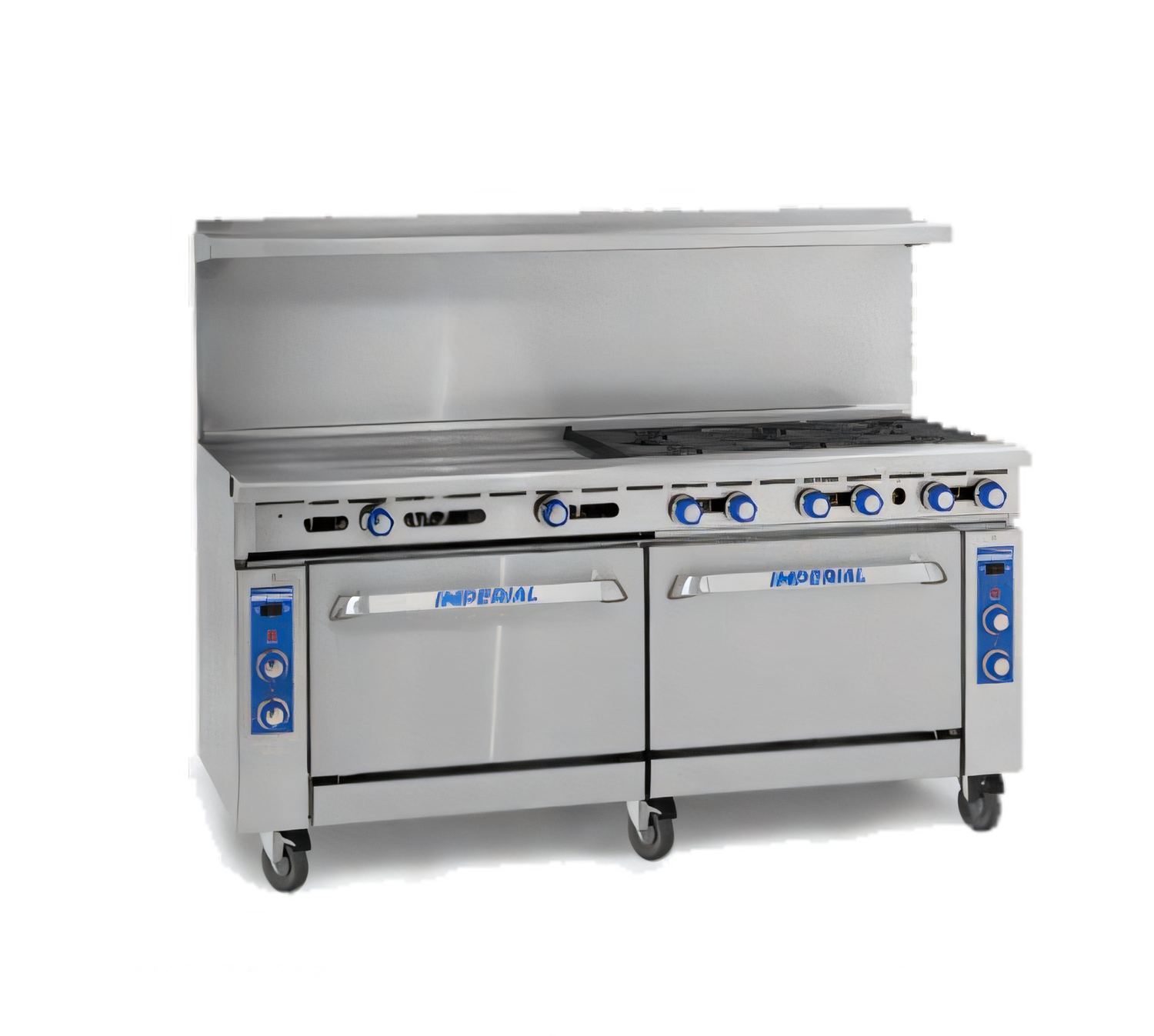

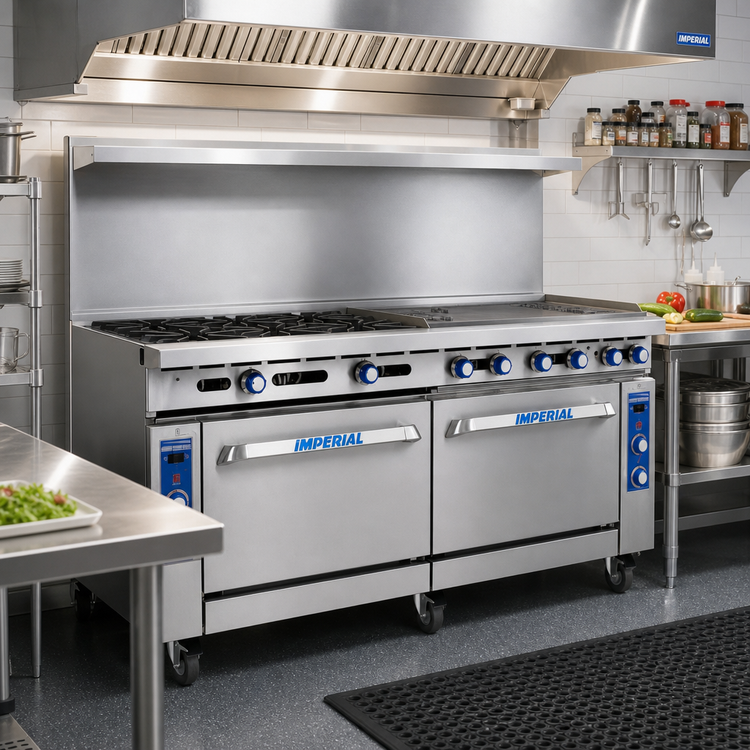

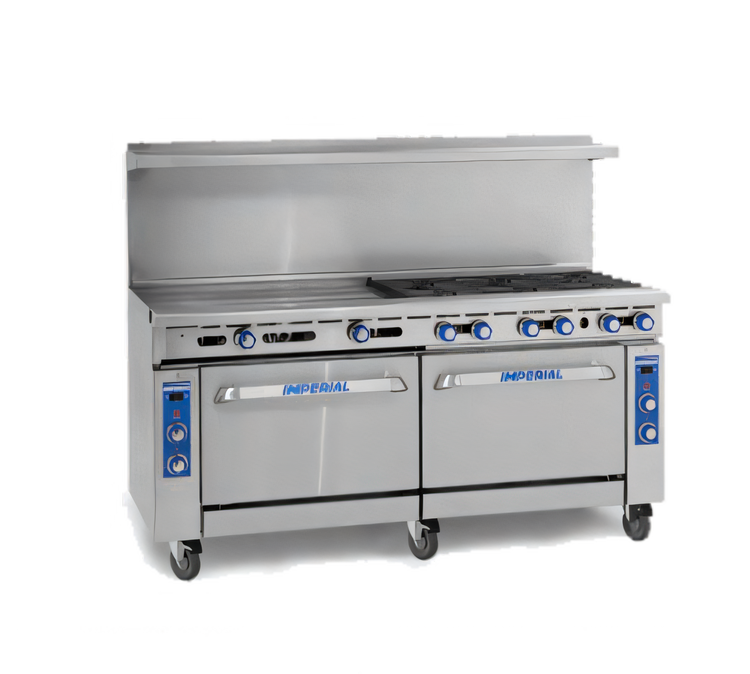

Imperial Pro Series 72" Gas Restaurant Range – 8 Burners, 24" Griddle & Double Convection
Model IR-8-G24-CC | 356,000 BTUPower, precision and capacity come together in the Imperial Pro Series IR-8-G24-CC. This 72" range pairs eight high-performance open burners with a full-width griddle and two convection ovens, creating a single, space-saving station that can handle every task on a demanding line.
Key Cooking Features

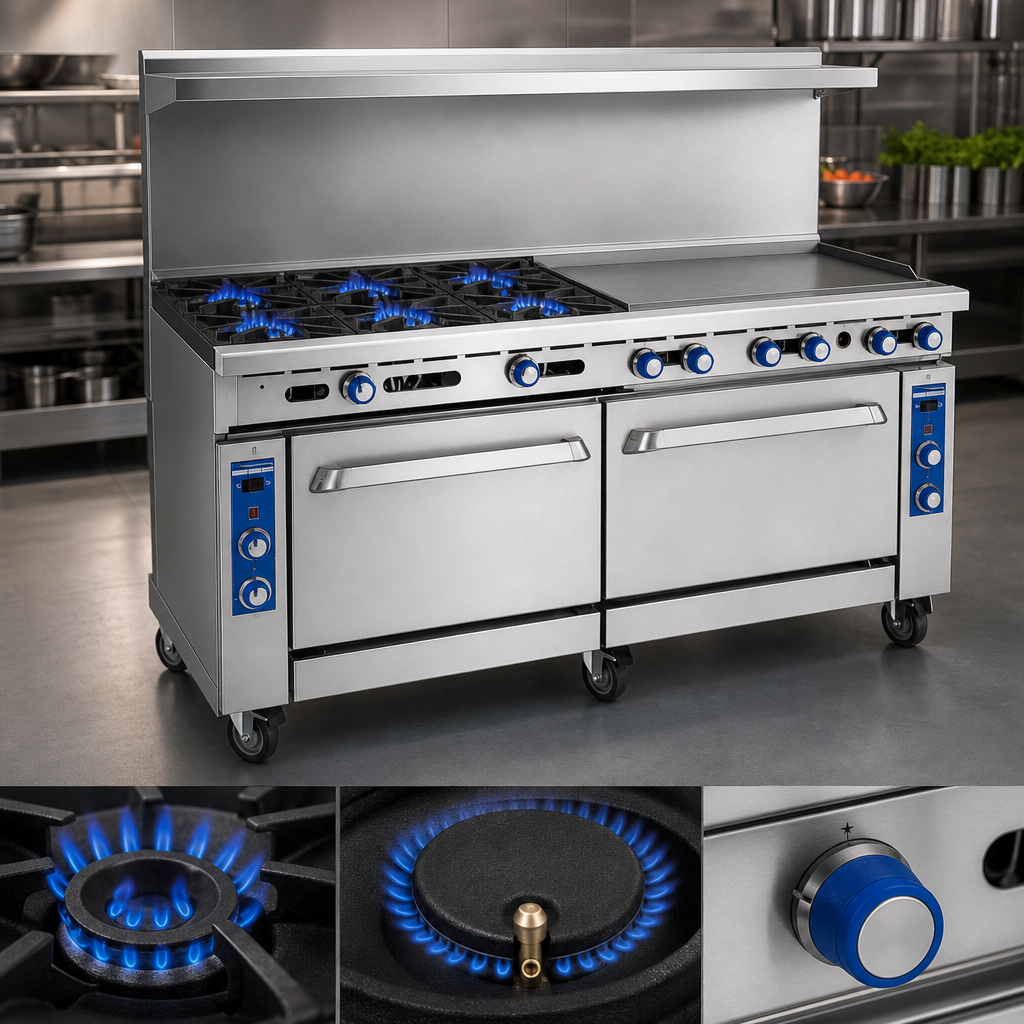

- Eight PyroCentric™ open burners – 32,000 BTU each with a 7,000 BTU low-simmer setting.
- Anti-clog, lift-off burner heads and one standing pilot per burner for instant ignition.
- Heavy-duty cast-iron grates (front 12" × 12", rear 12" × 13") let stock-pots glide across the entire top.

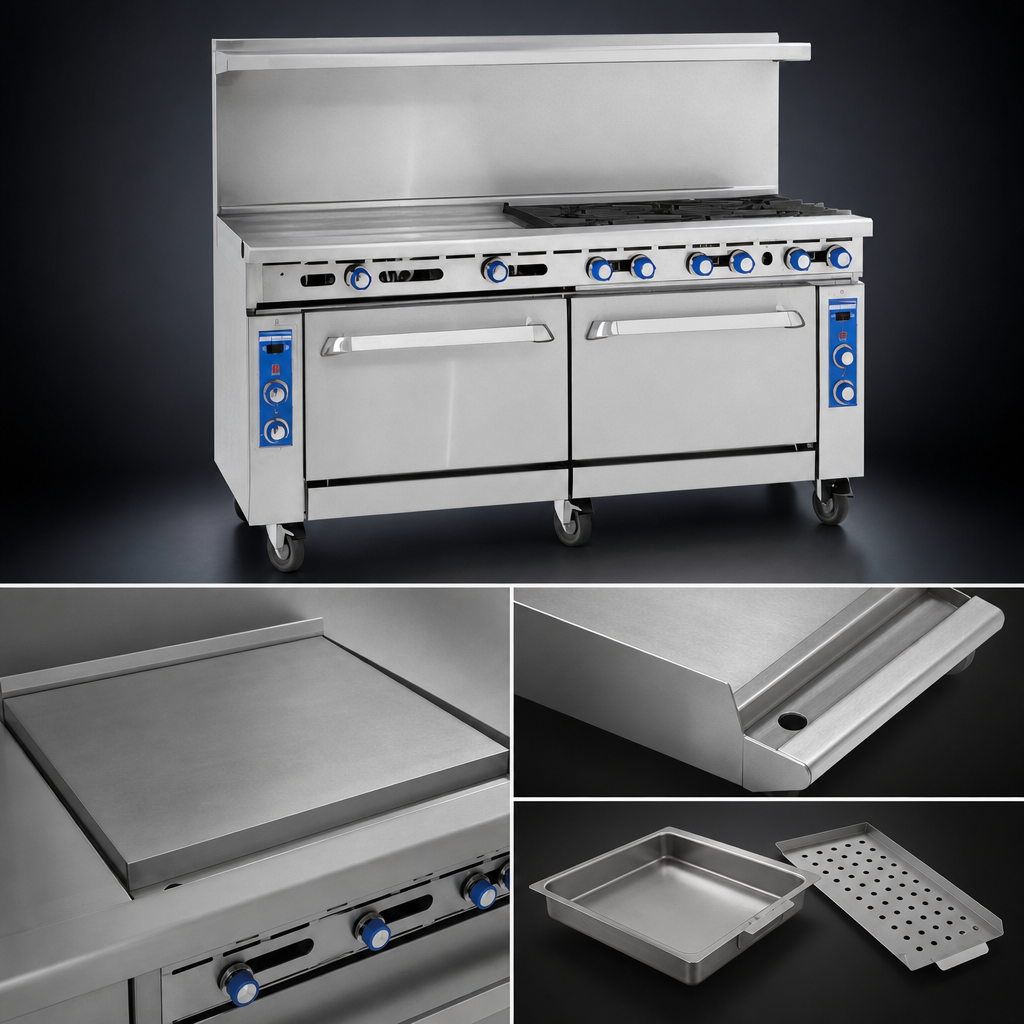

- 24" (610 mm) griddle with a 3/4" (19 mm) polished steel plate and 21" cooking depth.
- Individual 20,000 BTU burners beneath the griddle with heat deflectors every 12" for edge-to-edge consistency.
- 3" grease trough plus removable grease can and full-width crumb tray for quick nightly clean-up.
Twin Convection Ovens
- 30,000 BTU burner & 1/2 HP blower motor per oven cook faster and more evenly with less shrinkage.
- Porcelainized interiors (26-1/2" W × 22-1/2" D × 14" H) fit 18" × 26" sheet pans front-to-back.
- Three chrome racks per oven on multi-position guides for maximum menu flexibility.
- Three-position switch (cook / cool-down / off); fan stops automatically when the door opens.
- Reliable electronic ignition with simple manual temperature controls.
Engineered to Last
- All-stainless steel front, sides, backguard, 3-1/2" landing ledge and kick plate.
- Welded & polished seams for added strength and easy wipe-down.
- Durable cast-aluminum control knobs stand up to daily abuse.
- 6" heavy-duty legs with adjustable feet standard; locking casters optional.
- Full-width removable crumb tray beneath the burners speeds maintenance.
- NSF, CE, CSA Flame & CSA Star certified.
Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 31-1/2" (800 mm) |
| Overall height (to top of backguard) | 56-1/2" (1435 mm) |
| Total input | 356,000 BTU /hr | 104 kW |
| Open burners | 8 × 32,000 BTU PyroCentric |
| Griddle size & output | 24" W × 21" D, 3/4" plate – 20,000 BTU per 12" section |
| Ovens | 2 Convection, 30,000 BTU each, 3 racks per oven |
| Gas connection | 3/4" NPT, 5" W.C. NG or 10" W.C. LP |
| Electrical | 120 V / 1-ph / 6 A (convection blowers) |
| Shipping weight | ≈ 1,305 lb (590 kg) |
Images may show optional accessories such as casters or quick-disconnect gas hose.
Warranty
Covered by Imperial’s 1-year parts & labor warranty, backed by a nationwide authorized service network.
