Imperial (Middleby)  |  Pro Series  |  SKU: IR-8-G24-C

Imperial (Middleby) IR-8-G24-C Pro Series Gas Ranges

$18,690.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Middleby financial flyer Training video Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

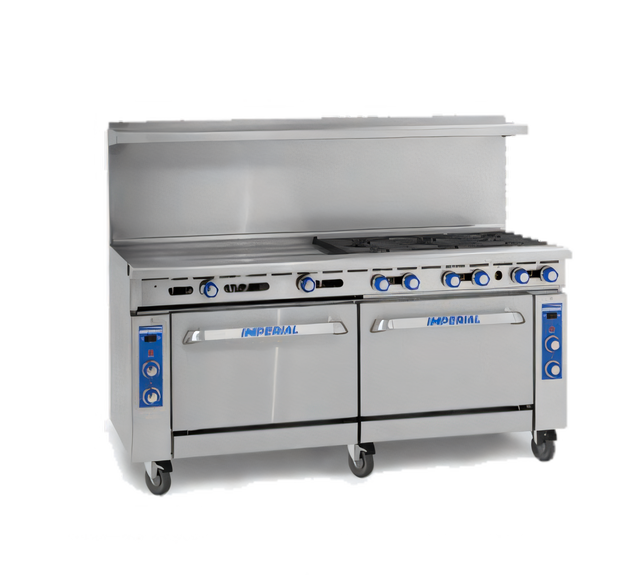

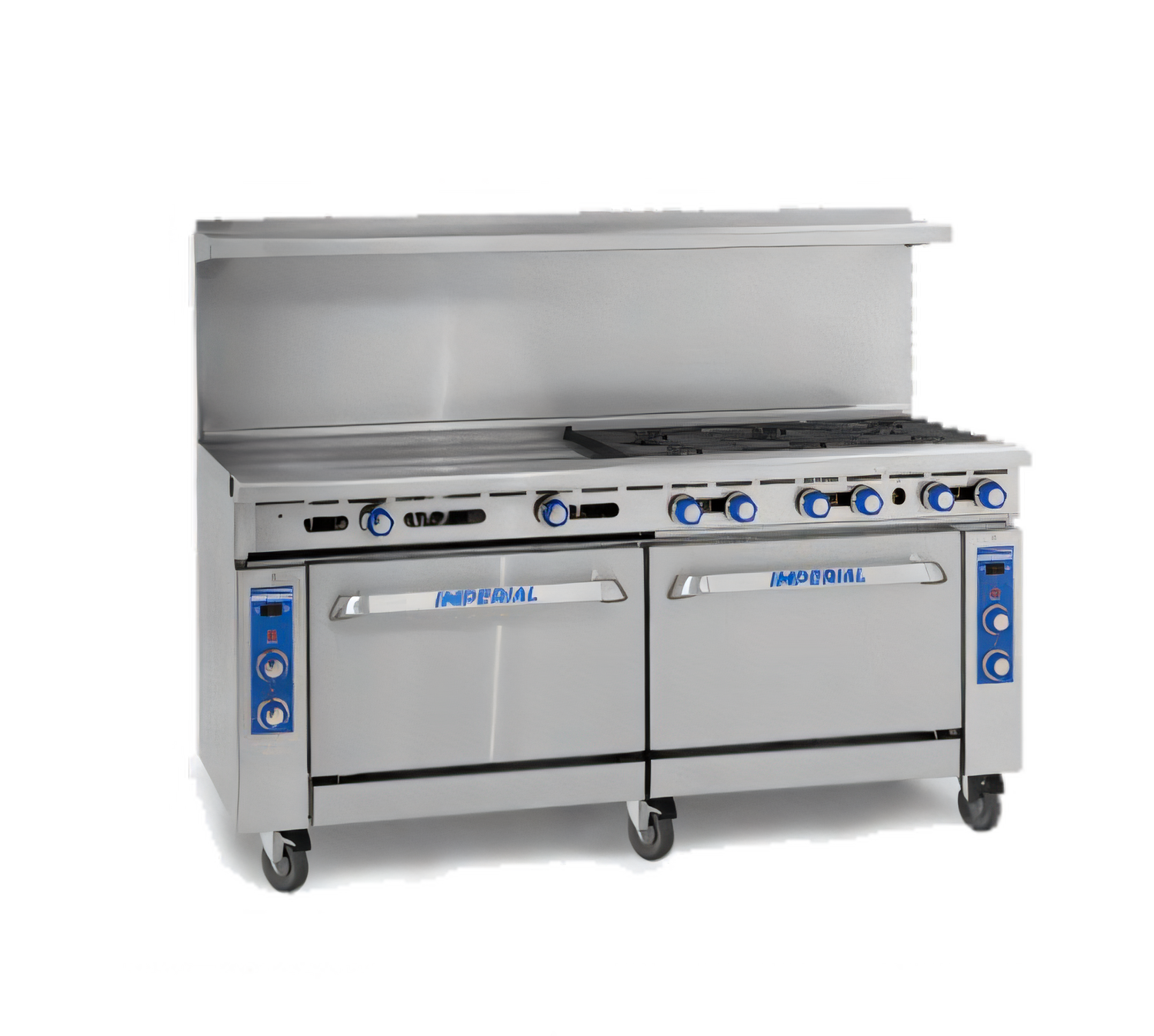

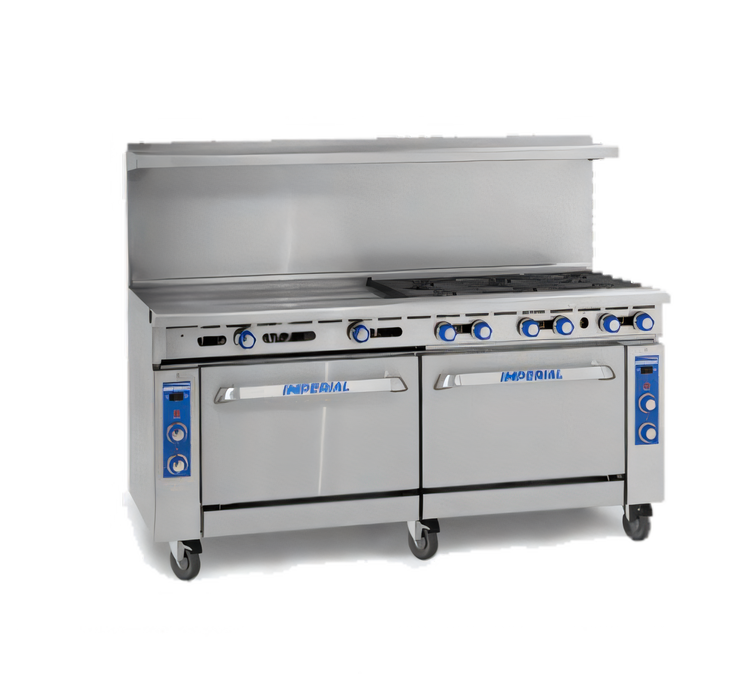

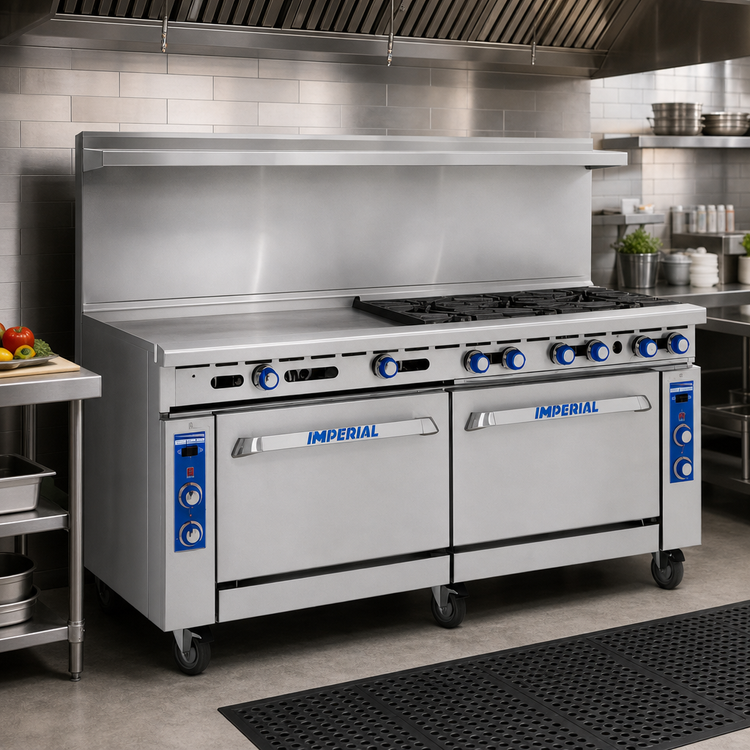

Imperial Pro Series 72" Gas Restaurant Range – 8 Burners, 24" Griddle, Convection & Standard Ovens

Model IR-8-G24-C | 381,000 BTU total output

Replace multiple pieces of equipment with one powerhouse. Imperial’s Pro Series 72" range delivers high-performance open-top cooking, a precision-ground griddle, plus both convection and standard ovens—all in the same rugged, stainless-steel chassis.

Key features

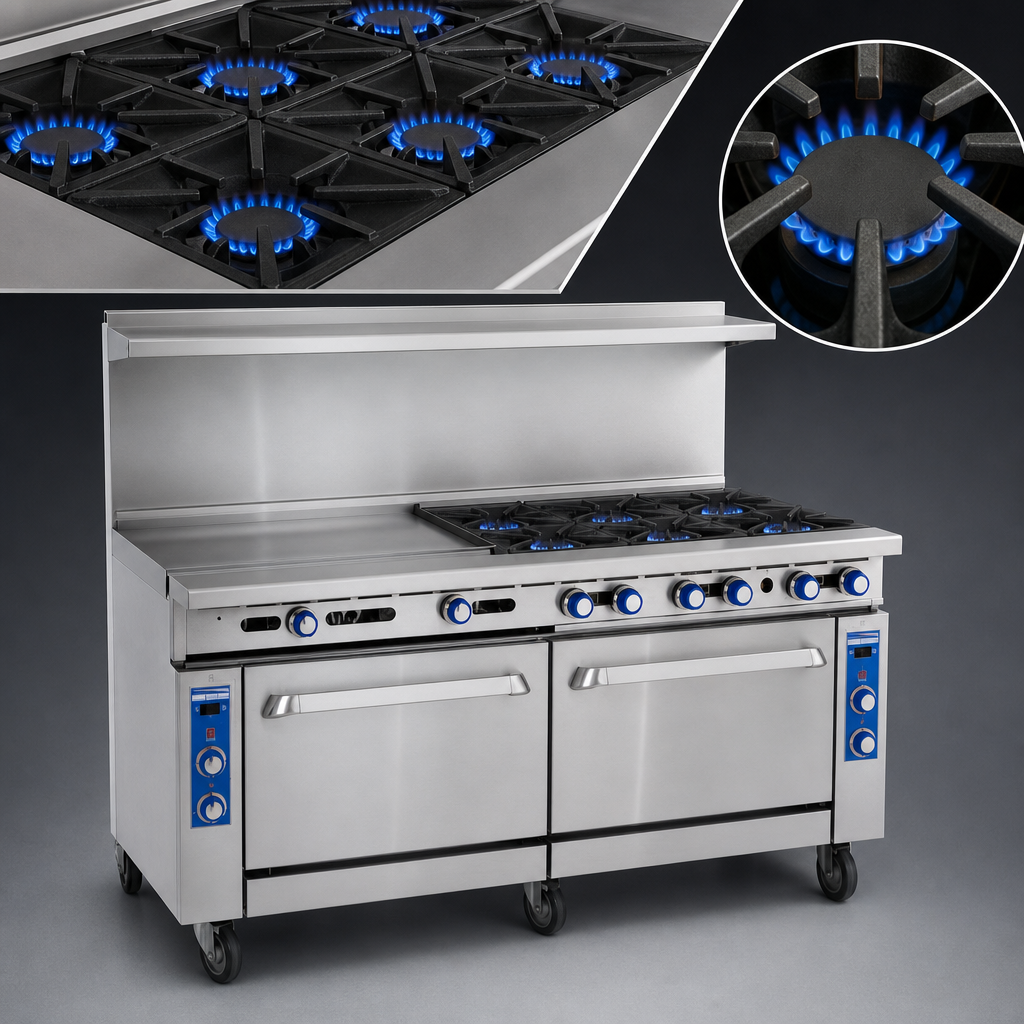

  • Eight 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer setting

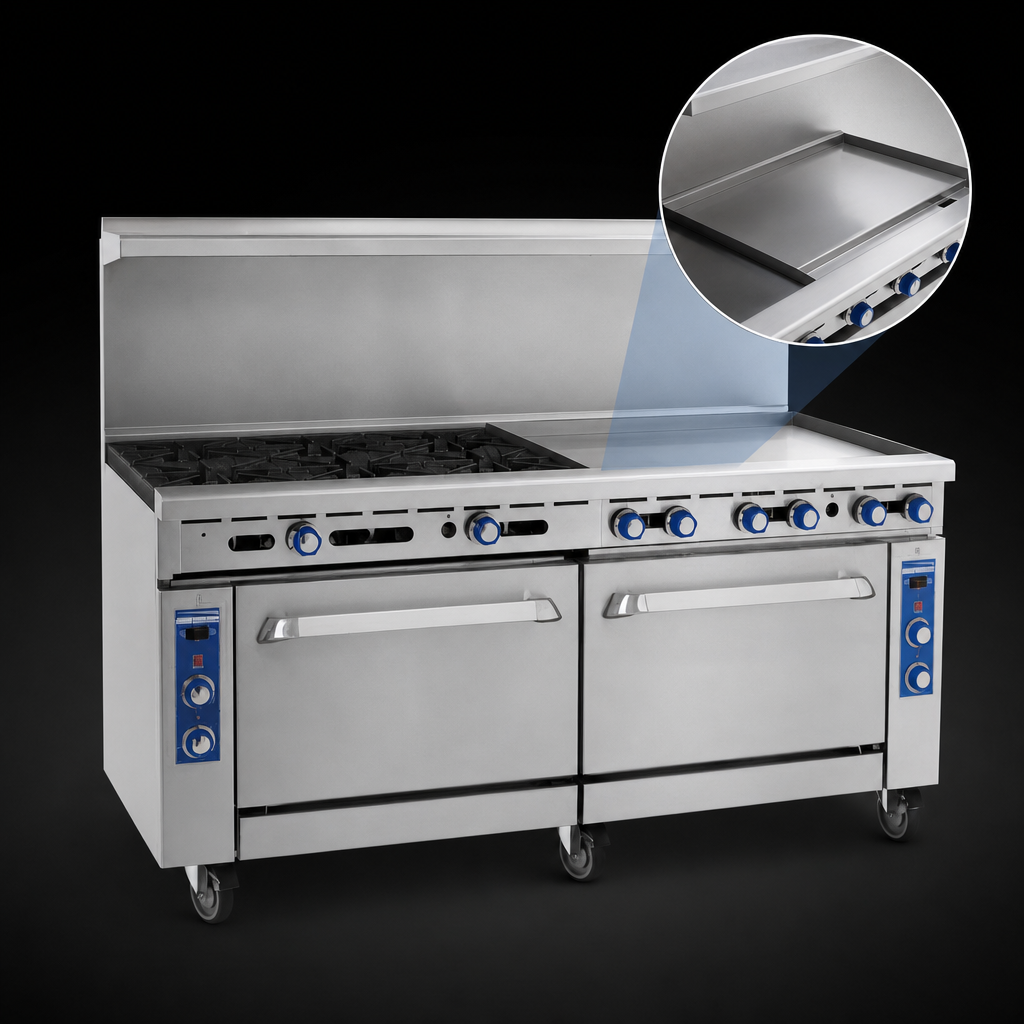

  • 24" (610 mm) griddle with ¾" polished steel plate & 3" grease trough
  • 30,000 BTU convection oven with ½ HP blower, three chrome racks & electronic ignition
  • 35,000 BTU Chef-depth standard oven fits full-size 18" × 26" sheet pans left-to-right or front-to-back
  • Heavy-duty cast-iron top grates—pots slide easily across sections and landing ledge
  • Stainless steel front, sides, backguard, shelf, 3.5" landing ledge & kick plate
  • Full-width removable crumb tray and large griddle grease can
  • Manual controls with durable cast-aluminum knobs
  • 6" adjustable stainless steel legs (casters optional)
  • NSF, CE, CSA Flame & Star certified
Performance you can taste
  • Two rings of flame on every PyroCentric burner create even, edge-to-edge heat for perfect sears and rapid boil times.
  • Heat deflectors under the griddle and inside each oven eliminate hot spots and reduce food shrinkage.
  • Cook / cool-down fan switch—convection fan stops automatically when the door opens.
Specifications
Cooktop configuration 8 open burners + 24" griddle (left)
Overall dimensions 72" W × 31-1/2" D × 56-1/2" H (1829 × 800 × 1435 mm)
Ovens 1 × convection (30,000 BTU, 3 racks) & 1 × standard (35,000 BTU, 1 rack)
Total input 381,000 BTU/hr (112 kW)
Gas connection ¾" NPT; 5" WC Natural or 10" WC LP
Electrical 120 V / 1 φ / 6 A (convection fan)
Convection fan motor ½ HP
Oven interior (convection) 26-1/2" W × 22-1/2" D × 14" H (673 × 572 × 356 mm)
Oven interior (standard) 26-1/2" W × 26" D × 14" H (673 × 660 × 356 mm)
Shipping weight ≈ 1,240 lb (562 kg)
Certifications NSF, CE, CSA Flame, CSA Star
Warranty 1-year parts & labor
What’s in the box
  • (3) chrome racks for convection oven
  • (1) chrome rack for standard oven
  • Removable griddle grease can & crumb tray
  • 6" adjustable legs
  • User & installation manual
Popular options & accessories
  • 6" or 11" stainless steel backguards, stub-back, or high-shelf salamander channels
  • Thermostatic or grooved griddle plate
  • Front-locking caster kit
  • Quick-disconnect & flexible gas hose
  • Extra oven racks, wok rings or specialty burner heads
Installation note: For use on non-combustible floors. Provide 0" clearance to non-combustibles and 8" (203 mm) to combustibles. Legs or casters required unless curb-mounted with a 2" overhang. Always follow local codes.

Need flexible financing? Ask about Middleby Equipment Financing to turn your purchase into easy monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

72.0in

Depth

31.5in

Shipping Weight

1240.0lbs

Top

(8) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) convection oven

Plate Thickness

.750" = 3/4"

Exterior Finish

stainless steel front & sides

Specifications

Pro Series Restaurant Range, gas, 72"W, (8) open burners & pilot lights, low simmer feature, cast iron grates, (1) 24" griddle, 3/4" polished steel plate, 3"W grease trough, removable grease pan & crumb tray, (1) convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, (1) standard oven, porcelain interior, (1) chrome rack, manual controls, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 381,000 BTU, 112kW, NSF, CE, CSA Flame, CSA Star
