Imperial (Middleby) IR-8-E-XB Pro Series Electric Ranges
Description

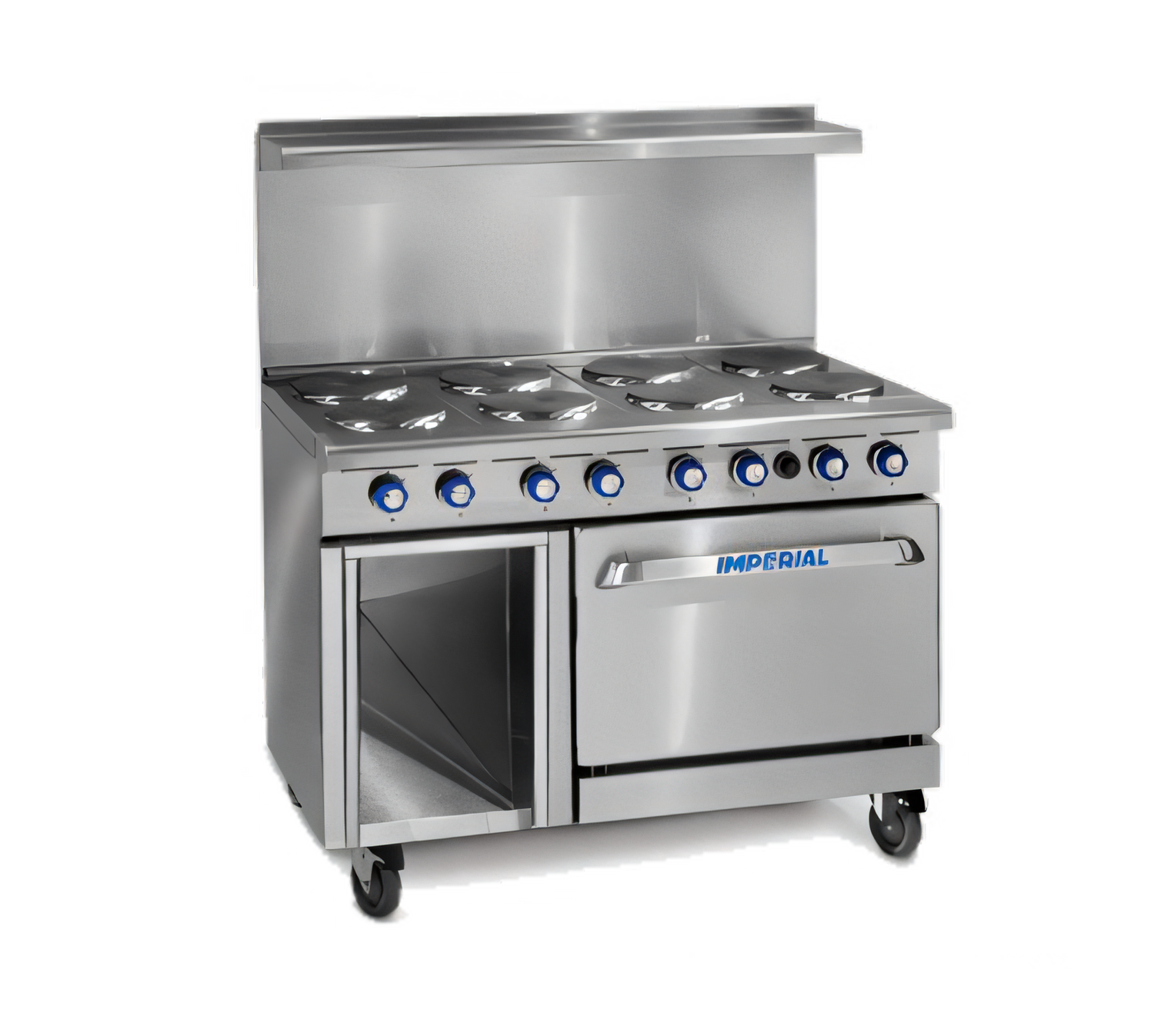

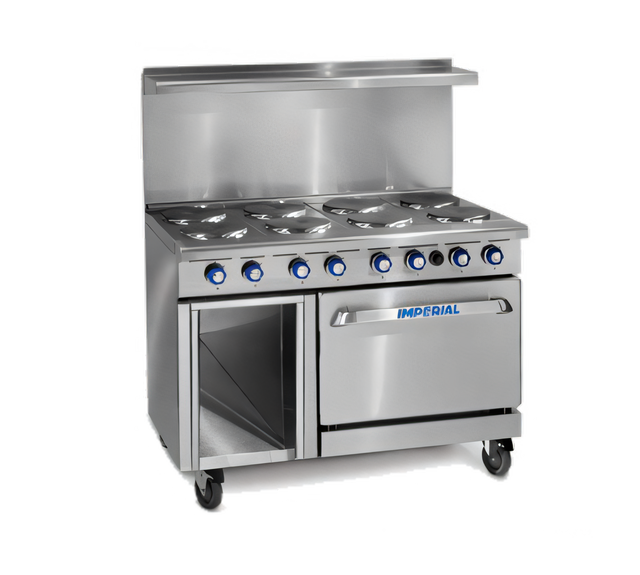

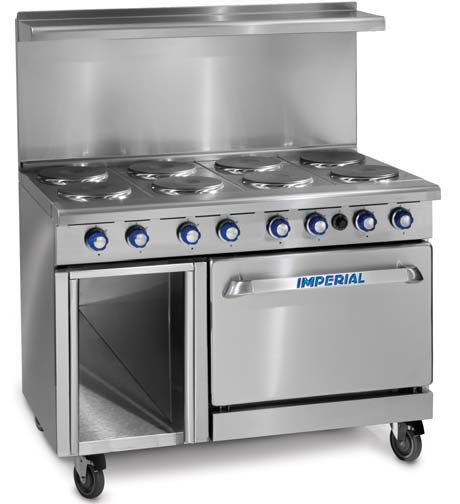

Imperial Pro Series 48" Electric Restaurant Range
Model IR-8-E-XB | 8 Round Elements • 1 Standard Oven • Open Cabinet BaseGive your kitchen the rugged performance of a true workhorse. The Imperial Pro Series 48" range combines eight high-output round plate elements with a full-size electric oven and a convenient open cabinet base—perfect for chefs who need maximum cooking power and flexible under-counter storage in the same footprint.
At a Glance
- (8) 9" (229 mm) sealed round plate elements, 2 kW each
- Flat element surface prevents spills from entering the unit for fast wipe-down cleaning
- Infinite heat controls on each element for precise temperature regulation
- 5.3 kW standard oven with chrome rack & splatter screen
- Oven thermostat range: 150 °F – 500 °F (65 °C – 260 °C)
- Open cabinet base with stainless steel bottom shelf for sheet pans, stock pots & more
- Durable stainless steel front, sides, landing ledge, backguard & kick plate
- Large 5" (127 mm) landing ledge keeps plating and garnish work close at hand
- 6" (152 mm) heavy-duty legs with adjustable feet (optional casters available)
- cETLus, ETL Sanitation & CE listed for worldwide compliance
Oven Performance
A high-density 5.3 kW element teams up with a patented heat-baffling system to distribute temperatures evenly throughout the cavity—no more hot spots or under-baked centers. The porcelainized interior resists corrosion and wipes clean, while a stamped inner door liner locks in heat for outstanding efficiency.
- Cavity size: 26½" W × 26" D × 14" H (673 × 660 × 356 mm)
- Holds two full-size 18" × 26" sheet pans side-by-side or front-to-back
- One chrome rack included; additional racks available
Construction Highlights
- All exterior panels are welded & polished stainless steel—built for the rigors of commercial use
- Cast-aluminum control knobs with Valox™ heat-shield grips keep operators comfortable
- Sealed element tops and removable grease/splatter protection screen simplify daily cleaning
Technical Specifications
| Overall Width | 48" (1219 mm) |
|---|---|
| Overall Depth | 31-1/4" (794 mm) |
| Cooktop Height | 36" (914 mm) |
| Shipping Weight | 640 lb (290 kg) |
| Elements | 8 × 2 kW, 9" sealed round plates (total 16 kW) |
| Oven Element | 5.3 kW |
| Total Connected Load | 21.3 kW |
| Voltage Options* |
208 V / 1 ph (64 A) • 208 V / 3 ph (38 A) 240 V / 1 ph (56 A) • 240 V / 3 ph (33 A) 480 V / 3 ph (17 A) |
| Clearances | 0" sides & rear (non-combustible); 6" to combustibles |
*Specify voltage and phase at time of order.
Certifications & Warranty
- cETLus listed
- ETL-Sanitation certified
- CE compliant
- One-year parts & labor warranty backed by Imperial’s nationwide service network
