Imperial (Middleby)  |  Pro Series  |  SKU: IR-6-XB

Imperial (Middleby) IR-6-XB Pro Series Gas Ranges

$4,532.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Parts manual Training video Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 36" Gas Restaurant Range – 6 Open Burners, Cabinet Base (IR-6-XB)

192,000 BTU | NSF • CE • CSA Flame • CSA Star

Built to excel on the busiest cooklines, Imperial’s Pro Series IR-6-XB combines six powerful PyroCentric™ burners with a heavy-duty stainless cabinet base—giving chefs the high-heat performance they demand and the under-range storage they need. From delicate sauces to stock-pot boils, this all-gas workhorse keeps service moving with rock-solid consistency shift after shift.

Key Performance Features

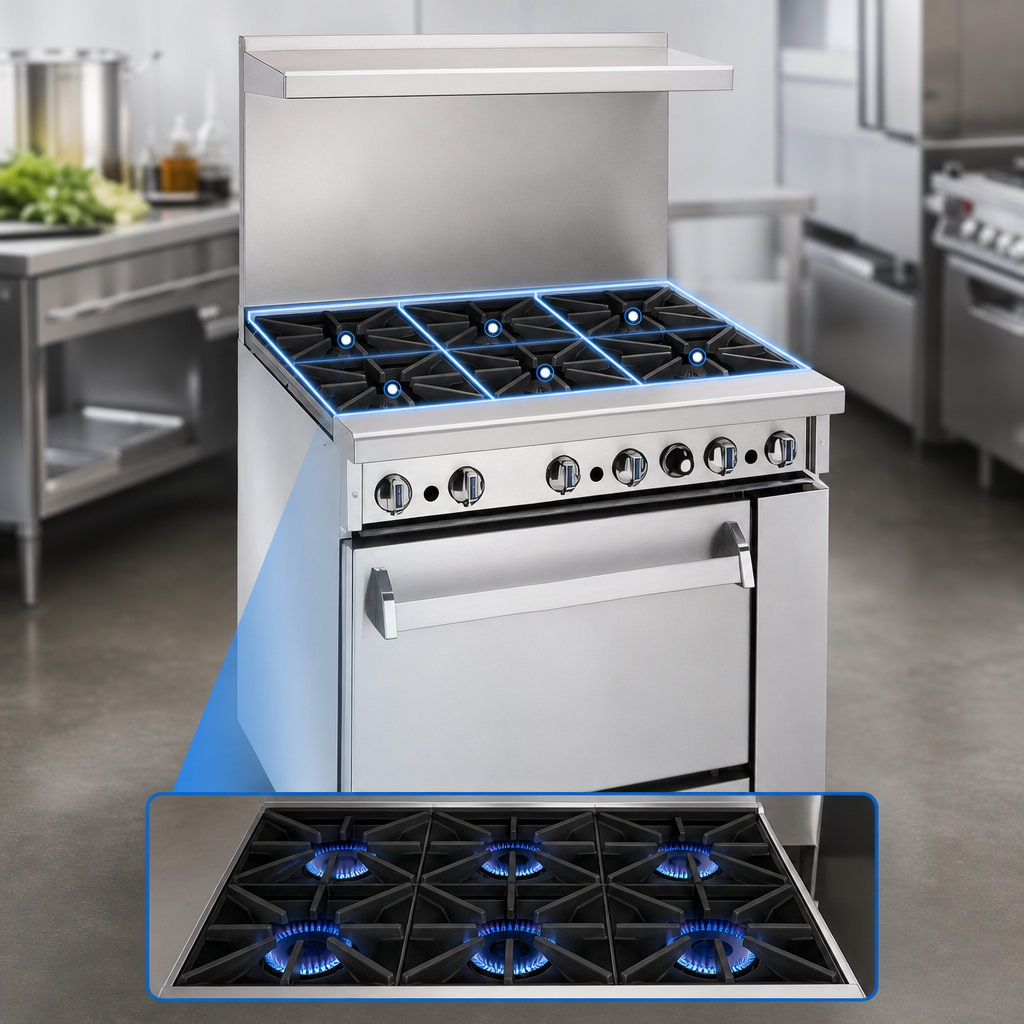

  • (6) 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer setting
  • Total input: 192,000 BTU/hr (56 kW)
  • Anti-clog, lift-off burner heads—no gaskets or screws to slow down cleaning
  • Cast-iron top grates: front 12" × 12"  /  back 12" × 13" with hot-air dam for large stock pots
  • Full-width removable crumb tray catches spills before they hit the floor
  • 3.5" stainless landing ledge for plating and pan staging

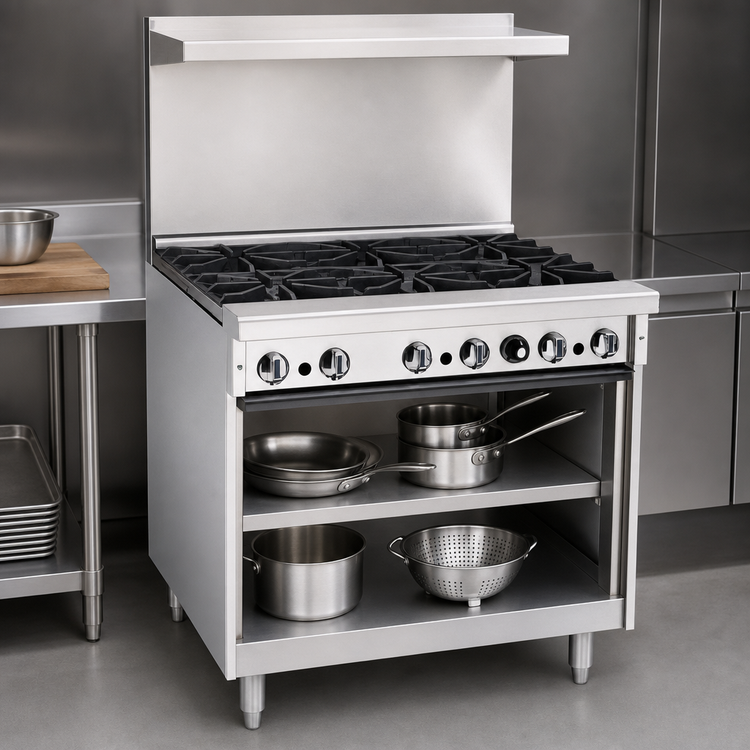

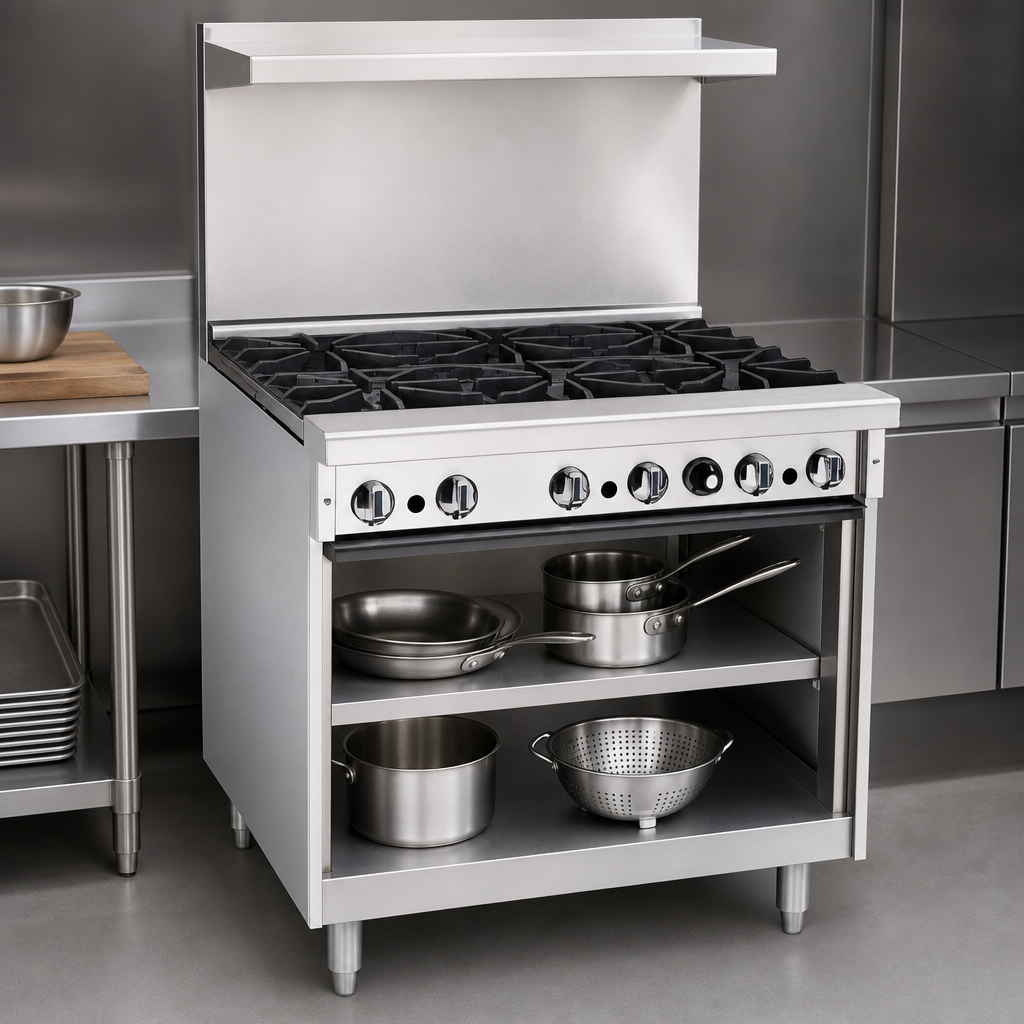

  • Open cabinet base with stainless bottom shelf stores sheet pans & cookware right where you need them
  • All-stainless exterior—front, sides, backguard, landing ledge & kick plate—for long life and easy wipe-downs
  • 6" heavy-duty legs with adjustable feet (swivel casters optional)

Chef-Trusted Burner Technology

  • Dual rings of flame deliver even heat distribution across pan bottoms
  • Standing pilots provide instant ignition—no electric required
  • Precise low simmer keeps delicate sauces from scorching

Specifications

Model IR-6-XB
Cooking width 36" (914 mm)
Overall dimensions 36" W × 31.5" D × 56.5" H (914 × 800 × 1435 mm) with backguard
Open burners (6) 32,000 BTU PyroCentric™
Total input 192,000 BTU/hr (56 kW)
Gas type Natural or Propane (field convertible)
Manifold pressure 5" W.C. Natural / 10" W.C. Propane
Gas connection 3/4" NPT (rear)
Base Open cabinet with stainless shelf
Shipping weight 545 lb (246 kg)
Certifications NSF, CE, CSA Flame, CSA Star
Warranty 1-year parts & labor (factory authorized service)

Popular Factory Options & Accessories

  • 6" or 11" stainless backguard / stubback
  • Swivel casters (front locking)
  • Quick-disconnect gas hose & shut-off valve
  • Wok or sauté burner heads (interchangeable)
  • Cheese melter / salamander mounting channels
Installation note: Legs or casters are required on non-combustible floors; allow 0" clearance to non-combustible surfaces and 8" (203 mm) to combustible surfaces. A licensed gas professional must complete all hookups.

Imperial continually improves products; specifications and options are subject to change without notice.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

36.0in

Depth

31.5in

Shipping Weight

545.0lbs

Base

(1) cabinet

Vent

backriser with hi-shelf

Top

(6) open burners

Exterior Finish

stainless steel front & sides

Specifications

Pro Series Restaurant Range, gas, 36", (6) pen burners, open cabinet base with bottom shelf, removable crumb tray, stainless steel front, sides, backguard, landing ledge & kick plate, 6" legs, adjustable feet, 192,000 BTU, NSF, CE, CSA Flame, CSA Star
