Imperial (Middleby) IR-6-SU-XB Pro Series Gas Ranges
Description
Imperial Pro Series 36" Step-Up Gas Range
6 PyroCentric™ Open Burners | Cabinet Base | 192,000 BTUBuilt for the pace and precision of demanding commercial kitchens, Imperial’s Pro Series step-up range combines high-performance burners with rugged, all-stainless construction—delivering the power you need in a space-saving 36-inch footprint.
Key Features

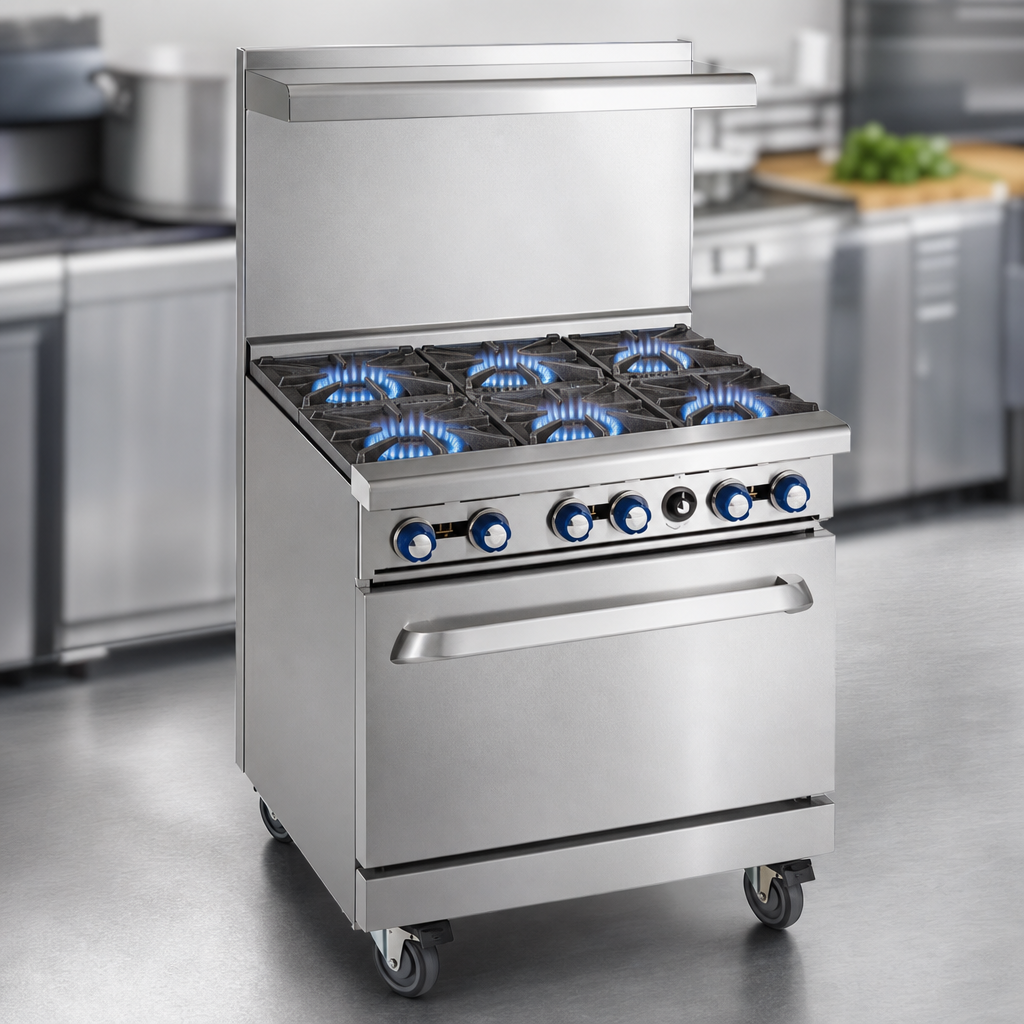

- Six 32,000 BTU PyroCentric™ open burners (3 front, 3 rear step-up) – total input 192,000 BTU.
- Two rings of flame per burner for even heat distribution plus a 7,000 BTU low-simmer setting.

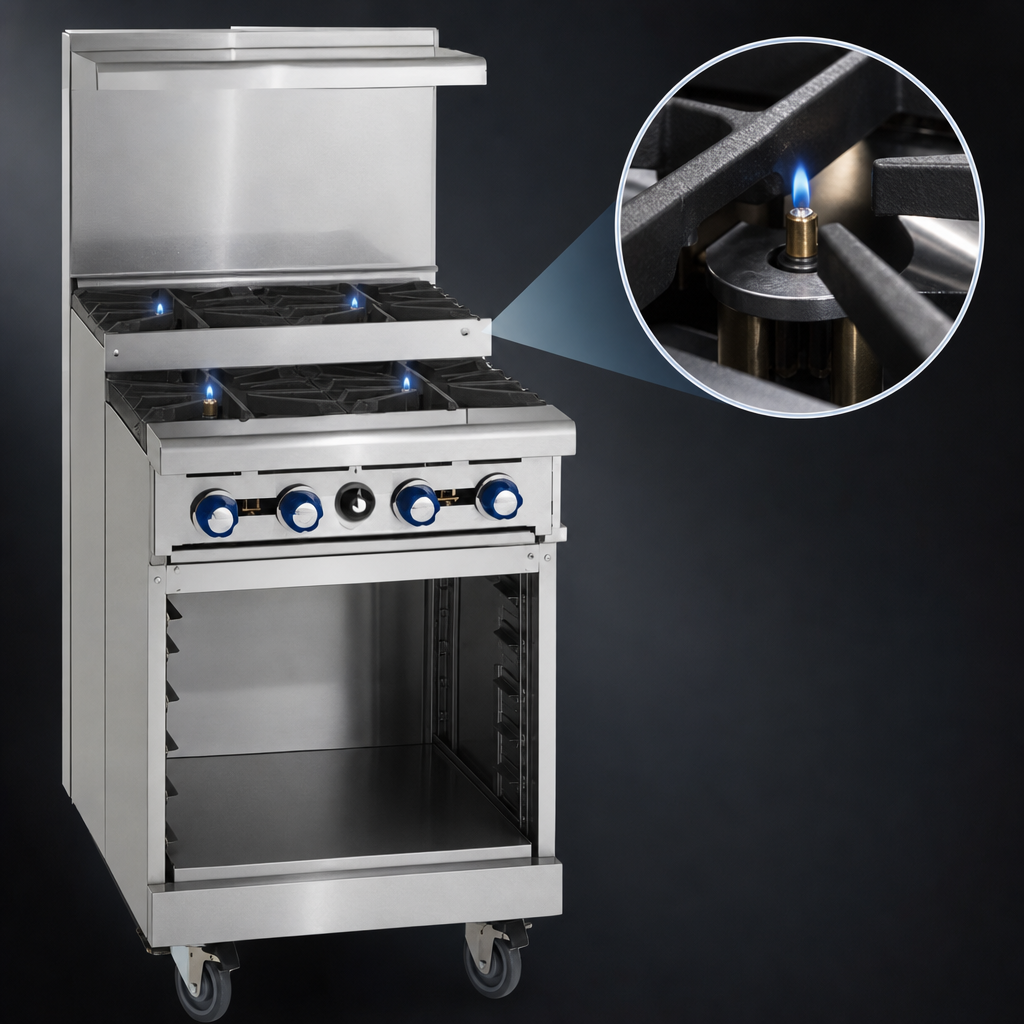

- Individual standing pilots provide instant, reliable ignition for every burner.
- Heavy-duty cast-iron top grates (12" × 12" front / 12" × 13" rear) with hot-air dam for large stock pots.
- All-stainless exterior: front, sides, high backguard, 3.5" landing ledge & kick plate.
- Open cabinet base with reinforced bottom shelf keeps sheet pans, stock pots and smallwares close by.
- Full-width removable crumb tray speeds end-of-shift cleanup.
- 6" adjustable stainless-steel legs make leveling quick and easy.
- NSF, CE, CSA Flame & CSA Star certified.
- Backed by Imperial’s 1-year parts & labor warranty.
At-a-Glance Specs
| Model | IR-6-SU-XB (Cabinet Base) |
|---|---|
| Gas Type | Natural or Propane |
| Total Input | 192,000 BTU/hr • 56 kW |
| Open Burners | 6 × 32,000 BTU PyroCentric™ with 7,000 BTU simmer ring |
| Manifold Pressure | 5" W.C. Natural / 10" W.C. LP |
| Gas Connection | 3/4" NPT (rear) |
| Width | 36" (914 mm) |
| Depth | 31-1/2" (800 mm) |
| Overall Height | 56-1/2" (1 435 mm) with backguard |
| Working Height | 36" (914 mm) to cook surface |
| Shipping Weight | ≈ 545 lb (246 kg) |
| Clearances | 0" sides/rear to non-combustible • 8" (203 mm) to combustibles |
| Country of Origin | USA – Corona, CA |
Optional Accessories
- 6" or 11" stainless-steel backguards
- Interchangeable sauté or wok burner heads
- 10" stainless-steel wok ring
- Reinforcement channels for salamander or cheese melter
- Factory-installed 6" casters
- 3/4" gas shut-off valve, quick-disconnect & flexible hose kit
