Imperial (Middleby) IR-6-SU Pro Series Gas Ranges
Description
Imperial Pro Series IR-6-SU 36" Step-Up Gas Restaurant Range
Six PyroCentric™ open burners + Space-Saver standard oven • 227,000 BTUBuilt for the busiest cooklines, the Imperial IR-6-SU combines blistering burner power with a rugged, all-stainless chassis that stands up to daily abuse. Three front burners handle sauté pans while the elevated rear row keeps stockpots within reach yet off the front rail. Underneath, a porcelain-lined oven bakes, roasts and holds with even, reliable heat.
Key Benefits
- Six 32,000 BTU PyroCentric™ burners with a 7,000 BTU low-simmer setting
- Total output: 227,000 BTU for rapid boil, sear and recovery
- 20" Space-Saver oven (27,000 BTU) with porcelain interior and chrome rack
- Step-up rear grate design maximizes usable space and visibility
- Full-width removable crumb tray and 3.5" stainless landing ledge speed clean-up
- Welded stainless front, sides, backguard & kick plate resist corrosion
- 6" heavy-duty legs with adjustable feet; optional caster kit available
- NSF, CE, CSA Star & Flame approved • 1-year parts & labor warranty

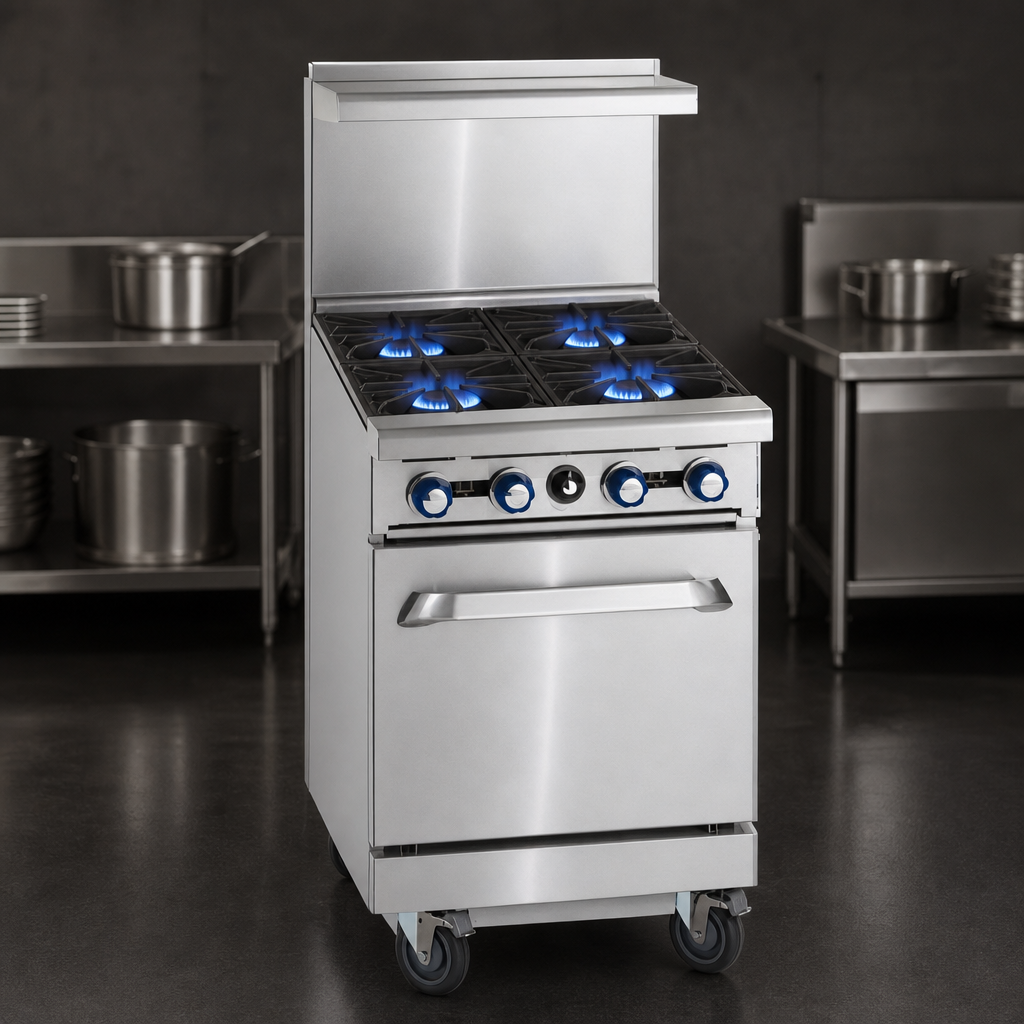

Burner Excellence
- Two rings of flame encircle each PyroCentric™ cap for edge-to-edge heat
- Anti-clog, lift-off heads—no screws or gaskets to lose during nightly cleaning

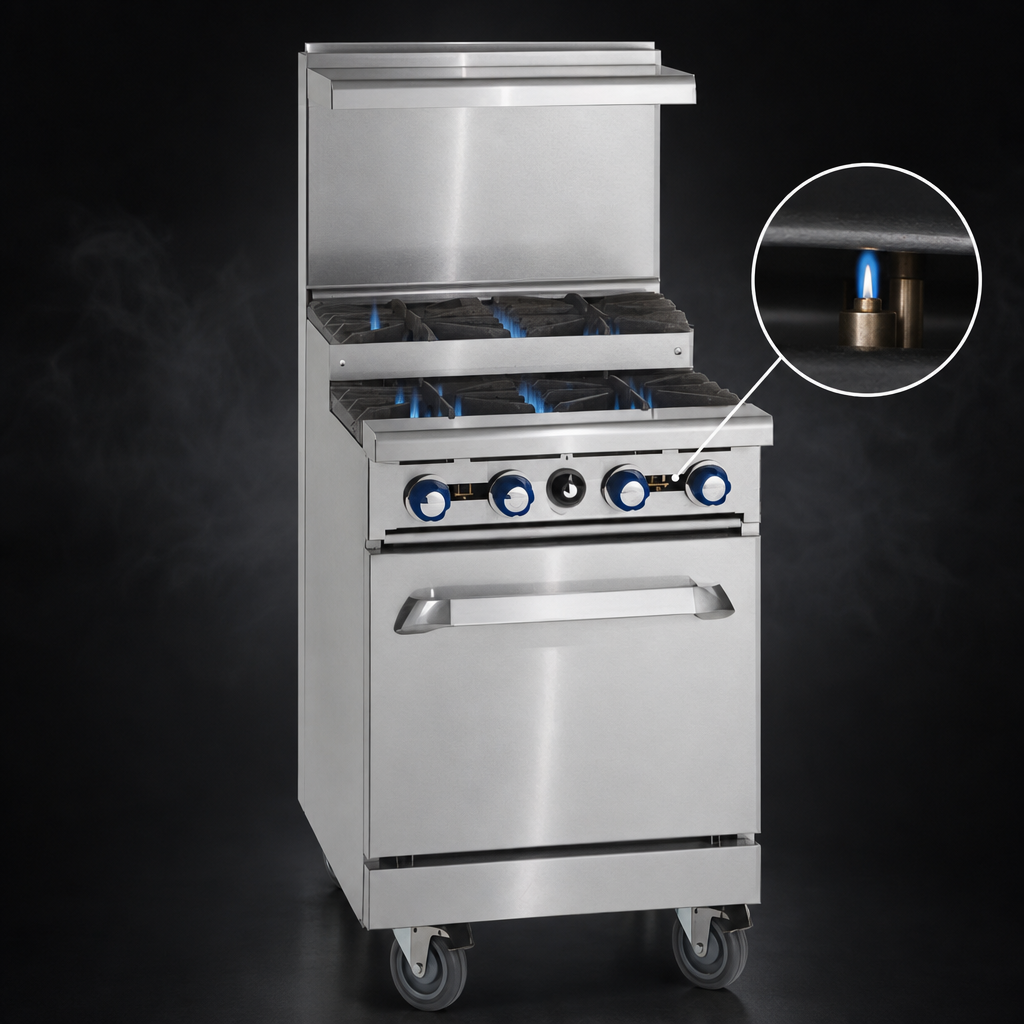

- Individual standing pilots for instant ignition on every burner
- Cast-iron grates (12" × 12" front / 12" × 13" rear) let pots glide smoothly across the top
Space-Saver Standard Oven
- Interior: 20" W × 26" D × 14" H (508 × 660 × 356 mm) fits 18" × 26" sheet pans front-to-back
- Linear burner & heat deflector ensure even temperatures throughout the cavity
- Porcelainized sides, deck and door liner wipe clean in seconds
- Heavy-duty door hinges and stamped inner liner deliver years of dependable use
Durability Where It Counts
- Welded & polished stainless seams for a professional, sanitary finish
- Cast-aluminum gas valves with positive-action knobs for precise flame control
- Reinforcement channels ready for optional salamander or cheese melter
Specifications
| Model | IR-6-SU (Step-Up Range) |
|---|---|
| Exterior width | 36" (914 mm) |
| Exterior depth | 31-1/2" (800 mm) |
| Height (to top of backguard) | 56-1/2" (1,435 mm) |
| Total BTU | 227,000 BTU (67 kW) |
| Open burners | 6 × 32,000 BTU (with 7,000 BTU simmer cap) |
| Oven burner | 27,000 BTU (8 kW) |
| Oven interior (W × D × H) | 20" × 26" × 14" (508 × 660 × 356 mm) |
| Rack positions / racks supplied | Multiple / 1 chrome rack |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | 5.0" W.C. Natural • 10.0" W.C. LP |
| Shipping weight | 605 lb (274 kg) |
| Certifications | NSF, CE, CSA Star & Flame |
| Warranty | 1-year parts & labor |
