Key specifications

BTU
222,000 BTU
Amps
6 Amps
Phase
1-Phase
Dimensions
36.0"W × 31.5"D × 56.5"H
Type
Restaurant Range
Style
Step-Up
Spec sheet
Imperial SKU: IR-6-SU-C

Imperial Pro Series IR-6-SU-C 36-Inch 6-Burner Step-Up Range

$12,833.00
/each
Estimated to ship in 16–19 business days
Base Style
Gas typeRequired
Backguard height
Support
Gas Connector
Included: Imperial warranty One year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,187/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style Step-Up
Installation Type Floor Model
Material Stainless Steel
Open Burner Count 6
Burner Ignition Type Standing Pilot
Oven Type Convection
Oven Rack Count 3
Interior Finish Porcelain
BTU 222,000 BTU
Blower Motor 1/2 HP
Controls Electronic Ignition, Timer
Voltage 120 Volts
Amps 6 Amps
Phase 1-Phase
Leg Height 6 in
Landing Ledge Depth 3.5 in

Description

Imperial Pro Series IR-6-SU-C is a 36-inch gas restaurant range with three open burners, three step-up open burners, and one convection oven.

  • The convection oven includes a 1/2 HP blower motor and three chrome racks.
  • Stainless steel front, sides, backguard, 3-1/2-inch landing ledge, and kick plate.
  • Porcelain oven interior, removable crumb tray, and round stainless steel chef's handle.
  • Six-inch legs with adjustable feet provide the floor-model base.
  • The convection oven electrical requirement is 120 Volts, 1-Phase, and 6 Amps.

Overall Dimensions:

36.0"W x 31.5"D x 56.5"H

Product Weight:

665.0 lb

Six Open Burners

The top has three open burners and three step-up open burners, each with a standing pilot light.

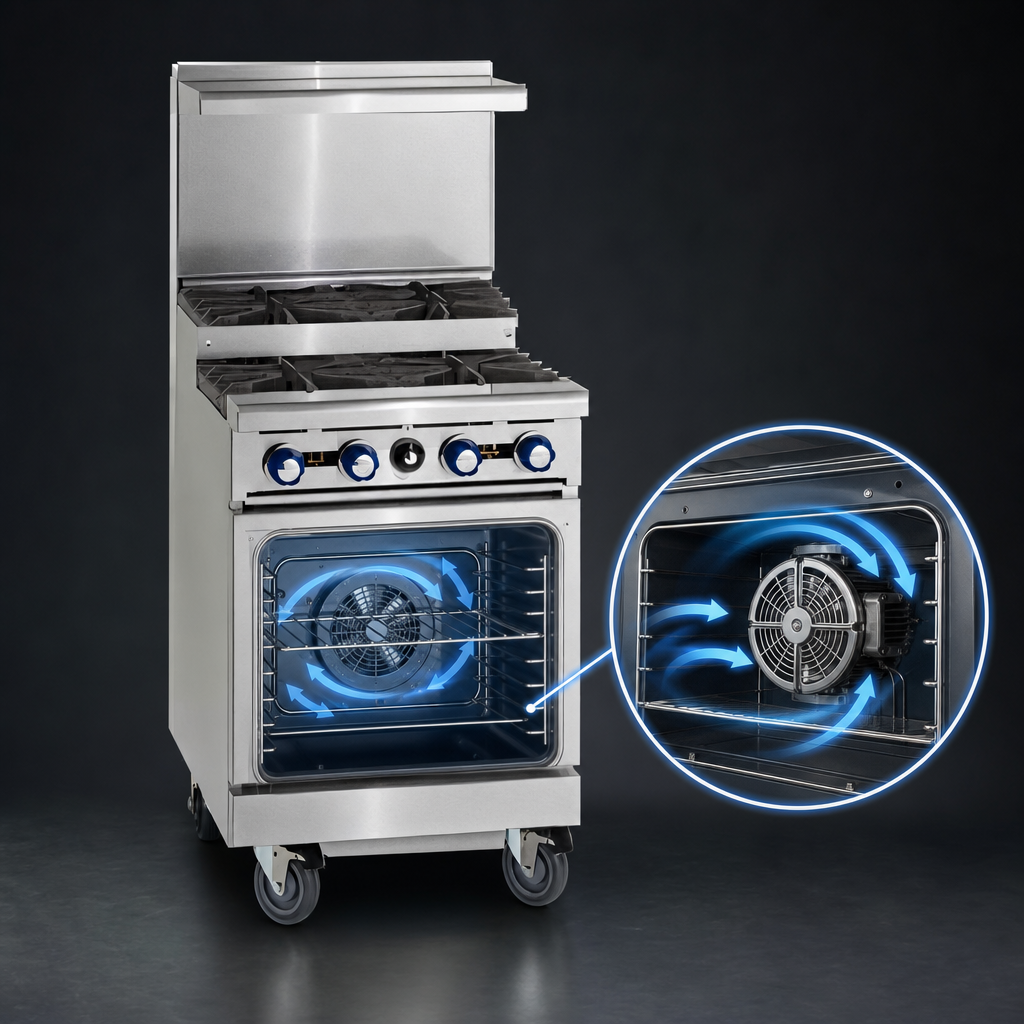

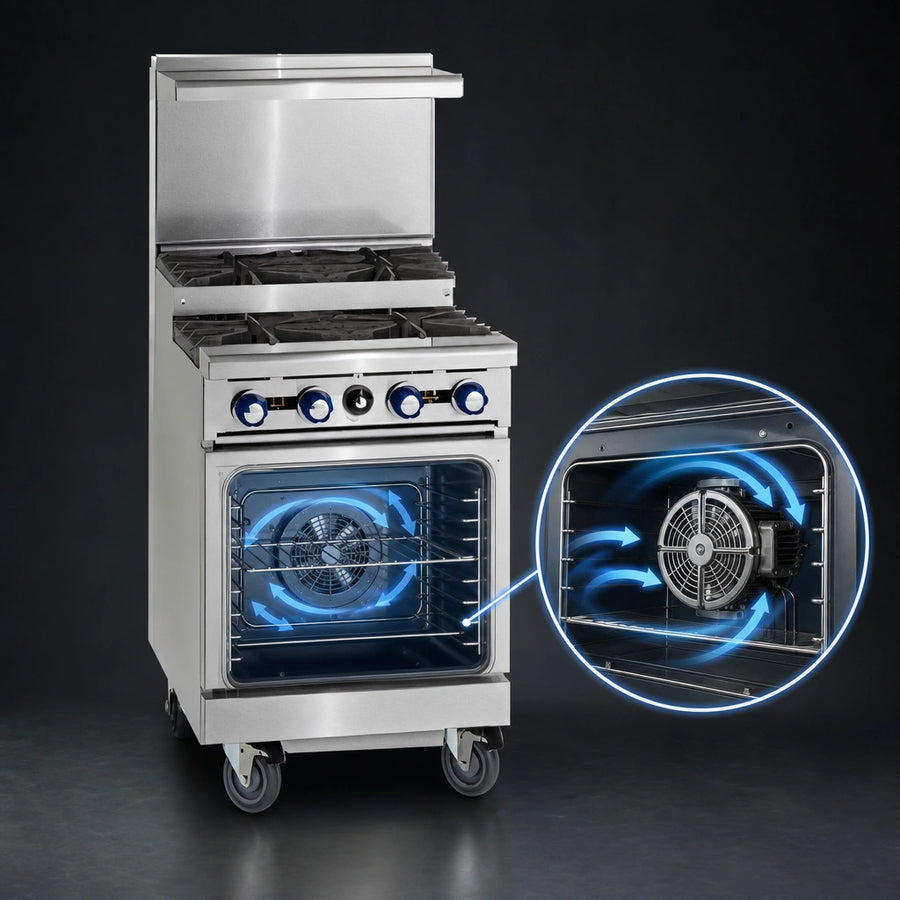

Convection Oven

Includes one convection oven with a 1/2 HP blower motor, electronic ignition, electronic timer countdown, and three chrome racks.

Porcelain Interior

The oven has a porcelain interior.

Stainless Steel Exterior

The front, sides, backguard, landing ledge, and kick plate are stainless steel.

Removable Crumb Tray

A full-width removable crumb tray is located under the open burners.

Adjustable Feet

The range has six-inch legs with adjustable feet.

Chef's Handle

The oven uses a round stainless steel chef's handle.

Three-Position Oven Switch

The convection oven has a three-position switch for cooking or cool down.

Frequently Asked Questions

It has six open burners: three open burners and three step-up open burners, with standing pilot lights.
Yes. The IR-6-SU-C includes one convection oven with a 1/2 HP blower motor and three chrome racks.
The range is 36 inches wide, 31.5 inches deep, and 56.5 inches high.
The convection oven requires 120 Volts, 1-Phase, and 6 Amps.
The gas output is 222,000 BTU.
