Key specifications

BTU
292,000 BTU
Amps
6 Amps
Phase
1-Phase
Dimensions
60.0"W × 31.5"D × 56.5"H
Type
Range
Style
Raised Griddle
Spec sheet
Imperial SKU: IR-6-RG24-CC

Imperial Pro Series IR-6-RG24-CC 60-Inch Gas Range, 6 Burners

$19,953.00
/each
Estimated to ship in 16–19 business days
Burner and griddle layout
Oven configuration
Gas typeRequired
Electrical120 V
Griddle control
Griddle plate
Gas Connector

Need something else? Contact us.

Included: Imperial warranty One-year parts and labor warranty, subject to Imperial's warranty terms

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,846/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Raised Griddle
Installation Type Floor Model
Material Stainless Steel
Burner Count 6
Burner Type Open Burners
Griddle Size 24 Inches
Plate Thickness 0.75 Inches
Oven Count 2
Oven Type Convection
Controls Manual
Interior Finish Porcelain
Rack Count 3 Per Oven
Rack Finish Chrome
Grease Trough Width 3 Inches
Blower Motor 1/2 HP Per Oven
Leg Height 6 Inches
Landing Ledge Depth 3.5 Inches
BTU 292,000 BTU
Voltage 120 Volts
Amps 6 Amps
Phase 1-Phase

Description

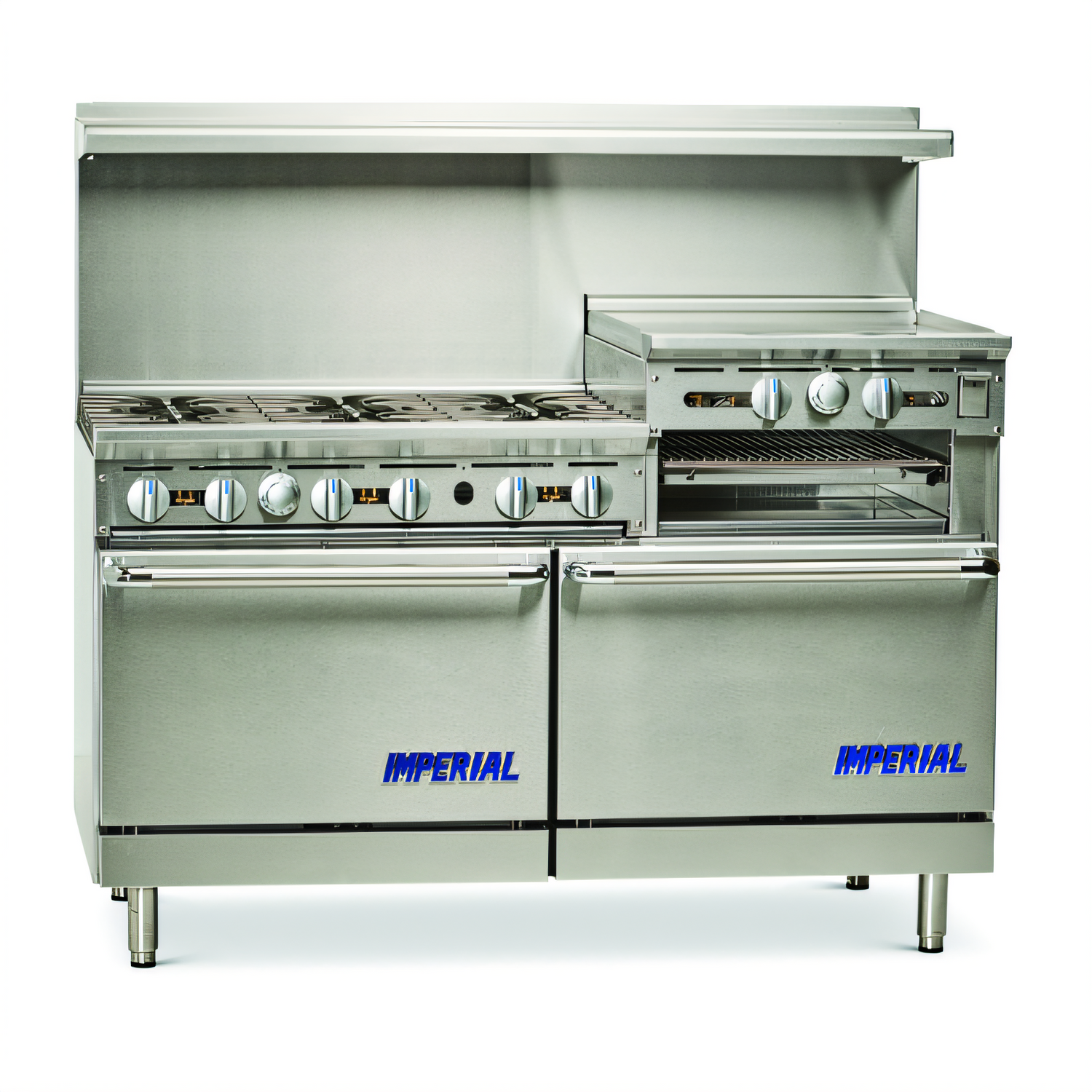

The Imperial Pro Series IR-6-RG24-CC is a 60-inch gas range with six open burners, a 24-inch raised griddle/broiler, and two convection ovens.

  • Open burners: Six burners include pilot lights and a low simmer feature.
  • Raised griddle/broiler: The 24-inch section has a 3/4-inch polished steel plate and a 3-inch grease trough.
  • Convection ovens: Two ovens each have a 1/2 HP blower motor, porcelain interior, and three chrome racks.
  • Construction: Stainless steel front, sides, backguard, shelf, landing ledge, and kick plate with 6-inch legs and adjustable feet.
  • Controls and output: Manual controls and 292,000 BTU gas output.

The product is listed with CE, CSA Flame, CSA Star, and NSF certifications.

Overall Dimensions:

60.0"W x 31.5"D x 56.5"H

Product Weight:

1195.0 lb

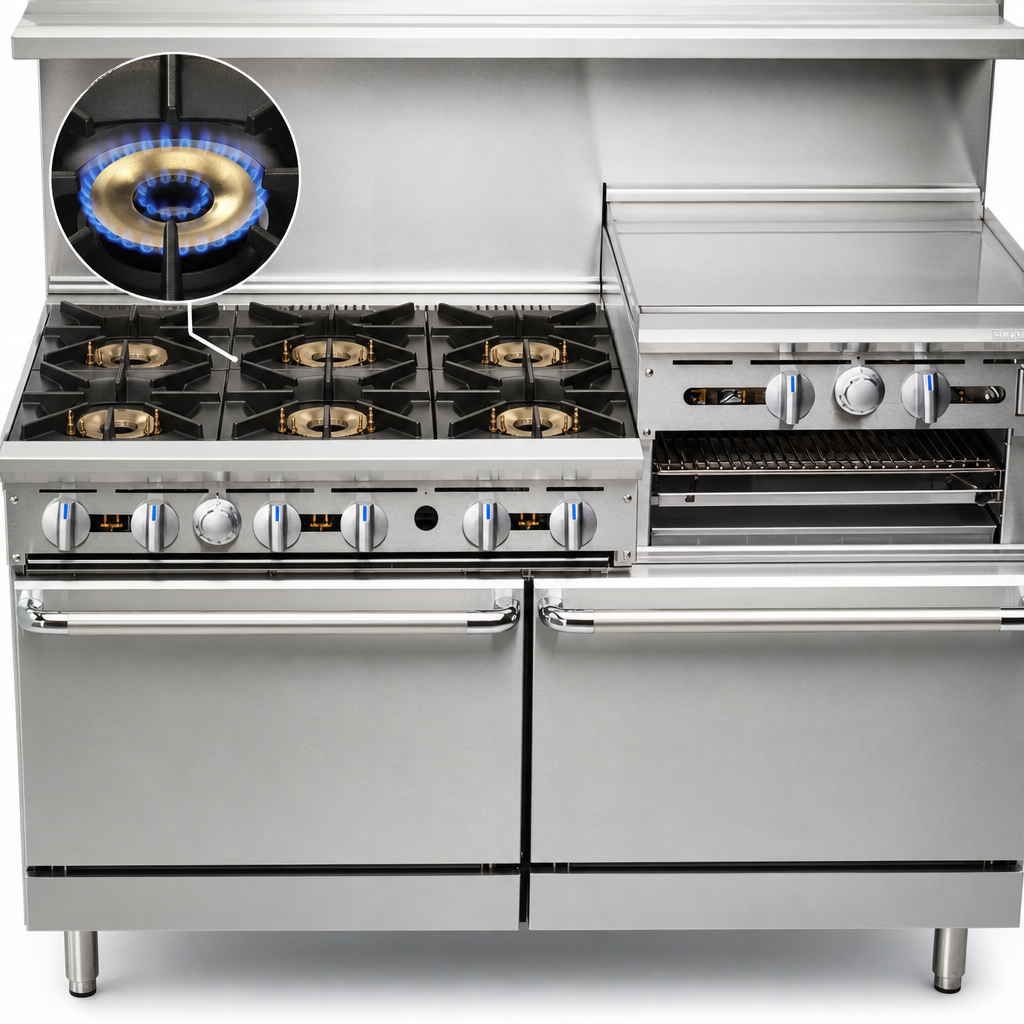

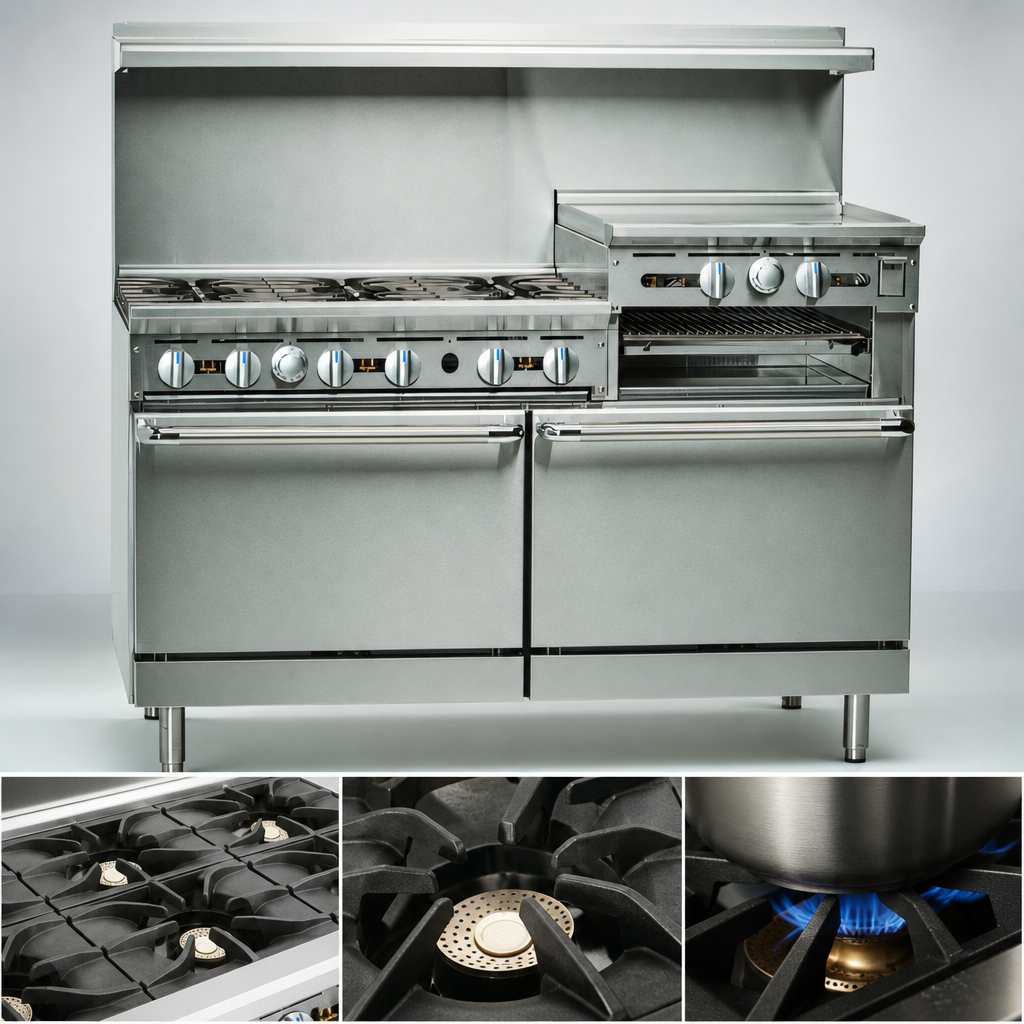

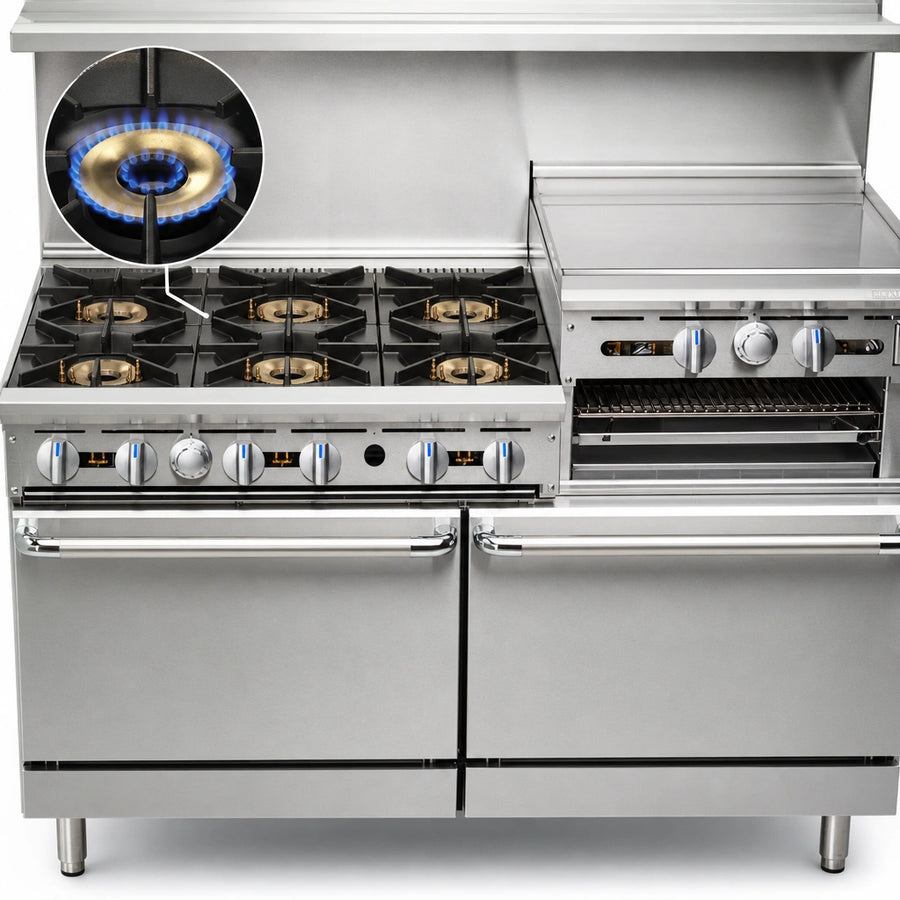

Open Burners

Six open burners with pilot lights and a low simmer feature.

Raised Griddle/Broiler

A 24-inch raised griddle/broiler with a 3/4-inch polished steel plate and 3-inch grease trough.

Convection Ovens

Two convection ovens with a 1/2 HP blower motor, porcelain interior, and three chrome racks per oven.

Stainless Steel Exterior

Stainless steel front, sides, backguard, shelf, landing ledge, and kick plate.

Manual Controls

Manual controls for the range.

Adjustable Legs

6-inch legs with adjustable feet.

Gas Output

292,000 BTU total gas output.

Frequently Asked Questions

It has six open burners with pilot lights and a low simmer feature.
Yes. It includes a 24-inch raised griddle/broiler with a 3/4-inch polished steel plate and a 3-inch grease trough.
The range includes two convection ovens, each with a 1/2 HP blower motor, porcelain interior, and three chrome racks.
The range is 60 inches wide, 31.5 inches deep, and 56.5 inches high.
The total gas output is 292,000 BTU.
The convection oven electrical requirement is 120 volts, 1-phase, and 6 amps.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
