Imperial (Middleby) IR-6-G36-XB Pro Series Gas Ranges
$12,805.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Imperial (Middleby) IR-6-G36-XB Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IR-6-G36-XB Pro Series Gas Ranges
$12,805.00
Unit price
/
Unavailable
Description
Imperial Pro Series 72" Gas Restaurant Range – 6 Burners, 36" Griddle & Oven (Model IR-6-G36-XB)
287,000 BTU | Manual controls | NSF, CE, CSA Flame & StarPurpose-built for high-volume kitchens, the Imperial IR-6-G36-XB combines six open burners, a full-span 36-inch griddle, a Chef-Depth standard oven and a convenient open cabinet base – all in one rock-solid 72-inch platform.
Performance that powers your line

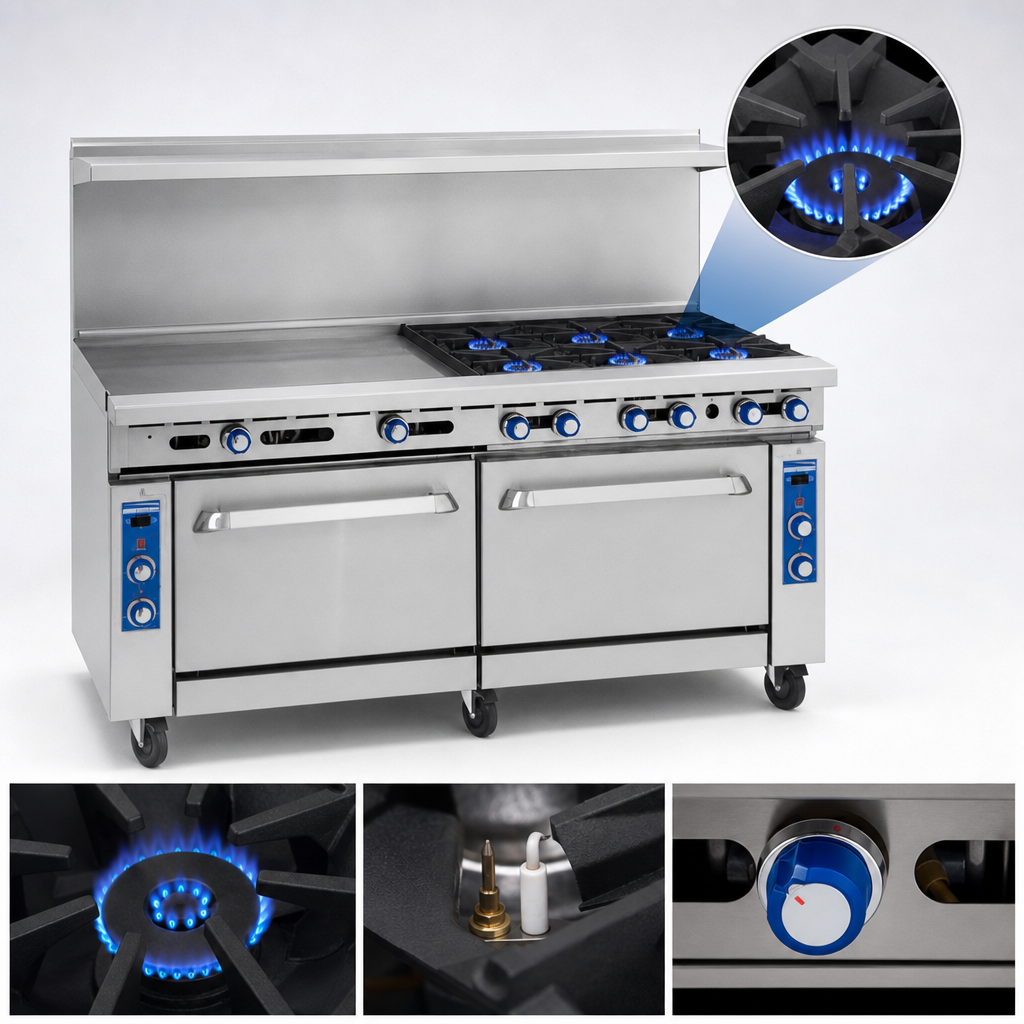

- Six PyroCentric™ open burners deliver 32,000 BTU each with a 7,000 BTU low-simmer setting for delicate sauces.
- Standing pilots provide instant ignition; cast-iron, lift-off heads resist clogging and clean quickly – no gaskets or screws.

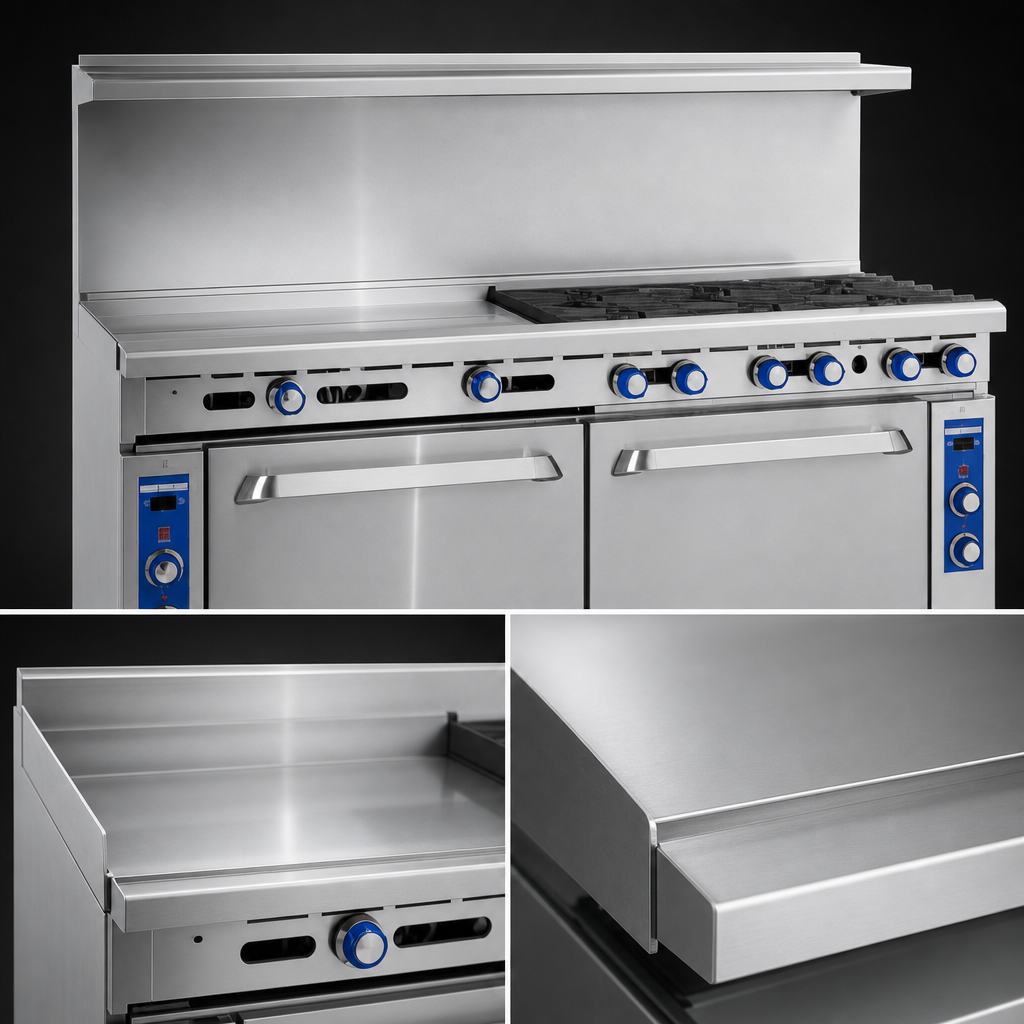

- 36" x 21" highly-polished, ¾" thick steel griddle heated by three 20,000 BTU burners with deflectors every 12" for even heat.
- 3" grease trough, oversized removable grease can and full-width crumb tray speed end-of-shift clean-up.
- 35,000 BTU Chef-Depth oven fits 18" × 26" sheet pans left-to-right or front-to-back; porcelain-coated interior wipes clean.
Built for the rush
- All-stainless steel front, sides, backguard, high-shelf, 3½" landing ledge & kick plate with welded, polished seams.
- Heavy-duty cast-iron top grates (front 12" × 12", rear 12" × 13") allow pots to slide easily from section to section.
- Open cabinet base with stainless bottom shelf keeps hotel pans, stock pots and sheet trays close at hand.
- Durable cast-aluminum control knobs and positive-feel manual gas valves – no electronic components to fail.
- 6" adjustable legs level the unit on uneven floors; optional caster kit makes it roll-out easy for deep cleaning.
Specifications
| Model | IR-6-G36-XB |
|---|---|
| Overall width | 72" (1829 mm) |
| Overall depth | 31½" (800 mm) |
| Overall height (to flue) | 56½" (1435 mm) |
| Open burners | (6) × 32,000 BTU PyroCentric™ with low simmer |
| Griddle | 36" W × 21" D, ¾" plate, (3) × 20,000 BTU burners |
| Oven | Standard, 26½" W × 26" D × 14" H, 35,000 BTU; (1) chrome rack |
| Total gas input | 287,000 BTU/hr (84 kW) |
| Gas connection | ¾" NPT; 5" W.C. Natural / 10" W.C. Propane |
| Ship weight | Approx. 1,145 lb (518 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Clearances: 0" from non-combustible surfaces; 8" (203 mm) from combustible. Legs or casters are required on non-combustible floors.
Popular options & accessories
- 6" or 11" stainless backguards, or stubback
- Reinforced channels for salamander or cheese melter
- Thermostatic or grooved griddle plate
- Wok, sauté or high-output burner heads
- ¾" gas shut-off valve, quick-disconnect hose & 6" locking casters
- Additional chrome oven racks
Gas notice: Installation must be completed by a qualified technician and comply with all local codes. Regulator and shut-off valve are required and not supplied.
Ask about Middleby Equipment Financing for low, fixed monthly payments.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Brand_name
Pro Series
Certifications
NSF, CE, CSA Star, CSA Flame
Height
56.5in
Width
72.0in
Depth
31.5in
Shipping Weight
1145.0lbs
Base
(1) standard oven, (1) cabinet
Vent
backriser with hi-shelf
Top
(6) open burners, (1) 36" griddle
Exterior Finish
stainless steel front & sides
Plate Thickness
.750" = 3/4"
Specifications
Pro Series Restaurant Range, gas, 72"W, (6) open burners & pilot lights, low simmer feature, cast iron grates, (1) 36" griddle, 3/4" polished steel plate, 3"W grease trough, removable grease pan & crumb tray, (1) standard oven, porcelain interior, (1) chrome rack, manual controls, (1) open cabinet base with bottom shelf, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 287,000 BTU, 84kW, NSF, CE, CSA Flame, CSA Star
