Imperial (Middleby) IR-6-G12-XB Pro Series Gas Ranges
Imperial (Middleby) IR-6-G12-XB Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

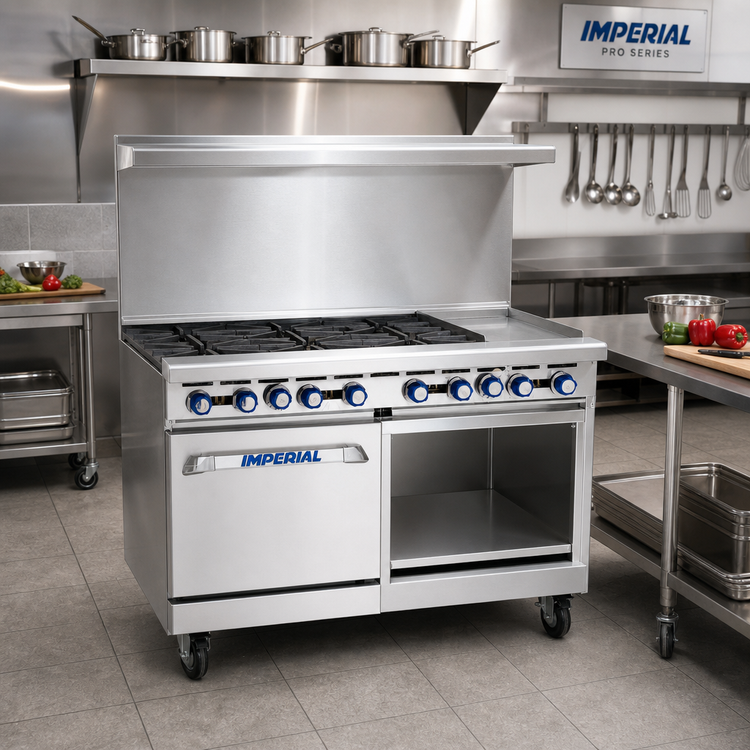

Imperial Pro Series 48″ Gas Restaurant Range
6 Open Burners • 12″ Griddle • Standard Oven & Cabinet Base • 247,000 BTUBuilt for the high-volume demands of modern food-service operations, the Imperial Pro Series IR-6-G12 combines intense fire-power and rock-solid construction in a single, 48-inch footprint. Sauté, grill and bake at the same time—without crowding your cookline.
Why This Range Rocks

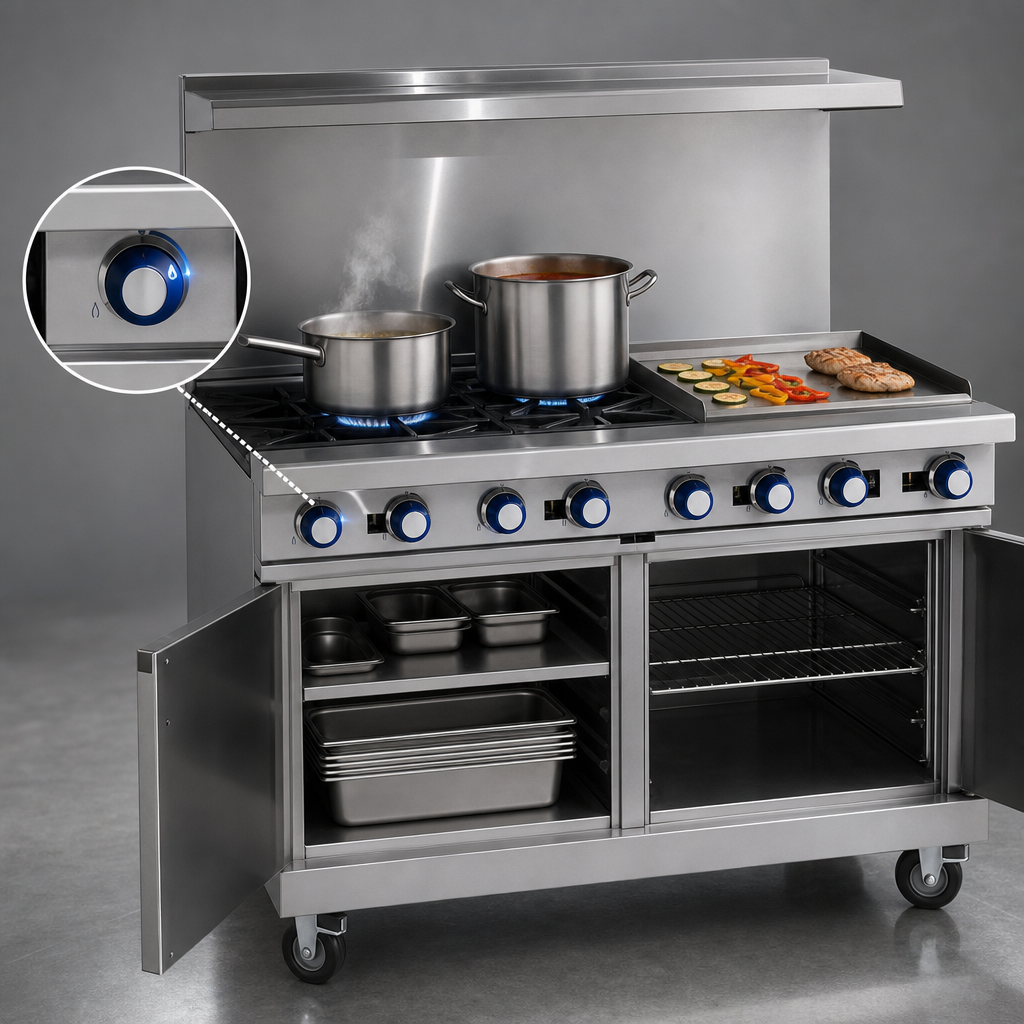

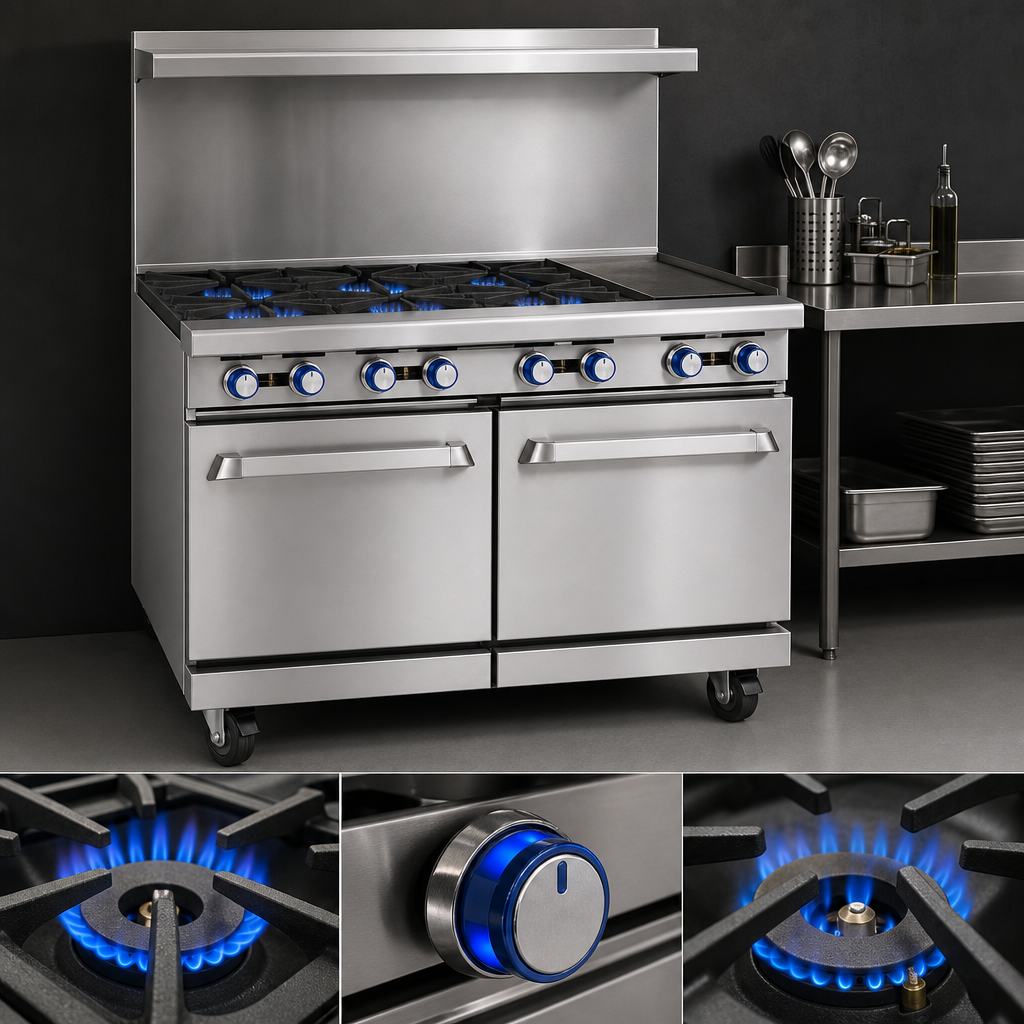

- Six PyroCentric™ open burners pump out 32,000 BTU each and turn down to a true 7,000 BTU simmer.
- Durable cast-iron grates (12″ × 12″ front, 12″ × 13″ back) let heavy stock pots slide effortlessly across sections.
- 3⁄4″-thick, 12″ steel griddle with 21″ plate depth delivers even heat distribution and quick recovery.
- 3″ stainless grease trough, plus removable grease can and full-width crumb tray, slash cleanup time.
- Space-saving standard oven (porcelain interior) with 27,000 BTU linear burner and one chrome rack.
- Open cabinet base with stainless shelf keeps mise en place and pans within arm’s reach.
- All-stainless front, sides, back-guard, high shelf, 3½″ landing ledge and kick plate resist daily abuse.
- 6″ heavy-duty legs with adjustable feet for easy leveling on uneven floors.
- NSF, CE, CSA Flame & CSA Star certified for worry-free code compliance.
Engineered for Long Service Life
- Standing pilots—no fragile electronics—provide instant ignition on every burner.
- Lift-off burner heads and grate supports mean no gaskets or screws to misplace when cleaning.
- Exclusive oven heat deflector keeps heat inside the cavity, not on your cooks.
- Welded, polished stainless seams fight corrosion and simplify wipe-downs.
- Cool-touch, round stainless “chef’s” handle and heavy-duty door hinge stand up to constant use.
At-a-Glance Specs
Overall width | 48″ (1219 mm) |
---|---|
Depth (incl. ledge) | 31½″ (800 mm) |
Height (cook surface / top of back-guard) | 36″ / 56½″ (914 mm / 1435 mm) |
Open burners | 6 × 32,000 BTU PyroCentric™ cast-iron heads |
Griddle plate | 12″ W × 21″ D × ¾″ thick, polished steel |
Oven type | Standard (porcelainized interior) |
Oven burner | 27,000 BTU linear |
Rack positions / supplied racks | 3 / 1 chrome rack |
Total gas input | 247,000 BTU (72 kW) |
Gas connection | ¾″ NPT rear manifold – natural or LP (field convertible) |
Clearances | 0″ sides & rear to non-combustibles; 8″ to combustibles |
Approx. shipping weight | 690 lb (312 kg) |
Warranty | 1-year parts & labor (factory authorized service) |
Popular Factory Options
- 6″ or 11″ stainless back-guards, high shelves, or stub-backs
- Locking swivel casters for effortless mobility
- Thermostatic, grooved, or chrome-plated griddle surfaces
- Reinforcement channels for salamander or cheese melter
- Additional oven racks
- ¾″ gas quick-disconnect hose & shut-off valve kit
Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.
