Imperial (Middleby) IR-6-G12 Pro Series Gas Ranges
Description

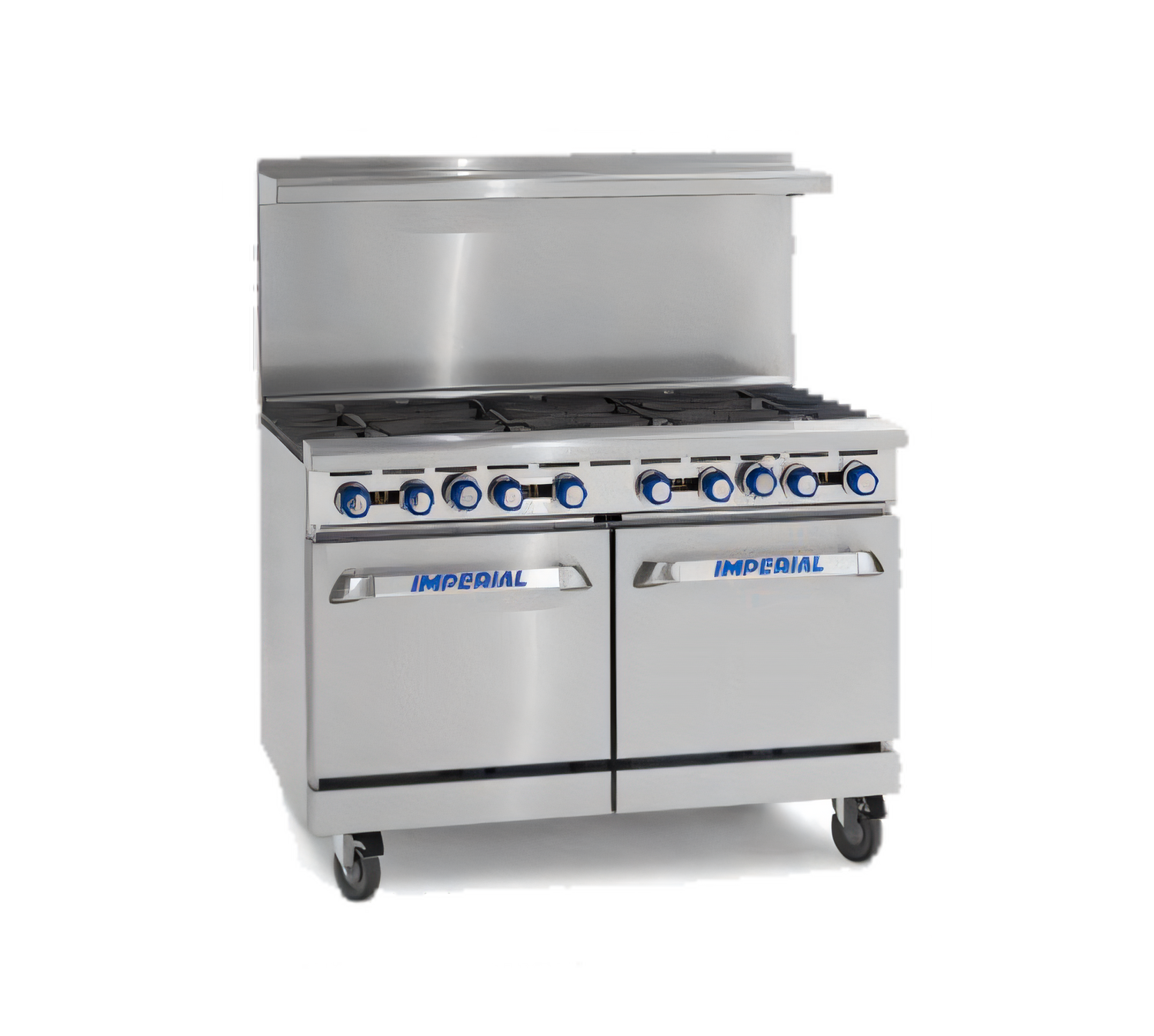

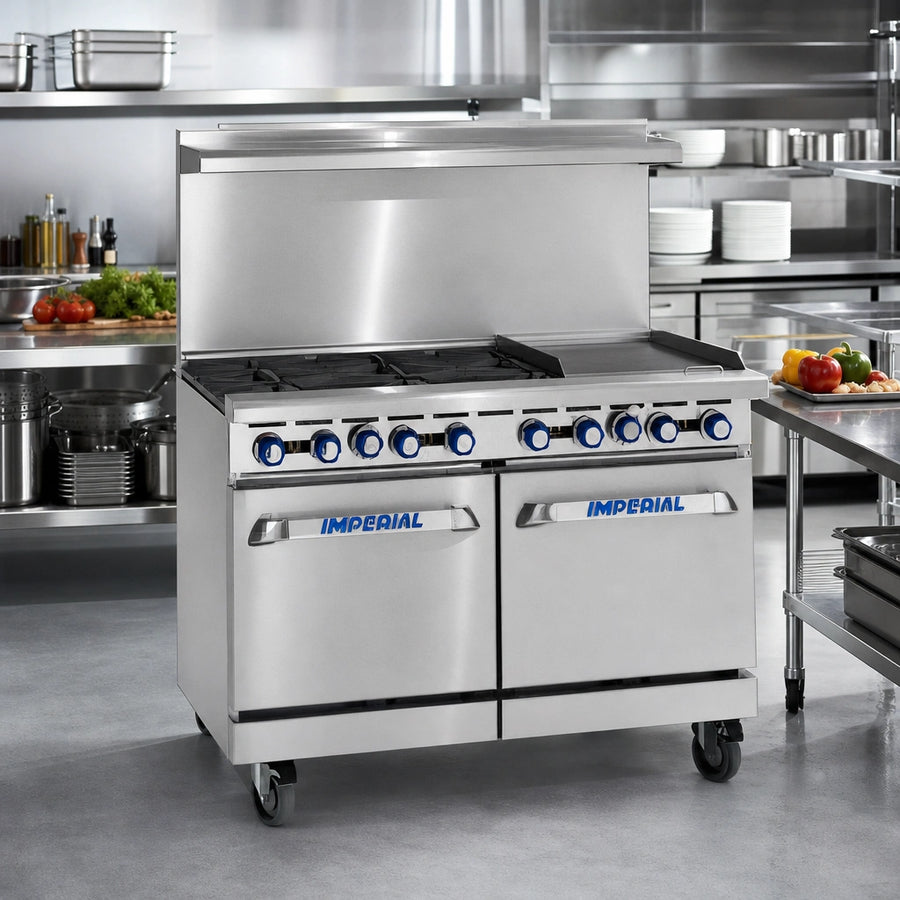

Imperial Pro Series 48" Gas Restaurant Range
6 PyroCentric™ Burners • 12" Griddle • Two Space-Saver OvensEngineered for high–volume, all-day production, the Imperial Pro Series 48" range combines six 32,000 BTU open burners, a high-polish 12" steel griddle, and twin 27,000 BTU space-saver ovens—all wrapped in a fully-welded stainless-steel chassis that is built for years of punishing kitchen duty.
Why You’ll Love It

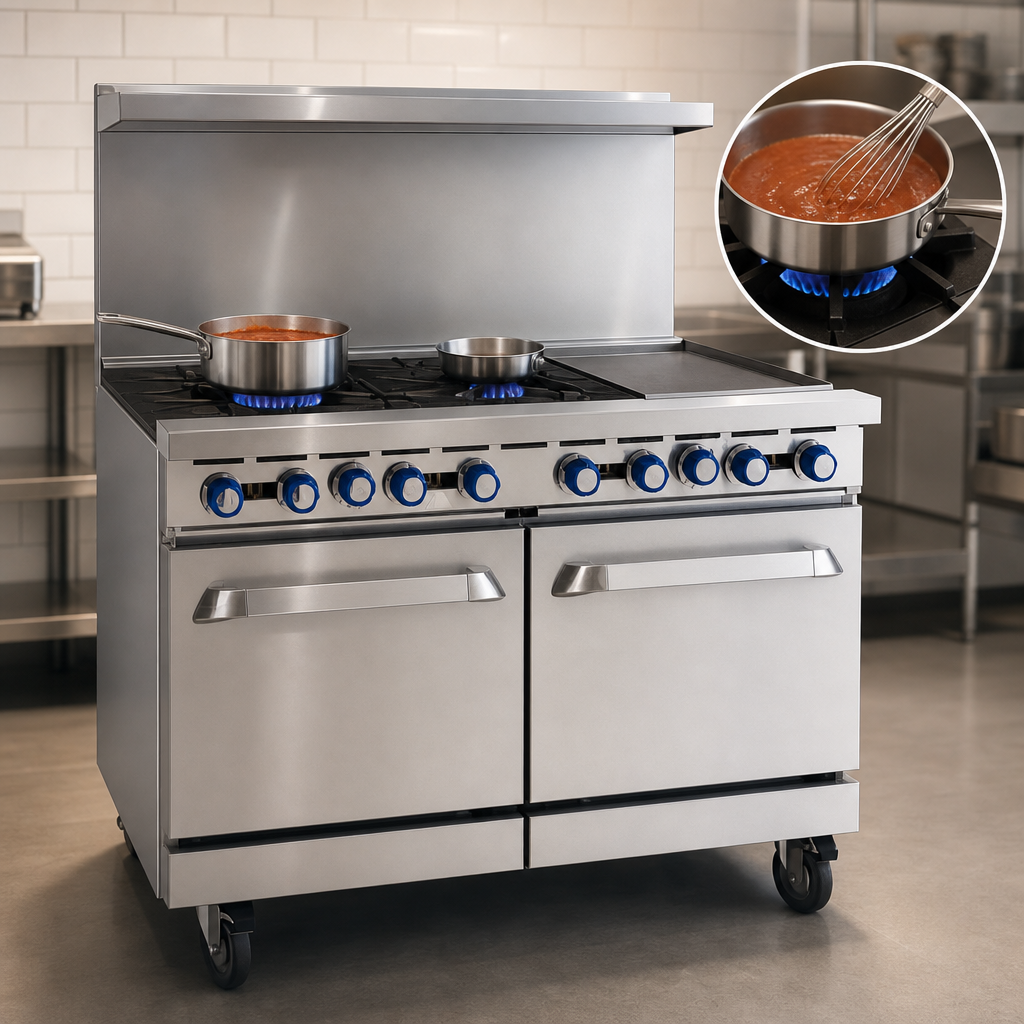

- PyroCentric™ open burners – 32,000 BTU with a 7,000 BTU low-simmer ring for perfect control from flash-sear to delicate sauces.
- Cast-iron, lift-off grates (12" × 12" front, 12" × 13" rear) let stock pots slide easily across the cook-top.
- 12" (3/4" thick) griddle with 3" grease trough, heat deflector every 12", and a removable grease can for quick clean-up.
- Two space-saver ovens (20" W × 26" D × 14" H each) with porcelainized interior, linear burners, and one chrome rack per cavity.
- Round stainless-steel “Chef’s” oven handles stay cool and stand up to daily abuse.
- Full-width crumb tray under the burners and an extra-deep 3 ½" landing ledge keep work-zones tidy.
- 6" heavy-duty legs with adjustable feet for easy leveling on uneven floors.
- Field convertible to propane; factory-set for natural gas.
Specification Highlights
| Model | IR-6-G12 Pro Series |
|---|---|
| Total BTU / kW | 266,000 BTU | 78 kW |
| Open Burners | 6 × 32,000 BTU with low-simmer |
| Griddle Plate | 12" W × 21" D, ¾" steel |
| Ovens | 2 × Space-Saver, 27,000 BTU each (includes 1 chrome rack per oven) |
| Cavity Dimensions (each) | 20" W × 26" D × 14" H |
| Exterior Dimensions | 48" W × 31 ½" D × 56 ½" H (to top of high shelf) |
| Gas Connection / Manifold Pressure | ¾" NPT | 5" W.C. Natural / 10" W.C. LP |
| Shipping Weight | 760 lb (344 kg) |
| Construction | Stainless steel front, sides, backguard, high shelf, kick plate |
| Certifications | NSF, CE, CSA Flame, CSA Star |
Peace-of-Mind Warranty
Backed by Imperial’s one-year parts & labor warranty when installed and serviced by an authorized agency.
Clearance & Installation
- For use on non-combustible floors with legs or casters, or provide a 2" curb overhang.
- 0" clearance to non-combustible surfaces; 8" clearance to combustible surfaces.
- Requires 120 V, 1 ph, 6 A only if optional convection oven is fitted (not included).
Need a different configuration? Reach out—modular tops, backguards, casters, and other accessories are available from the factory.
