Description

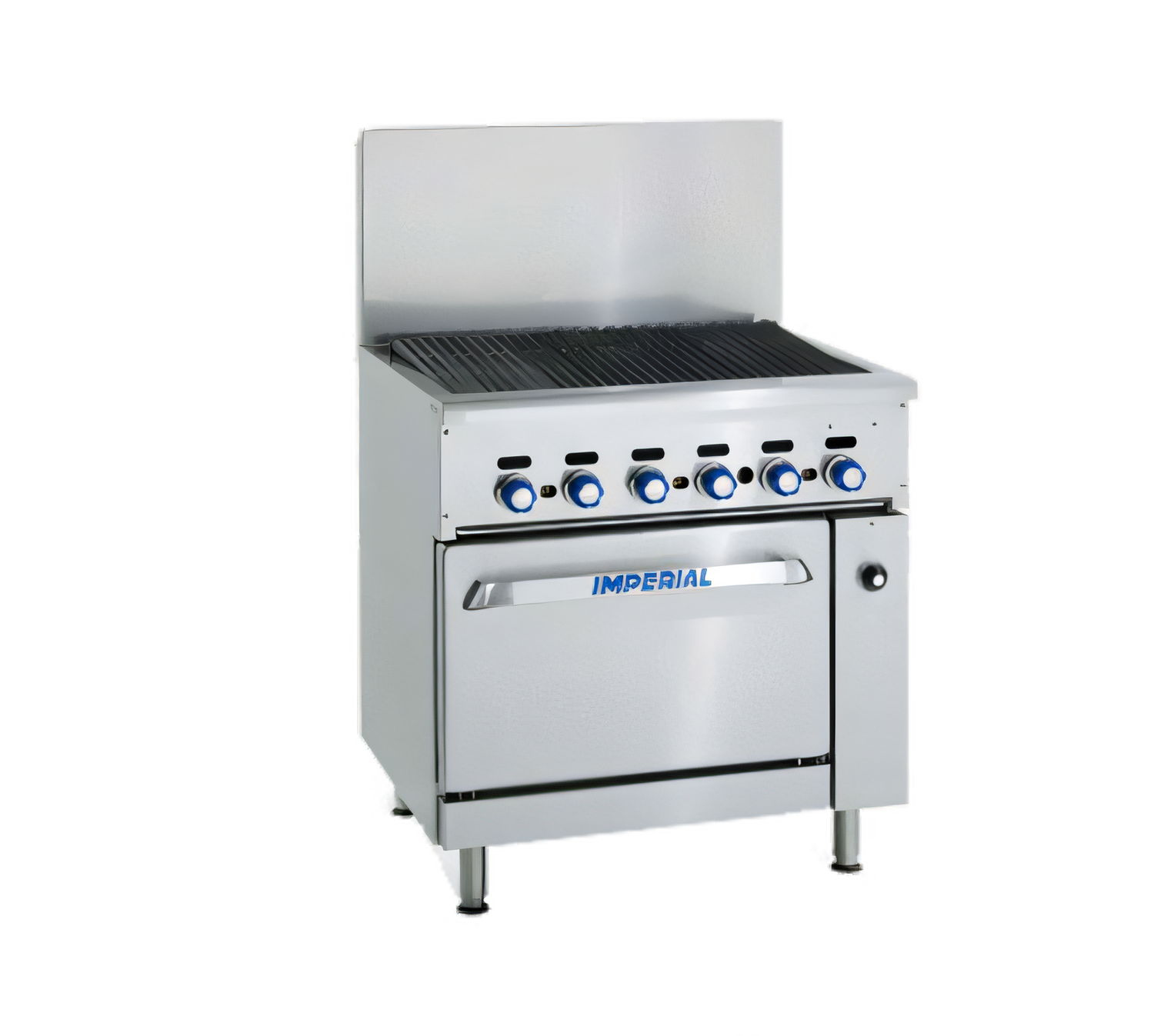

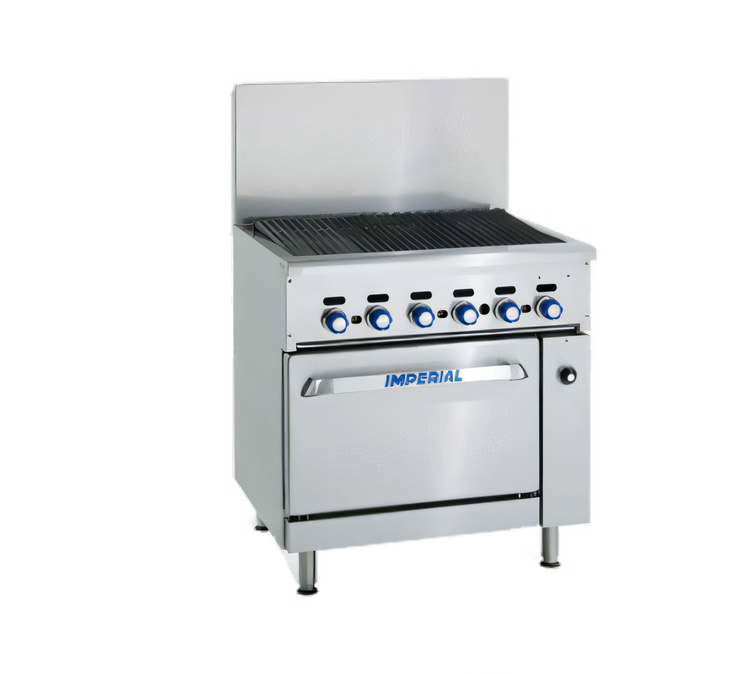

Pro Series 48" Gas Range-Match Radiant Charbroiler with Standard Oven & Cabinet Base

Imperial | Model IR-48BR-XB-126 | 155,000 BTU (45 kW)

Engineered for high-volume kitchens that demand power, consistency, and rugged durability, the Imperial IR-48BR-XB-126 combines a full-width radiant charbroiler, a chef-depth oven, and convenient under-counter storage—all in one seamless 48-inch platform.

Why It Belongs on Your Cookline

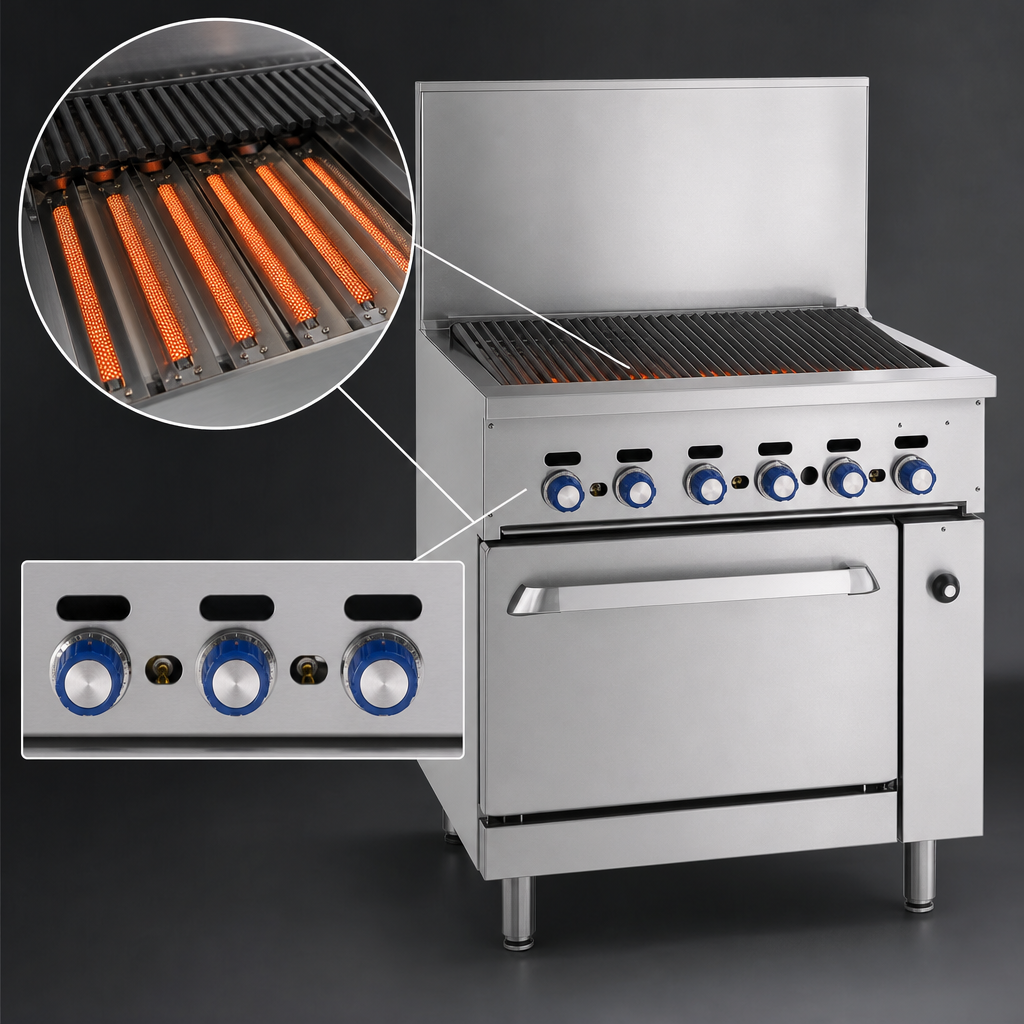

  • True flame control: Six individually-valved 20,000 BTU stainless burners (every 6") give you precise heat zones.

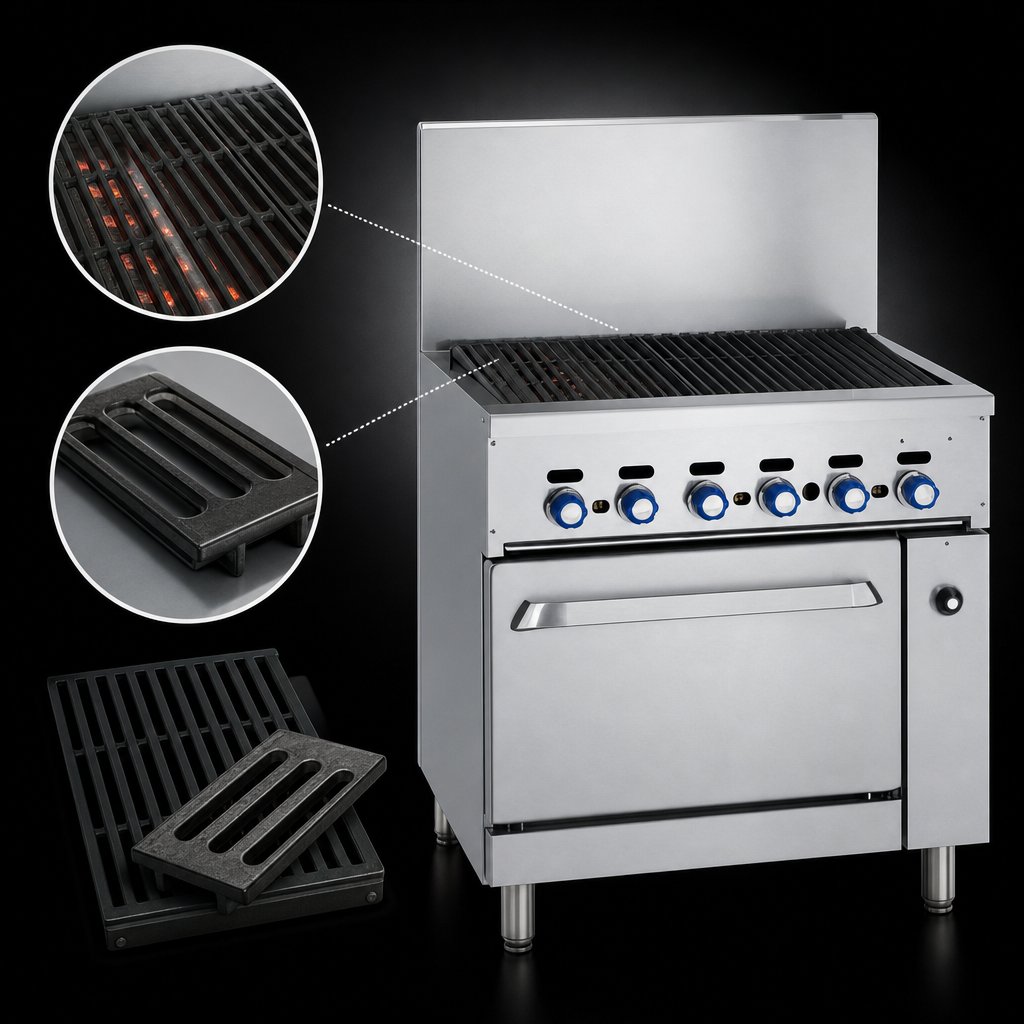

  • Cast-iron performance: Removable radiants & heavy-duty top grates deliver authentic char marks and resist warping.
  • Built-in grease management: Each grate blade has a trough that feeds a full-width front gutter and large removable drip pan, reducing flare-ups.
  • Chef-depth oven: 35,000 BTU linear burner, porcelainized interior (26-1/2" W × 26" D × 14" H) and one chrome rack accept 18" × 26" sheet pans either direction.
  • Space-saving storage: Open cabinet base with stainless bottom shelf keeps sheet pans, utensils or hotel pans within reach.
  • All-stainless exterior: Front, sides, 11" backguard, 4-1/4" landing ledge and kick plate are easy to wipe down and built for years of service.
  • Rugged foundation: 6" heavy-duty legs with adjustable feet level the unit on uneven floors.
  • Certified & warrantied: NSF, CSA Flame & Star approved and backed by Imperial’s 1-year parts & labor warranty.

Specifications

Model IR-48BR-XB-126
Overall Width 48" (1219 mm)
Overall Depth 31-1/2" (800 mm)
Overall Height (to cooktop) 38-1/2" (978 mm)
Cooking Surface 45" W × 22" D (1143 × 559 mm) slanted cast-iron grates
Total Gas Input 155,000 BTU / 45 kW
Burners (6) 20,000 BTU stainless burners under cast-iron radiants
Oven Output 35,000 BTU chef-depth linear burner
Oven Interior 26-1/2" W × 26" D × 14" H; porcelain sides, deck & door
Gas Connection 3/4" NPT rear manifold; 5" W.C. NG / 10" W.C. LP
Ship Weight 799 lb (362 kg)
Certifications NSF, CSA Flame, CSA Star
Warranty 1 Year Parts & Labor (factory authorized service)

Popular Factory Options

  • Stainless steel double doors for cabinet base
  • Stainless center shelf for cabinet base
  • 3/4" NPT gas shut-off valve, quick-disconnect & flexible hose kit
  • Common landing ledge & backguard kits for seamless line-ups
Installation Note: For use only on non-combustible floors. Provide 0" clearance from non-combustible surfaces and 8" (203 mm) from combustible surfaces. Legs or casters are required.

Specifications and design are subject to change without notice. Always refer to the installation manual and local codes for complete requirements.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CSA Star, CSA Flame

Height

49.5in

Width

48.0in

Depth

31.5in

Shipping Weight

799.0lbs

Base

(1) standard oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Vent

backriser

Top

(1) charbroiler

Specifications

Pro Series Restaurant Series Range Match, gas, 48"W, charbroiler cast iron radiants & top grates, (1) standard oven, porcelain interior, (1) chrome rack, grease trough, removable drip pan, (1) open cabinet base with bottom shelf, stainless steel front, sides, 11"H backguard, landing ledge & kick plate, 6" legs with adjustable feet, 155,000 BTU, 45kW, NSF, CSA Flame, CSA Star
