Imperial (Middleby)  |  Pro Series  |  SKU: IR-48BR-220

Imperial (Middleby) IR-48BR-220 Pro Series Gas Ranges

$17,102.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Training video Middleby financial flyer Parts manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 48" Range-Match Radiant Charbroiler w/ (2) Space Saver Ovens – IR-48BR-220

174,000 BTU • Natural or LP Gas • NSF, CSA Flame & CSA Star

Bring steak-house char and high-volume baking to a single footprint. Imperial’s 48" Pro Series Range-Match broiler combines a heavy-duty radiant charbroiler with two full-featured Space Saver ovens, giving chefs uncompromising power, consistency and flexibility behind the line.

Why You’ll Love It

  • Massive firepower – 174,000 BTU (51 kW) total output for fast recovery and all-day production.
  • True radiant broiling – Individually-controlled 20,000 BTU stainless burners every 6" heat removable cast-iron radiants for even temperatures and reduced flare-ups.
  • Signature grill marks – Heavy-duty cast-iron top grates (3" × 22" sections) create bold, appetizing sear lines.
  • Dual Space Saver ovens – Each 27,000 BTU cavity fits 18" × 26" sheet pans left-to-right; porcelainized liner & chrome rack clean up fast.
  • All-stainless exterior – Front, sides, 11" backguard, landing ledge & kick plate withstand harsh commercial kitchens.
  • Grease management – Cast-in troughs channel drippings to a full-width gutter and large removable drip pan.
  • Installer friendly – 6" heavy-duty legs with adjustable feet, ¾" NPT rear gas inlet and optional quick-disconnect hose.
  • Peace of mind – 100 % safety pilots on all burners and a 1-year parts & labor warranty.

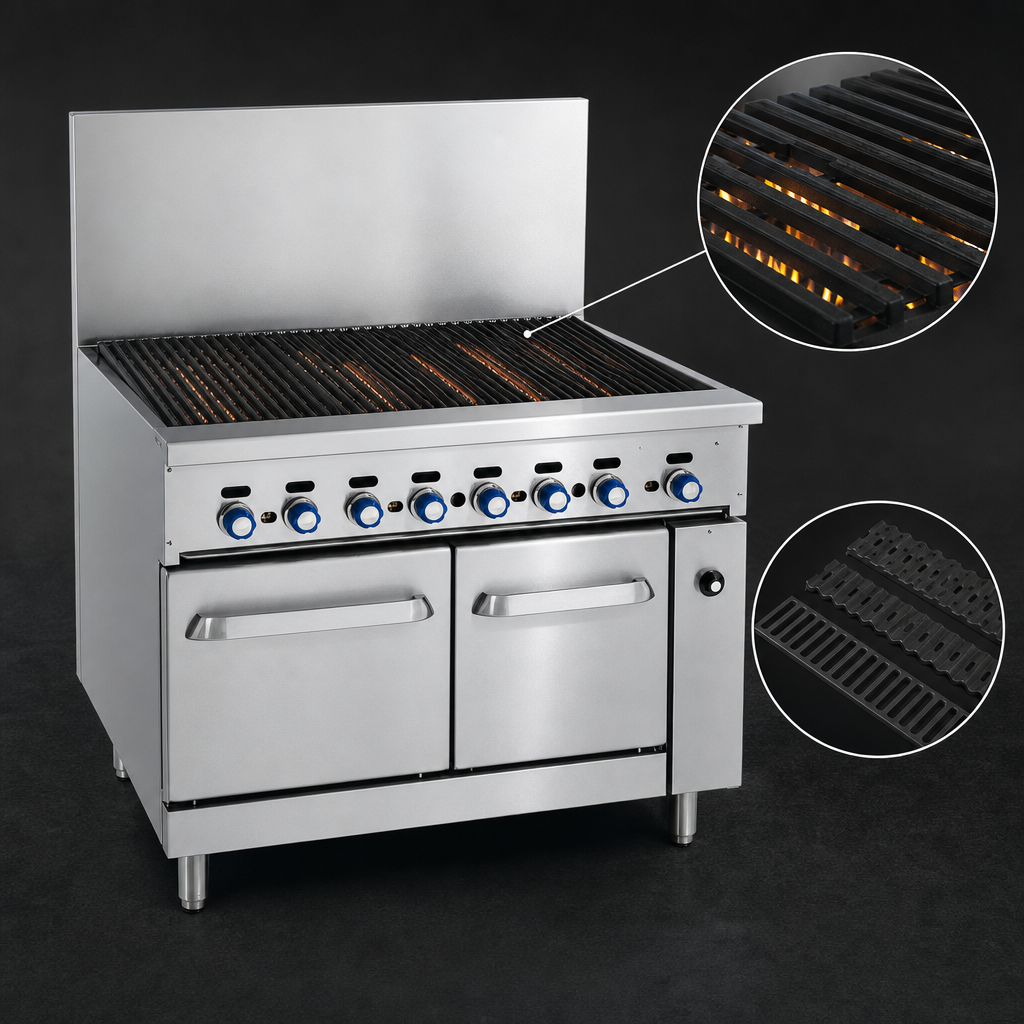

Radiant Charbroiler Performance

  • Slanted grate design offers a progressive temperature zone for rare-to-well-done cooking.
  • Each grate blade has a cast-in grease trough to keep fat away from the flame.
  • Fully insulated cooking surface conserves heat and lowers ambient kitchen temps.

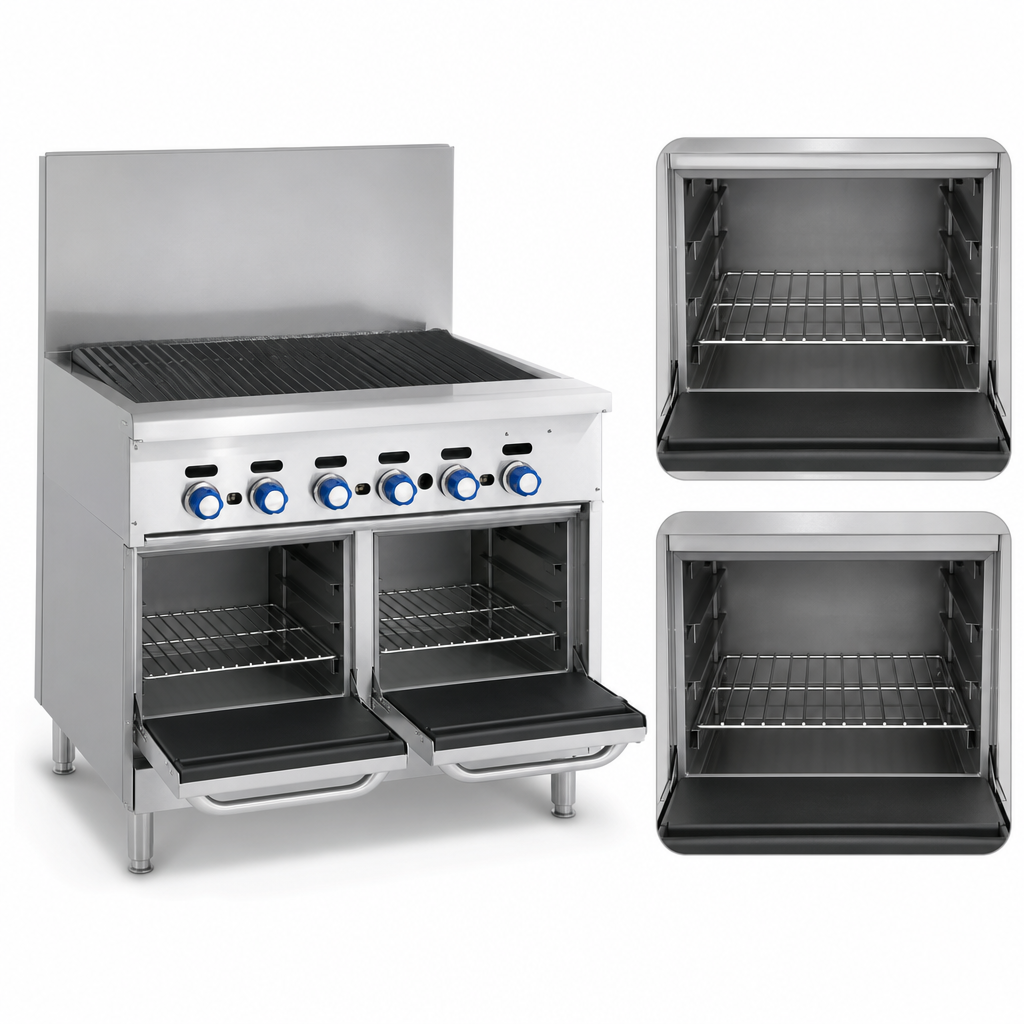

Space Saver Ovens

  • Independent snap-action controls (150-550 °F / 66-288 °C).
  • Linear burner and exclusive heat deflector promote uniform baking and roasting.
  • Stamped inner door liner adds strength while retaining heat.

Technical Specifications

Model IR-48BR-220 (Pro Series Range-Match)
Total Gas Output 174,000 BTU /hr  (51 kW)
Broiler Cooking Surface 45" W × 22" D (1143 × 559 mm)
Oven Interior (each) 20" W × 26" D × 14" H (508 × 660 × 356 mm)
Oven Racks Supplied 1 chrome rack per oven (2 total)
Exterior Dimensions 48" W × 31.5" D × 38.5" H (1219 × 800 × 978 mm)
Gas Connection / Pressure ¾" NPT rear; 5" W.C. NG / 10" W.C. LP
Certifications NSF, CSA Flame, CSA Star
Shipping Weight ≈ 830 lb  (376 kg)
Warranty 1-year parts & labor (factory authorized service)

Warranty applies to equipment installed & maintained per Imperial specifications. See full warranty statement for details.

Installation Required: For use on non-combustible floors only. Provide 0" clearance from non-combustible and 8" (203 mm) from combustible surfaces. Legs or casters are mandatory unless curb mounted with a 2" overhang.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CSA Star, CSA Flame

Height

49.5in

Width

48.0in

Depth

31.5in

Shipping Weight

830.0lbs

Base

(2) standard / space saver ovens

Exterior Finish

stainless steel front & sides

Vent

backriser

Top

(1) charbroiler

Specifications

Pro Series Restaurant Series Range Match, gas, 48"W, charbroiler, cast iron radiants & top grates, (2) space saver ovens, porcelain interior, (1) chrome rack per oven, grease trough, removable drip pan, stainless steel front, sides, 11"H backguard, landing ledge & kick plate, 6" legs with adjustable feet, 174,000 BTU, 51kW, NSF, CSA Flame, CSA Star
