Imperial (Middleby) IR-4-SU Pro Series Gas Ranges
Description

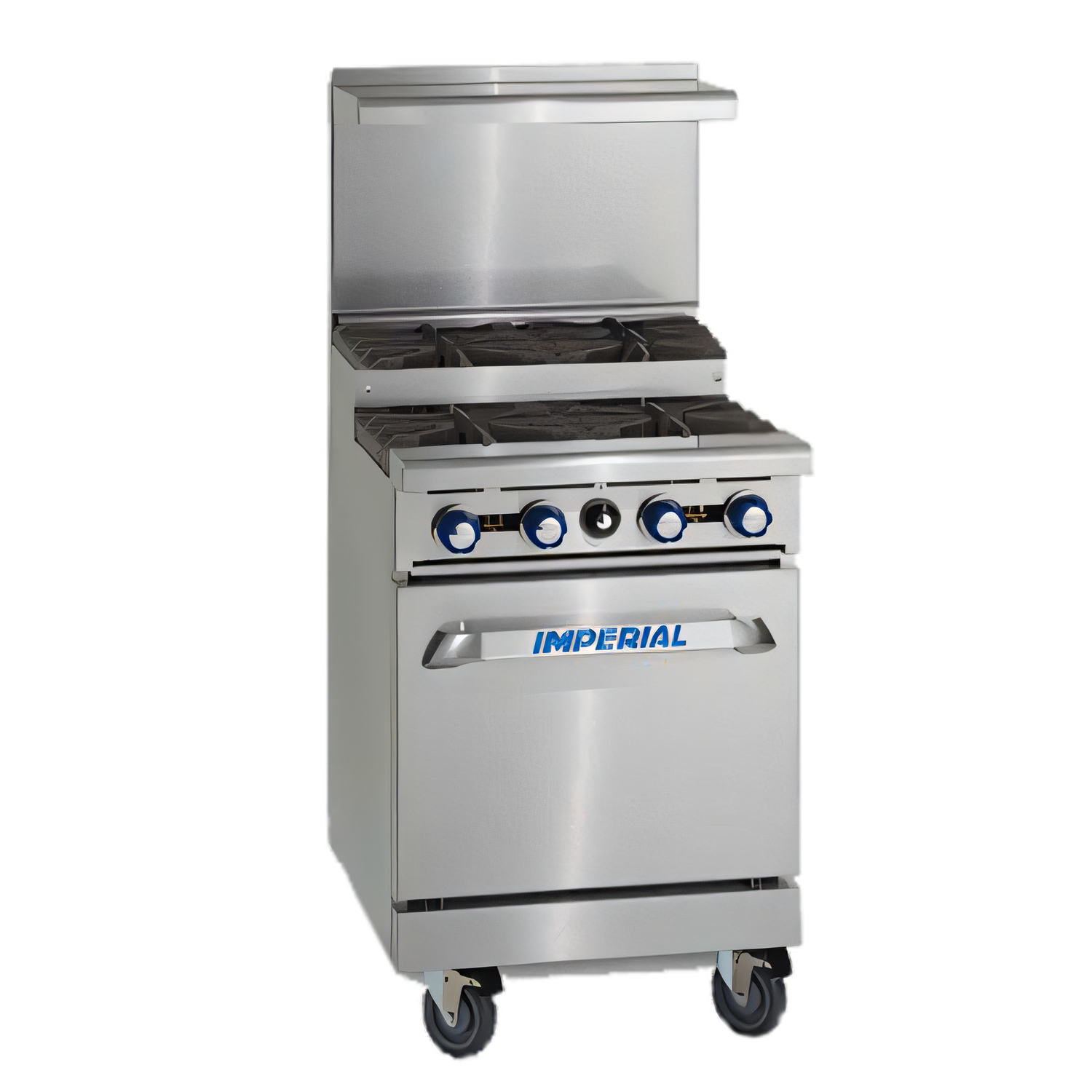

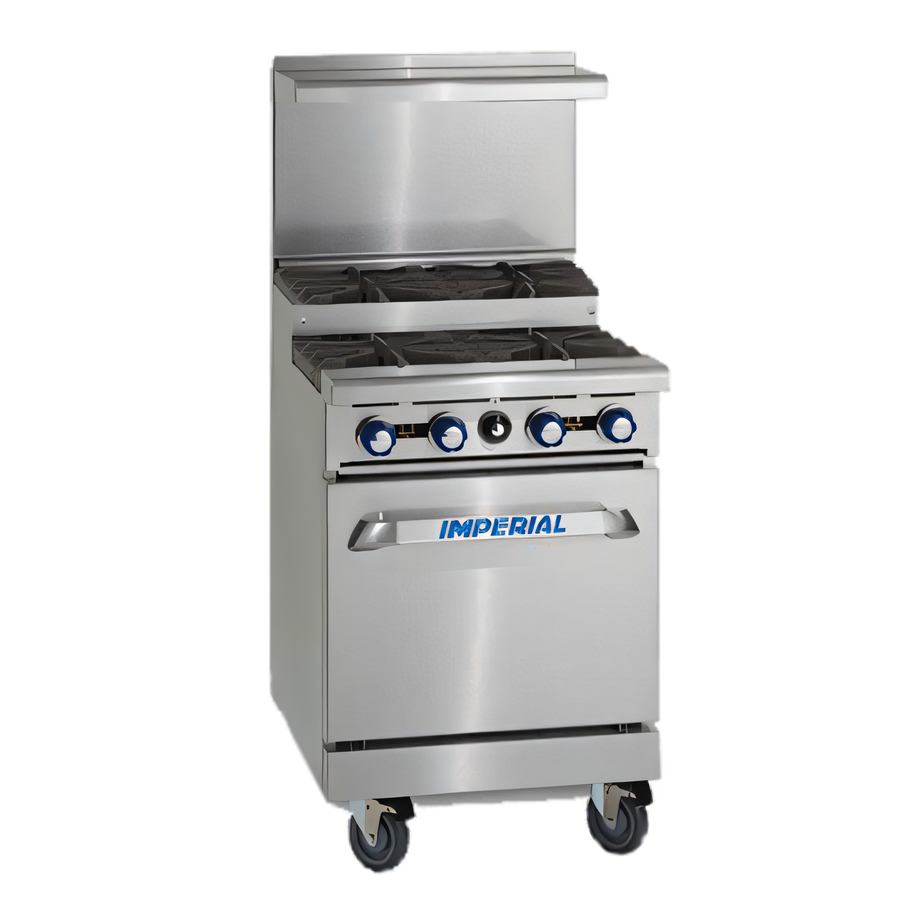

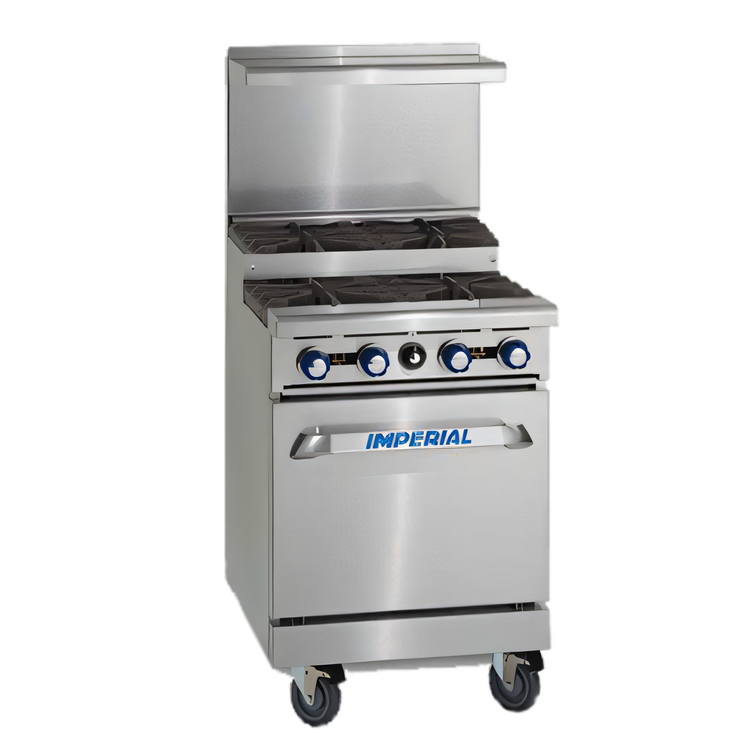

Imperial Pro Series IR-4-SU 24" Gas Step-Up Restaurant Range
155,000 BTU • 4 PyroCentric™ Open Burners • Space-Saver OvenPack the firepower of a full-size range into a compact 24-inch frame. Imperial’s Pro Series IR-4-SU step-up range delivers aggressive top-burner heat, a high-performance oven, and rock-solid stainless construction—everything you need to keep orders moving on a busy line.

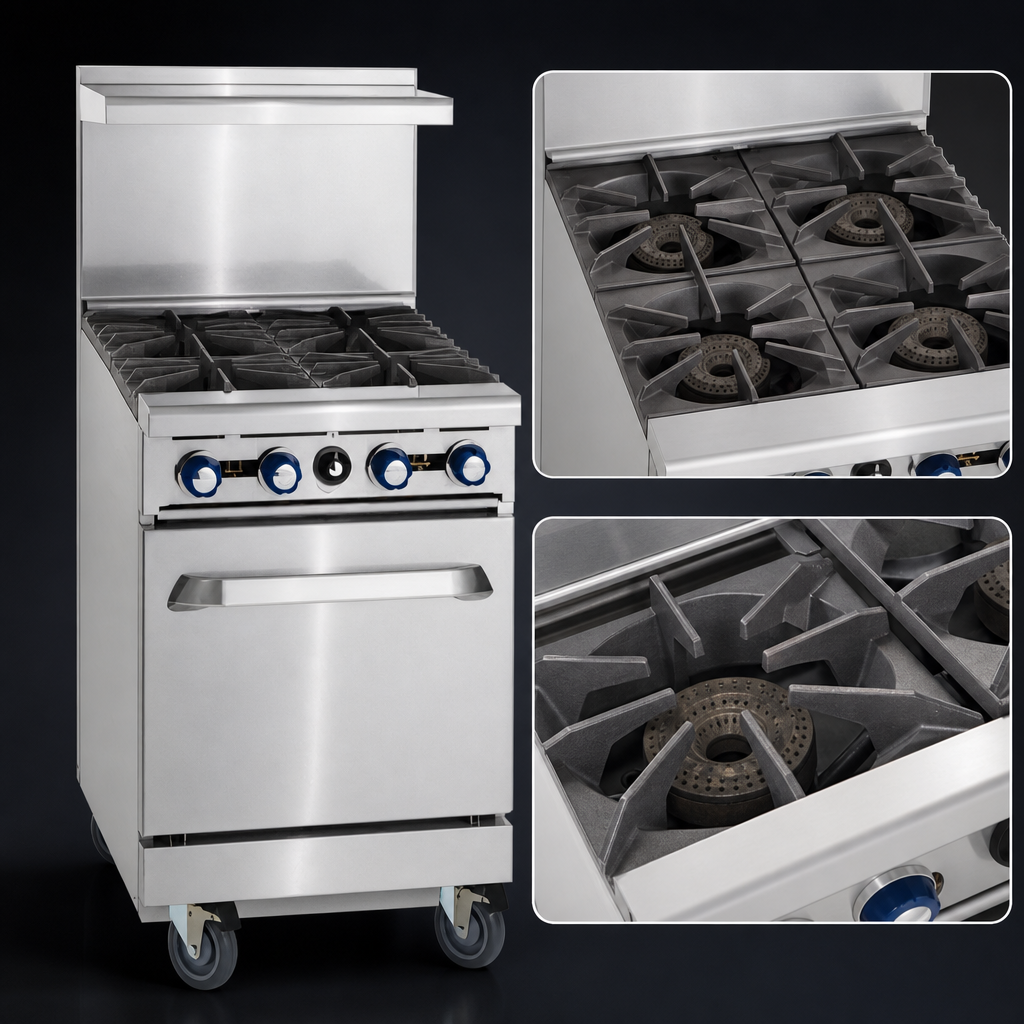

Top-Burner Performance
- Four 32,000 BTU PyroCentric™ cast-iron burners with dual flame rings and a true 7,000 BTU simmer.
- Step-up design (rear burners sit 3-1/2" higher) improves visibility and pan maneuverability.
- Two-piece cast-iron grates—front 12" × 12", rear 12" × 13"—handle everything from saute pans to stock pots.
- Individual standing pilots for instant ignition; lift-off burner heads make cleanup fast.
- Full-width, removable stainless crumb tray keeps the cooktop debris-free.

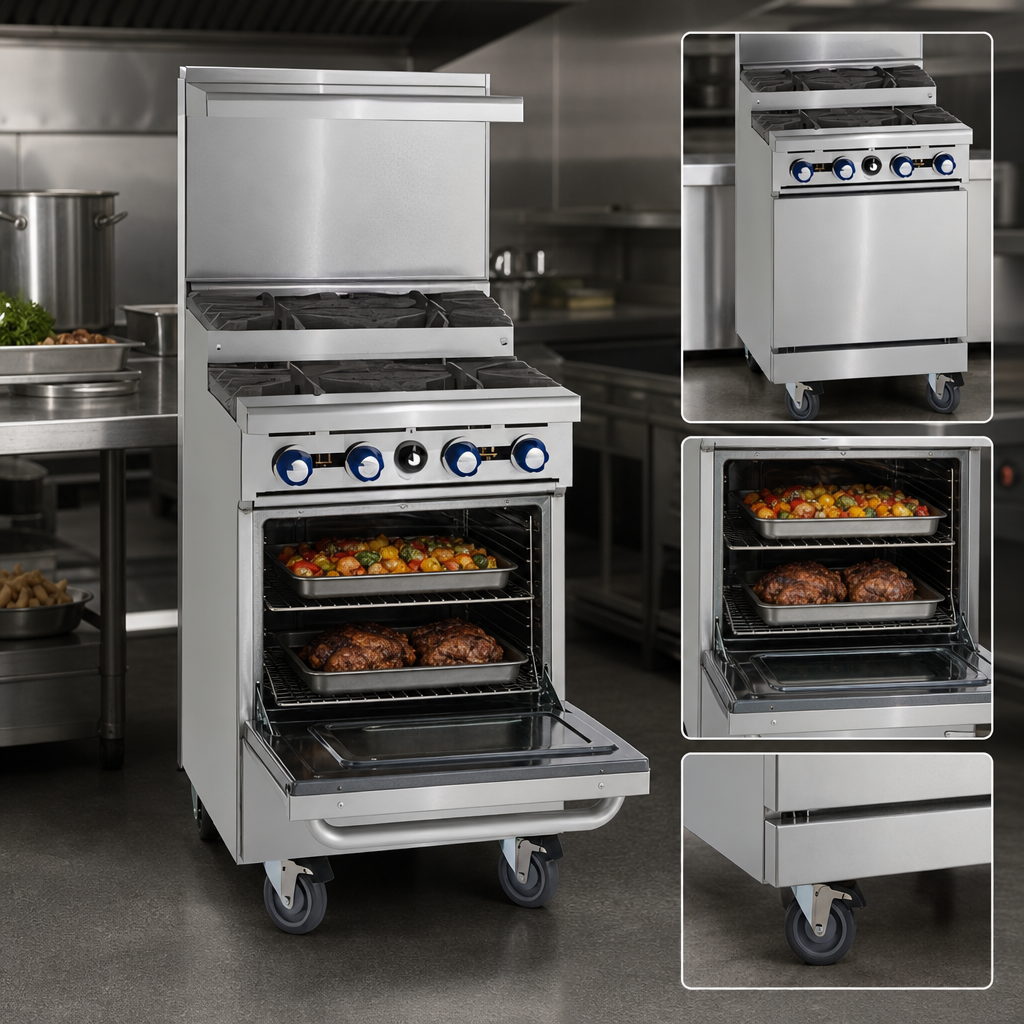

Space-Saver Oven
- 27,000 BTU linear burner distributes heat evenly across the deck.
- Interior: 20" W × 26" D × 14" H—fits 18" × 26" sheet pans front-to-back.
- Porcelain-coated sides, rear, deck, and door liner wipe clean with ease.
- Exclusive heat deflector retains heat in the cavity for consistent results.
- Includes one chrome rack; additional racks available.
- Heavy-duty door with stamped inner liner and round stainless “Chef’s” handle.
Built for Daily Demands
- All-stainless front, sides, backguard, 3-1/2" landing ledge, and kick plate.
- Welded & polished seams plus rugged cast-aluminum control knobs.
- 6" heavy-duty legs with adjustable feet for easy leveling and code compliance.
Certifications & Warranty
- NSF listed for sanitation.
- CE compliant for international markets.
- CSA Flame & CSA Star certified for gas safety and performance.
- One-year parts & labor warranty backed by Imperial.
Key Specifications
| Model | IR-4-SU |
|---|---|
| Overall Width | 24" (610 mm) |
| Overall Depth | 31-1/2" (800 mm) |
| Overall Height (to top of backguard) | 56-1/2" (1,435 mm) |
| Total BTU | 155,000 |
| Open Burners | 4 × 32,000 BTU |
| Oven Burner | 27,000 BTU Space-Saver |
| Oven Interior (W × D × H) | 20" × 26" × 14" |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Shipping Weight | 465 lb (210 kg) |
Optional accessories—backguards, wok rings, extra oven racks, gas shut-off valves, and more—are available. Contact your Imperial dealer for details.
