Imperial (Middleby) IR-4-RG24-C-XB Pro Series Gas Ranges

Imperial Pro Series 48" Gas Restaurant Range

Built for kitchens that refuse to compromise, the Imperial Pro Series IR-4-RG24-XB combines high-powered PyroCentric™ open burners, a versatile raised griddle/broiler, and a rapid-recovery convection oven in one 48-inch footprint. From searing steaks to baking pastries, every component is engineered for speed, consistency, and easy clean-up.

Why You’ll Love It

• 203,000 BTU (59 kW) total output handles your busiest rush with power to spare.
• Four 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer ports—perfect for delicate sauces or a hard sear.

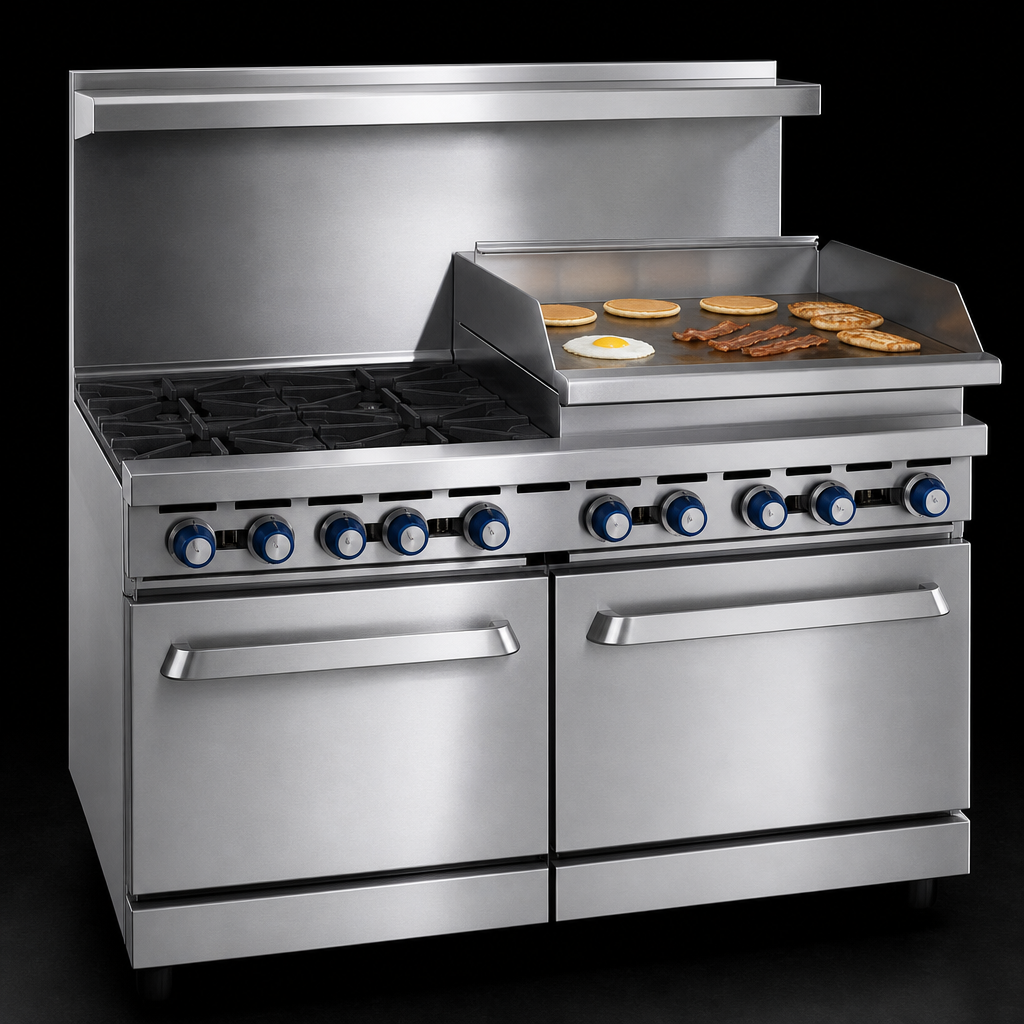

• 24" (610 mm) raised griddle/broiler with a ¾" polished steel plate, 21" cook depth and adjustable broiler rack for burgers, melts, or breakfast favorites.
• Integrated 3" grease trough, removable grease can & crumb tray speed nightly clean-up.
• 30,000 BTU convection oven with ½ HP blower motor cooks evenly with less shrinkage; fan stops automatically when the door opens.
• Roomy oven cavity (26½" W × 22½" D × 14" H) with three chrome racks on multiple positions.
• Convenient open cabinet base and bottom shelf keep sheet pans and smallwares close at hand.
• All-stainless exterior (front, sides, backguard, high-shelf, 3½" landing ledge & kick plate) stands up to years of high-volume use.
• Cast-iron tops & grates (12" × 12" front / 12" × 13" rear) let stockpots glide effortlessly across sections.
• 6" heavy-duty legs with adjustable feet; optional casters available.
• Certified NSF, CE, CSA Flame & CSA Star for safety and sanitation.

Unmatched Cooking Performance

• Two rings of flame on every burner deliver even heat from edge to center.
• Linear oven burner plus exclusive heat deflector maintain uniform cavity temperatures.
• Electronic ignition with countdown timer and three-position cook/cool fan switch.
• Porcelain-ized oven interior (sides, rear, deck & door liner) wipes clean in seconds.

Specifications

For safe operation, the range must be installed on a non-combustible floor with legs or casters attached, or positioned on a curb with a 2" overhang. Gas shut-off valve, quick-disconnect hose and electrical connection for the convection fan are required but not included.
