Key specifications

BTU
155,000 BTU
Dimensions
24.0"W × 31.5"D × 56.5"H
Type
Restaurant Range
Style
Open Burner
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Imperial SKU: IR-4

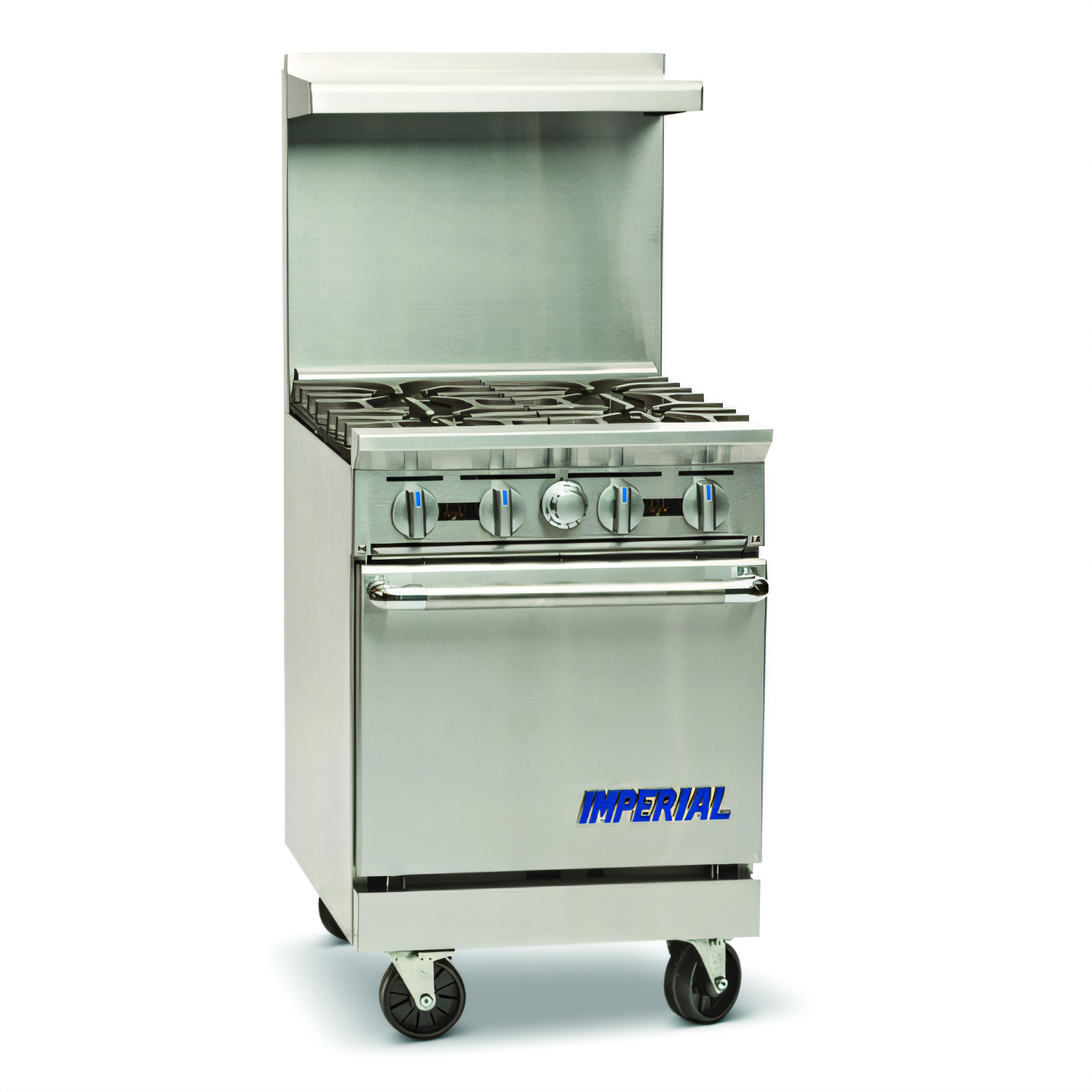

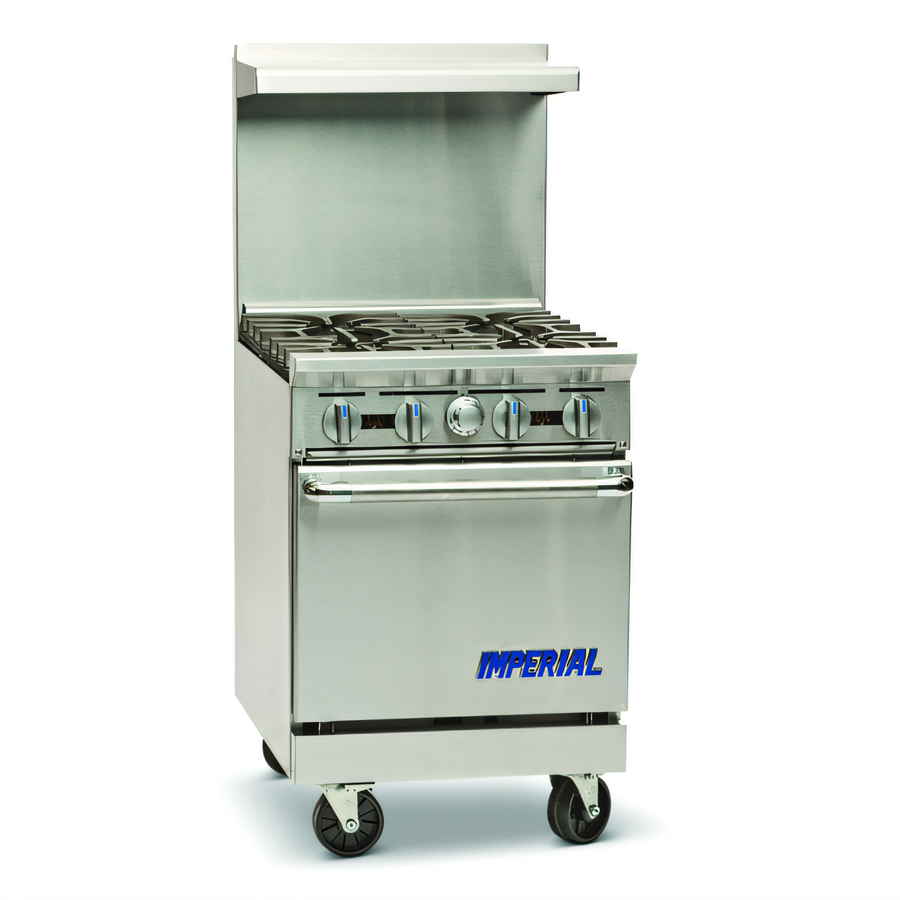

Imperial Pro Series IR-4 24-Inch 4-Burner Gas Range

$4,235.00
/each
Estimated to ship in 16–19 business days
Gas typeRequired
Backguard
Mobility
Gas Connector
Included: Imperial warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $392/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain
BTU 155,000 BTU
Burner Count 4
Oven Type Space Saver
Pan Size 18 x 26 Inches
Oven Rack Count 1
Grate Material Cast Iron
Leg Height 6 Inches

Description

The Imperial IR-4 is a 24-inch gas restaurant range with four open burners, standing pilot lights, and a space saver oven.

  • Cast iron grates and PyroCentric open burners provide a 7,000 BTU/hr. low simmer feature.
  • The space saver oven has a porcelain interior, accommodates 18 x 26 inch sheet pans, and includes one chrome oven rack.
  • Stainless steel construction includes the front, sides, backguard, shelf, landing ledge, and kick plate.
  • Six-inch legs with adjustable feet and a removable crumb tray support floor installation and cleaning.

Overall Dimensions:

24.0"W x 31.5"D x 56.5"H

Product Weight:

465.0 lb

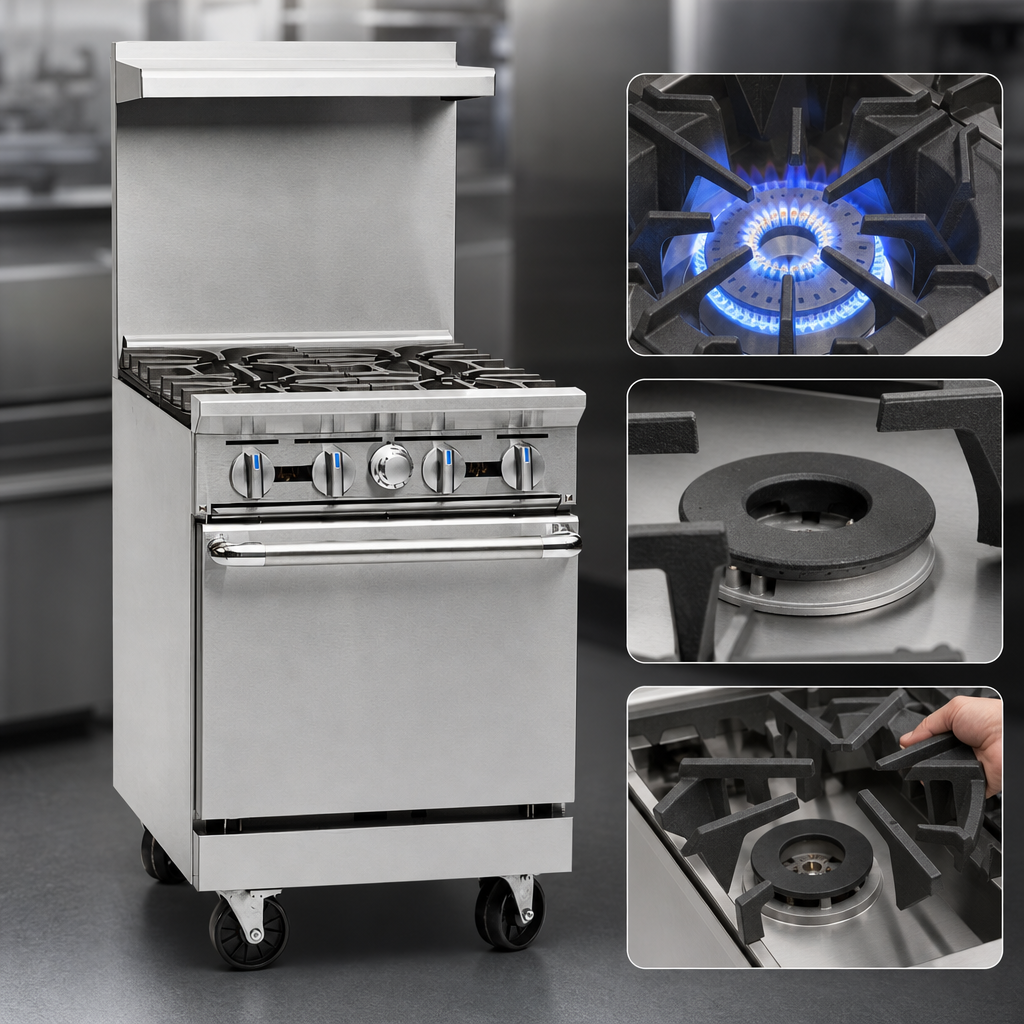

Open Burners

Four cast iron PyroCentric burners feature anti-clogging construction, lift-off cleaning, and one standing pilot per burner.

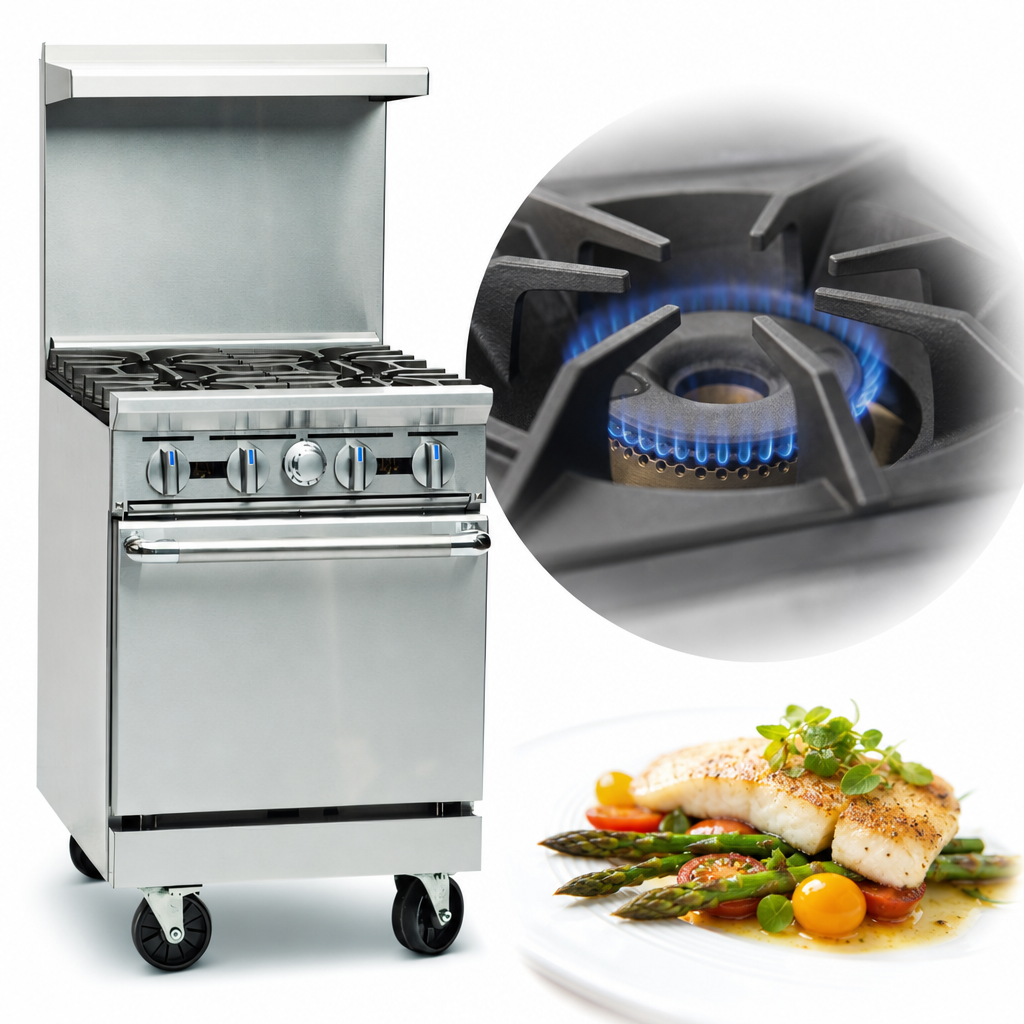

Low Simmer Feature

The burners include a 7,000 BTU/hr. low simmer feature.

Space Saver Oven

The porcelain-interior oven accommodates 18 x 26 inch sheet pans left-to-right and front-to-back and includes one chrome oven rack.

Stainless Steel Exterior

The front, sides, backguard, shelf, landing ledge, and kick plate are stainless steel.

Cleaning Features

A full-width removable crumb tray is located under the open burners.

Adjustable Support

Six-inch heavy-duty legs have adjustable feet.

Frequently Asked Questions

It is a 24-inch gas restaurant range with four open burners and a space saver oven.
Yes. One chrome oven rack is included.
The space saver oven accommodates 18 x 26 inch sheet pans left-to-right and front-to-back.
The range measures 24 inches wide by 31.5 inches deep by 56.5 inches high.
The IR-4 includes a one-year parts and labor warranty, subject to Imperial warranty terms.
