Imperial (Middleby) IR-4-G48-XB Pro Series Gas Ranges
$14,079.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Imperial (Middleby) IR-4-G48-XB Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IR-4-G48-XB Pro Series Gas Ranges
$14,079.00
Unit price
/
Unavailable
Description
Imperial Pro Series 72" Gas Restaurant Range – 4 Burners, 48" Griddle, Standard Oven & Cabinet Base
Model IR-4-G48-XB | 243,000 BTU | NSF, CE, CSA Flame & StarThe Imperial Pro Series IR-4-G48-XB packs a full-service cookline into one 72-inch footprint. Four high-performance open burners, a massive 48-inch griddle, a chef-depth standard oven, and a built-in storage cabinet give chefs the flexibility to sauté, sear, grill, bake, and stage without leaving the range.
Why You’ll Love It

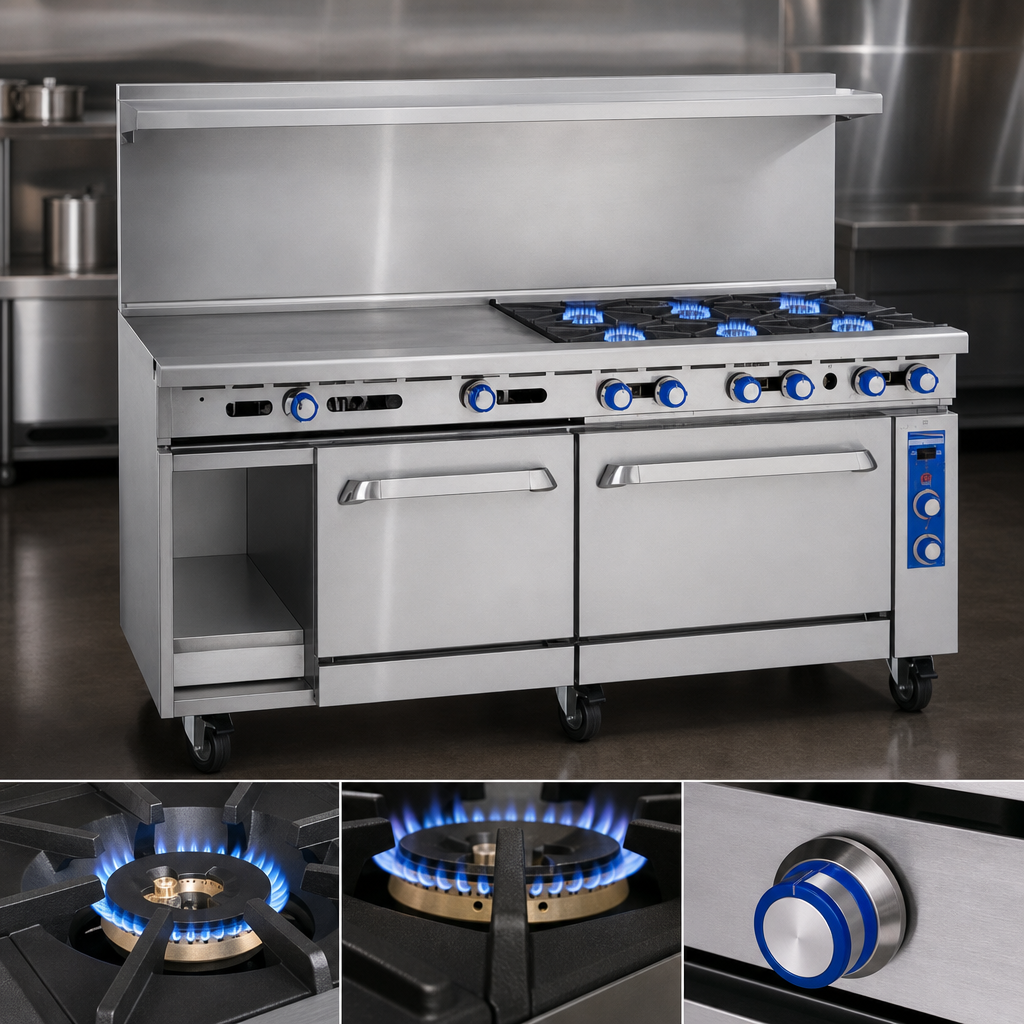

- Power & precision: Four 32,000 BTU PyroCentric™ burners with 7,000 BTU low-simmer capability for delicate sauces.

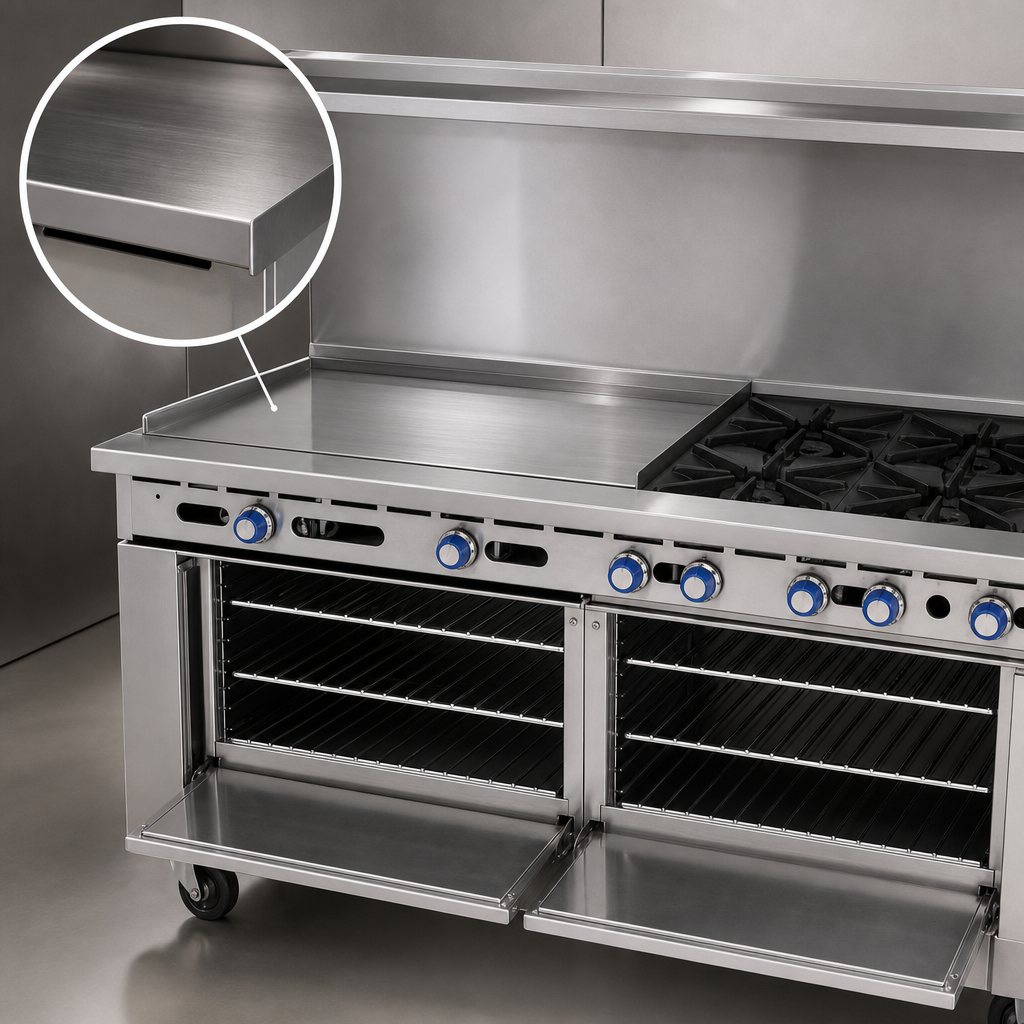

- Expansive griddle: 48 in. x 21 in. griddle plate, ¾ in. polished steel, heated by four 20,000 BTU burners with heat deflectors every 12 in. for even surface temps.
- Chef-depth oven: 35,000 BTU standard oven fits full-size 18 × 26 in. sheet pans left-to-right or front-to-back; porcelain interior cleans up fast.
- Built-in storage: Open cabinet base with bottom shelf keeps sheet pans, smallwares or stockpots within arm’s reach.
- All-stainless exterior: Front, sides, backguard, high-shelf, 3½ in. landing ledge & kick plate are welded and polished for durability and easy wipe-downs.
- Heavy-duty cast-iron grates: Two-piece design lets you move heavy stockpots smoothly across the deck.
- Quick clean-up: Full-width removable crumb tray, 3 in. grease trough, and lift-off burners/grates save valuable closing time.
- Adjustable 6 in. legs (casters optional) meet health-code clearance requirements.
- Peace-of-mind warranty: 1-year parts & labor, backed by Imperial’s nationwide service network.
At-a-Glance Specs
| Overall width | 72 in. (1829 mm) |
|---|---|
| Depth | 31.5 in. (800 mm) |
| Backguard height | 56.5 in. (1435 mm) |
| Total BTU / kW | 243,000 BTU / 71 kW |
| Open burners | 4 × 32,000 BTU PyroCentric™ (anti-clog, lift-off) |
| Griddle section | 48 in. W × 21 in. D, ¾ in. plate, manual valves |
| Oven capacity | 26.5 in. W × 26 in. D × 14 in. H (1 chrome rack included) |
| Oven output | 35,000 BTU |
| Gas type | Natural 5.0" W.C. or Propane 10.0" W.C. |
| Manifold connection | ¾ in. NPT, rear |
| Ship weight | ≈ 495 lb (225 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- 6- or 11-inch stainless steel backguards or stub back
- 6 in. or heavy-duty swivel casters (front locking)
- Thermostatic or grooved griddle plate
- Quick-disconnect hose & gas shut-off valve
- Reinforcement channels for salamander or cheese melter
- Extra oven rack
Installation note: Unit must be mounted on legs or casters and installed on a non-combustible floor with 0 in. rear/side clearance from non-combustibles (8 in. from combustibles). Professional installation & startup recommended.
Looking to spread out the cost? Ask about Middleby Equipment Financing for quick credit decisions and affordable monthly payments.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Brand_name
Pro Series
Certifications
NSF, CE, CSA Star, CSA Flame
Height
56.5in
Width
72.0in
Depth
31.5in
Shipping Weight
1095.0lbs
Base
(1) standard oven, (1) cabinet
Top
(4) open burners, (1) 48" griddle
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.750" = 3/4"
Specifications
Pro Series Restaurant Range, gas, 72"W, (4) open burners & pilot lights, low simmer feature, cast iron grates, (1) 48" griddle, 3/4" polished steel plate, 3"W grease trough, removable grease pan & crumb tray, (1) standard oven, porcelain interior, (1) chrome rack, manual controls, (1) open cabinet base with bottom shelf, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 243,000 BTU, 71kW, NSF, CE, CSA Flame, CSA Star
