Imperial (Middleby) IR-4-G48-CC Pro Series Gas Ranges

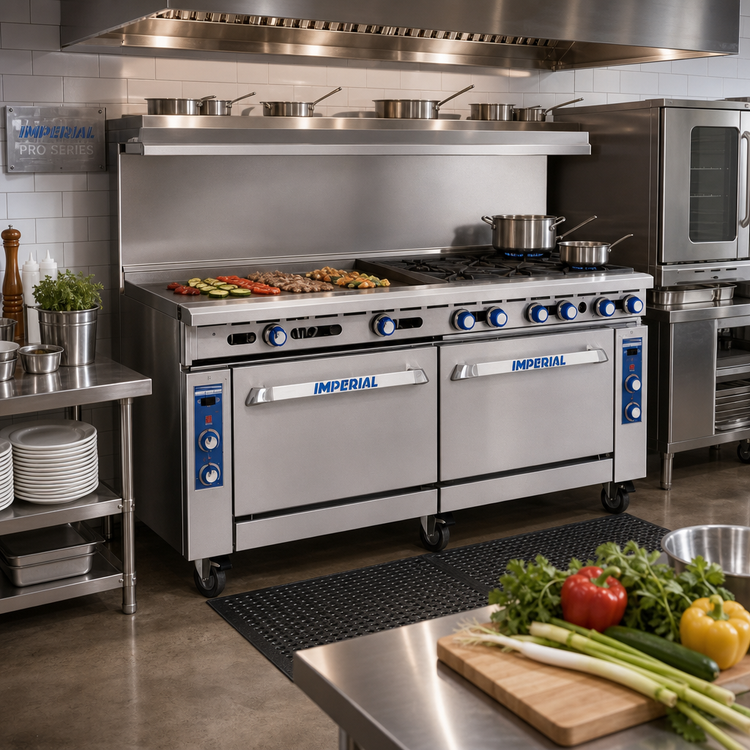

Pro Series 72" Gas Restaurant Range with 48" Griddle & Twin Convection Ovens

Designed for high-volume kitchens that refuse to compromise on versatility or durability, the Imperial Pro Series 72" range pairs four powerful open burners with a full 48" griddle and two heavy-duty convection ovens. From delicate sautés to all-day pancake service, this single footprint does it all while saving valuable line space.

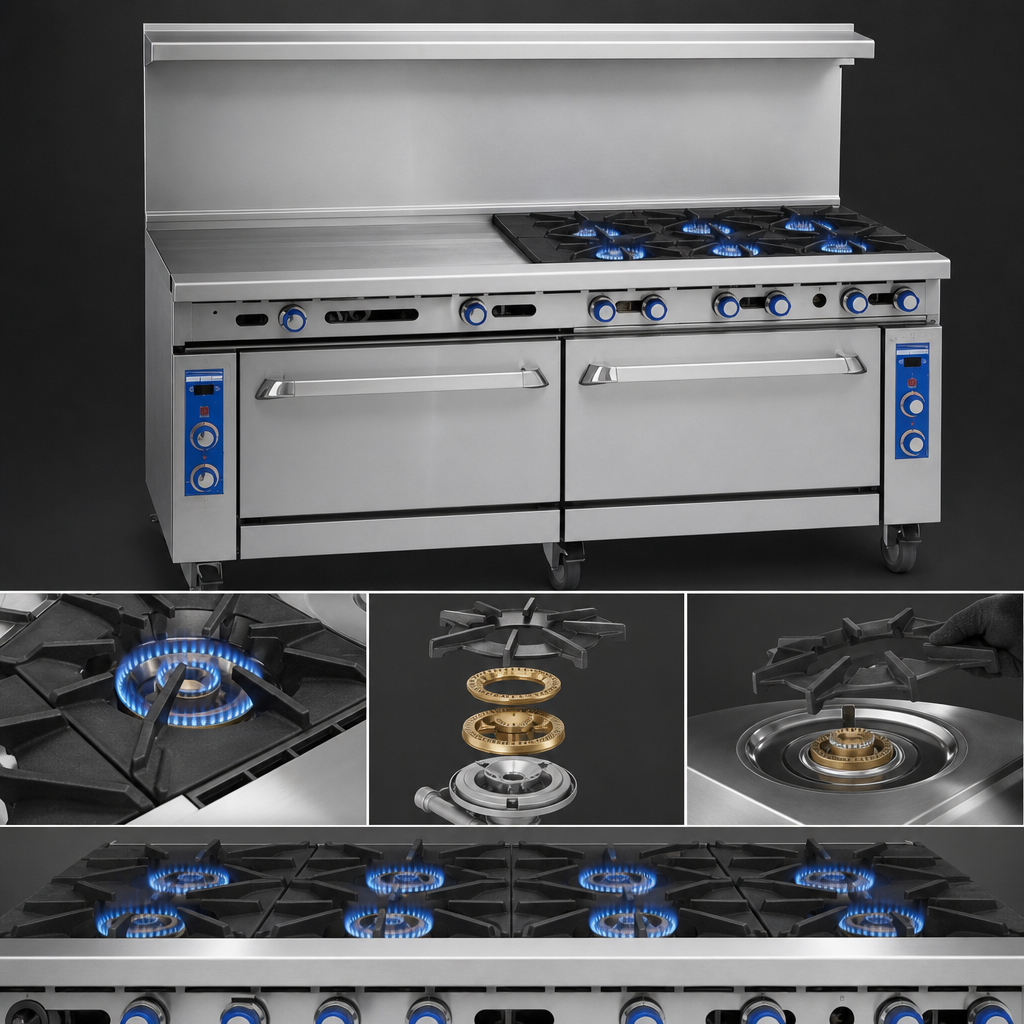

• High-output PyroCentric™ burners – 32,000 BTU each with a 7,000 BTU low-simmer ring for precise control.
• 48" x 21" griddle – ¾" polished steel plate with 20,000 BTU burners every 12" for even heat and fast recovery.
• Dual 30,000 BTU convection ovens – ½ HP blower motors move hot air for faster, more even baking and roasting.
• Easy cleanup – Stainless exterior, removable crumb tray, 3" grease trough, and large pull-out grease can.

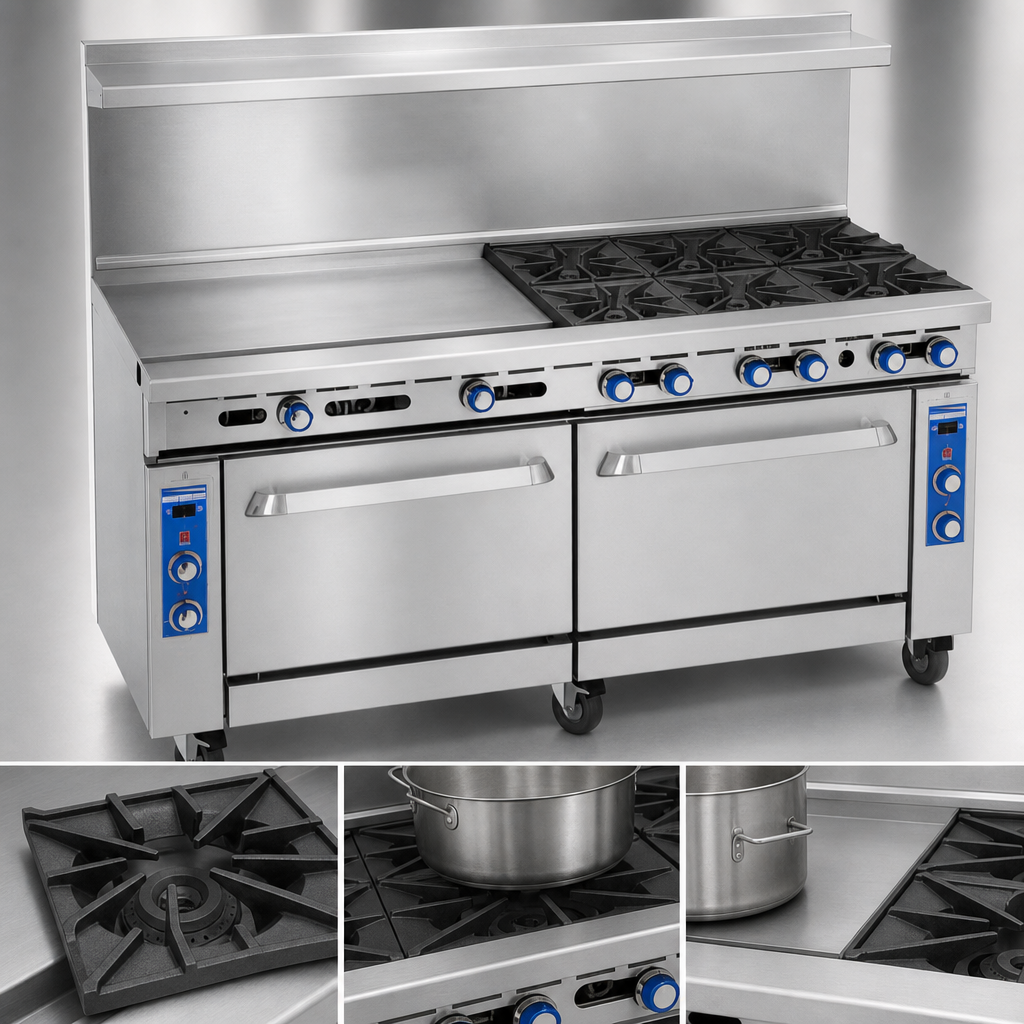

• Chef-friendly layout – 3.5" landing ledge keeps plates and pans within reach; cast-iron grates let pots slide effortlessly across sections.
• Field-versatile gas – 3⁄4" gas connection; 5.0" W.C. natural or 10.0" W.C. LP manifold pressure.
• Certified & backed by Imperial – NSF, CE, CSA Flame & Star approvals plus 1-year parts & labor warranty.

• Cast-iron, lift-off burner heads are anti-clogging and gasket-free for quick cleaning.
• Heat deflectors under the griddle and in the oven cavities distribute heat evenly and protect components.
• Convection fan auto-shuts when the door opens and offers a three-position cook/cool switch.
• Porcelainized oven interior & door lining resist corrosion and wipe down easily.
• Six-position rack guides with three chrome racks per oven accommodate full-size sheet pans.

*Specifications are subject to change without notice. Always refer to the unit’s data plate and installation manual for exact requirements.
