Imperial (Middleby) IR-4-G48-C-XB Pro Series Gas Ranges
Description

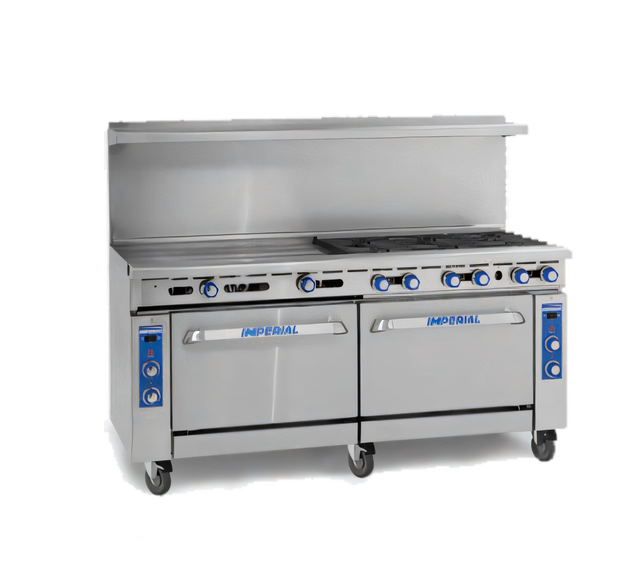

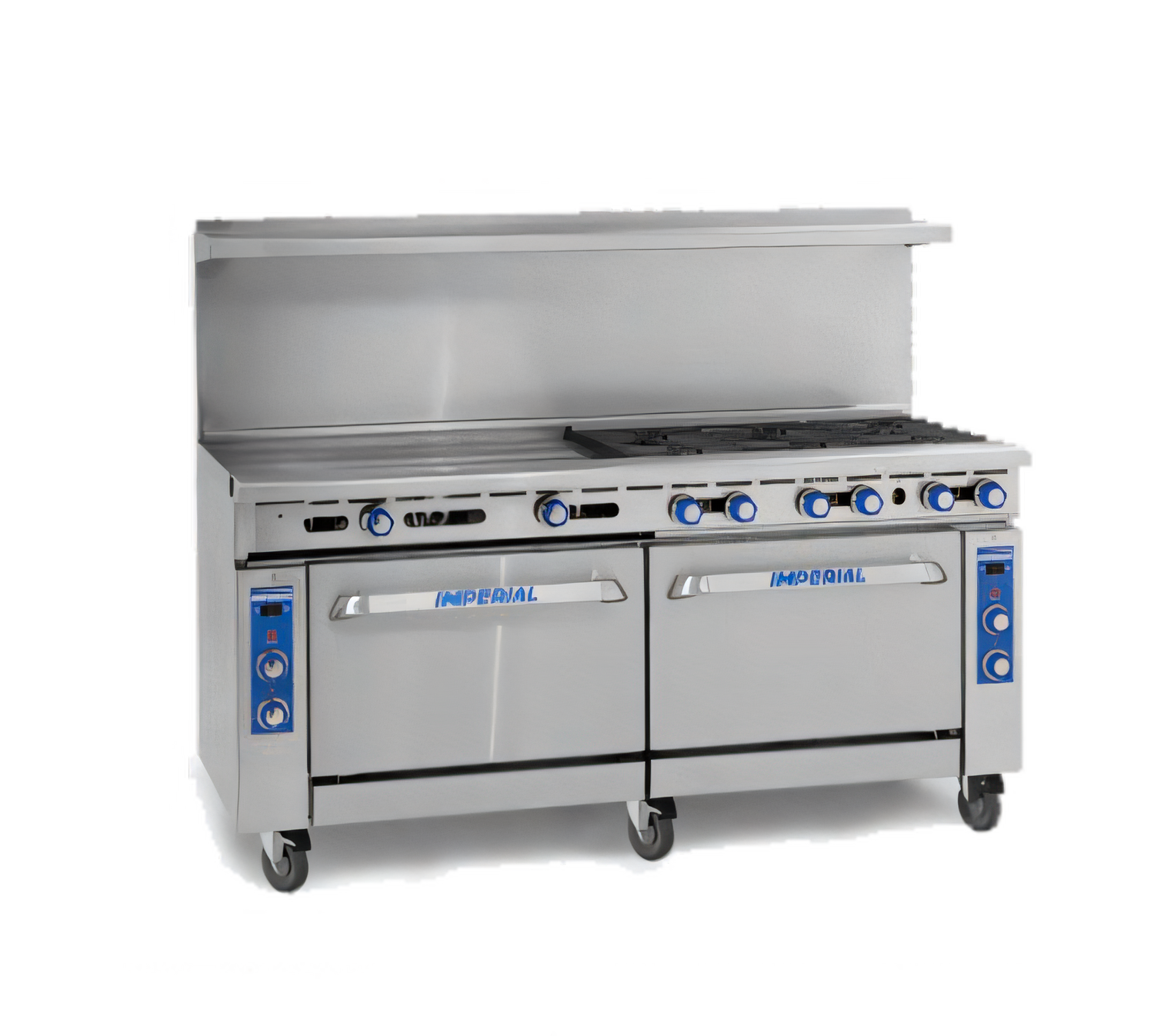

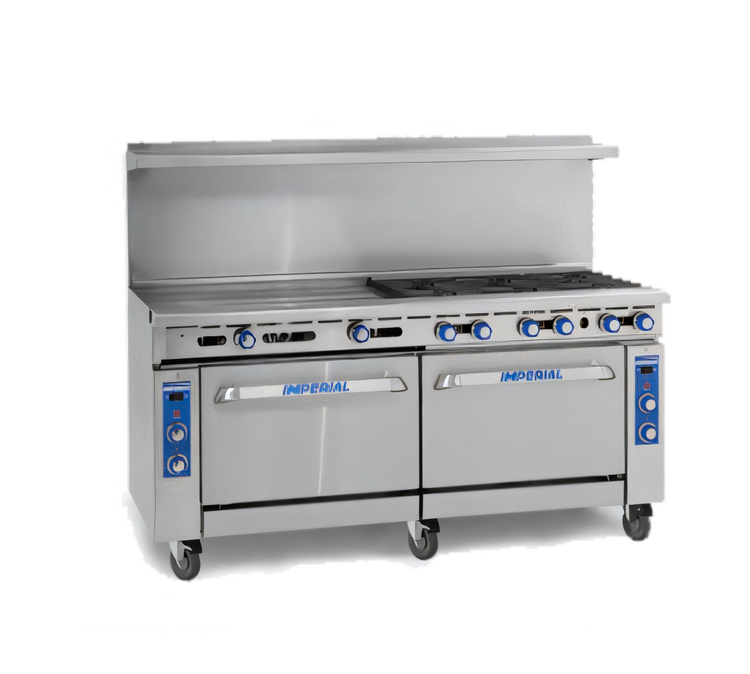

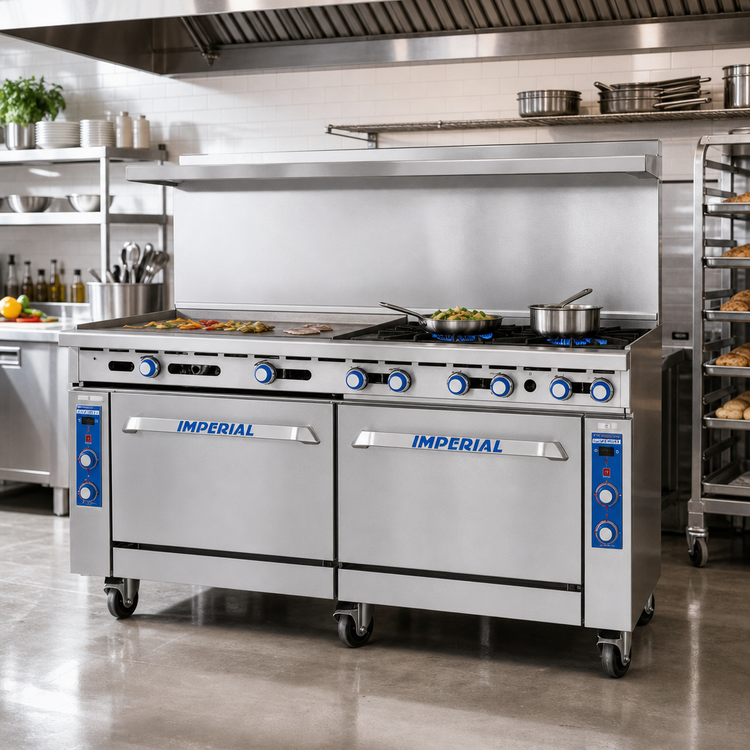

Imperial Pro Series 72" Gas Restaurant Range
Model IR-4-G48-C-XB | 4 Burners • 48" Griddle • Convection Oven • Cabinet BaseBring powerhouse versatility to your cookline with Imperial’s 72" Pro Series range. This single piece of equipment delivers high-heat sautéing, low-simmer sauces, all-day griddle work and even, fan-forced baking—while keeping sheet pans and smallwares close at hand in the integrated open cabinet base.
Performance & Convenience

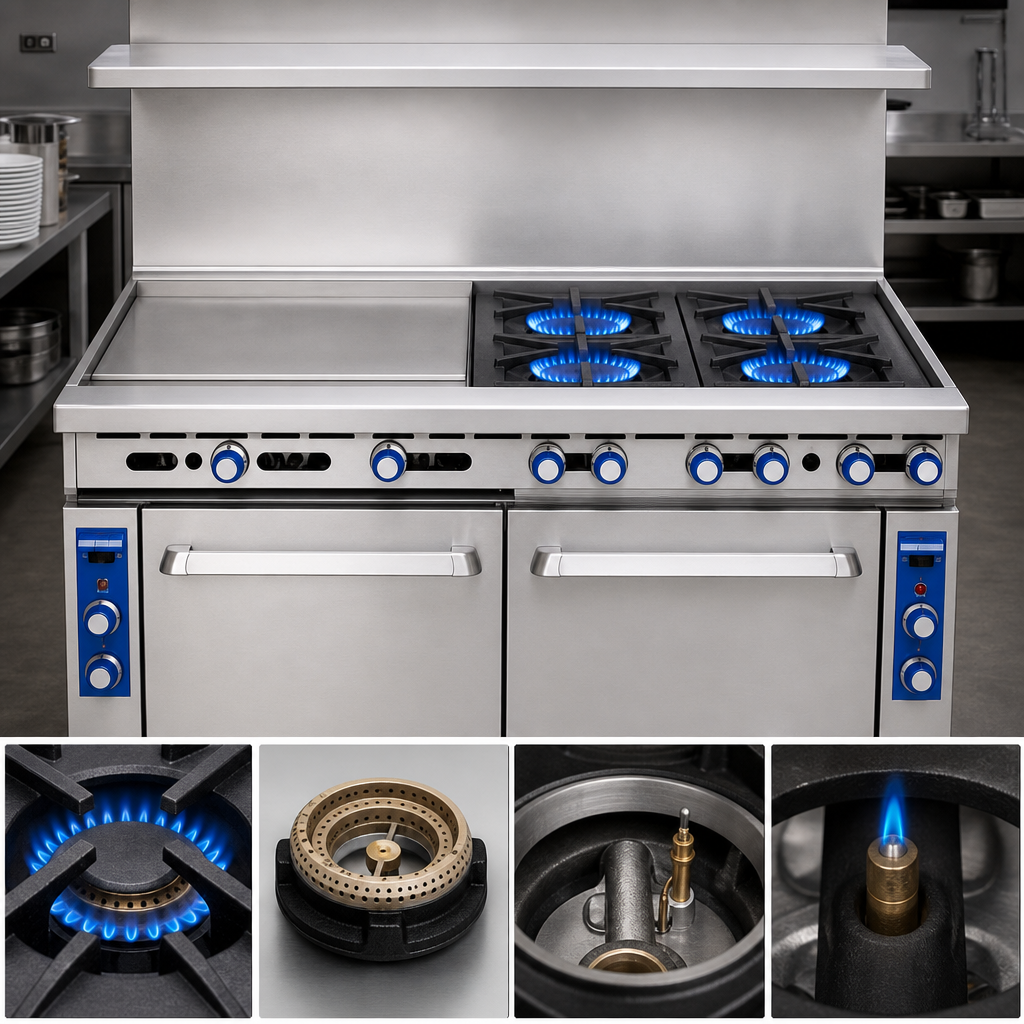

- Four PyroCentric™ 32,000 BTU open burners with a dedicated 7,000 BTU low-simmer flame ring.

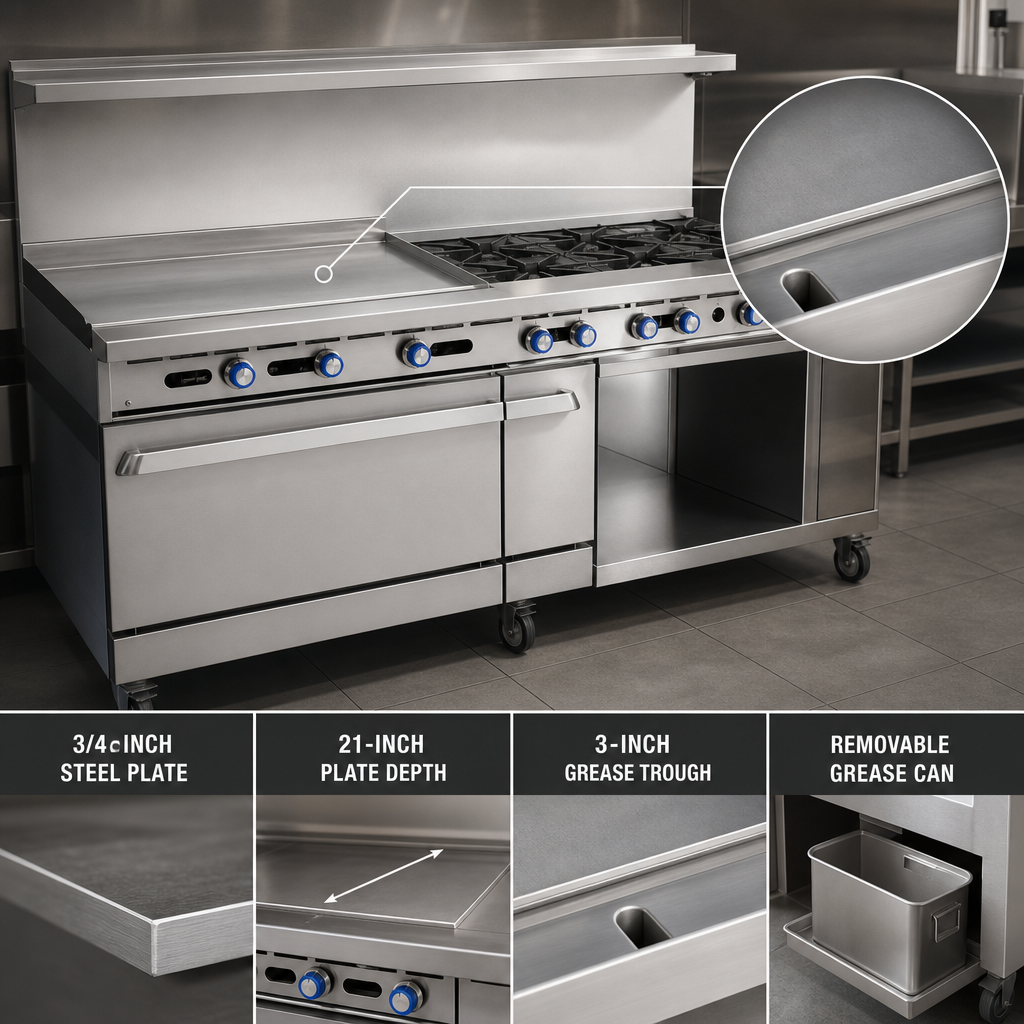

- 48" wide griddle with a highly-polished ¾" steel plate for excellent heat retention.
- Even griddle heating—one 20,000 BTU burner & heat deflector every 12".
- Full-width 3" grease trough, removable grease can and crumb tray for quick clean-up.
- 30,000 BTU convection oven with ½ HP blower motor for faster, more uniform baking and roasting.
- Porcelainized oven interior, three chrome racks and a cool-down/fan-only position.
- Open cabinet base with stainless bottom shelf keeps hotel pans, sheet pans or stock pots within reach.
Built for the Long Haul
- All-stainless front, sides, backsplash, landing ledge (3½" deep) and kick plate.
- Heavy-duty cast-iron grates—front sections 12" × 12", rear sections 12" × 13".
- One standing pilot per burner for instant ignition; burners lift off with no gaskets or screws.
- 6" adjustable legs standard; optional casters available.
- Durable, easy-grip cast-aluminum control knobs.
- NSF, CE, CSA Flame & CSA Star certified for use in commercial kitchens.
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 31½" (800 mm) |
| Height (with 6" legs & backguard) | 56½" (1435 mm) |
| Open burners / output | 4 × 32,000 BTU (9 kW) each |
| Simmer setting | 7,000 BTU (2 kW) |
| Griddle width / plate | 48" (1219 mm) • ¾" (19 mm) steel |
| Griddle burners | 4 × 20,000 BTU (6 kW) each |
| Convection oven output | 30,000 BTU (9 kW) • ½ HP blower |
| Oven interior (W×D×H) | 26½" × 22½" × 14" (673 × 572 × 356 mm) |
| Racks included | 3 chrome-plated, repositionable |
| Cabinet base | Stainless steel, open front, bottom shelf |
| Total gas input | 238,000 BTU (70 kW) |
| Gas connection | ¾" NPT (manifold pressure: 5" WC natural / 10" WC LP) |
| Electrical (convection fan) | 120 V, 1 ph, 6 A, cord & plug supplied |
| Ship weight | ≈ 1,150 lb (522 kg) |
| Warranty | 1-year parts & labor (factory-authorized service) |
