Imperial (Middleby) IR-4-G36-CC Pro Series Gas Ranges
Description
Imperial Pro Series 60" Gas Restaurant Range – 4 Burners, 36" Griddle & Double Convection Ovens
Model IR-4-G36-CC | 248,000 BTU (73 kW)Take on breakfast rushes, lunch lines and dinner service with one rugged, all-in-one platform. Imperial’s 60-inch Pro Series range marries high-output PyroCentric™ burners, a full-width griddle and two rapid-recovery convection ovens inside a stainless-steel frame built to thrive in demanding commercial kitchens.
Why chefs choose the Pro Series

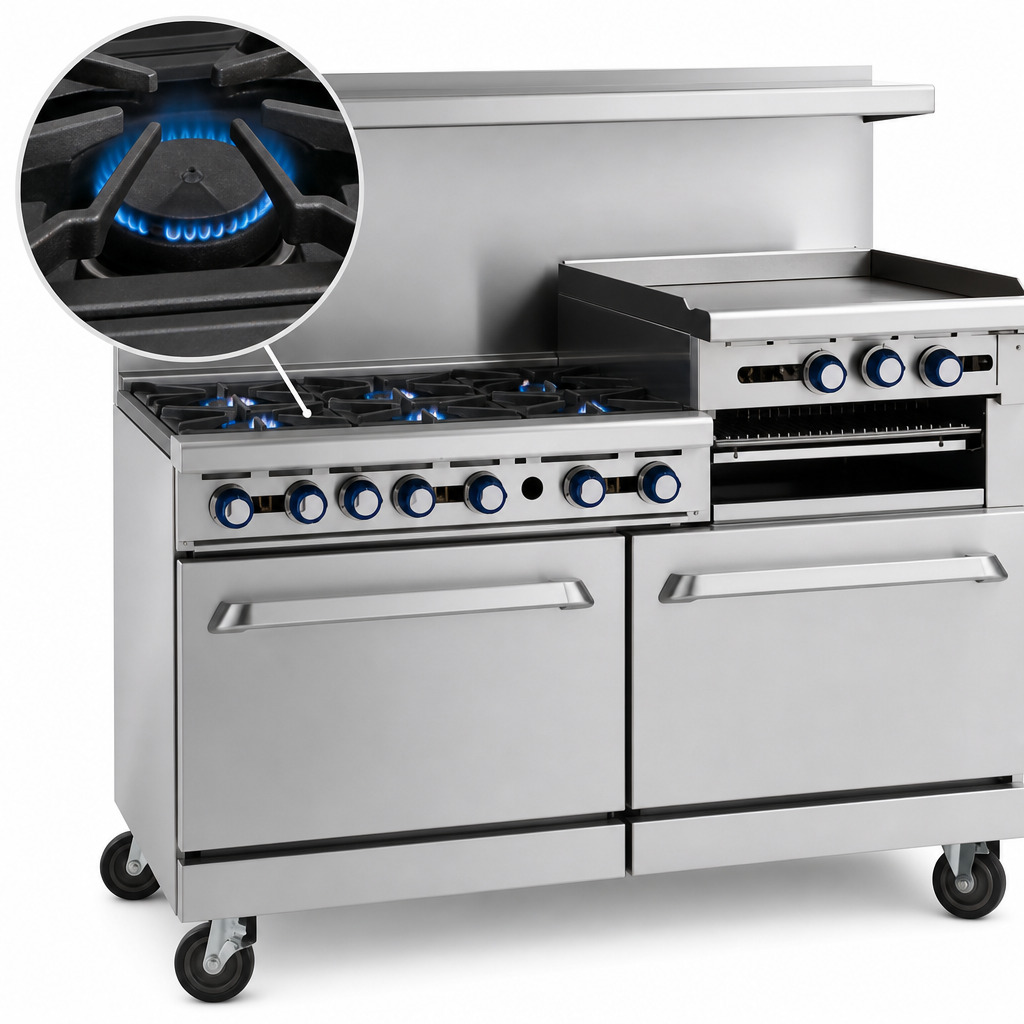

- 4 × 32,000 BTU PyroCentric™ open burners with 7,000 BTU low-simmer capability.

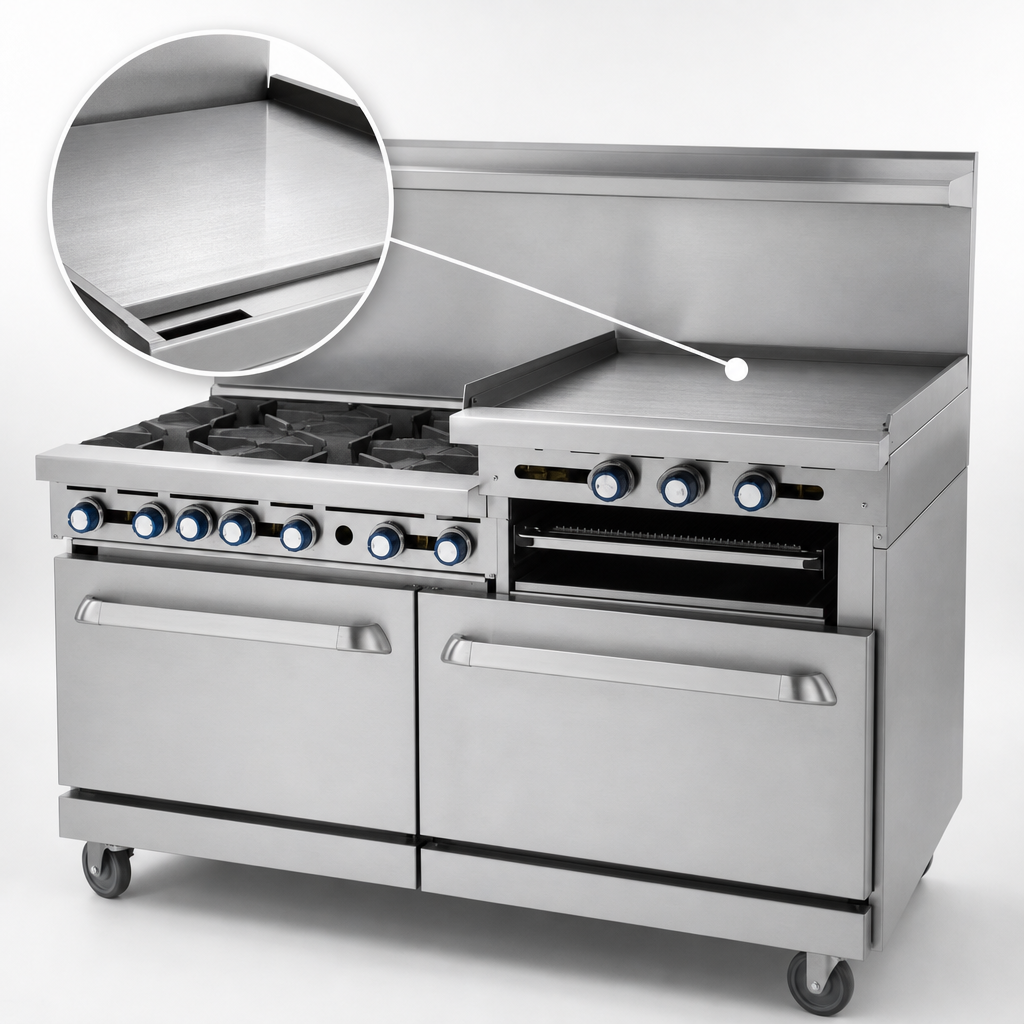

- 36" wide, ¾" thick polished steel griddle; 3" trough plus removable grease can for fast clean-ups.
- Two 30,000 BTU convection ovens with ½ HP blowers bake evenly and reduce shrinkage.
- Chef-depth oven (26 ½" W × 22 ½" D) fits 18" × 26" sheet pans left-to-right or front-to-back.
- Porcelainized oven interiors, lift-off burner heads and full-width crumb tray simplify maintenance.
- Stainless front, sides, backsplash, high shelf, 3 ½" landing ledge and kick plate for lasting durability.
- Manual, easy-service controls with individual standing pilots.
- Certified NSF, CE, CSA Flame & CSA Star for safety and sanitation.
Built for serious volume
- Total input: 248,000 BTU.
- Two-ring burner flame pattern delivers consistent pan-to-pan heat.
- Exclusive oven heat deflector keeps heat in the cavity, not on the floor.
- Two-piece cast-iron top grates let stock pots glide effortlessly across sections.
Technical specifications
| Exterior width | 60" (1524 mm) |
|---|---|
| Depth | 31 ½" (800 mm) |
| Height (to top of backguard) | 56 ½" (1435 mm) |
| Open burners | 4 × 32,000 BTU (9 kW) |
| Griddle plate | 36" W × 21" D, ¾" polished steel |
| Ovens | 2 convection, 30,000 BTU each, ½ HP blower motors |
| Oven cavity | 26 ½" W × 22 ½" D × 14" H (673 × 572 × 356 mm) |
| Gas connection | ¾" NPT; 5.0" W.C. (natural) / 10.0" W.C. (propane) |
| Electrical | 120 V • 1 φ • 6 A (convection fans & ignition) |
| Shipping weight | ≈ 1,195 lb (540 kg) |
| Warranty | 1-year parts & labor, factory authorized service |
Included with your range
- (6) Cast-iron top grates
- (6) Chrome oven racks – three per oven
- Removable grease can & full-width crumb tray
- Backguard with high shelf
- 6" heavy-duty adjustable stainless-steel legs
Product images may show optional accessories such as casters. Specifications are subject to change without notice.
