Imperial (Middleby)  |  Pro Series  |  SKU: IR-4-G24-XB

Imperial (Middleby) IR-4-G24-XB Pro Series Gas Ranges

$10,552.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Training video Parts manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 48" Gas Restaurant Range – 4 Burners, 24" Griddle, Standard Oven & Cabinet

Model IR-4-G24 | 203,000 BTU | NSF, CE, CSA Flame & Star

Built for high-volume kitchens that refuse to compromise on versatility, the Imperial Pro Series 48" range marries four powerful PyroCentric™ burners with a full 24" griddle, a heavy-duty standard oven and a convenient open storage base. Rugged stainless-steel construction, precise low-simmer control and easy-clean design features keep your line moving service after service.

Why you’ll love it

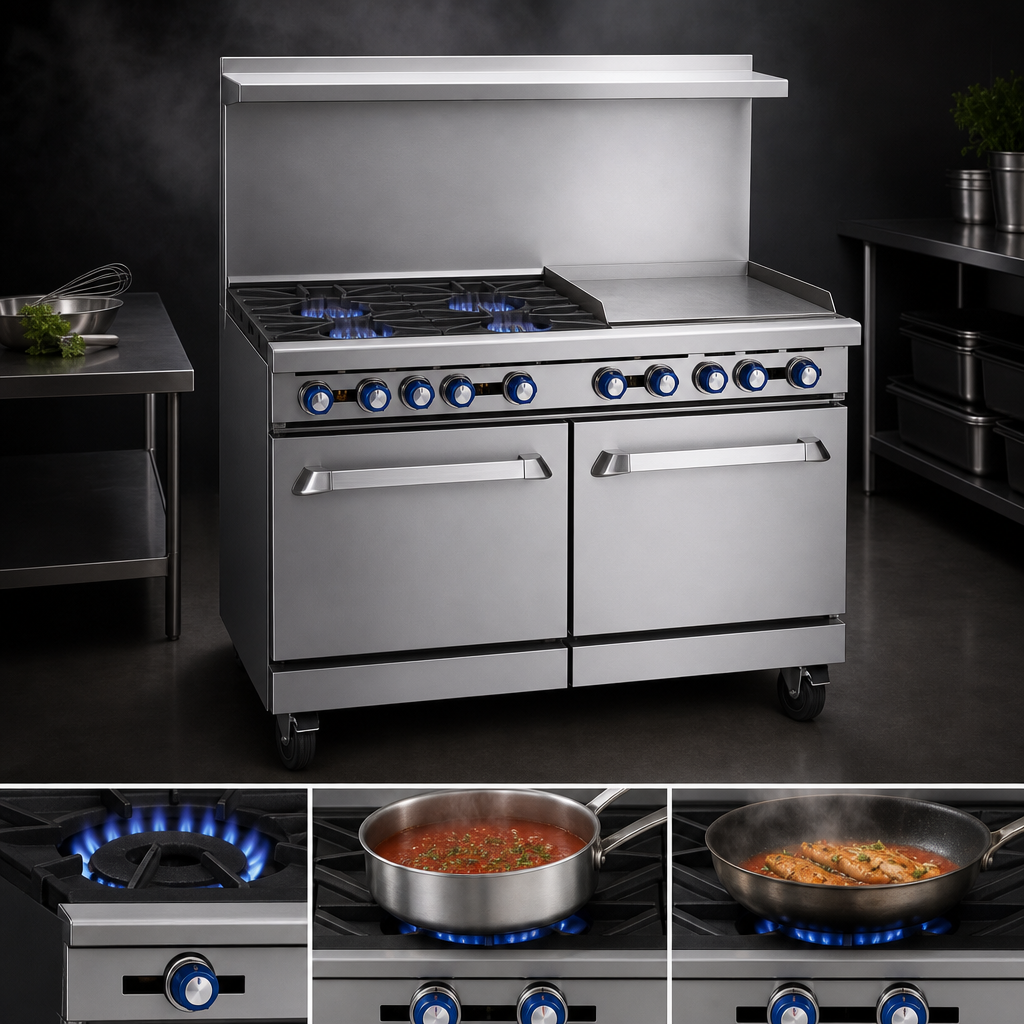

  • 32,000 BTU PyroCentric™ open burners with dual-ring flame & 7,000 BTU low-simmer mode for delicate sauces.
  • Cast-iron grate system (12" × 12" front / 12" × 13" rear) lets heavy stock pots glide effortlessly across sections.
  • 24" highly-polished ¾" steel griddle (21" plate depth) with heat deflectors every 12", 3" grease trough & removable can.
  • Standard oven (porcelain interior) delivers even heat via a linear burner & ships with 1 chrome rack.
  • Open cabinet base and bottom shelf keep sheet pans, sauté pans or stock pots right at your fingertips.
  • Full-width removable crumb tray plus lift-off, anti-clog burners speed daily clean-up.
  • All-stainless front, sides, backguard, high shelf, 3½" landing ledge & kick plate for a professional, unified look.
  • 6" heavy-duty legs with adjustable feet – swap for optional casters when mobility is a must.
  • 1-year parts & labor warranty backed by Imperial’s nationwide service network.

At-a-glance specs

Overall width 48" / 1219 mm
Depth (to landing ledge) 31½" / 800 mm
Height (to top of backguard) 56½" / 1435 mm
Total output 203,000 BTU / 59 kW
Open burners 4 × 32,000 BTU (7,000 BTU simmer)
Griddle section 24" W × 21" D, ¾" plate, approx. 75,000 BTU
Oven type / BTU Standard (Space Saver*), 27,000 BTU
Oven interior 20" W × 26" D × 14" H, porcelain-coated, 1 chrome rack
Storage Open cabinet with bottom shelf (right-hand)
Gas connection ¾" NPT rear manifold; 5" W.C. Natural / 10" W.C. LP
Construction Stainless steel front, sides, shelf & landing ledge; cast-iron grates
Certifications NSF, CE, CSA Star & Flame
Warranty 1-year parts & labor (factory-authorized service)

*Chef-Depth (26½" W interior, 35,000 BTU) oven available by special order.

Popular add-ons (sold separately)

  • Snap-on 6" or 11" stainless backguards & high shelves
  • Caster kit for easy mobility
  • Thermostatic or grooved griddle plates
  • Cheese melter / salamander reinforcement channels
  • Extra oven racks, chrome or standard
  • Factory quick-disconnect gas hose & ¾" shut-off valve
Installation & clearance: For use on non-combustible floors only. Provide 0" side/rear clearance from non-combustible surfaces or 8" (203 mm) when adjacent to combustibles. Legs or casters are required unless the unit overhangs the curb by at least 2" (51 mm).

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

48.0in

Depth

32.5in

Shipping Weight

740.0lbs

Base

(1) standard oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Plate Thickness

.750" = 3/4"

Top

(4) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Specifications

Pro Series Restaurant Range, gas, 48"W, (4) open burners & pilot lights, low simmer feature, cast iron grates, (1) 24" griddle, (1) standard oven, porcelain interior, (1) chrome rack, (1) open cabinet, bottom shelf, 3"W grease trough, removable grease can & crumb tray, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 203,000 BTU, 59kW, NSF, CE, CSA Flame, CSA Star
