Imperial (Middleby) IR-4-G24 Pro Series Gas Ranges
Description
Imperial Pro Series 48" Gas Restaurant Range
4 Open Burners • 24" Griddle • Double Space-Saver OvensBuilt for chefs that demand relentless output and precise control, the Imperial Pro Series IR-4-G24 delivers 222,000 BTU of cooking power in a rock-solid, all-stainless package that stands up to the toughest commercial kitchens.
Key Benefits

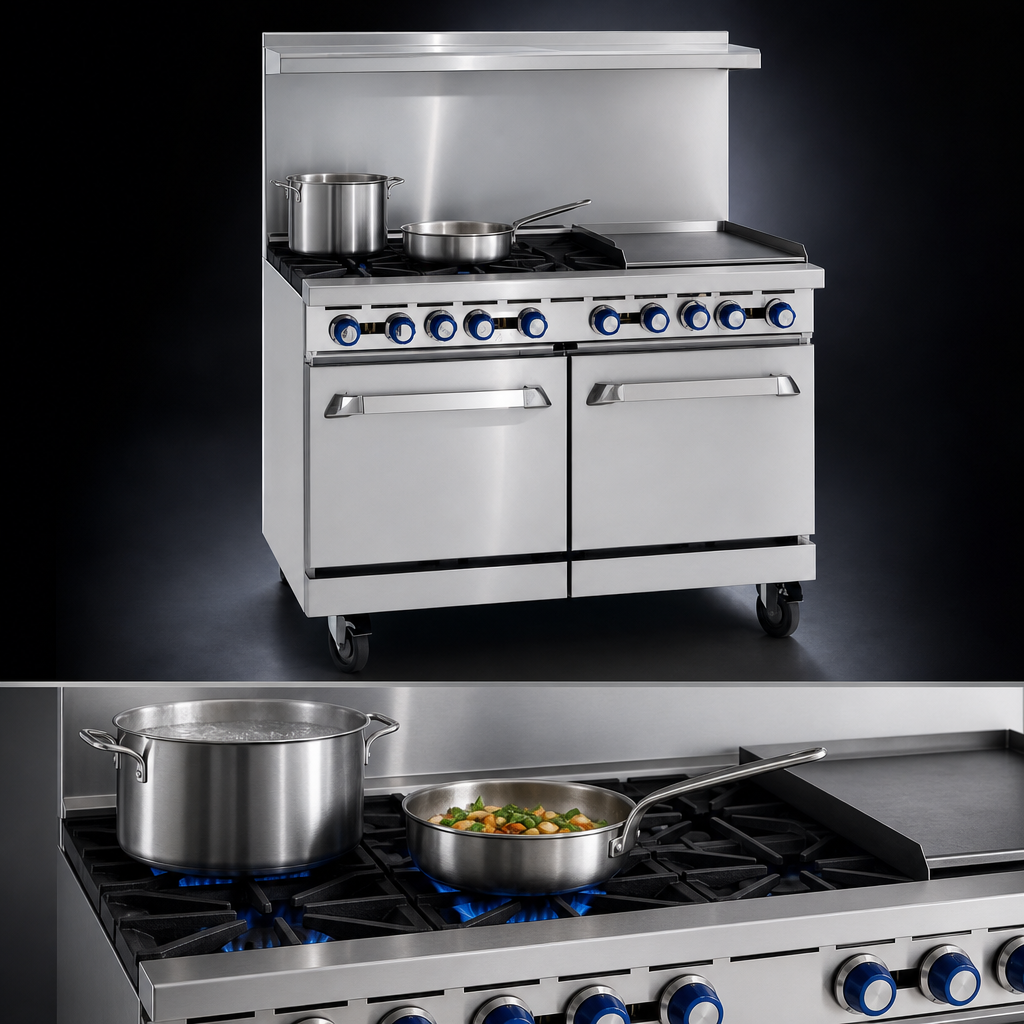

- Four 32,000 BTU PyroCentric™ open burners with a 7,000 BTU low-simmer feature.
- 24" × 21" griddle with ¾" polished steel plate, 3" grease trough and removable grease can.
- Two independent 27,000 BTU Space-Saver ovens—porcelain interiors, chrome racks, safety pilots.
- Heavy-duty two-piece cast-iron grates let stock pots glide effortlessly across the range top.
- Round stainless-steel “Chef’s” door handles stay cool and comfortable through service.
- Full-width removable crumb tray and lift-off burner heads speed daily cleaning.
- NSF, CE, CSA Flame & CSA Star certified for global compliance.
Built for Performance
- Linear oven burners and exclusive heat deflectors ensure even cavity temperatures.

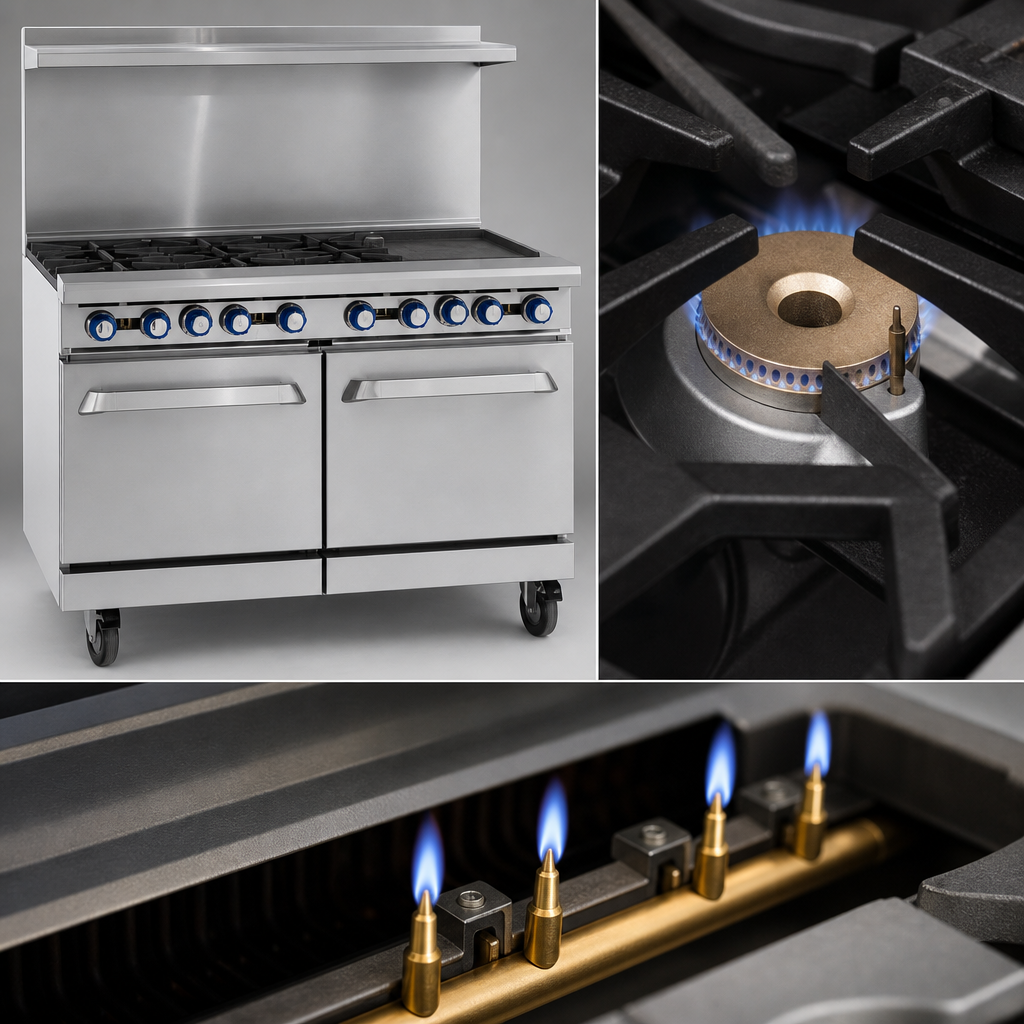

- One standing pilot per burner for instant ignition; 100 % safety pilot on each oven.
- 3.5" stainless-steel landing ledge keeps plating tools within easy reach.
- 6" adjustable legs level the range on any non-combustible floor.
Technical Specifications
| Model | IR-4-G24 |
|---|---|
| Overall Dimensions (W × D × H) | 48" × 31.5" × 56.5" (1219 × 800 × 1435 mm) |
| Cooking Surface Height | 36" (914 mm) on 6" legs |
| Total Input | 222,000 BTU / 65 kW |
| Open Burners | 4 × 32,000 BTU (7,000 BTU simmer) |
| Griddle | 24" wide, ¾" thick steel plate, manual controls |
| Ovens | 2 × Space-Saver, 27,000 BTU each |
| Oven Interior (each) | 20" × 26" × 14" (508 × 660 × 356 mm) |
| Racks Supplied | 1 chrome rack per oven (extra optional) |
| Gas Inlet | ¾" NPT (rear, left) |
| Manifold Pressure | Natural 5.0" W.C. / LP 10.0" W.C. |
| Clearances | 0" sides & rear to non-combustible; 8" to combustible |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Need casters, extra racks or a thermostatic griddle control? Contact us for factory options.
