Imperial (Middleby) IR-4-G12 Pro Series Gas Ranges
Description
Imperial Pro Series 36" Gas Restaurant Range
Model IR-4-G12 | 4 Burners • 12" Griddle • Standard OvenPower, precision and durability—packed into just 36 inches. The Imperial Pro Series range merges four high-performance open burners, a versatile 12" griddle and a full-size oven, giving chefs the flexibility to sauté, sear, griddle-cook and bake from a single, stainless-steel workhorse.
Key Features

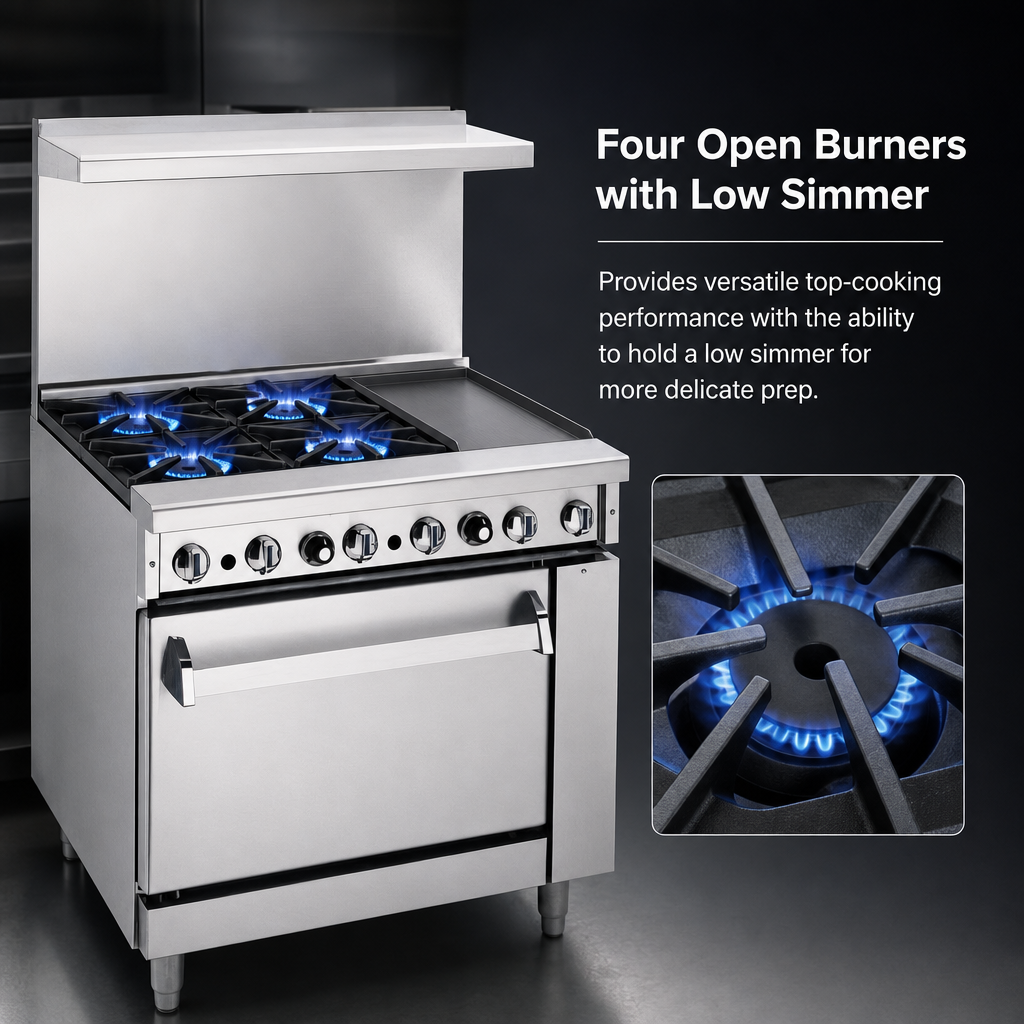

- 4 PyroCentric™ open burners (32,000 BTU each) deliver two rings of flame plus a 7,000 BTU low-simmer setting for delicate sauces.
- Anti-clogging, lift-off cast iron burners and grates simplify cleanup—no screws or gaskets to remove.

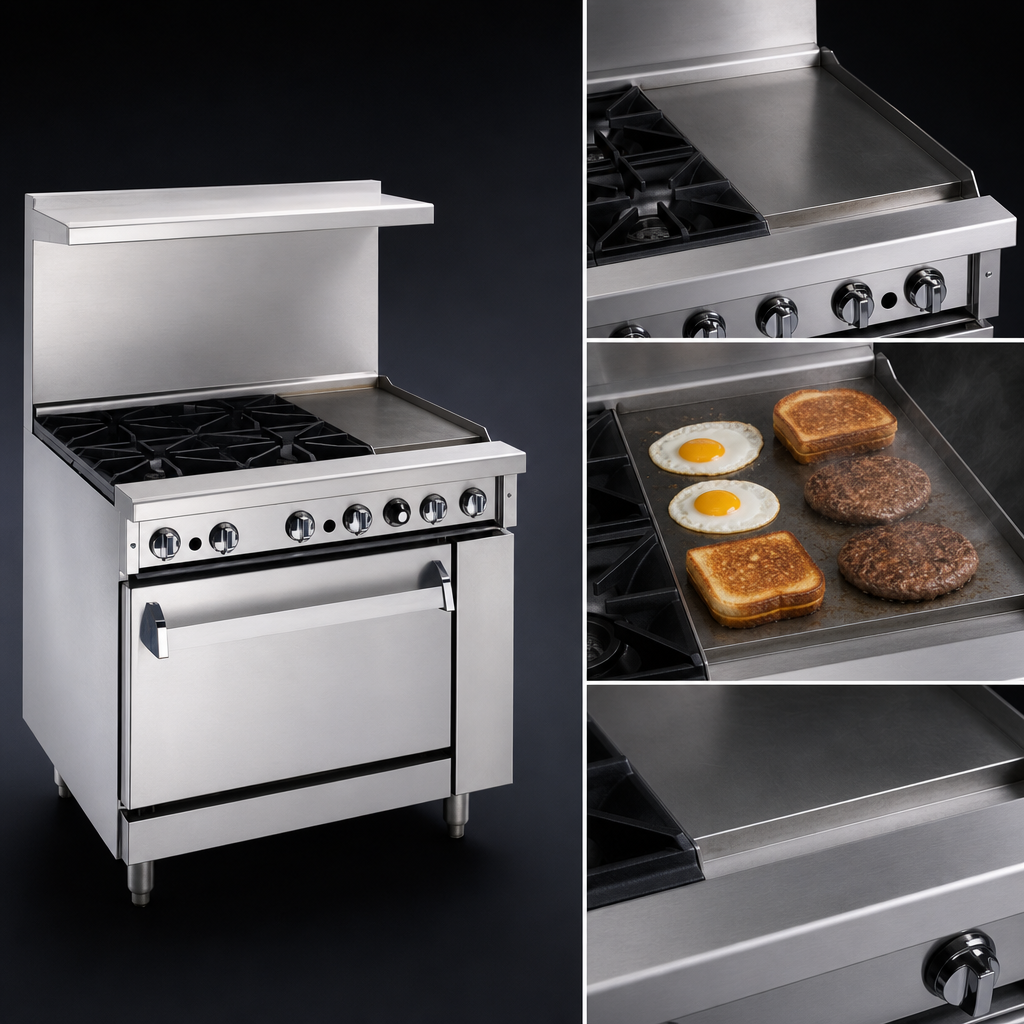

- 12" (305 mm) griddle with a ¾" polished steel plate, even-heat deflector and 3" grease trough feeding a removable can.
- Chef-depth oven (26-½" W × 26" D) holds full-size sheet pans left-to-right or front-to-back; linear burner supplies 35,000 BTU of consistent heat.
- Porcelainized oven interior, heavy-duty door hinge and round stainless “chef’s” handle built to withstand daily commercial use.
- Full-width removable crumb tray under burners for fast end-of-shift cleanouts.
- All-stainless exterior—front, sides, backguard, high shelf, 3.5" landing ledge and kick plate—for maximum corrosion resistance.
- 6" adjustable legs for easy leveling; optional locking casters available.
- Individual standing pilots for instant burner ignition plus a 100 % oven safety pilot.
- NSF, CE, CSA Flame & CSA Star certified for gas safety and sanitation.
At-a-Glance Specs
| Overall Width | 36" (914 mm) |
|---|---|
| Cooking Surface | 4 open burners + 12" griddle |
| Total Gas Output | 183,000 BTU / 54 kW |
| Burner Output | 32,000 BTU each (open) 20,000 BTU per 12" griddle section |
| Oven Output | 35,000 BTU (standard oven) |
| Oven Interior (W × D × H) | 26-½" × 26" × 14" (673 × 660 × 356 mm) |
| Rack(s) Included | 1 chrome rack (extra racks optional) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | 5" W.C. natural | 10" W.C. LP |
| Ship Weight | 625 lb (283 kg) |
| Warranty | 1-year parts & labor |
| Certifications | NSF, CE, CSA Flame, CSA Star |
Popular add-ons: extra oven racks, 6" or 11" backguards, wok ring, thermostatic griddle control and factory-installed casters.
Installation Notice: Unit must be placed on a non-combustible floor with 0" clearance to non-combustible surfaces (8" / 203 mm to combustible). Gas hookup and start-up should be performed by a licensed technician.
