Imperial (Middleby) IR-4-G12-C Pro Series Gas Ranges
Description
Pro Series 36" Gas Restaurant Range – 4 Burners, 12" Griddle & Convection Oven
Imperial Model IR-4-G12-C • 178,000 BTU • NSF, CE, CSA Flame/StarSlim on space yet big on performance, the Imperial Pro Series IR-4-G12-C packs a full-service kitchen’s cooking power into a single 36-inch footprint. Rugged stainless-steel construction, industry-leading PyroCentric™ burners, and a high-performance convection oven make it the chef-preferred choice for diners, bistros, food trucks and high-volume restaurants alike.
Why you’ll love it
- Multi-task hero: Four 32,000 BTU open burners, a 12" griddle, and a 30,000 BTU convection oven handle sautéing, searing, grilling and baking—simultaneously.
- True low simmer: Each PyroCentric™ burner drops to an ultra-low 7,000 BTU for delicate sauces and chocolates.

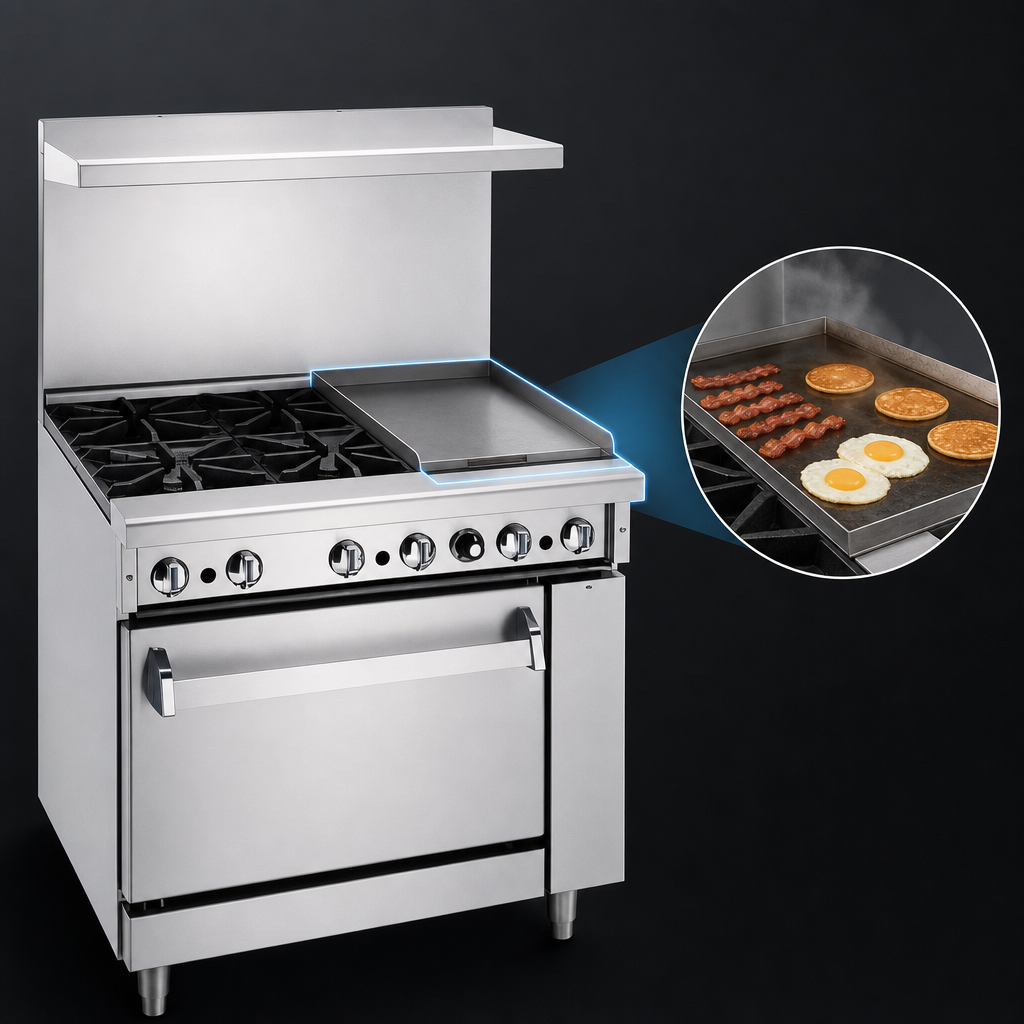

- Even-heat griddle: ¾" thick, highly-polished steel plate with heat deflector every 12" and an extra-wide 3" grease trough for clean operation.
- Chef-depth convection oven: 26½" W × 22½" D interior accepts full-size sheet pans front-to-back and left-to-right; ½ HP blower motor cooks faster with less shrinkage.
- Built for the long shift: One-piece cast-iron top grates, welded stainless seams, and a 3½" landing ledge let heavy pots slide effortlessly while standing up to daily abuse.
- Easy clean-ups: Lift-off burner heads, removable crumb tray, porcelainized oven interior, and a large, lift-out grease can minimize downtime.
- Field-ready: 6" heavy-duty adjustable legs, ¾" rear gas connection, and a single 120 V cord for the oven fan mean quick, code-compliant installs.
At-a-glance specifications
| Overall width | 36" / 914 mm |
|---|---|
| Depth (front to back) | 31½" / 800 mm (incl. 3½" landing ledge) |
| Height (to cooktop / top of splash) | 36" / 914 mm • 56½" / 1,435 mm |
| Open burners | 4 × 32,000 BTU (9 kW) PyroCentric™ w/ 7,000 BTU simmer |
| Griddle | 12" W, ¾" thick steel plate, 20,000 BTU (6 kW) |
| Convection oven | 30,000 BTU (9 kW) burner, ½ HP fan, 3 chrome racks |
| Oven interior (WxDxH) | 26½" × 22½" × 14" (673 × 572 × 356 mm) – fits full-size pans either direction |
| Total gas input | 178,000 BTU / 52 kW |
| Gas connection / pressure | ¾" NPT • 5" W.C. Natural | 10" W.C. LP |
| Electrical (oven blower) | 120 V, 1-phase, 6.0 A, 6-ft cord & NEMA 5-15P plug |
| Certifications | NSF • CE • CSA Flame • CSA Star |
| Shipping weight | 310 kg / 685 lb |
| Warranty | 1-year parts & labor (factory authorized service required) |
Perfect for
- High-volume restaurants needing versatile cooktop and baking capacity
- Compact kitchens where every inch counts
- Food trucks and ghost kitchens that require full-sized oven power
- Catering facilities demanding rugged, easy-to-clean equipment
For use on non-combustible floors; 0" side/rear clearance from non-combustibles, 8" from combustibles. Legs or casters must be fitted when not curb-mounted.
