Description

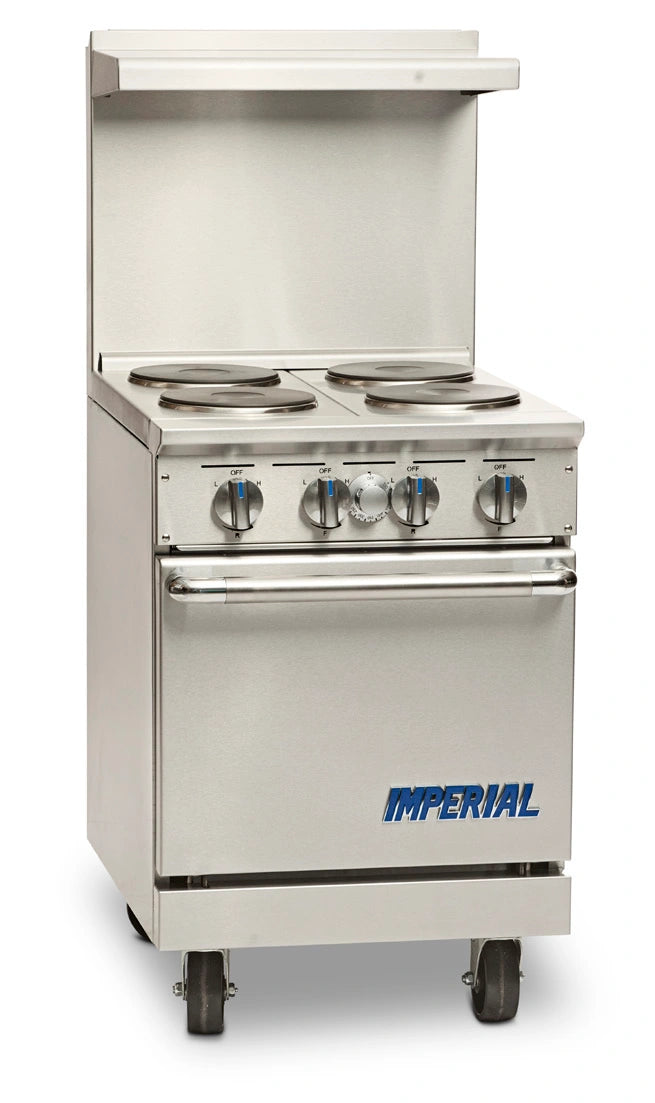

Pro Series 24" Electric Restaurant Range – Model IR-4-E
(QUICK SHIP) Solid-Top • 4-Element • Space Saver OvenBuilt for busy professional kitchens that refuse to compromise on performance or durability, the Imperial Pro Series IR-4-E packs a full-size electric range into a 24-inch footprint. Four powerful sealed round elements up top combine with an even-heating 5.3 kW space-saver oven, giving chefs the versatility they need while keeping the line compact and easy to clean.
Why You’ll Love It
- Fast, even heat – (4) 9" sealed plate elements, 2 kW each, deliver instant response and stellar pan contact.
- Mess-free solid top prevents spills from entering the unit and wipes down in seconds.
- Infinite heat controls on each element give you precise low-to-high adjustability.
- Space Saver oven fits standard 18" × 26" sheet pans front-to-back while occupying minimal floor space.
- High-performance 5.3 kW oven element with baffle system for uniform cavity temps.
- Heavy-duty construction – stainless front, sides, backguard, landing ledge & kick plate.
- Durable cast-aluminum knobs with Valox™ heat-protection grips stand up to daily abuse.
- 5" stainless landing ledge keeps plates close at hand for fast service.
- cETLus, ETL-Sanitation & CE listed for use in the U.S., Canada & EU.
Space Saver Oven Features
- 20" W × 26" D × 14" H porcelainized cavity easily accommodates full-size sheet pans.
- Thermostat range: 150 °F-500 °F (65 °C-260 °C).
- Splatter screen protects the element from drips and overflow.
- Includes (1) chrome rack; additional racks available.
- Stamped inner door liner adds strength and optimizes heat retention.
Specifications
| Model | IR-4-E (Pro Series 24") |
|---|---|
| Overall Dimensions | 24" W × 31-1/4" D × 36" H to cooktop 56-1/2" H to top of backguard |
| Cooktop | (4) 9" sealed round plate elements, 2 kW each (8 kW total) |
| Oven Element | 5.3 kW |
| Oven Interior | 20" W × 26" D × 14" H (fits 18" × 26" pans) |
| Total Connected Load | 13.3 kW |
| Voltage / Phase Options |
208 V 1 φ 64 A | 208 V 3 φ 38 A 240 V 1 φ 56 A | 240 V 3 φ 33 A 480 V 3 φ 17 A |
| Ship Weight | 465 lb (210 kg) |
| Exterior Finish | Stainless steel front, sides, backguard, landing ledge & kick plate |
| Legs | 6" stainless, adjustable (optional 6" casters) |
| Certifications | cETLus • ETL-Sanitation • CE |
| Warranty | 1-year parts & labor (factory authorized service) |
Imperial reserves the right to change specifications without notice in pursuit of continuous product improvement.
