Imperial (Middleby) IR-36BR-XB Pro Series Gas Ranges
Description
Imperial Pro Series 36" Range-Match Radiant Charbroiler – Open Cabinet Base (IR-36BR-XB)
90,000 BTU gas broiler with cast-iron radiants & grates | NSF, CSA Flame & CSA Star certifiedBuilt for demanding commercial kitchens, the Imperial IR-36BR-XB combines powerful radiant broiling with rugged all-stainless construction and convenient base storage. Enjoy even, high-heat performance, dramatic grill marks and quick cleanup in a single 36-inch footprint.
Why you’ll love it
- Serious heat on demand — 90,000 BTU (26 kW) produced by individually controlled 20,000 BTU/hr stainless burners spaced every 6" for precise zone cooking.
- Radiant efficiency – removable, reinforced cast-iron radiants prevent burner clogging and distribute heat evenly across the 33" × 22" cooking surface.

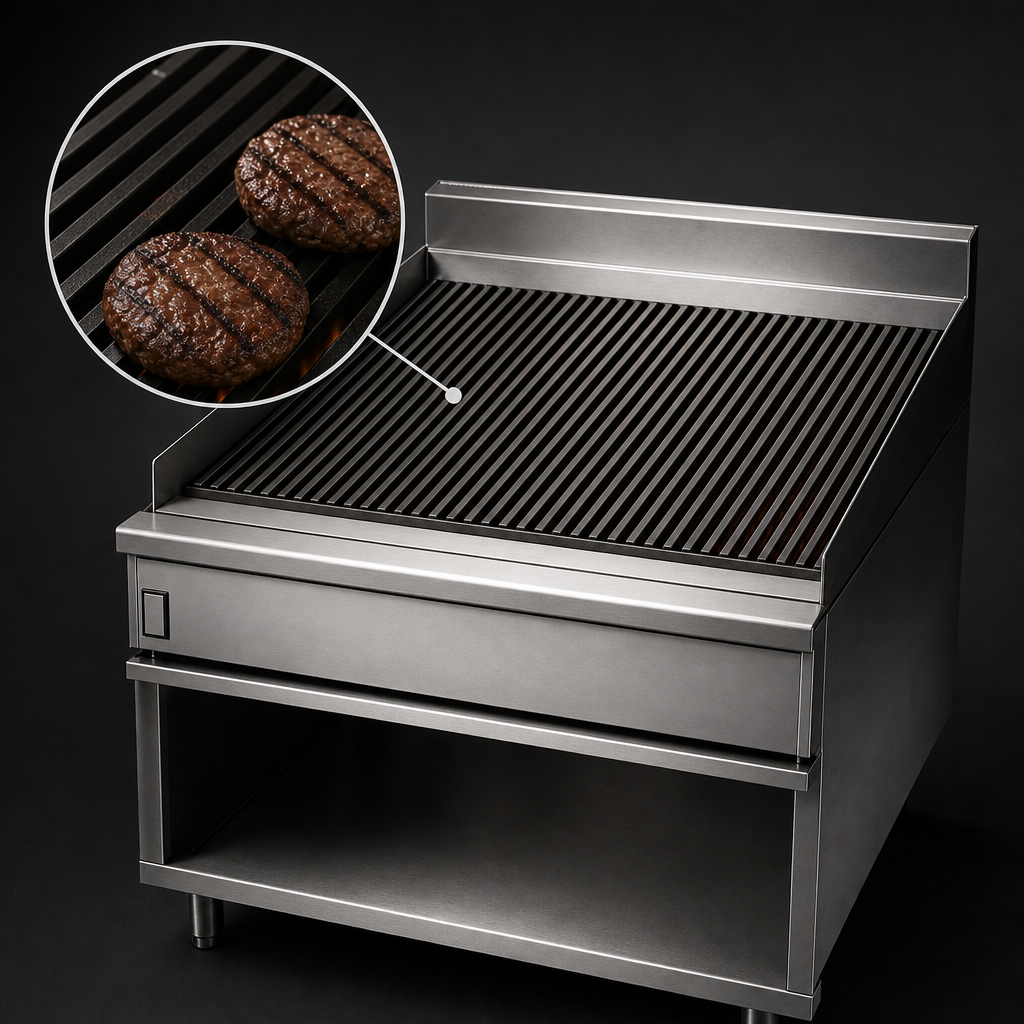

- Signature grill marks from heavy-duty cast-iron top grates; each 3" × 22" section lifts out safely for deep cleaning.
- Grease management made easy – every grate blade features a built-in trough leading to the full-width front gutter and large removable drip pan.
- Open cabinet base gives quick access to sheet pans, utensils or bulk ingredients; add optional stainless doors or center shelf for enclosed storage.
- Built to last – stainless steel front, sides, 11" backguard, landing ledge & kick plate with welded, polished seams.
- Operator-friendly details – 6" adjustable legs, enclosed 1-¼" manifold, fully insulated cooktop and slanted grate design offering multiple temperature zones.
At-a-glance specifications
| Model | IR-36BR-XB |
|---|---|
| Overall width | 36" (914 mm) |
| Cooking surface | 33" W × 22" D (838 × 559 mm) |
| Gas type | Natural or Propane |
| Total output | 90,000 BTU/hr | 26 kW |
| Manifold size | ¾" NPT (located front left) |
| Manifold pressure | Nat 5.0" W.C. | LP 10.0" W.C. |
| Certifications | NSF, CSA Flame, CSA Star |
| Base type | Open cabinet with bottom shelf |
| Unit shipping weight | ≈ 450 lb (204 kg) |
Clearance & installation
- For use only on non-combustible floors (legs or casters supplied).
- 0" clearance required from non-combustible surfaces; maintain 8" (203 mm) from combustible surfaces.
- Factory-set for specified gas type; field conversion must be performed by a qualified technician.
- Connect with a ¾" NPT shut-off valve; flexible hose & quick-disconnect kits are available.
Warranty
Imperial backs this broiler with a one-year parts & labor warranty when installed and serviced by an authorized agency. See full warranty for terms and exclusions.
