Imperial (Middleby) IR-36BR-C Pro Series Gas Ranges
Description

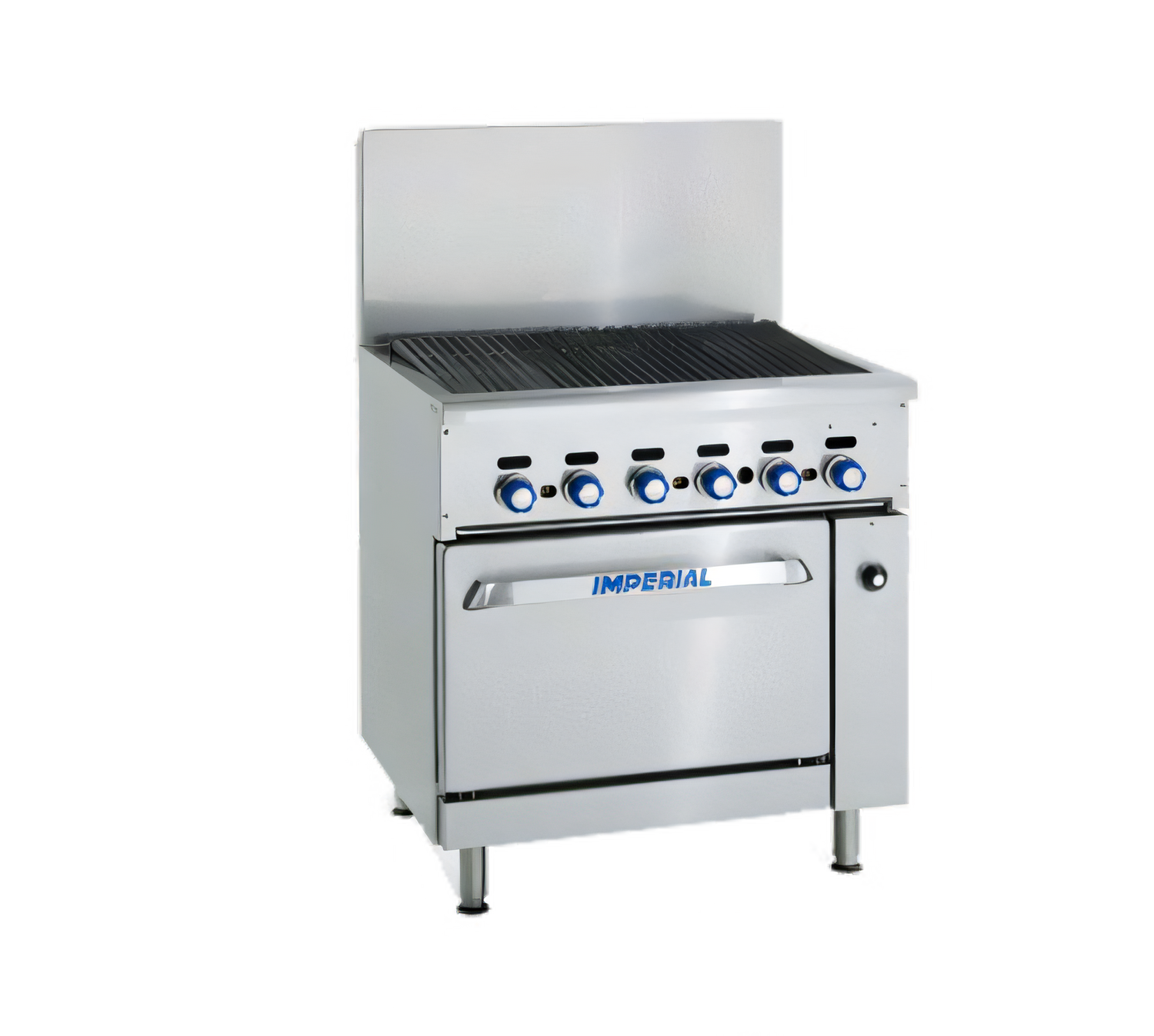

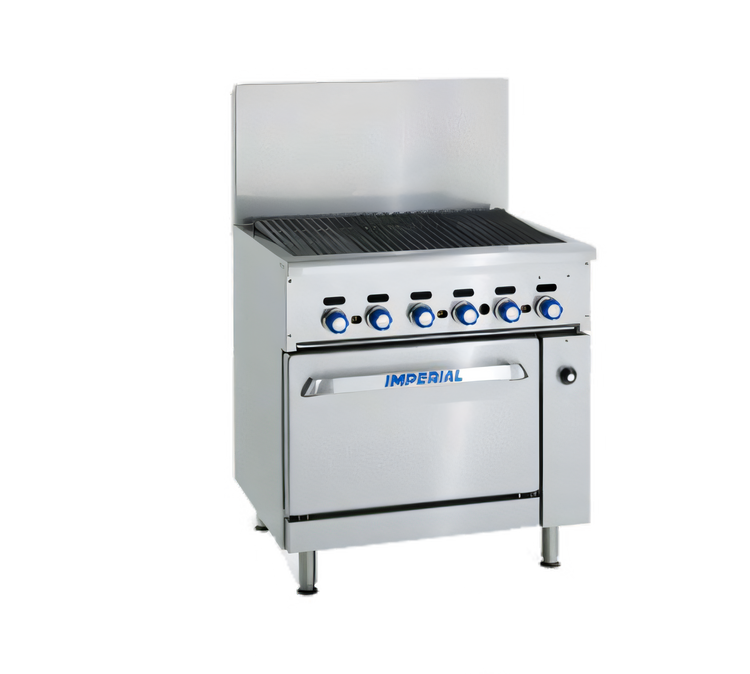

Pro Series 36" Range-Match Radiant Charbroiler + Convection Oven
Imperial – Model IR-36BR-CFire-kissed broiler marks up top, high-speed convection baking below – all in one 36-inch footprint. The Imperial Pro Series IR-36BR-C helps busy kitchens serve perfectly charred steaks, burgers, and seafood while keeping sides and desserts moving in the powerful convection base.
Why You’ll Love It
- 120,000 BTU (35 kW) total output for relentless performance on the line.
- Radiant charbroiler section with individually-controlled 20,000 BTU burners every 6" for precise zone cooking.
- Reinforced cast-iron radiants & top grates deliver signature grill marks and long service life.
- Slanted cooking surface offers a natural temperature gradient for rare-to-well in one pass.
- Built-in grease management: cast-in troughs, full-width gutter, and removable drip pan minimize flare-ups and speed cleanup.
- 30,000 BTU convection oven with ½ HP blower motor cooks evenly with less shrinkage.
- Porcelainized oven interior and door lining shrug off baked-on residue; three chrome racks included.
- All-stainless exterior – front, sides, 11" backguard, landing ledge & kick plate – stands up to daily scrubbing.
- 6" heavy-duty legs with adjustable feet simplify leveling on any non-combustible floor.
- Certified NSF, CSA Flame & CSA Star for gas safety and sanitation.
Technical Specifications
| Cooking Surface (Broiler) | 33" W × 22" D (838 × 559 mm) cast-iron grates, 3" × 22" removable sections |
|---|---|
| Burners (Broiler) | Stainless steel, 20,000 BTU each, spaced every 6" |
| Total Gas Input | 120,000 BTU /hr (35 kW) |
| Convection Oven Output | 30,000 BTU /hr with ½ HP fan motor |
| Oven Interior (WxDxH) | 26½" × 22½" × 14" (673 × 572 × 356 mm); porcelain coated |
| Oven Racks | 3 chrome-plated, adjustable |
| Gas Connection | ¾" NPT rear manifold; natural or LP (5.0" / 10.0" W.C.) |
| Overall Dimensions (WxDxH) | 36" × 31½" × 38½" (914 × 800 × 978 mm) – excludes 11" backguard |
| Shipping Weight | ≈ 690 lb (313 kg) |
| Certifications | NSF, CSA Flame, CSA Star |
| Warranty | 1-Year parts & labor, factory-authorized service |
For use on non-combustible floors only. Provide 0" clearance to non-combustible surfaces and 8" (203 mm) to combustibles. Gas hose and quick-disconnect kit sold separately.
