Imperial (Middleby) IR-36-LB Pro Series Specialty Ovens
Description

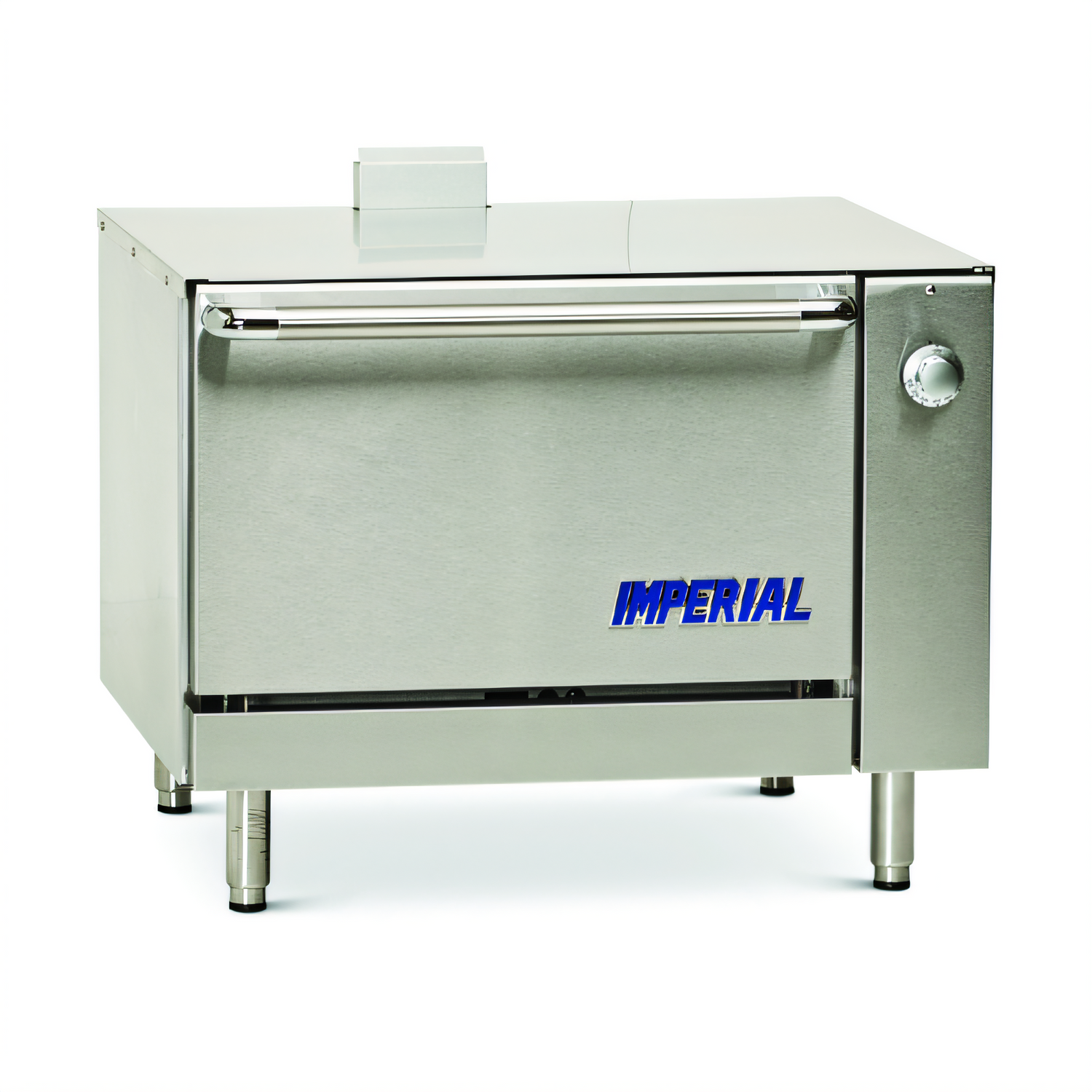

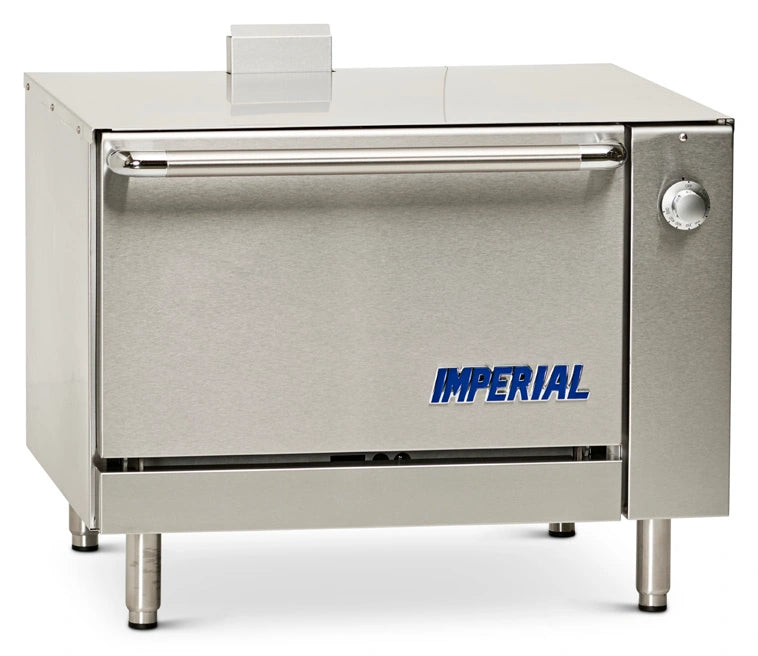

Imperial Pro Series Range-Match Gas Oven
Model IR-36-LB | 35,000 BTU Standard Chef-Depth OvenAdd full-size baking power to any 36" cookline without sacrificing space. Built in the USA, the Imperial Pro Series range-match oven delivers even, dependable heat in a rugged stainless-steel cabinet that stands up to the busiest commercial kitchens.
Why Chefs Choose the Pro Series
- 35,000 BTU linear burner with unique baffle for consistent temperatures from corner to corner.
- Exclusive heat deflector keeps heat inside the cavity—off the floor and out of the kitchen.

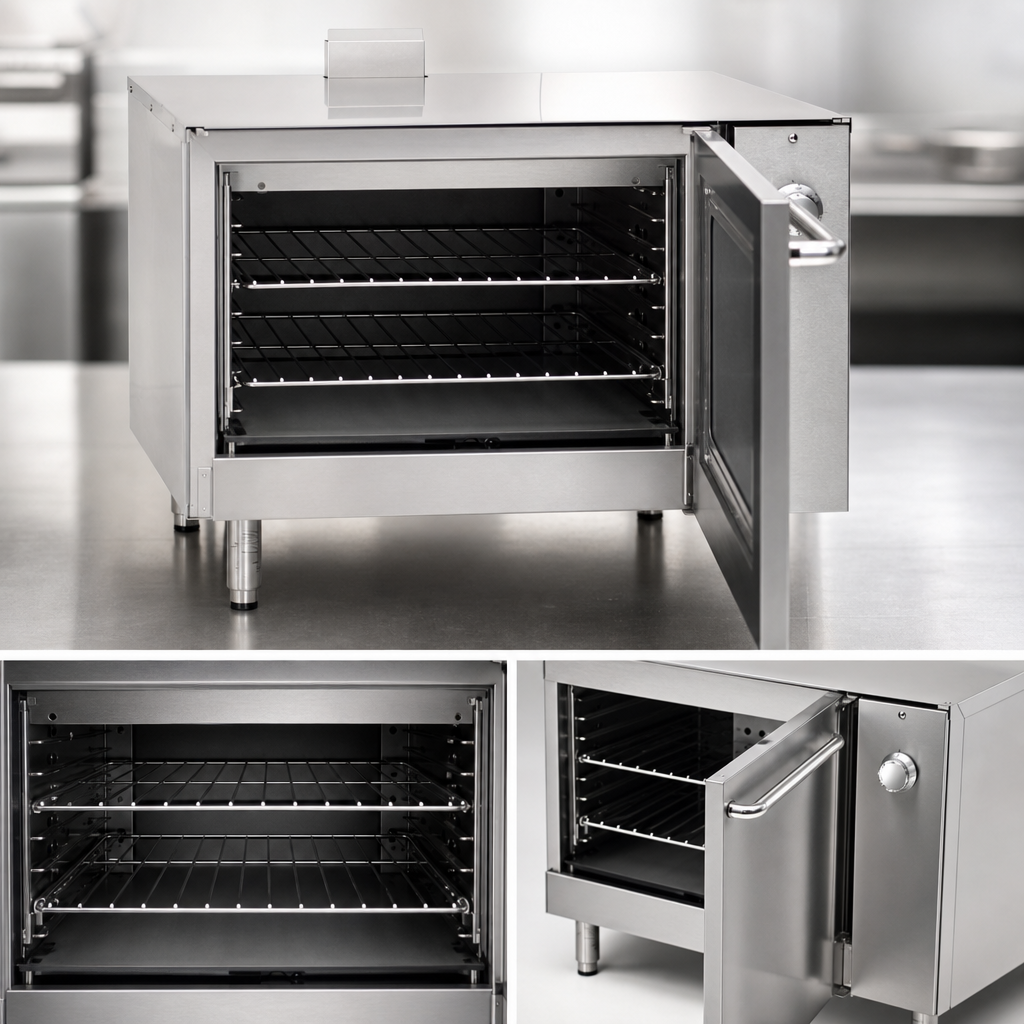

- Chef-depth interior (26½" W × 26" D × 14" H) fits 18" × 26" full-size sheet pans left-to-right or front-to-back.
- Porcelainized sides, deck, rear, and door liner clean up fast and resist corrosion.
- Heavy-duty door with stamped inner liner improves strength and heat retention.
- (1) chrome rack supplied; six rack guides let you set the perfect baking height.
- 6" stainless-steel legs with adjustable feet for quick leveling on uneven floors.
- 100 % safety pilot and flame failure protection for worry-free operation.
- NSF, CSA Flame & CSA Star certified for gas safety and sanitation.
- Backed by Imperial’s 1-year parts & labor warranty.
Built to Last
- All stainless-steel front, sides, and top for a professional appearance and simplified maintenance.
- Welded, finished seams add rigidity and stop food soil from collecting in hard-to-reach crevices.

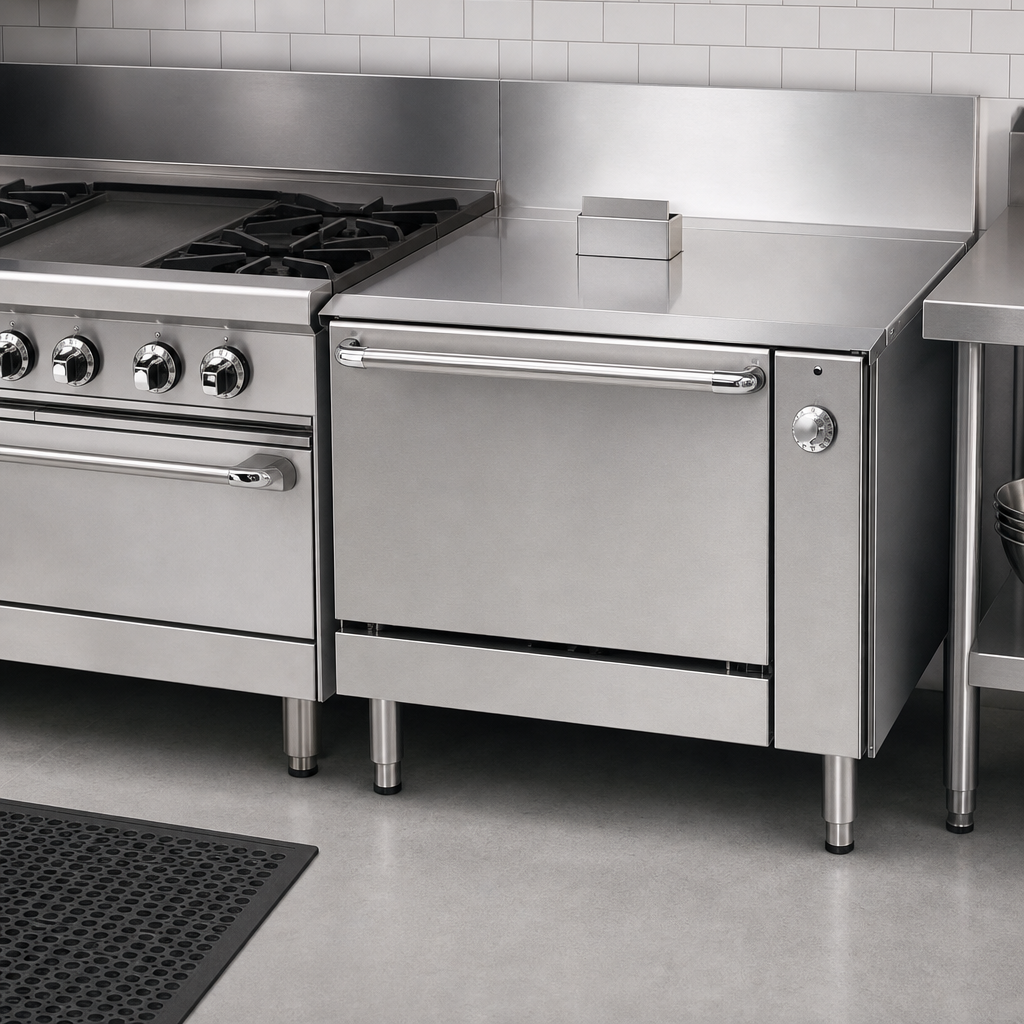

- Range-match design pairs perfectly with Imperial Pro Series 36" ranges, griddles, and charbroilers.
Specifications
| Exterior Dimensions | 36" W × 28-7/8" D × 30" H (914 × 733 × 762 mm) |
|---|---|
| Interior Dimensions | 26-1/2" W × 26" D × 14" H (673 × 660 × 356 mm) |
| Gas Output | 35,000 BTU/hr (10 kW) |
| Pan Capacity | (1) 18" × 26" full-size sheet pan – in either direction |
| Included Racks / Guides | (1) chrome rack / 6 positions |
| Gas Connection | 3/4" NPT (rear); Natural or LP (specify) |
| Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Clearances (non-combustible) | 0" sides & rear | 6" combustible side |
| Ship Weight | 410 lb (186 kg) |
| Certifications | NSF ✅ CSA Flame ✅ CSA Star ✅ |
| Warranty | 1-year parts & labor |
Need more peace of mind? Imperial’s nationwide network of authorized service agencies makes support fast and hassle-free.
