Imperial (Middleby) IR-36-DS Pro Series Specialty Ovens
Description

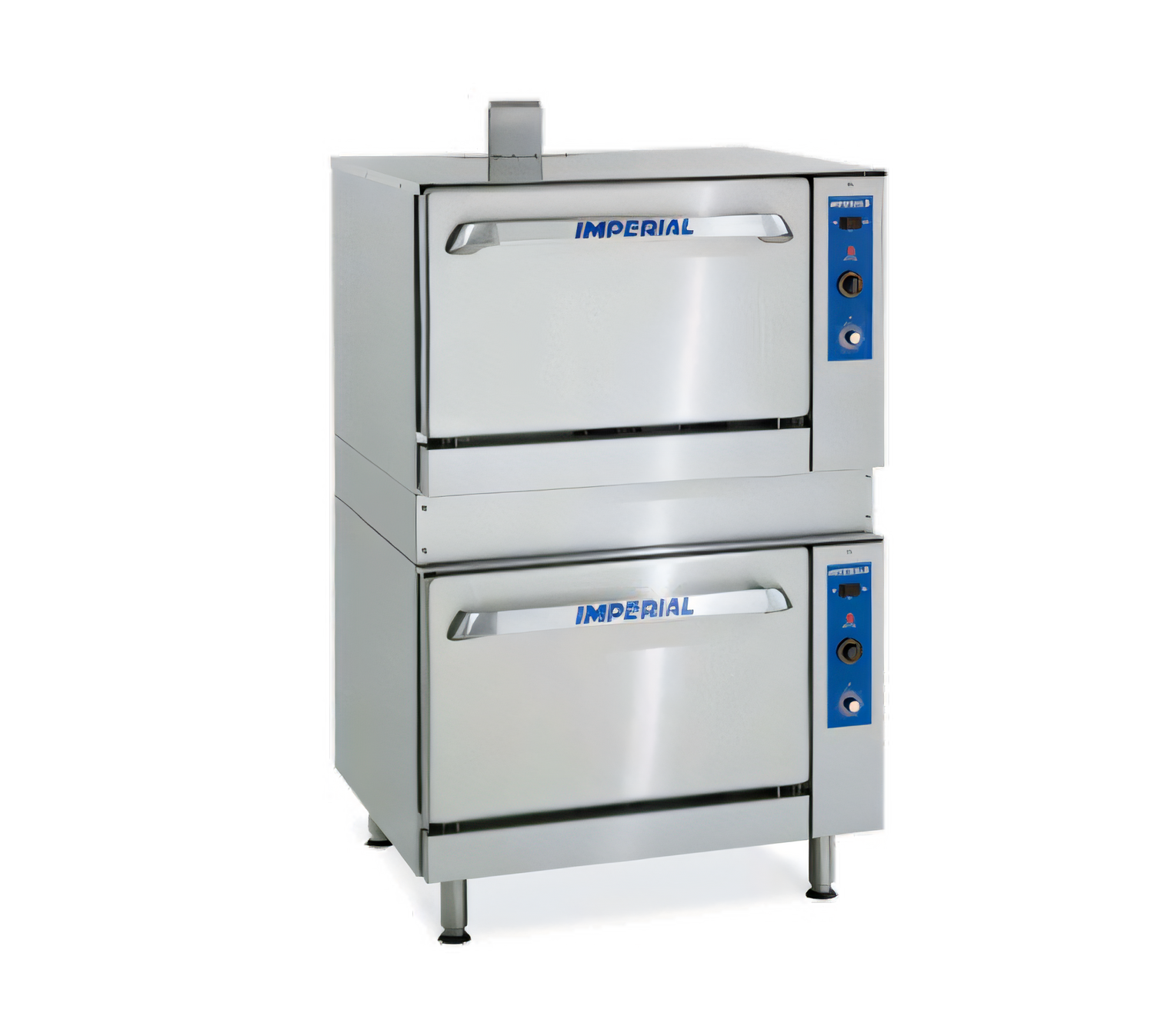

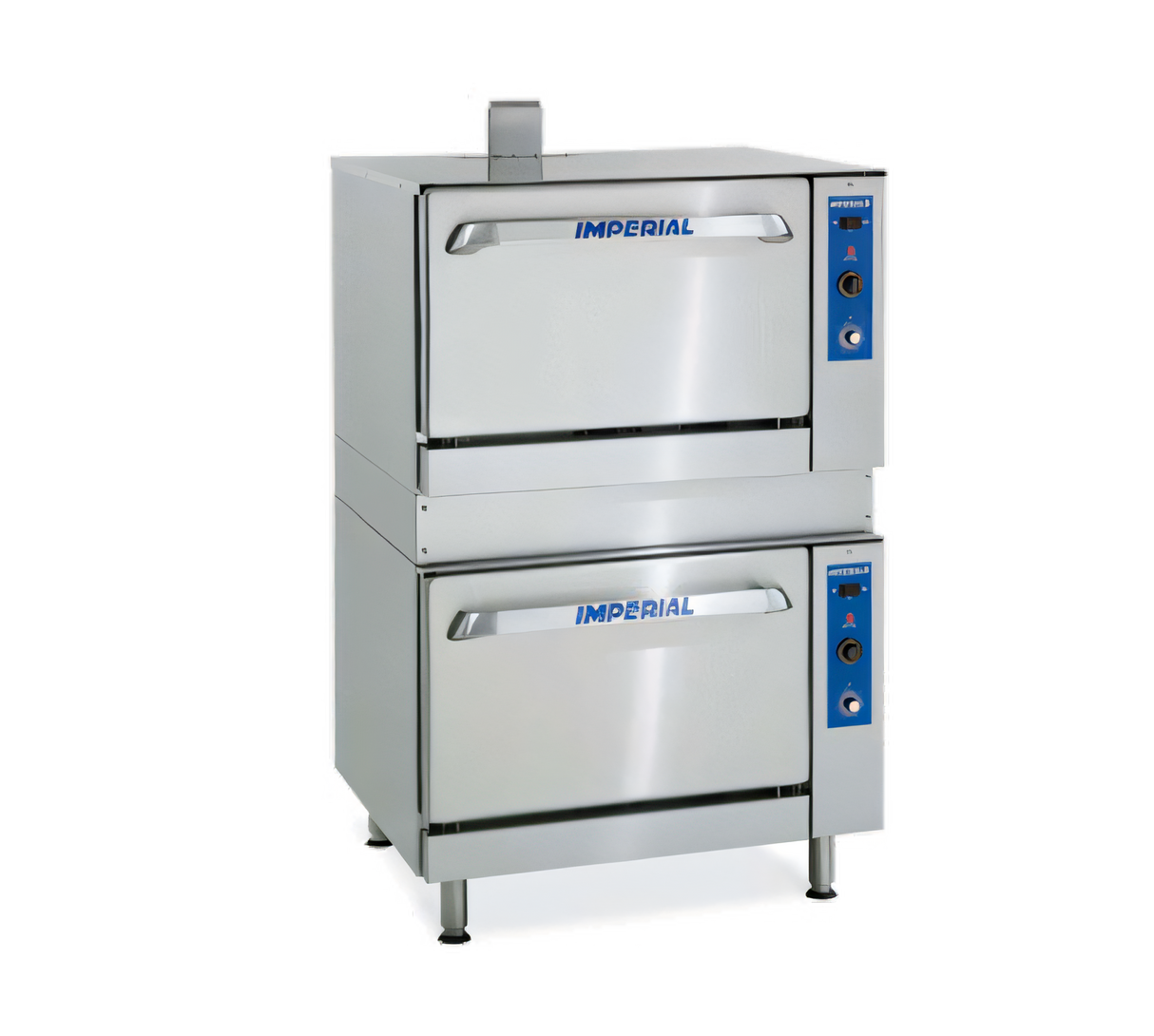

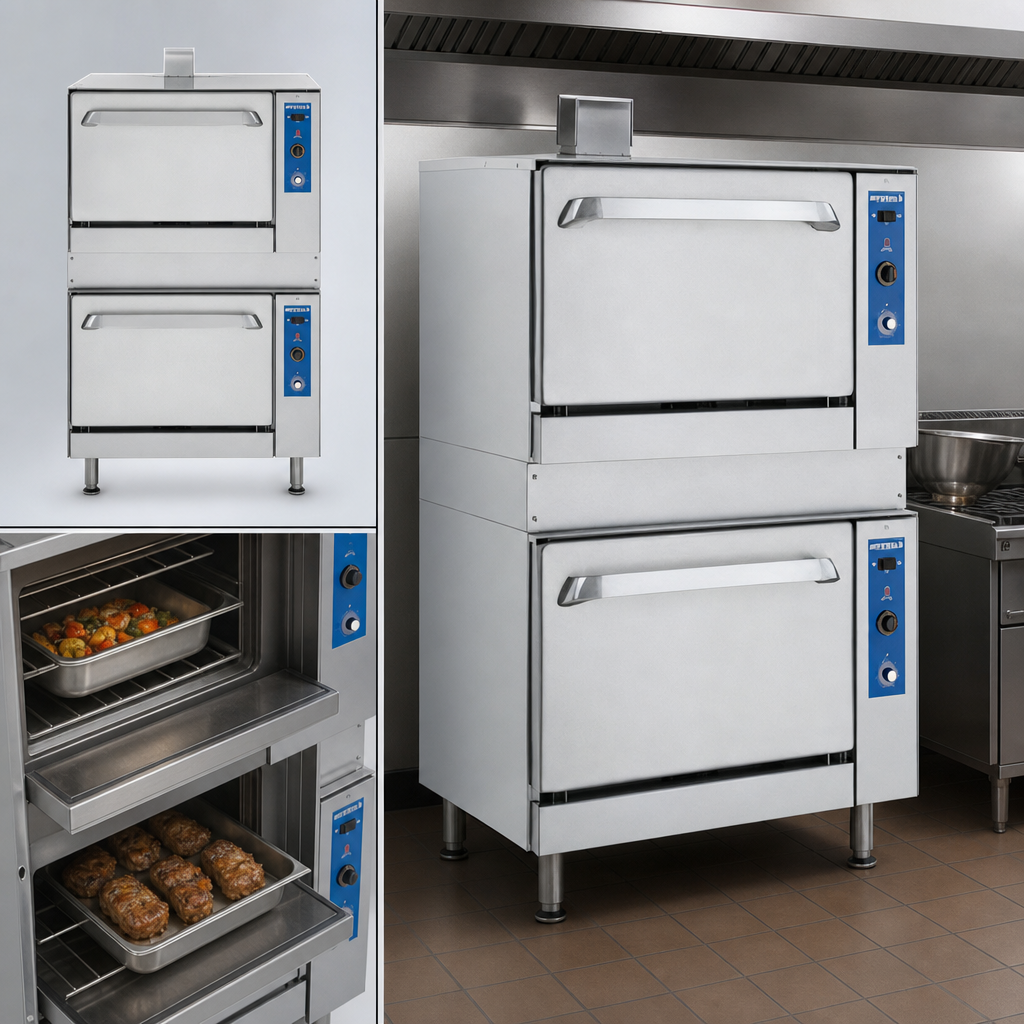

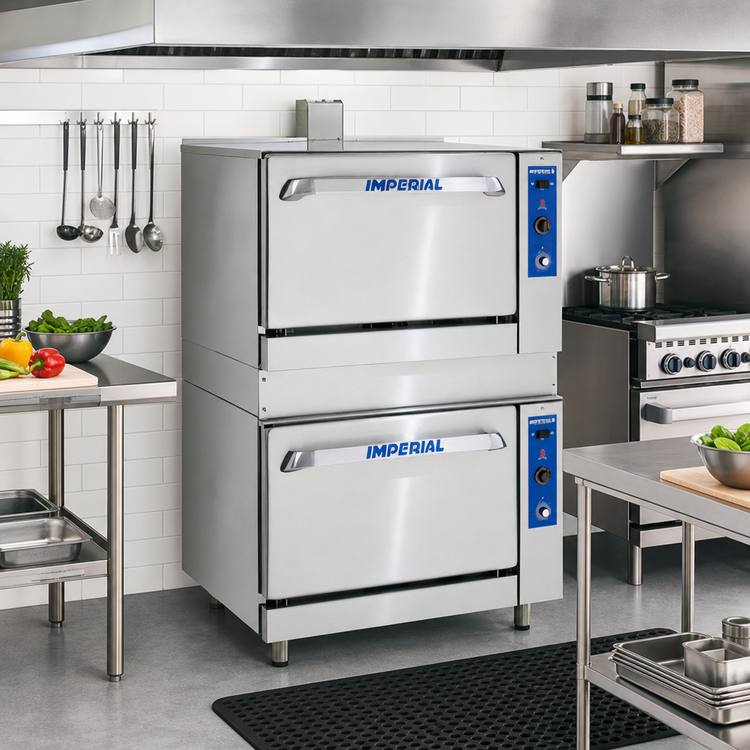

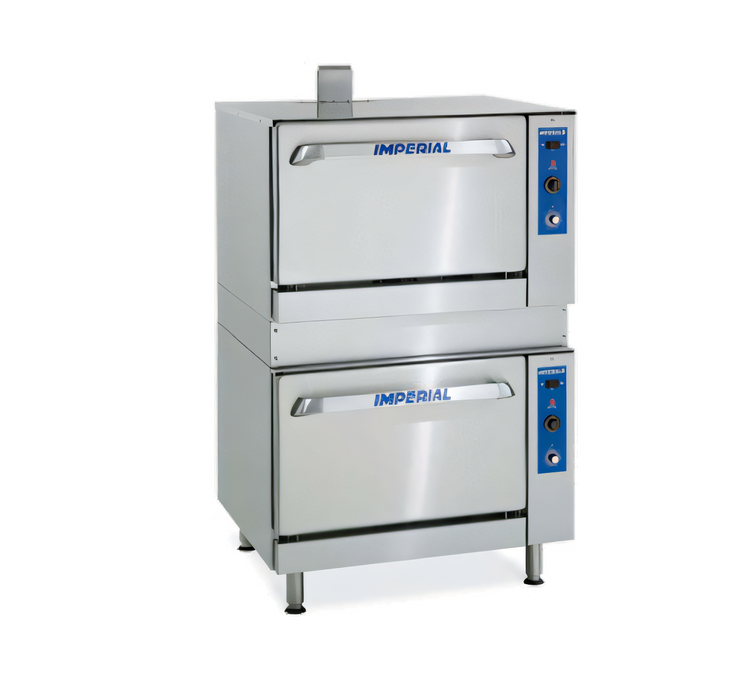

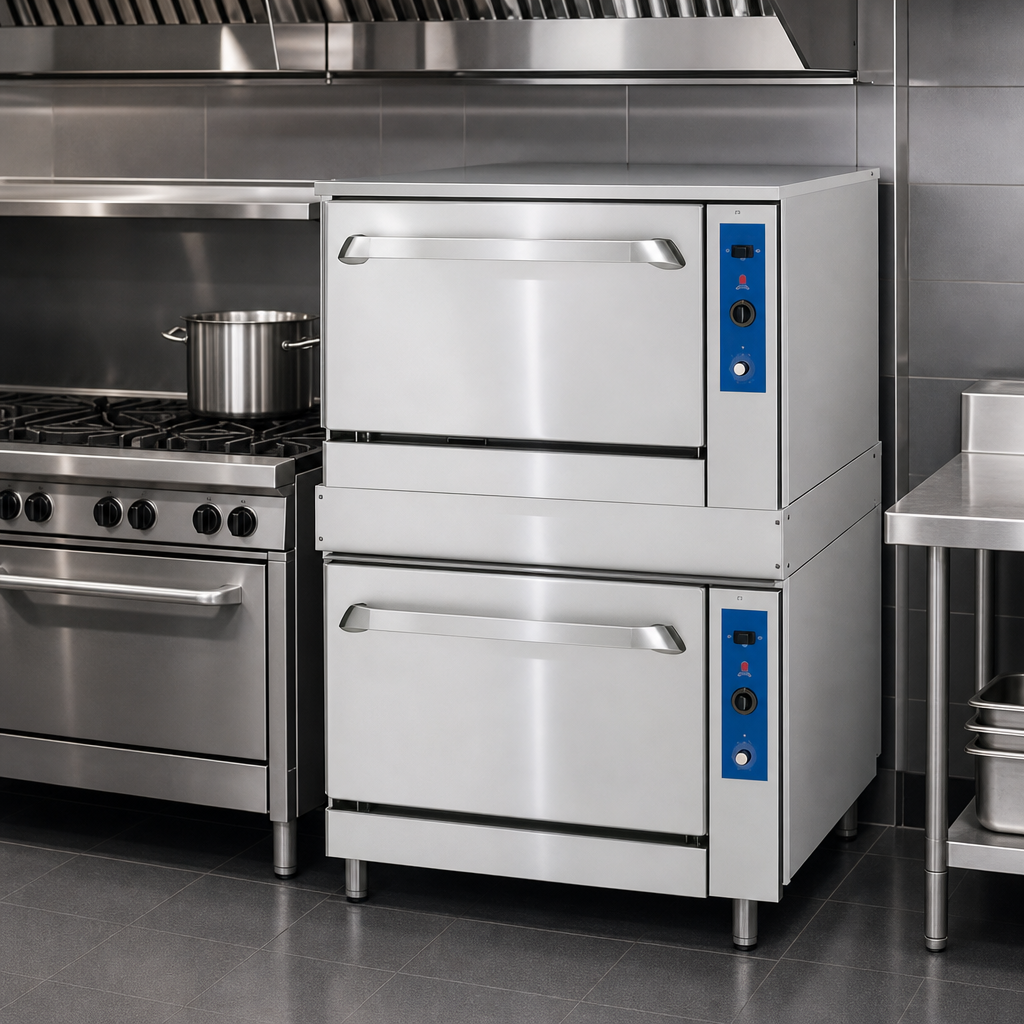

Imperial Pro Series™ Double-Stack Gas Standard Oven
Model IR-36-DS | 36" W • 70,000 BTUTwo full-size, chef-depth ovens in the footprint of a single range. The Pro Series IR-36-DS gives busy kitchens the fire-power, capacity, and durability they need—without sacrificing valuable line space.
Why You’ll Love It
- Double stack design delivers 70,000 BTU/hr (35 k per cavity) for rapid, even cooking.
- Chef-depth 26" interior accepts full-size 18" × 26" sheet pans left-to-right or front-to-back.
- Porcelainized sides, rear, deck & door liners wipe clean and resist corrosion.
- Stainless steel front, sides & top stand up to daily commercial abuse and look great on the line.
- Includes 1 chrome rack per oven; five rack positions let you fine-tune product height.
- 6" stainless steel legs with adjustable feet for fast, rock-solid leveling on uneven floors.
- Linear burner, heavy-duty baffle & exclusive heat deflector keep temperatures consistent corner-to-corner.
- 100 % safety pilot plus CSA Flame & Star gas certifications for peace of mind.
- NSF listed—engineered for easy cleaning and food-safe operation.
Built for Performance
- Stamped inner door liner adds strength while helping retain heat.
- Heavy-duty door hinges withstand years of high-cycle use.
- Welded, finished seams eliminate grime-catching gaps.
- 0" clearance required at rear & non-combustible sides—ideal for tight cooklines.
Specifications
| Exterior dimensions (W × D × H) | 36" × 28-7/8" × 58-1/2" (914 × 733 × 1486 mm) |
|---|---|
| Oven interior (each) | 26-1/2" × 26" × 14" (673 × 660 × 356 mm) |
| Total BTU / kW | 70,000 BTU / 21 kW |
| Gas connection | 3/4" NPT • 5" W.C. Natural | 10" W.C. LP |
| Rack positions / supplied | 5 per cavity | 1 chrome rack included per cavity |
| Certifications | NSF • CSA Flame • CSA Star |
| Shipping weight | 825 lb (375 kg) |
| Warranty | 1-Year parts & labor (USA/Canada) |
Imperial reserves the right to modify specifications or design without notice. Always refer to the installation manual and local codes before connecting equipment.
