Imperial (Middleby)  |  Pro Series  |  SKU: IR-36-DS-CC

Imperial (Middleby) IR-36-DS-CC Pro Series Specialty Ovens

$18,656.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Training video Owner's manual Parts manual Middleby financial flyer Parts list Warranty sheet
Related Searches
Ovens Specialty Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

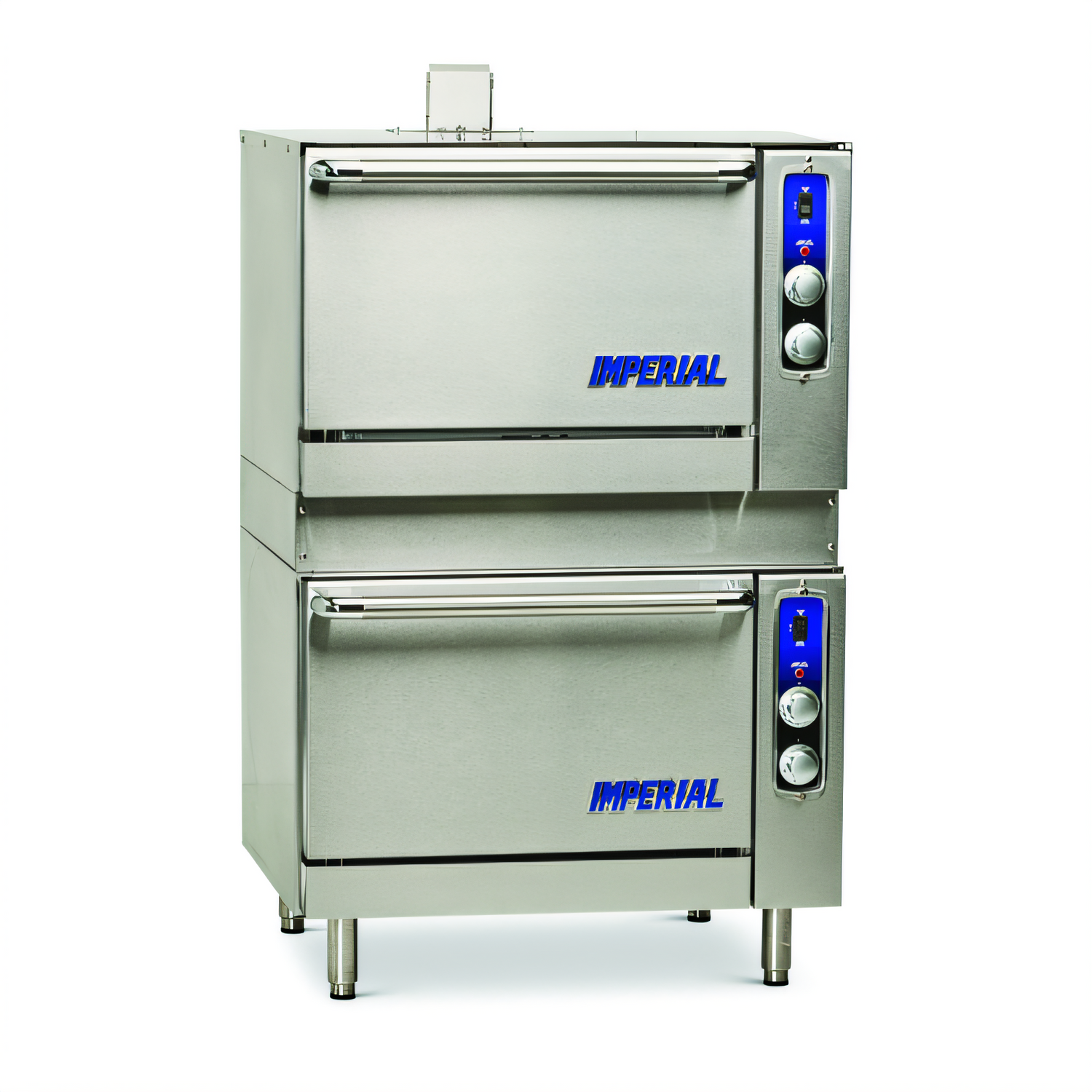

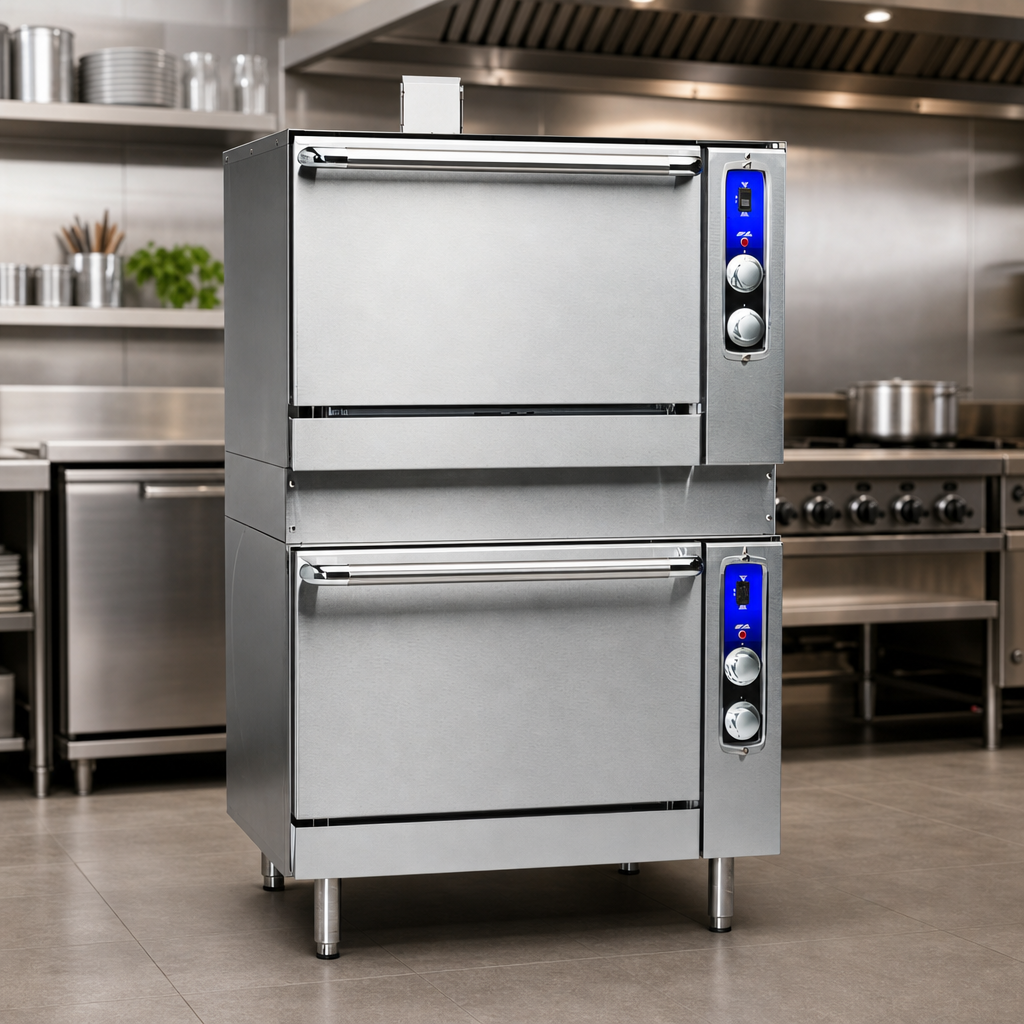

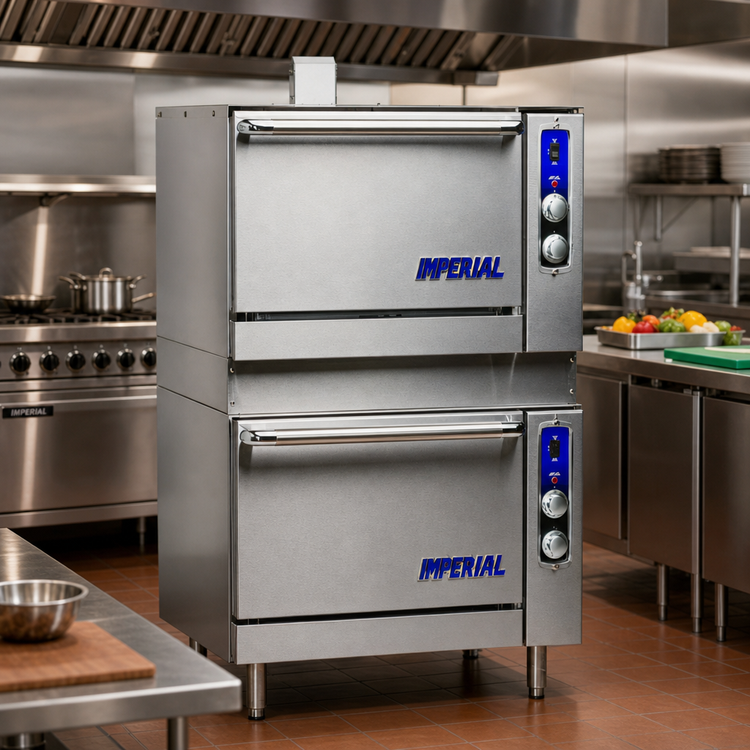

Imperial Pro Series Double-Stack Gas Convection Oven

Model IR-36-DS-CC  ·  60,000 BTU  ·  36" Range-Match Footprint

Put high-volume, even-heat baking right on your cook-line. The Imperial Pro Series double-deck convection oven pairs seamlessly with Restaurant Series ranges while delivering full-size performance in a compact 36-inch width. From roasted proteins to delicate pastries, every tray emerges perfectly browned thanks to powerful 1/4 HP blowers and efficient 30,000 BTU burners in each cavity.

Key Benefits

  • (2) 30,000 BTU convection chambers — a total of 60,000 BTU for rapid recovery.
  • (2) 1/4 HP fan motors keep hot air moving for faster cook times and reduced shrinkage.

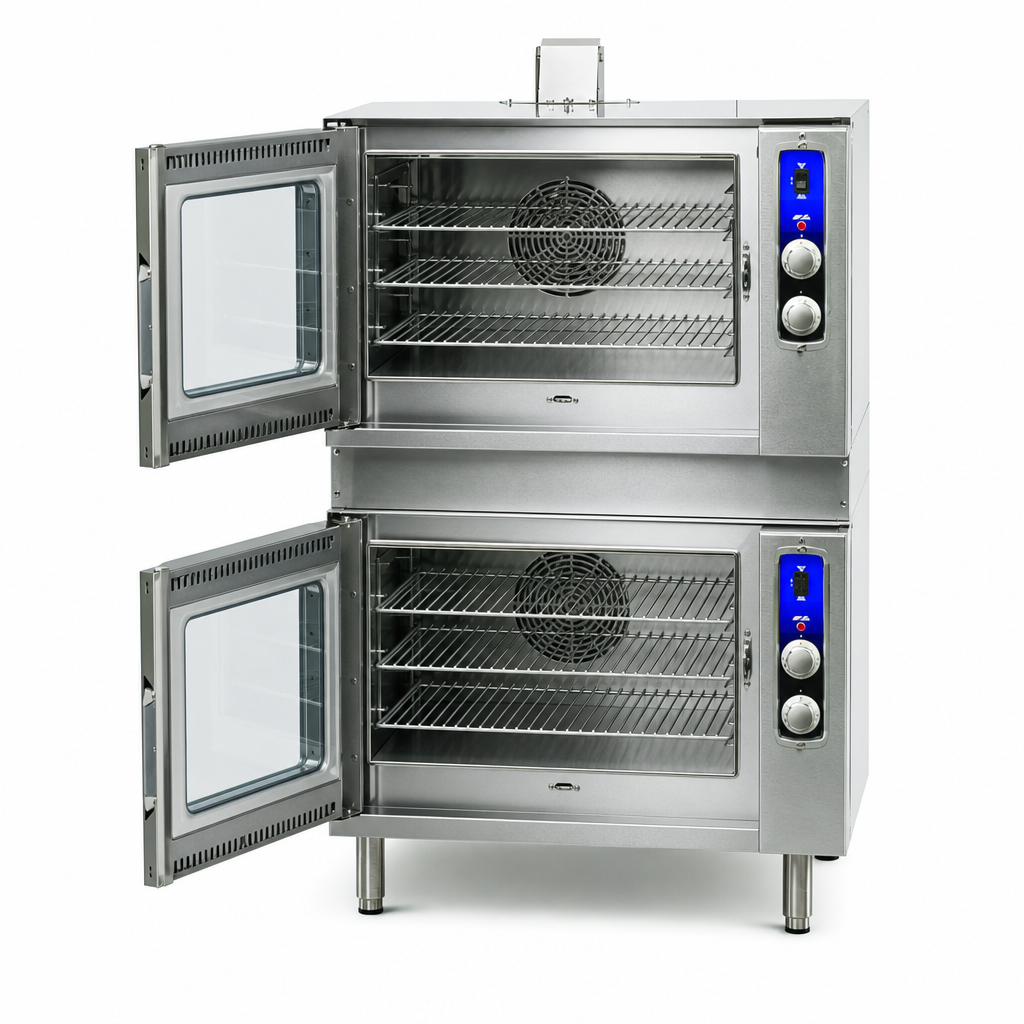

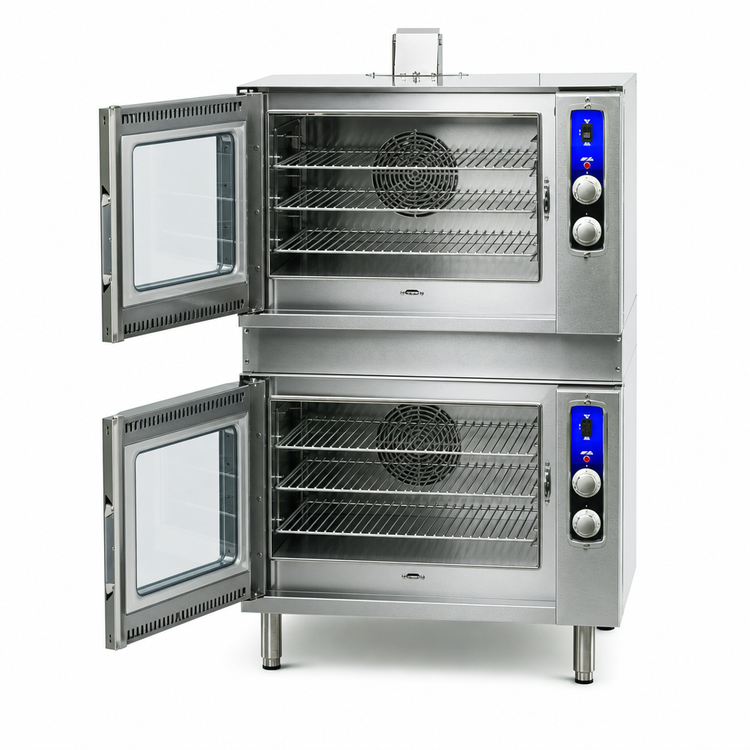

  • (3) chrome racks per oven, five position guides, fits 18" × 26" pans left-to-right or front-to-back.
  • Porcelainized interior sides, rear, deck & door liners wipe clean in seconds.
  • Stainless steel front, sides & top stand up to daily commercial abuse.
  • 6" stainless steel legs with adjustable feet level the oven on uneven floors.
  • Three-position switch (Cook / Cool Down / Off); fan shuts off automatically when the door opens.
  • 0" side & rear clearance to non-combustible walls—ideal for tight lines.
  • NSF, CSA Flame & CSA Star certified for gas safety and sanitation.

Technical Specifications

Fuel Natural or Propane Gas (specify)
Total Output 60,000 BTU / 17 kW
Cavity (each) 26.5" W × 22.5" D × 14" H (673 × 572 × 356 mm)
Exterior 36" W × 28-7/8" D × 58-1/2" H (914 × 733 × 1486 mm)
Sheet-Pan Capacity (5) full-size pans per cavity
Blower Motors (2) 1/4 HP single-speed
Gas Connection 3/4" NPT — 5.0" W.C. Natural / 10.0" W.C. LP
Shipping Weight 905 lb / 410 kg
Certifications NSF Listed, CSA Flame, CSA Star
Warranty 1-Year Parts & Labor

What’s in the Box

  • (6) Chrome oven racks
  • 6" stainless steel adjustable legs
  • Installation & operation manual

Perfect For

  • Restaurant cook-lines that need a 36" range-match oven stack
  • Bakeries, cafés & commissaries producing high-volume pastries, breads and proteins
  • Ghost kitchens and food trucks where floor space is at a premium
Installation Note: Unit must be placed on non-combustible floors using the supplied legs (or optional casters). Allow 6" (152 mm) clearance from combustible side walls; 0" clearance is required at the rear.

Want predictable monthly payments? Ask your sales rep about Middleby Equipment Financing.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CSA Star, CSA Flame

Height

58.5in

Width

36.0in

Depth

28.88in

Shipping Weight

905.0lbs

Interior Finish

porcelain interior

Oven Type

convection oven

Deck Qty

2 deck

Exterior Finish

stainless steel front, sides & top

Design

range match

Specifications

Pro Series Restaurant Series Range Match Oven, gas, (2) convection ovens, double stacked, (3) chrome racks per oven, porcelain interior, stainless steel front, top & sides, 6" legs, adjustable feet, (2) 1/4 HP, 60,000 BTU, NSF, CSA Flame, CSA Star
