Imperial (Middleby) IR-36-DS-C Pro Series Specialty Ovens
Description

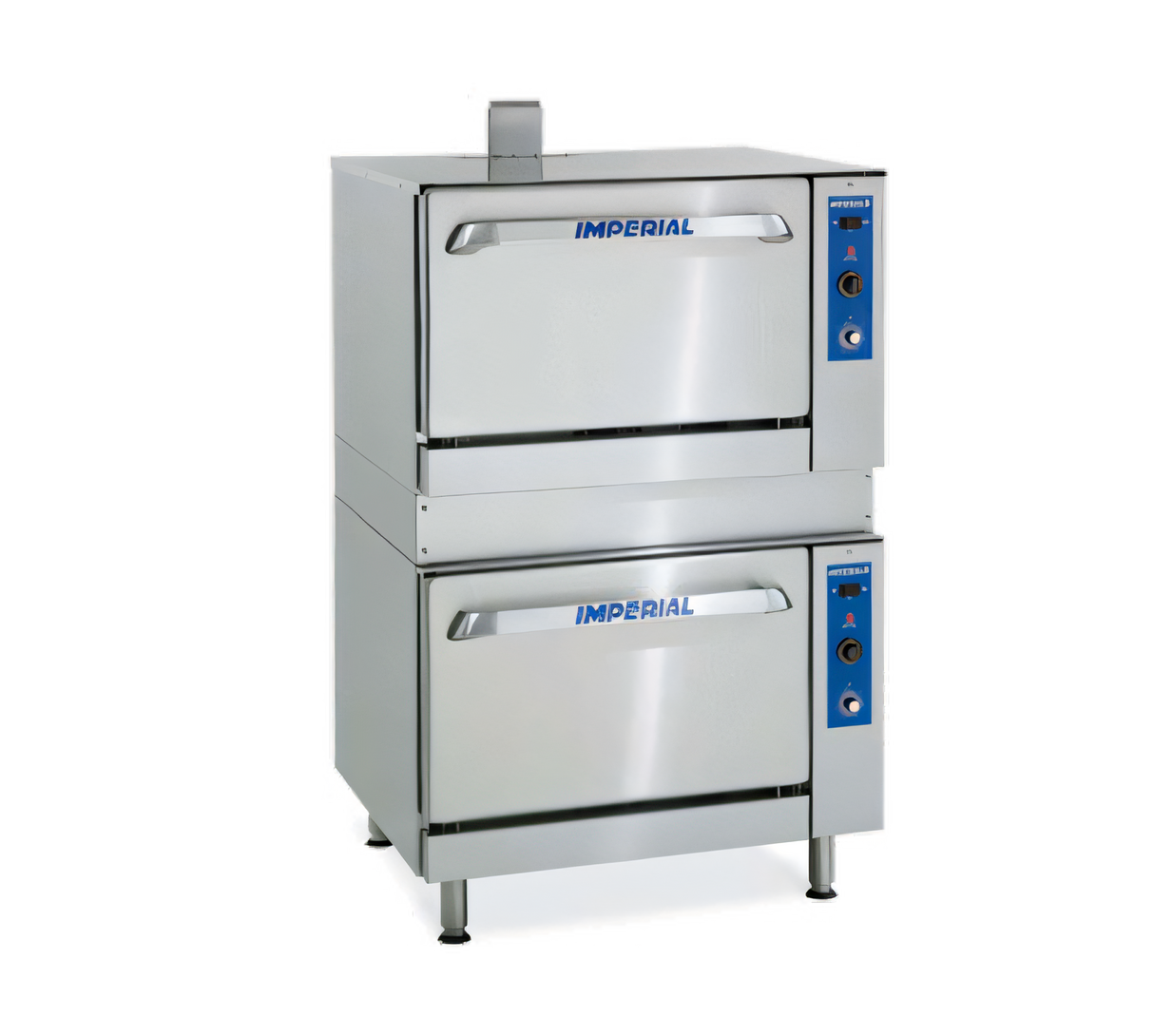

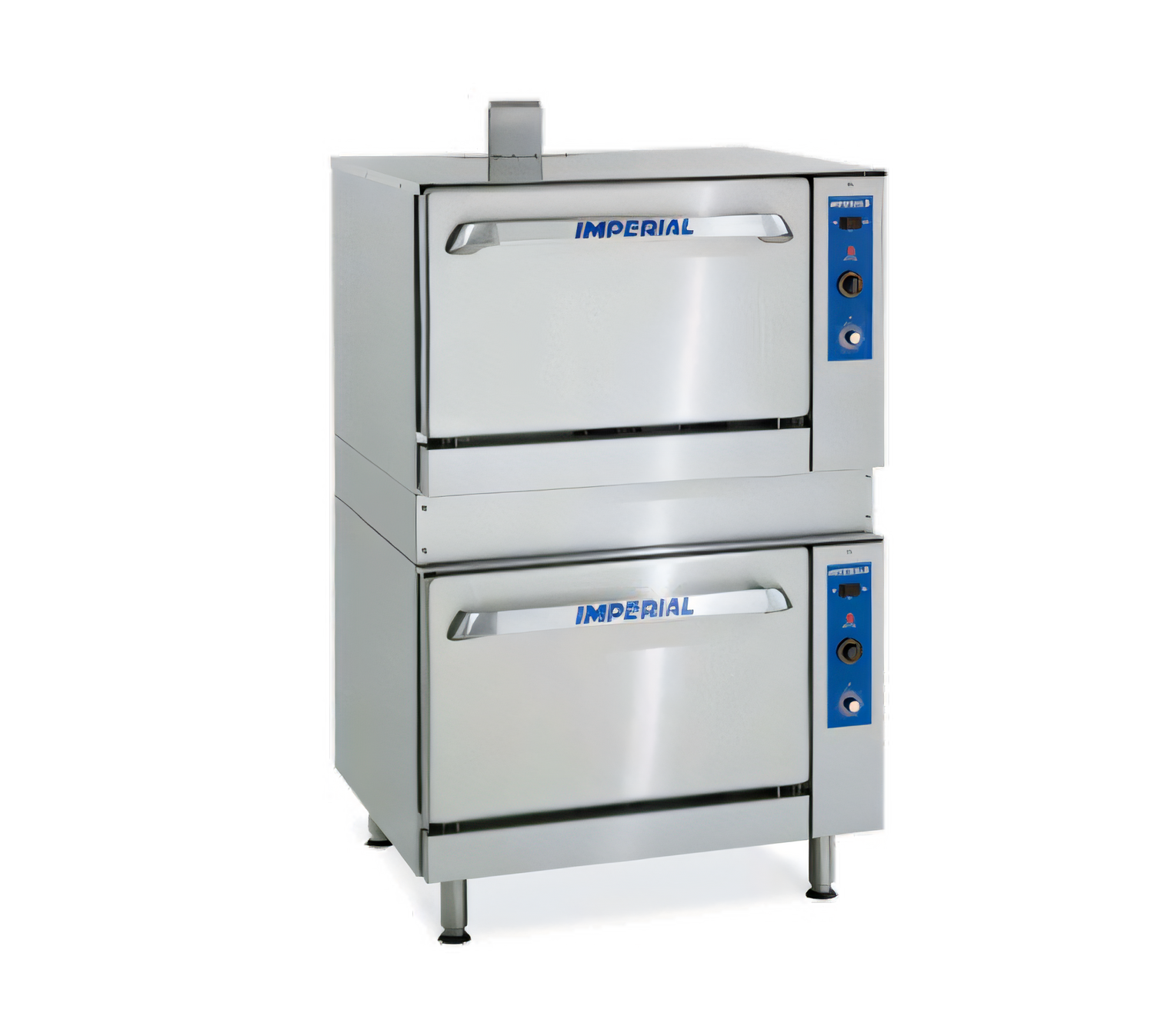

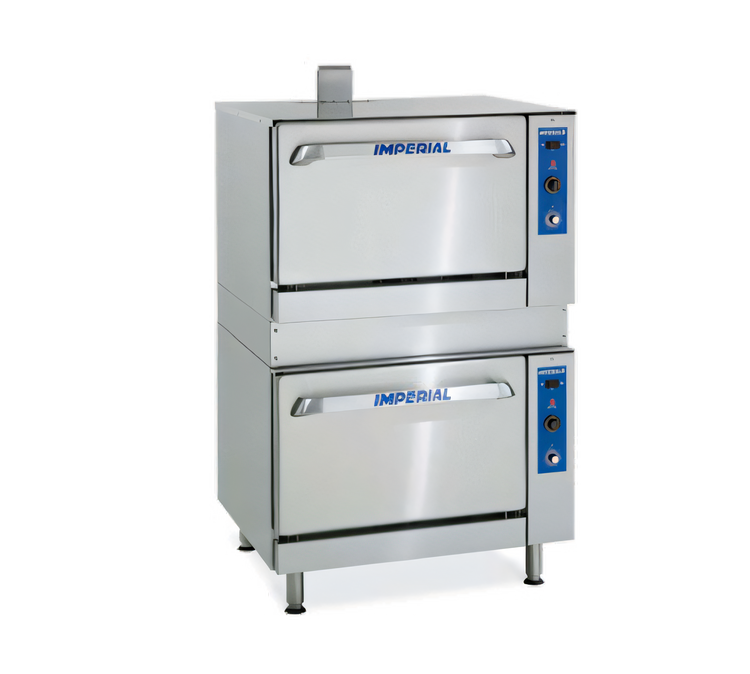

Imperial Pro Series Double-Stack Gas Oven
– Standard + Convection
65,000 BTU | 36"-wide Range-Match | NSF & CSA Certified
Add powerhouse baking and roasting capacity to any cook line without sacrificing floor space. This Imperial Pro Series range-match oven combines a full-size standard oven base with a high-performance convection oven—stacked in one rugged, stainless-steel cabinet.
Key Features
- Two ovens, one footprint – 1 standard chef-depth oven (35,000 BTU) under 1 convection oven (30,000 BTU).
- 1/4 HP convection blower circulates heat for faster, more even cooking and reduced shrinkage.
- Linear & baffle burner design delivers uniform heat distribution in both cavities.
- Porcelainized interior walls, deck, rear and door liners for quick wipe-down cleaning.
- Four chrome oven racks supplied (3 convection, 1 standard) with multiple rack positions.
- Accommodates full-size 18" × 26" sheet pans front-to-back & side-to-side (standard) and left-to-right (convection).
- Heavy-duty welded door hinges and stamped inner liners retain heat and stand up to daily abuse.
- All stainless steel front, sides & top plus 6" stainless legs with adjustable feet.
- Fan-cool-down mode with automatic shut-off when the door opens.
- Factory-mounted 6-ft power cord (convection motor) and 3/4" NPT gas manifold.
- NSF, CSA Flame & CSA Star listed; proudly Made in USA.
Specifications
| Model | IR-36-DS-C (Pro Series Range-Match) |
|---|---|
| Oven Configuration | (1) Standard oven + (1) Convection oven |
| Total Gas Input | 65,000 BTU/hr • 19 kW |
| Standard Oven Interior | 26 ½" W × 26" D × 14" H (673 × 660 × 356 mm) |
| Convection Oven Interior | 26 ½" W × 22 ½" D × 14" H (673 × 572 × 356 mm) |
| Overall Dimensions | 36" W × 28 ⅞" D × 58 ½" H (914 × 733 × 1486 mm) |
| Shipping Weight | 865 lb (392 kg) |
| Motor | 1/4 HP, 1725/1140 RPM, two-speed |
| Gas Connection | 3/4" NPT, Natural 5.0" W.C. / LP 10.0" W.C. |
| Electrical | 120 V / 60 Hz / 1 ph, 6-ft cord & plug (convection blower) |
| Clearances | 0" sides/rear to non-combustible; 6" side to combustible |
| Warranty | 1-year parts & labor |
Options & Accessories
- Cook-and-Hold computer controls
- Stainless steel solid doors
- Additional chrome oven racks
- Direct-connect flue vent
- Heavy-duty 4-piece caster kit
- 480 V motor upgrade (special order)
