Description

Pro Series IR-24BR-XB 24" Gas Radiant Charbroiler

60,000 BTU | Open Cabinet Base | by Imperial

Built for serious production in a space-saving 24" footprint, the Imperial IR-24BR-XB delivers high-heat charbroiling, rock-solid durability, and convenient under-counter storage—ideal for steak houses, cafés, food trucks, or any kitchen that demands premium results from every square inch.

Why it beats ordinary broilers
  • 60,000 BTU stainless-steel burners (individually controlled) blanket the grate with even heat.

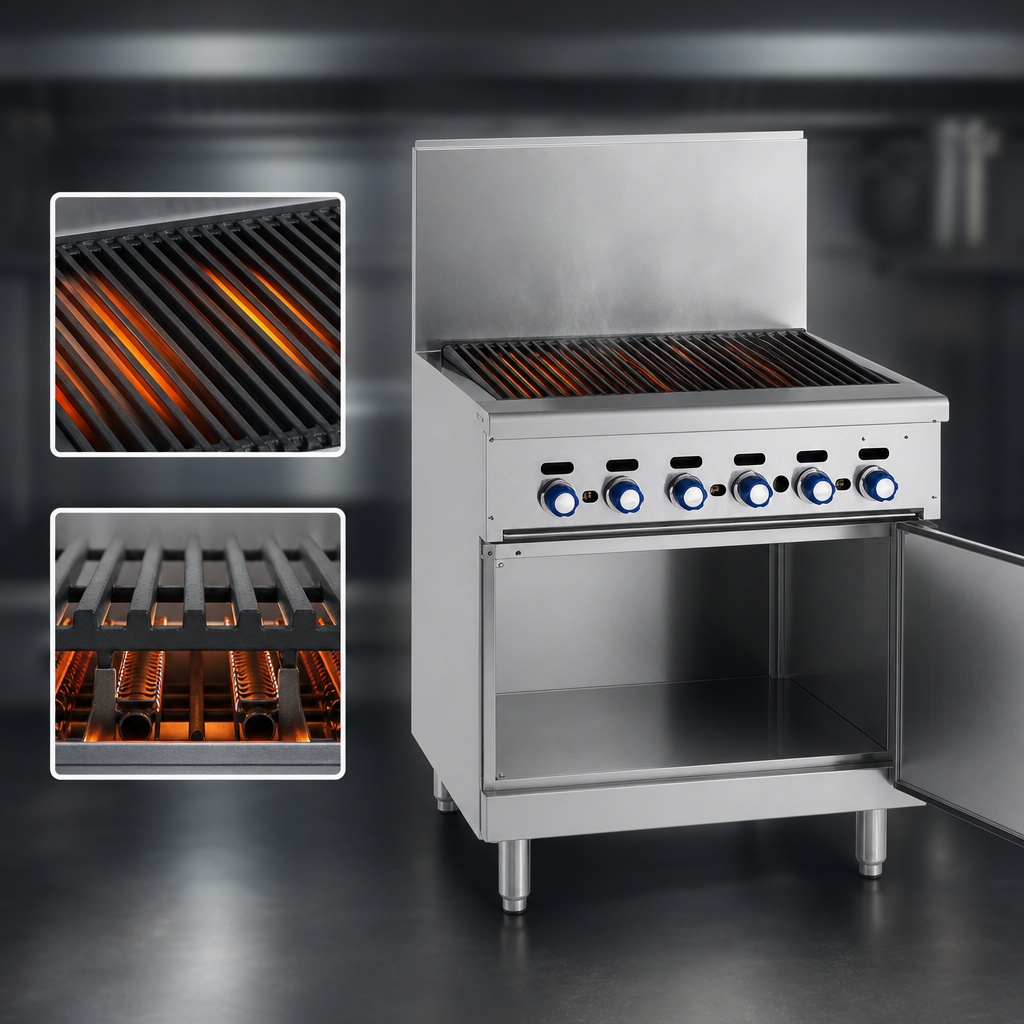

  • Reinforced cast-iron radiants keep burners free of drippings and distribute heat uniformly.
  • Heavy-duty 3" × 22" cast-iron grate sections lift out for effortless cleaning and leave perfect char marks.
  • Slanted cooking surface creates multiple temperature zones for simultaneous searing and finishing.
  • Grease management system: cast-in troughs, full-width front gutter, and extra-large removable drip pan reduce flare-ups.
  • Stainless-steel exterior—front, sides, 11" backguard, landing ledge, and kick plate—stands up to daily wear and wipes clean fast.

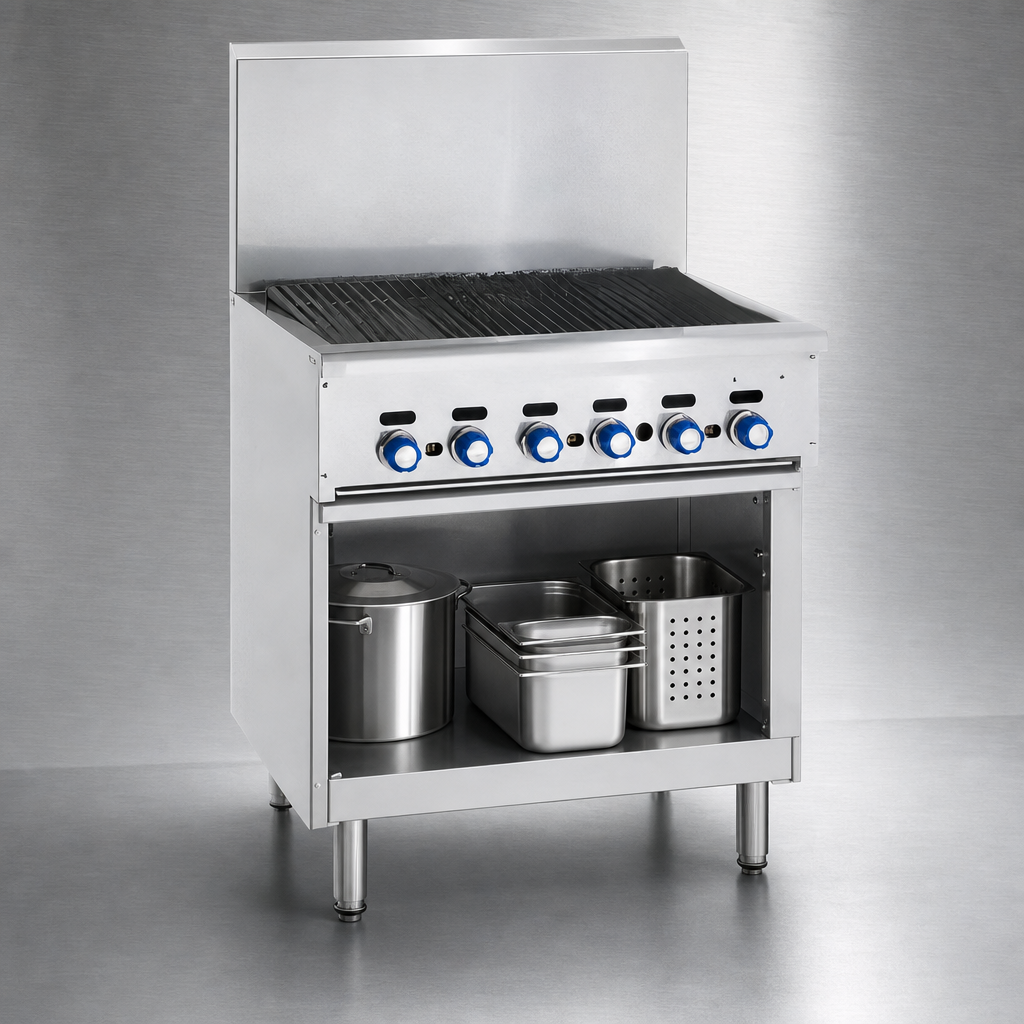

  • Open cabinet base with bottom shelf keeps sheet pans, seasonings, or utensils within arm’s reach.
  • 6" heavy-duty legs with adjustable feet for quick, rock-steady leveling on uneven floors.
Key specifications
Model IR-24BR-XB
Cooking surface (W × D) 21" × 22" (533 × 559 mm)
Overall width 24" (610 mm)
Gas type Natural or Propane (field convertible)
Total output 60,000 BTU/hr  •  18 kW
Manifold pressure Natural 5.0" W.C.  |  Propane 10.0" W.C.
Base Stainless-steel open cabinet with bottom shelf
Certifications NSF, CSA Flame, CSA Star
Warranty 1-year parts & labor
Shipping weight Approx. 340 lb (154 kg)

Contact us for CAD blocks, utility requirements, or additional accessories.

Installation & clearance
Important: Install on a non-combustible floor using the supplied 6" legs or casters. Maintain 0" clearance from non-combustible surfaces and 8" (203 mm) from combustible surfaces. Gas connection: ¾" NPT.
Easy equipment financing

Spread the cost over time with Middleby Equipment Financing and keep your cash flow flexible. Apply online in minutes ›

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CSA Star, CSA Flame

Height

38.5in

Width

24.0in

Depth

31.5in

Shipping Weight

340.0lbs

Base

(1) cabinet

Top

(1) charbroiler

Vent

backriser

Exterior Finish

stainless steel front & sides

Specifications

Pro Series Restaurant Series Range Match, gas, 24"W, charbroiler, cast iron radiants & top grates, open cabinet, bottom shelf, grease trough, removable drip pan, stainless steel front, sides, 11"H backguard, landing ledge & kick plate, 6" legs with adjustable feet, 60,000 BTU, 18kW, NSF, CSA Flame, CSA Star
