Imperial (Middleby) IR-2-G60-C Pro Series Gas Ranges
Imperial (Middleby) IR-2-G60-C Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Imperial Pro Series 72" Gas Restaurant Range – 60" Griddle, 2 Open Burners, Convection & Standard Ovens (IR-2-G60-C)
229,000 BTU • 67 kW • NSF, CE, CSA Flame & StarBuilt for kitchens that demand uncompromising versatility, the Imperial IR-2-G60-C combines a full-width 60-inch griddle, two high-performance open burners and dual oven cavities—one convection, one standard—all in a single 72-inch footprint.
Key Features
- 60" extra-wide griddle – 3/4" polished steel plate with 20,000 BTU burners every 12" for uniform heat.

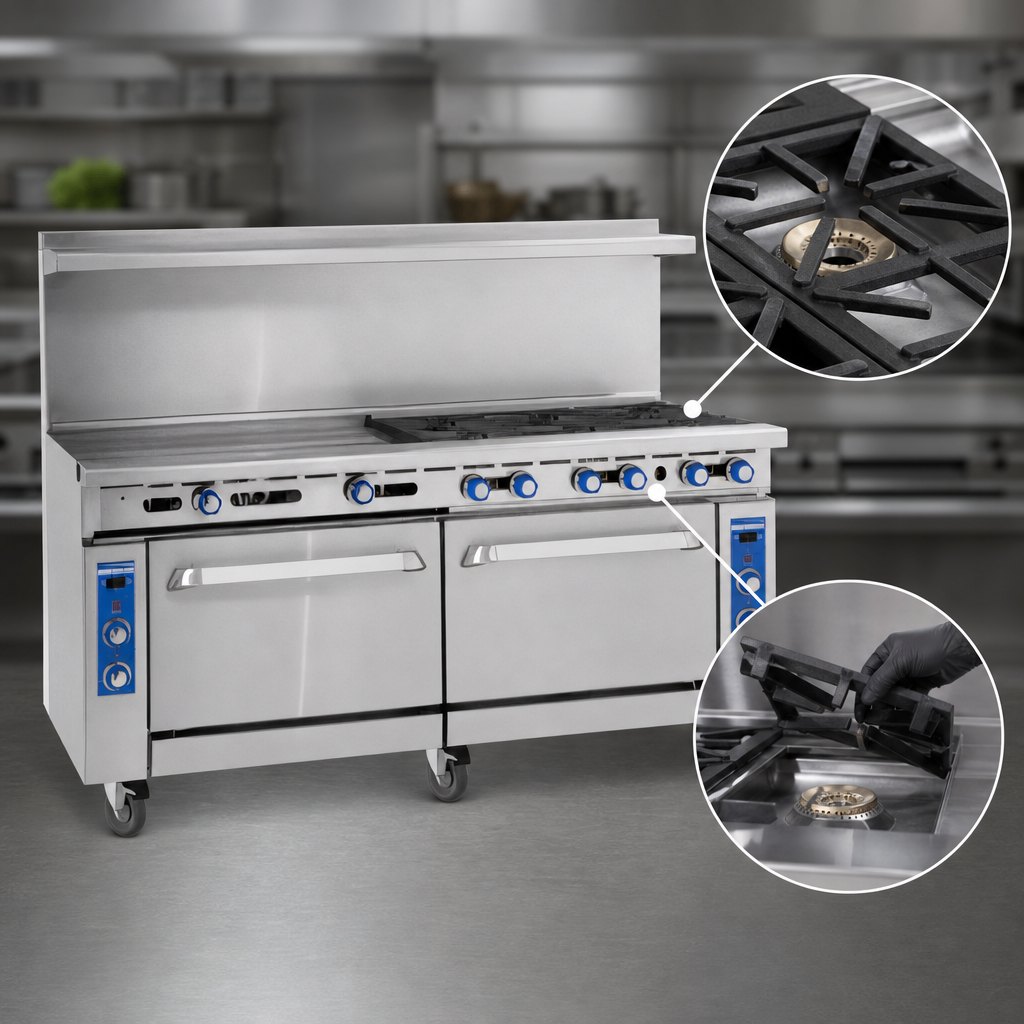

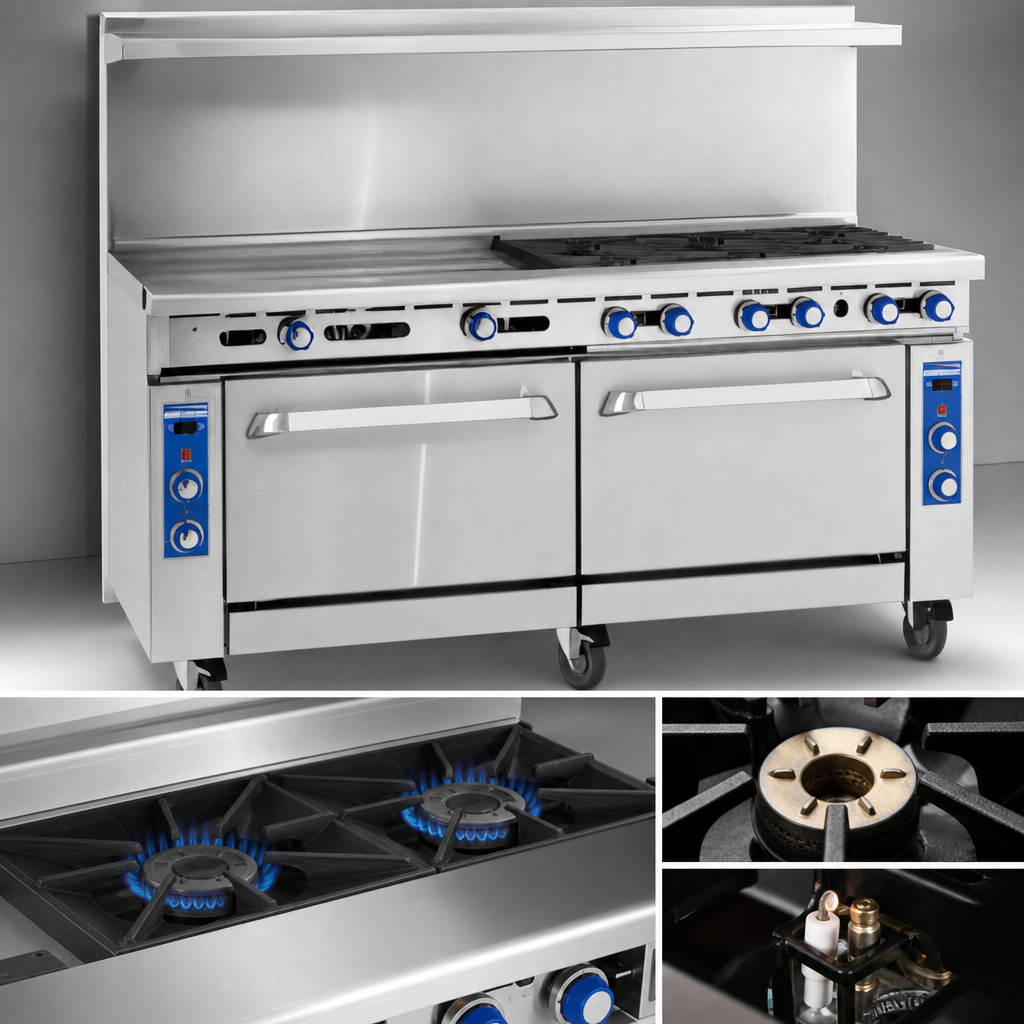

- 2 PyroCentric™ open burners – 32,000 BTU each with 7,000 BTU low-simmer ring; lift-off, anti-clog design.
- 3" recessed grease trough, large removable grease pan and full-width crumb tray speed nightly clean-up.
- Convection oven – 30,000 BTU burner, ½ HP blower motor and three chrome racks for fast, even baking.
- Chef-Depth standard oven – 35,000 BTU linear burner; fits 18" × 26" sheet pans either direction.
- Porcelainized oven interiors, heavy-duty door hinges and stamped liners enhance durability and sanitation.
- All-stainless front, sides, backguard, high-shelf, 3.5" landing ledge and kick plate with welded seams.
- Front-mounted manual controls with rugged cast-aluminum knobs.
- 6" adjustable steel legs (optional locking casters available).
- One standing pilot per burner for instant ignition.
Performance & Utility
Total input | 229,000 BTU /hr (67 kW) |
---|---|
Open burners | 2 × 32,000 BTU PyroCentric |
Griddle burners | 20,000 BTU each (5 burners under 60" plate) |
Convection oven burner | 30,000 BTU + ½ HP fan motor |
Standard oven burner | 35,000 BTU linear |
Working surface | 72" W × 31 ½" D |
Overall height | 56 ½" with backguard & shelf |
Gas connection | ¾" NPT, 5" W.C. NG / 10" W.C. LP |
Electrical (convection fan) | 120 V • 1 Ph • 6 A |
Ship weight | 1,385 lb (628 kg) |
Certifications | NSF, CE, CSA Flame, CSA Star |
What’s Included
- 3 chrome racks for the convection oven
- 1 chrome rack for the standard oven
- Removable crumb tray beneath open burners
- User & installation manual
- Manufacturer’s 1-year parts & labor warranty
Clearance & Installation
- Legs or casters required on non-combustible floors; 2" overhang required for curb mount.
- 0" clearance to non-combustible surfaces; 8" (203 mm) from combustible surfaces.
- Ships ready for natural gas; field-convertible to LP (kit sold separately).
Need optional thermostatic griddle controls, quick-disconnect hose or casters? Chat with our team for a customised quote.
