Imperial (Middleby) IR-2-G48-CC Pro Series Gas Ranges
Description
Imperial Pro Series 60" Gas Restaurant Range with 48" Griddle & Twin Convection Ovens
Model IR-2-G48-CC | 204,000 BTU (60 kW)Built for high-volume kitchens that refuse to compromise, Imperial’s Pro Series range delivers open-top versatility, a full-width griddle, and two powerful convection ovens in one 60-inch footprint. From delicate sauces to seared proteins to evenly baked sheet-pans, this all-in-one workstation keeps every menu item on schedule and on spec.
Why It Belongs on Your Line
- 2 PyroCentric™ open burners – 32,000 BTU each with a 7,000 BTU low-simmer ring; lift-off cast iron caps resist clogging and clean easily.

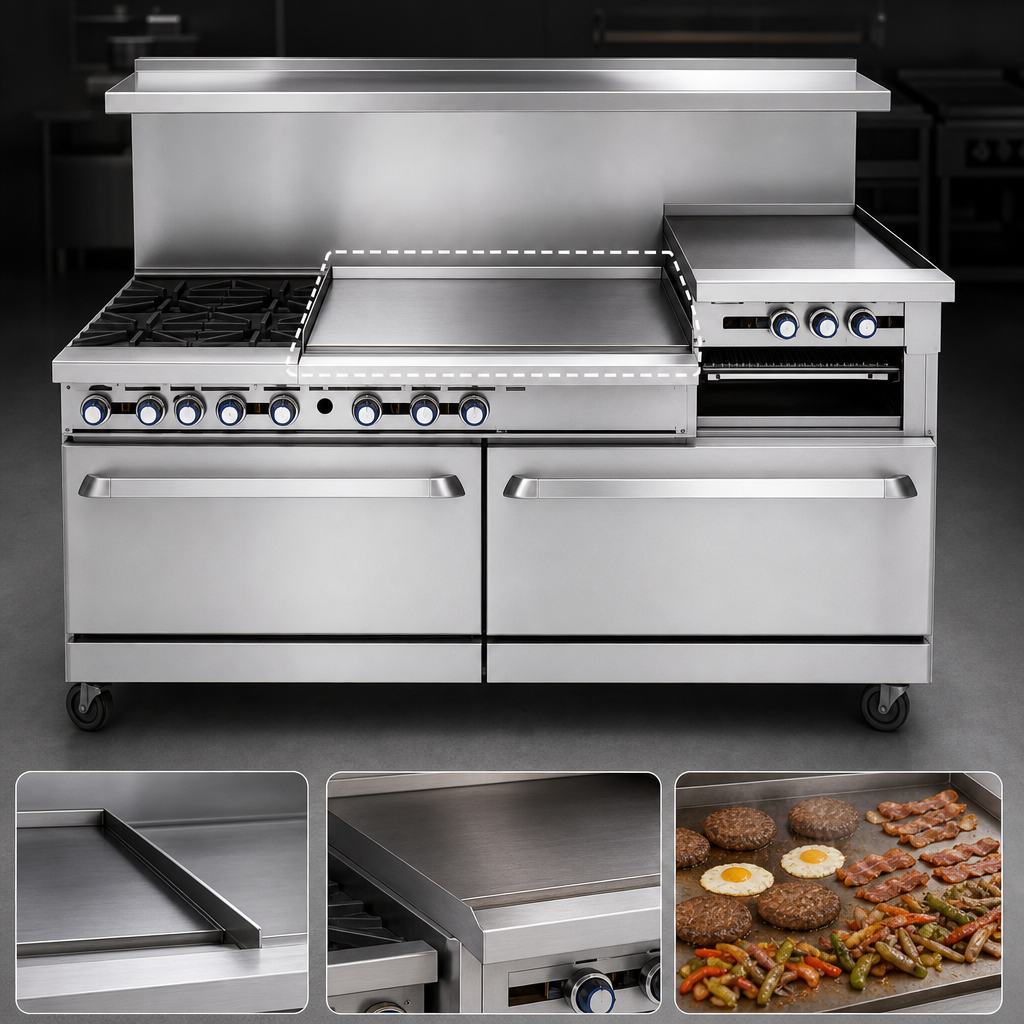

- 48" × 21" griddle – ¾" polished steel plate with four 20,000 BTU burners (one every 12") for edge-to-edge, even heat.
- 3" stainless grease trough & oversized grease can plus full-width crumb tray for fast nightly clean-down.
- Dual 30,000 BTU convection ovens – each with a ½ HP blower, porcelainized “Chef-Depth” cavity, and (3) chrome racks.
- Fan switch with cook/cool-down modes; fan stops automatically when a door opens.
- Durable all-stainless exterior – front, sides, 22" high backguard & plate shelf, 3½" landing ledge, kick plate.
- Heavy-duty 6" adjustable legs standard; optional casters available.
- Cast-aluminum manual control knobs rated for constant line heat.
- Fully certified – NSF, CE, CSA Flame & CSA Star – and backed by Imperial’s 1-year parts & labor warranty.
Technical Specifications
| Gas Type | Natural 5.0" W.C. or Propane 10.0" W.C. |
|---|---|
| Total Input | 204,000 BTU / 60 kW |
| Open Burners | (2) 32,000 BTU PyroCentric with low-simmer ring |
| Griddle Section | 48" W × 21" D, ¾" plate, (4) 20,000 BTU burners |
| Ovens | (2) convection, 30,000 BTU each, ½ HP blower, 26.5" W × 22.5" D × 14" H cavity, (3) racks per oven |
| Exterior Dimensions | 60" W × 31.5" D × 56.5" H (to top of shelf) |
| Gas Connection | ¾" NPT rear manifold |
| Electrical | 120 V, 1 ph, 6 A (convection fan motors) |
| Ship Weight | ≈ 1,195 lb / 540 kg |
| Clearances | 0" to non-combustible, 8" to combustible surfaces; non-combustible floor required or 2" curb |
Warranty & Support
Includes Imperial’s limited 1-year parts & labor warranty when installed and serviced by an authorized agency.
Specifications, options, and certifications are subject to change without notice. Always refer to the installation manual for full details before ordering or installing.
