Description
Imperial Pro Series 36" Gas Restaurant Range – 2 Burners, 24" Griddle, Cabinet Base
Model IR-2-G24-XB | 104,000 BTU | NSF, CE, CSA Flame & CSA StarBring the muscle of a full line into a single 36" footprint. The Imperial Pro Series IR-2-G24-XB marries two high-performance open burners with a generous 24" griddle and built-in storage—perfect for kitchens that demand flexibility without sacrificing power or durability.
Why You’ll Love It

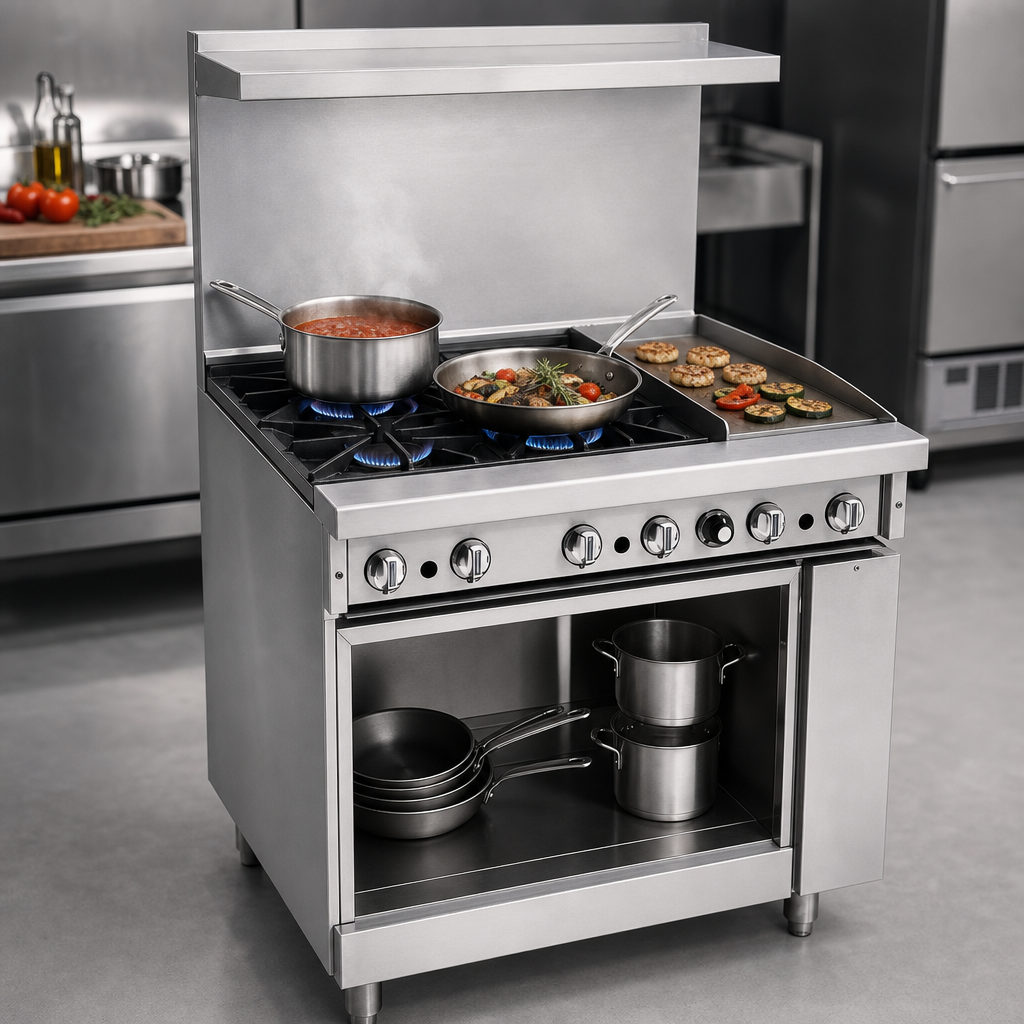

- Two 32,000 BTU PyroCentric™ cast-iron burners with 7,000 BTU low-simmer rings—go from delicate sauces to rapid boils in seconds.

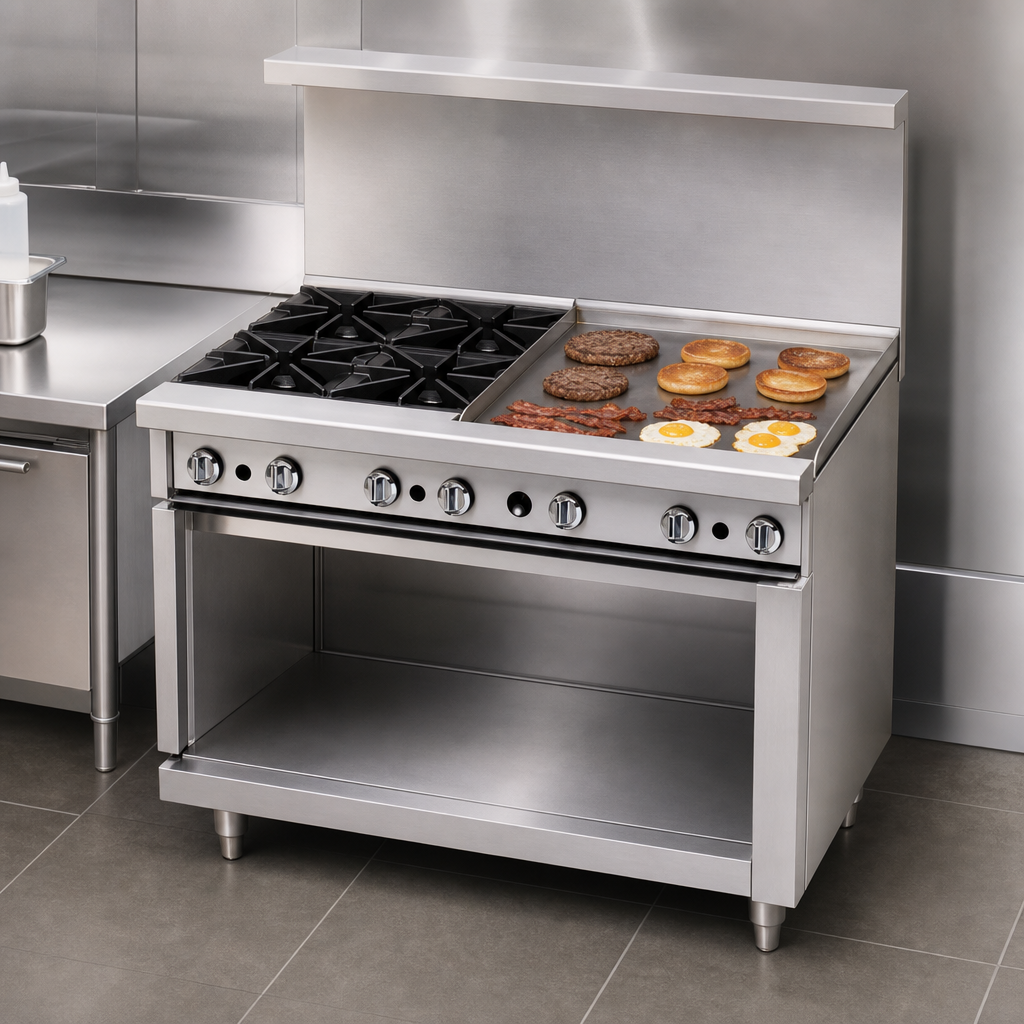

- 24" wide × 21" deep griddle features a ¾" polished steel plate and 20,000 BTU burners with heat deflectors every 12" for edge-to-edge consistency.
- 3" wide grease trough, plus removable grease can and crumb tray to speed up end-of-shift clean-up.
- Heavy-duty cast-iron top grates (12"×12" front & 12"×13" rear) allow stock pots to glide smoothly across the cooktop.
- Open stainless steel cabinet base keeps sheet pans, smallwares or bulk spices within easy reach.
- Rugged, all-stainless exterior—front, sides, backguard, shelf, 3½" landing ledge & kick plate—built to handle the rush.
- 6" adjustable stainless steel legs standard; optional heavy-duty caster kit available.
- Individual standing pilots for instant ignition; full-width removable crumb tray under the burners.
- Cast-aluminum control knobs resist heat, grease and daily abuse.
- Backed by Imperial’s 1-year parts & labor warranty and nationwide service network.
Technical Specifications
Configuration | (2) open burners + 24" griddle |
---|---|
Total Input | 104,000 BTU (30 kW) |
Open Burners | PyroCentric™, 32,000 BTU each • 7,000 BTU low-simmer |
Griddle Plate | ¾" (19 mm) polished steel, 21" plate depth |
Grease Management | 3" trough • Removable grease can |
Base Type | Open stainless steel cabinet |
Overall Dimensions | 36" W × 31½" D × 56½" H (914 × 800 × 1435 mm) |
Gas Connection | ¾" NPT rear manifold • 5" W.C. Natural | 10" W.C. LP |
Clearances | 0" sides/back (non-combustible) | 8" combustibles |
Shipping Weight | 575 lb (260 kg) |
Certifications | NSF • CE • CSA Flame • CSA Star |
Factory Options & Accessories
- Thermostatic, grooved or chrome-finish griddle plates
- 6" or 11" stainless steel backguards, or stub-back
- Reinforcement channels for salamander or cheesemelter
- ¾" gas shut-off valve & quick-disconnect hose
- 6" heavy-duty swivel casters (front locking)
