Imperial (Middleby) IR-2-G12-XB Pro Series Gas Ranges
Description
Imperial Pro Series 24" Gas Restaurant Range w/ 12" Griddle & 2 Open Burners
Model IR-2-G12-XB | 84,000 BTU (25 kW)Built for high-volume lines where every inch counts, the Imperial IR-2-G12-XB packs two high-output PyroCentric™ burners, a versatile 12" griddle and a handy open-cabinet base into a slim 24" footprint. Expect fast recoveries, even heat distribution and the rugged stainless-steel construction chefs trust shift after shift.
Performance & Construction Highlights
- 2 PyroCentric™ open burners / 32,000 BTU each with a 7,000 BTU low-simmer inner ring for delicate tasks.

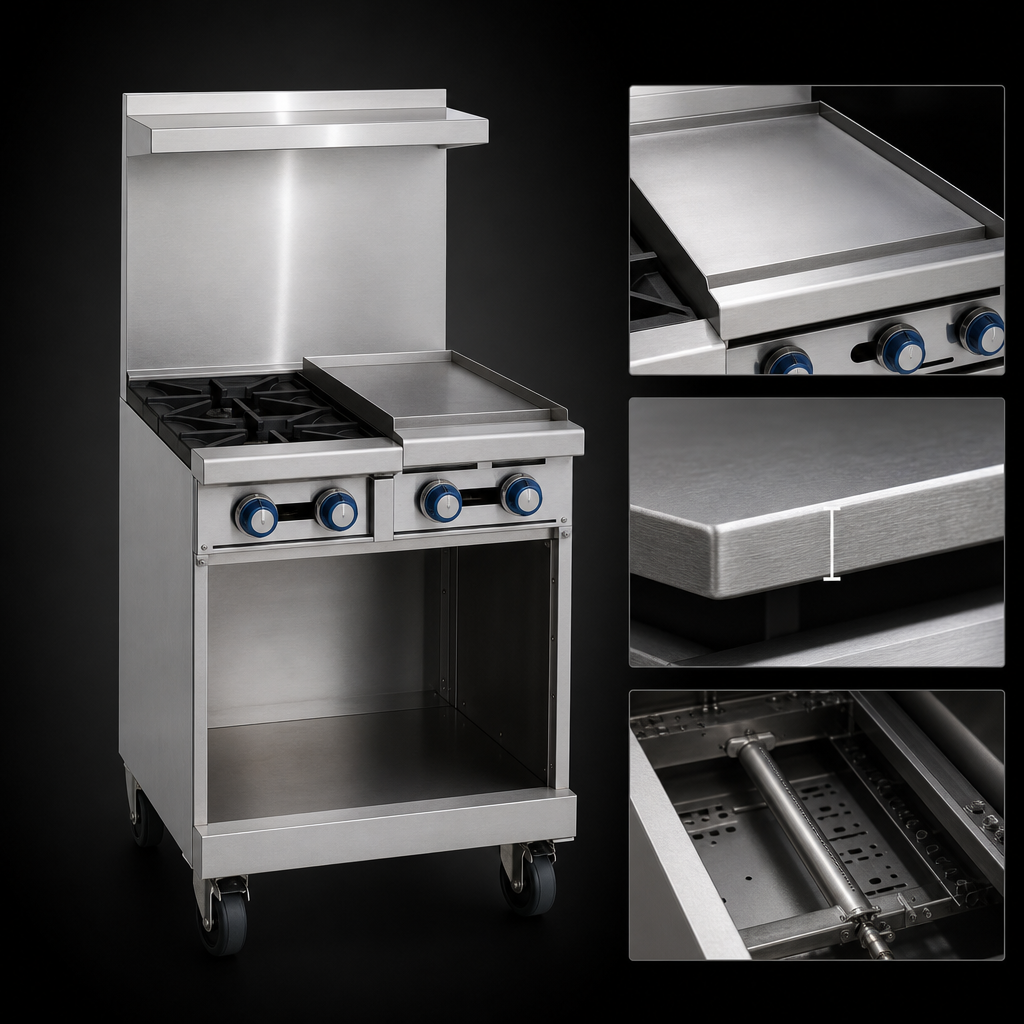

- 12" (305 mm) griddle on a ¾" polished steel plate, heated by a 20,000 BTU burner and integrated heat deflector for edge-to-edge consistency.
- 3" stainless front trough channels grease to an oversized removable can for mess-free disposal.
- Heavy-duty cast-iron grates — 12" × 12" front / 12" × 13" rear — let cooks slide stock pots across sections with ease.
- Standing pilots provide instant ignition; burners lift off with no screws or gaskets for quick cleaning.
- All-stainless exterior (front, sides, shelf, 3½" landing ledge & backguard) with welded, polished seams.
- Open cabinet base keeps hotel pans, sheet trays and smallwares within arm’s reach.
- Full-width crumb tray and griddle drip tray pull straight out for sink-side wash-down.
- 6" (152 mm) legs with adjustable feet; optional casters available.
Technical Specifications
| Footprint | 24" W × 31½" D × 56½" H (610 × 800 × 1435 mm) |
|---|---|
| Total Heat Output | 84,000 BTU / 25 kW |
| Open Burners | 2 × 32,000 BTU PyroCentric™ (anti-clog, low-simmer) |
| Griddle | 12" W × 21" D, ¾" steel plate • 20,000 BTU U-shaped burner |
| Gas Type | Natural 5" WC | LP 10" WC |
| Gas Connection | ¾" NPT (rear, manifold) |
| Base Style | Open cabinet |
| Shipping Weight | Approx. 410 lb / 185 kg |
| Certifications | NSF • CSA Flame • CSA Star • CE |
Popular Factory Options & Accessories
- 6" or 11" stainless backguard, or stub-back
- Swivel or rigid casters (set of 4)
- Grooved or thermostatic griddle plate
- Wok or sauté interchangeable burner heads
- ¾" quick-disconnect hose & gas shut-off valve
Installation & Clearance
- For use on non-combustible floors with legs or casters installed.
- 0" clearance to non-combustible surfaces; maintain 8" (203 mm) from combustible walls.
- Provide adequate ventilation in accordance with local code.
Backed by Imperial’s 1-year limited parts & labor warranty. See documentation in the “Downloads” tab for full terms.
Specifications are based on information available at time of publication and are subject to change without notice.
