Imperial (Middleby) IR-12-E Pro Series Electric Ranges
Description
Pro Series 72" Electric Restaurant Range – 12 Round Elements & 2 Standard Ovens
Imperial Model IR-12-E | Heavy-Duty Cooking Power for High-Volume KitchensBuilt to meet the demands of busy restaurants, hotels and institutions, the Imperial Pro Series IR-12-E packs a full 12-element cooktop and two chef-depth ovens into a single 72-inch footprint. Stainless construction, porcelainized oven interiors and infinite heat controls deliver the durability, precision and easy clean-up today’s chefs expect.
Why You’ll Love It

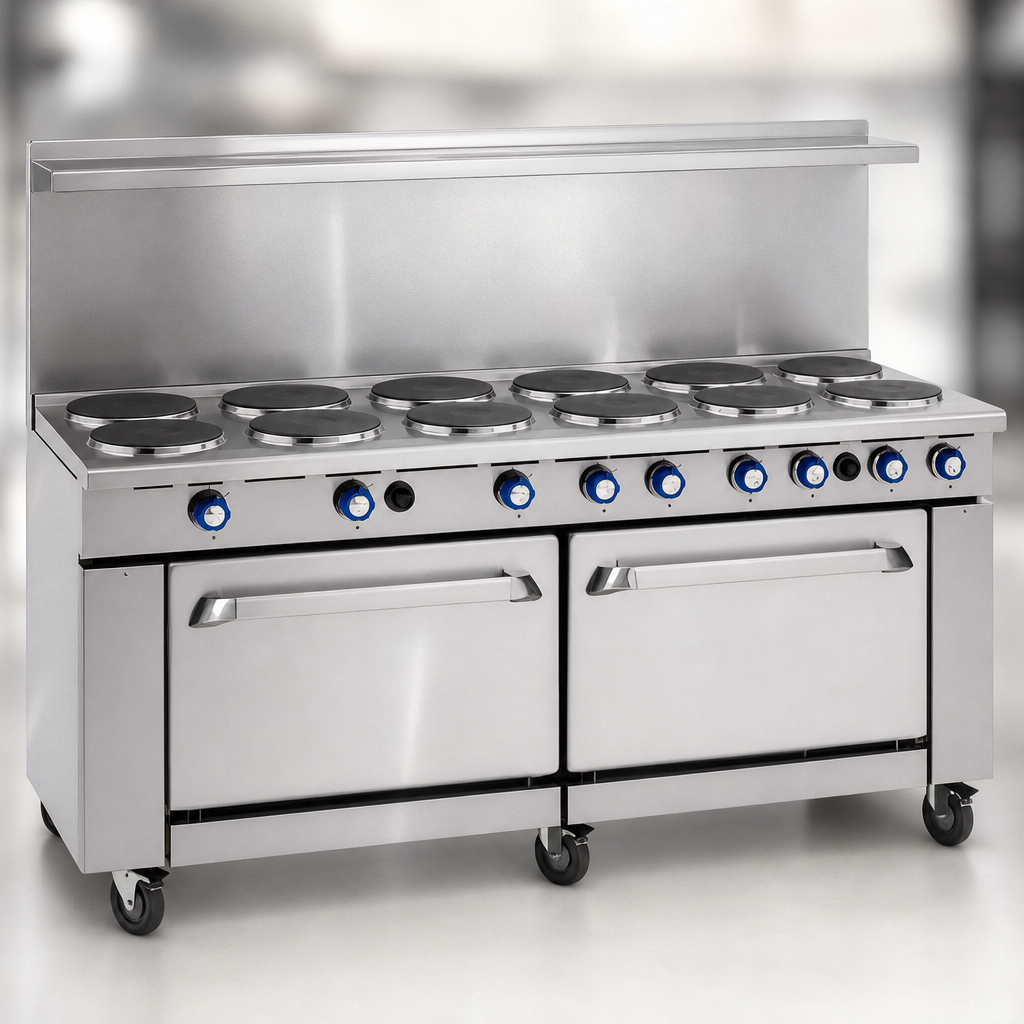

- 12 × 9" (229 mm) sealed round plate elements (2 kW each) provide fast, even heat on a smooth, easy-to-wipe surface.
- Independent infinite heat controls let you sear, sauté or simmer on every burner without limits.
- Dual 5.3 kW standard ovens with unique heat baffles ensure uniform baking from corner to corner.
- Chef-depth cavities hold full-size 18" × 26" sheet pans front-to-back and side-by-side.
- Splatter screens shield elements and pull out for quick cleaning.
- Rugged stainless-steel front, sides, 22" backguard, 5" landing ledge and kick plate stand up to daily abuse.
- Full-width removable crumb tray and porcelainized oven liners slash clean-up time.
- 6" adjustable stainless legs standard; optional locking casters available for easy mobility.
- cETLus, ETL-Sanitation and CE listed for universal code compliance.
Oven Performance
- Temperature range: 150 °F – 500 °F (65 °C – 260 °C) via heavy-duty thermostats.
- Interior dimensions (each): 26 ½" W × 26" D × 14" H (673 × 660 × 356 mm).
- One chrome rack supplied per oven; additional racks optional.
- Stamped inner door liners optimize heat retention and add strength.
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 31 ¼" (794 mm) to cabinet front |
| Cooktop height | 36" (914 mm) |
| Backguard height | 56 ½" (1435 mm) |
| Elements | 12 sealed round plates, 2 kW each |
| Ovens | 2 standard, 5.3 kW per cavity |
| Total input | 34.6 kW |
| Electrical options | 208 V or 240 V (1 & 3 ph) – 480 V (3 ph) |
| Amps @ 208 V / 1 ph | 84 A |
| Amps @ 208 V / 3 ph | 51 A |
| Amps @ 240 V / 1 ph | 72 A |
| Amps @ 240 V / 3 ph | 44 A |
| Amps @ 480 V / 3 ph | 22 A |
| Ship weight | 1,135 lb (514 kg) |
| Certifications | cETLus, ETL-Sanitation, CE |
| Warranty | 1-year parts & labor |
Installation Notes & Factory Options
- For use on non-combustible floors with 0" side/rear clearance to non-combustible surfaces (6" to combustible).
- Field wiring must be completed by a qualified electrician to match voltage, phase & amp draw selected.
- Available upgrades: 6" or 11" stainless stub back, locking casters, extra oven racks, reinforcement channels for cheesemelters, chrome griddle top.
