Imperial (Middleby) IMGA-7228 1 Gas Griddles
Description

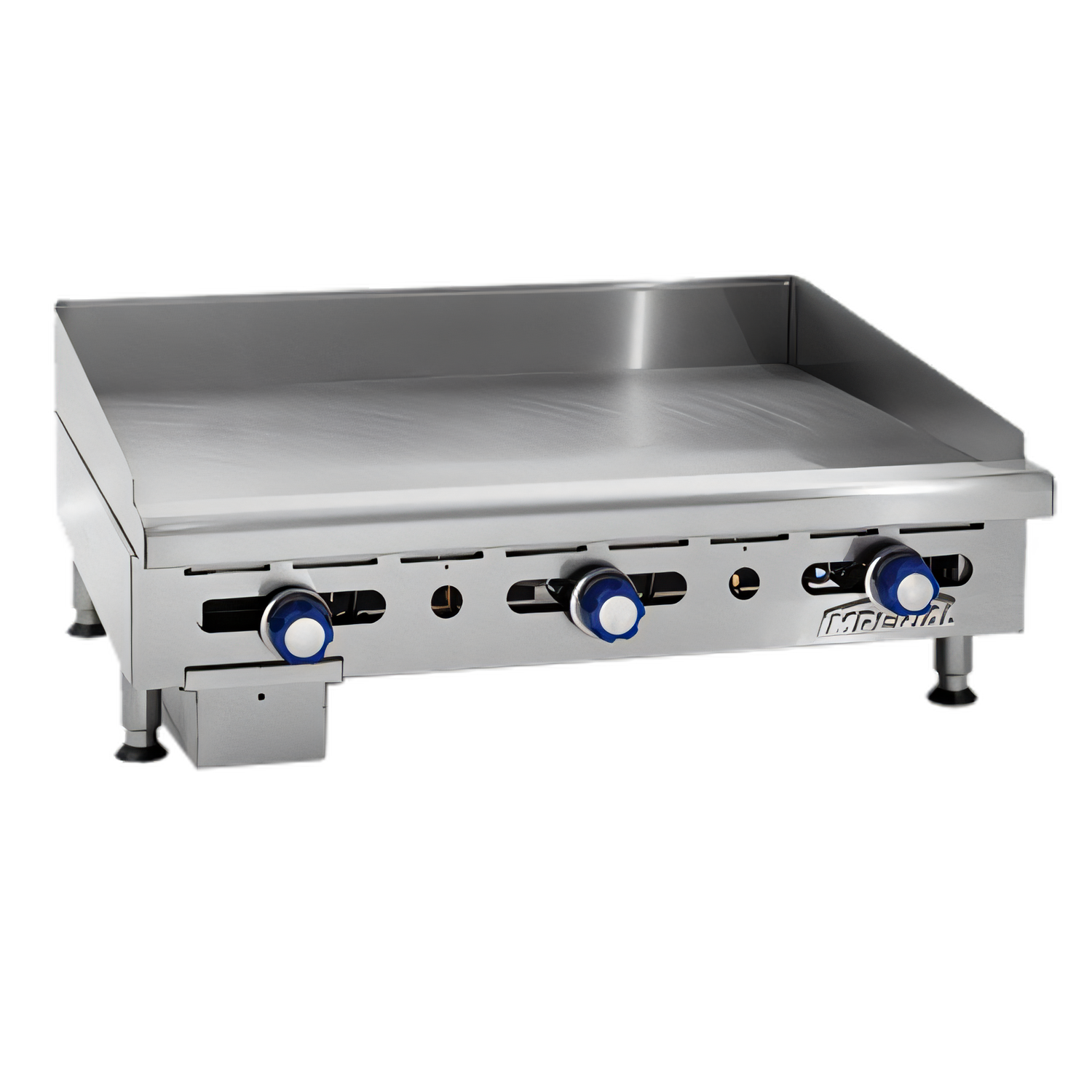

Imperial IMGA-7228-1 72" Manual Gas Countertop Griddle
1" Polished Steel Plate • 6 Burners • 180,000 BTUGive your kitchen the expansive cooking real estate it craves without sacrificing countertop space. The Imperial IMGA-7228-1 couples a rugged 1-inch thick steel plate with 180,000 BTU of instantly adjustable heat, delivering the speed, consistency, and durability demanded in high-volume operations from diners to resorts.
Why You’ll Love It
- 72" W × 24" D cooking surface handles dozens of menu items at once.

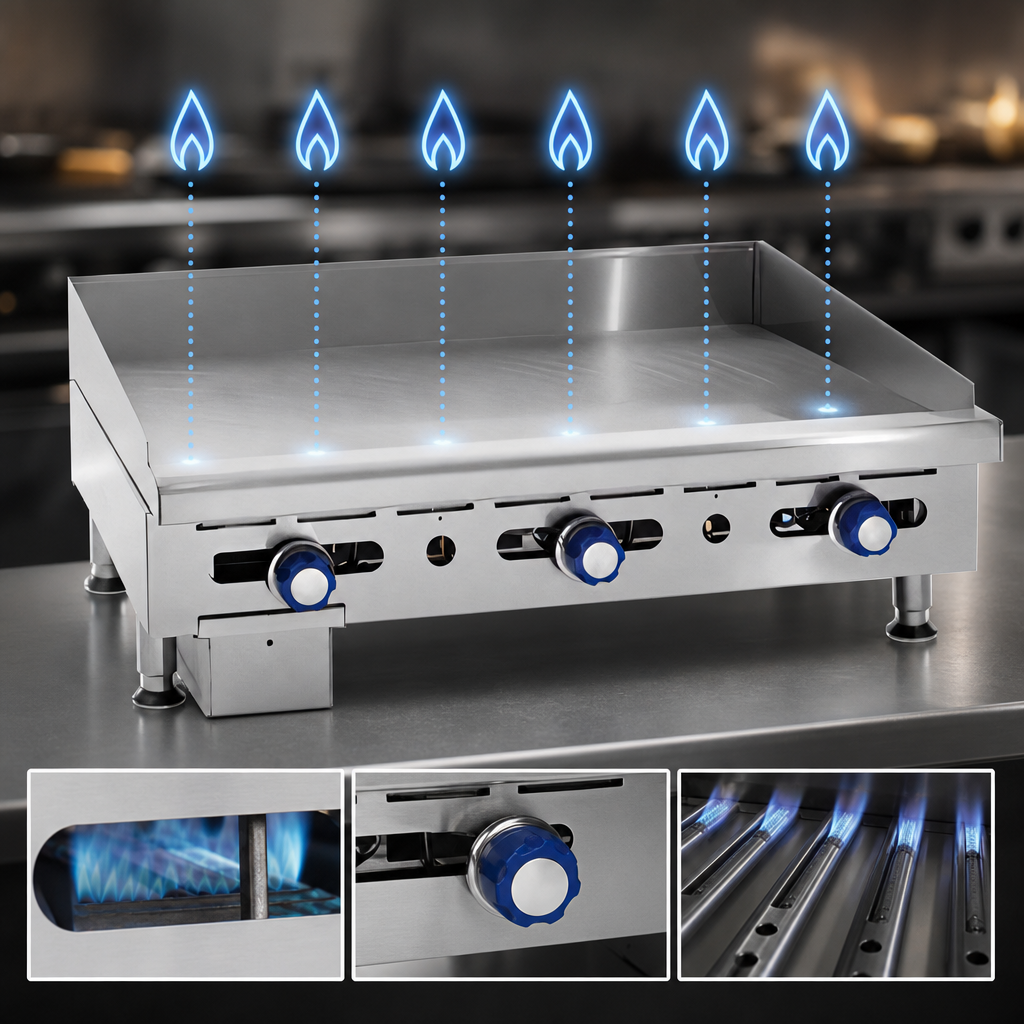

- Six 30,000 BTU burners with individual manual valves and continuous pilots for immediate ignition.

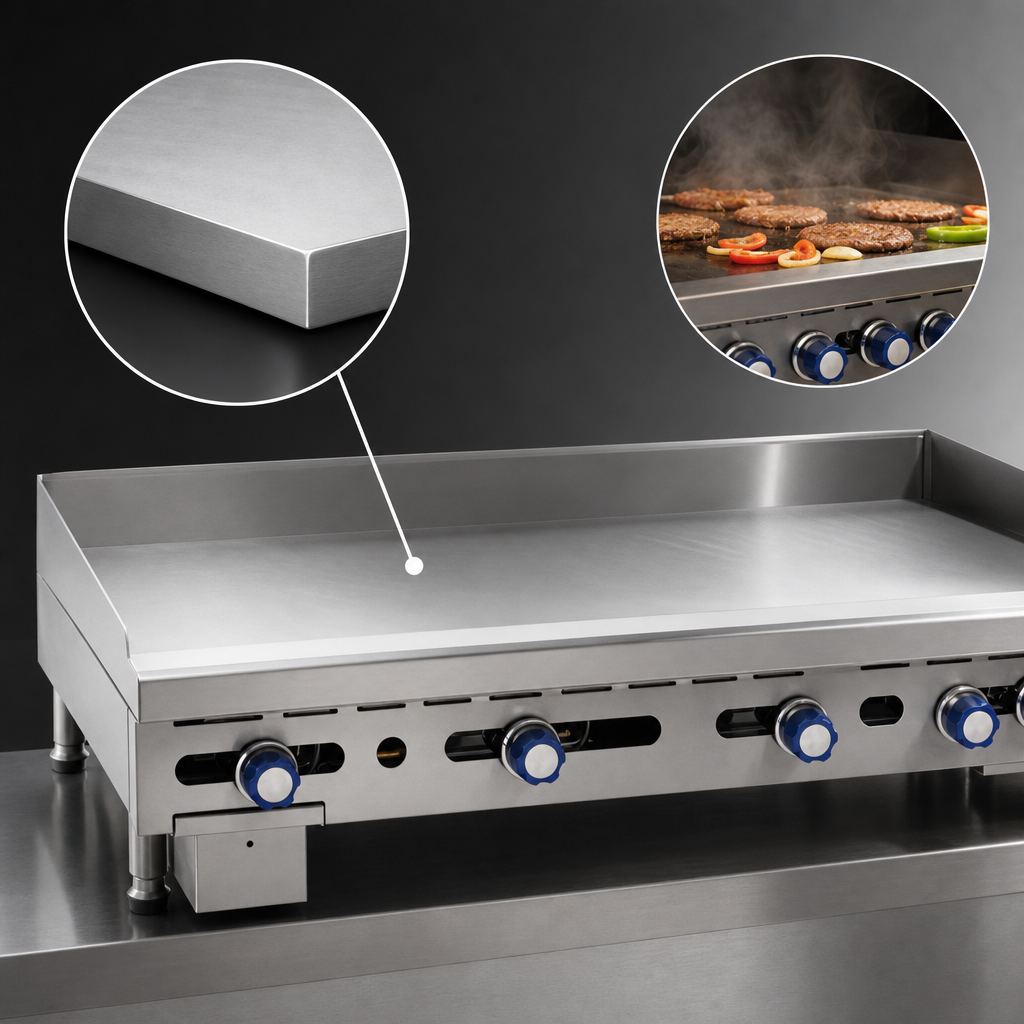

- 1" (25 mm) thick, highly polished steel plate retains heat and recovers fast during peak periods.
- Aeration baffles between burners spread heat uniformly across the entire plate.
- 4" wide, full-length stainless steel grease gutter funnels runoff into a removable 1 gal. can with weep hole indicator.
- Stainless steel front, sides, splash guards & rolled ledge stand up to the toughest cleaning regimens.
- 4" adjustable stainless steel legs provide a stable, level working height.
- Certified cETLus & NSF for gas safety and sanitation.
Technical Specifications
| Model | IMGA-7228-1 |
|---|---|
| Total BTU / kW | 180,000 BTU | 53 kW |
| Burners | 6 manually controlled, 30,000 BTU each |
| Cooking Surface | 72" W × 24" D (1829 mm × 610 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Overall Dimensions | 72" W × 32-3/8" D × 14" H |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural Gas – 5.0" W.C. | Propane – 10.0" W.C. |
| Shipping Weight | 640 lb (290 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Factory Options & Accessories
- Chrome or grooved griddle surface.
- 7" or 9" deep front landing ledge.
- Stainless steel equipment stands & 6" casters.
- Extra 1 gal. grease can.
Install on a non-combustible countertop only. Maintain 0" clearance to non-combustible and 6" clearance to combustible surfaces.
