Imperial (Middleby)  |  SKU: IMGA-6028 1

Imperial (Middleby) IMGA-6028 1 Gas Griddles

$7,267.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Training video Owner's manual Parts manual Middleby financial flyer Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IMGA-6028-1 60" Manual Gas Countertop Griddle

Five-burner powerhouse • 1" polished steel plate • 150,000 BTU

Designed for high-volume kitchens that demand speed, consistency, and durability, the Imperial IMGA-6028-1 delivers a full 60 inch cooking surface and rapid heat recovery thanks to its hefty 1" thick steel plate and 150,000 BTU output. From all-day breakfast to sizzling lunch rushes, this griddle keeps plates moving and profits growing.

Top Features & Benefits

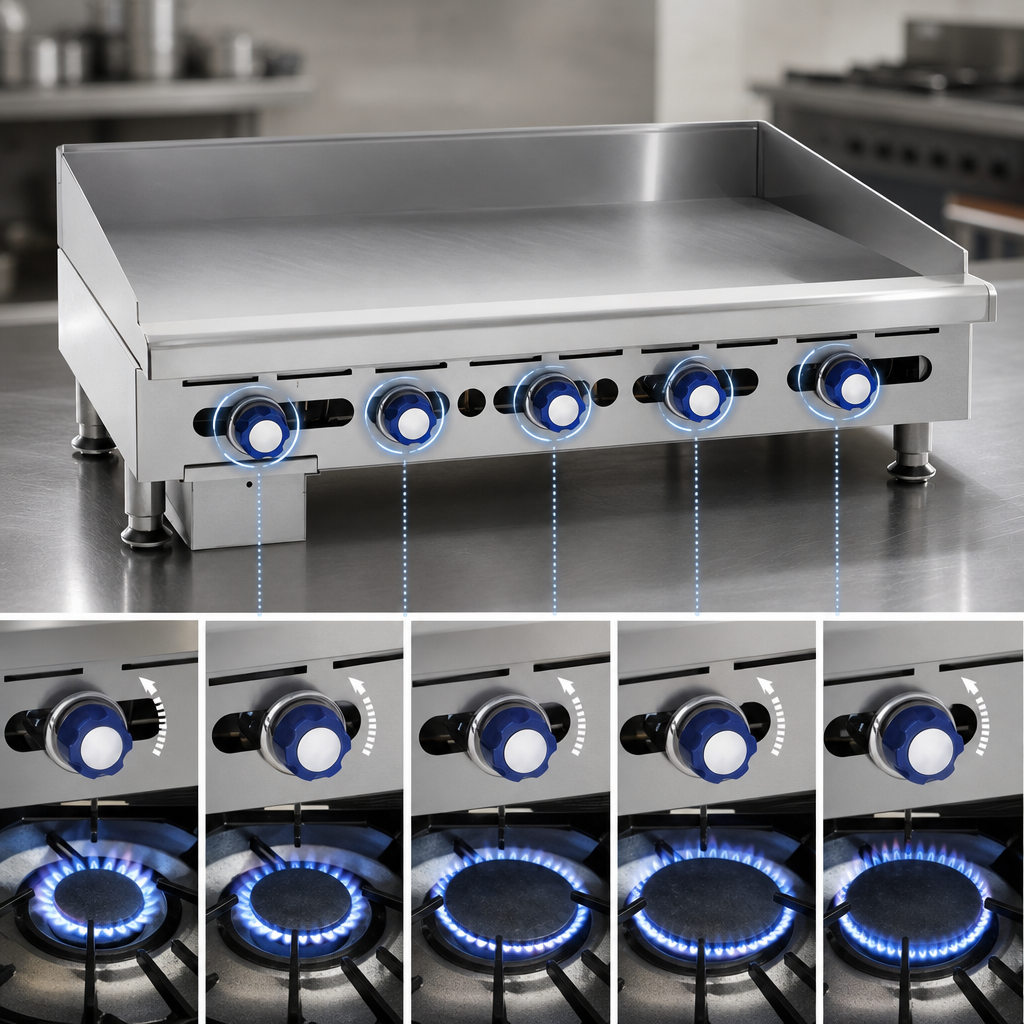

  • Five 30,000 BTU burners with individual manual controls and continuous pilots for instant ignition.

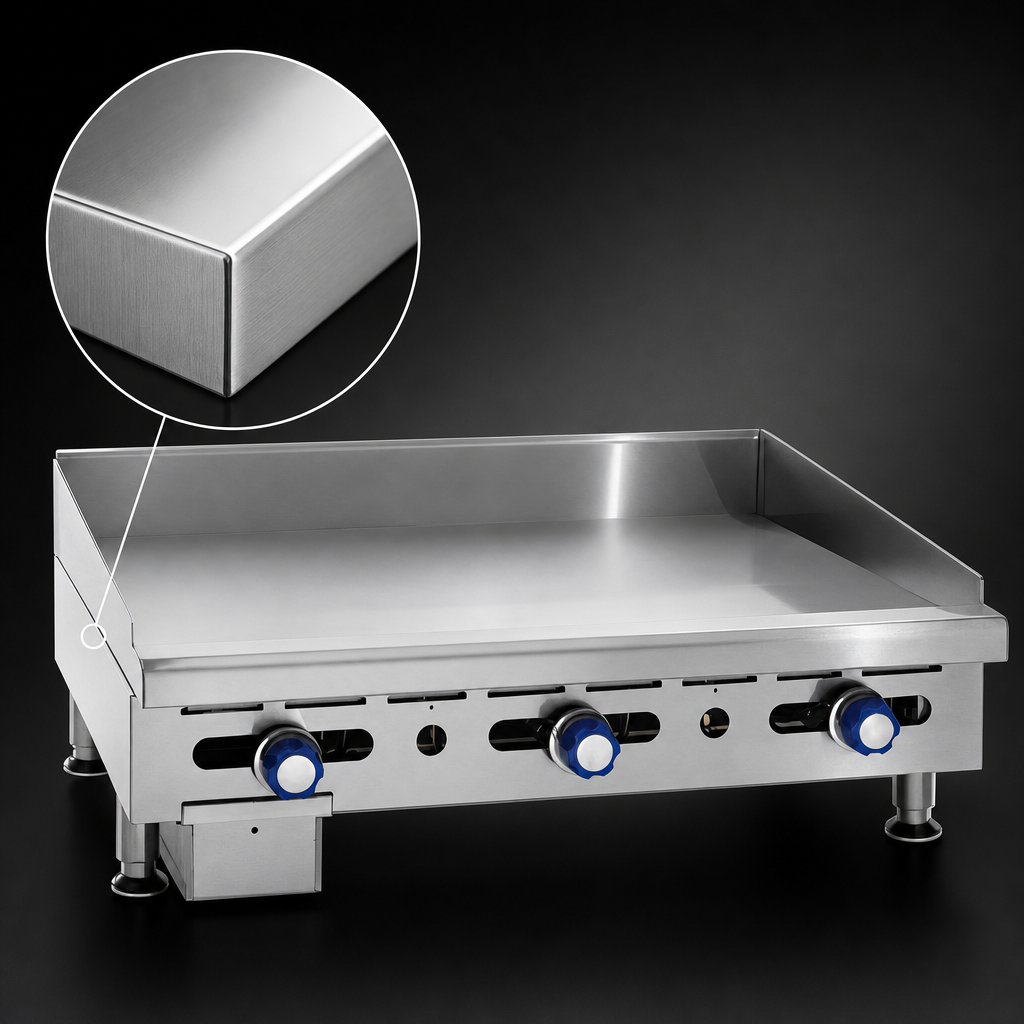

  • 1" (25 mm) smooth, highly polished steel plate locks in heat and delivers fast recovery between loads.
  • Aeration baffles located between burners spread heat evenly across the entire 60" x 24" surface.
  • 4" wide stainless steel grease gutter and 1 gal. removable grease can with weep hole make clean-up simple.
  • All-stainless exterior—front, sides, ledge and 3-sided splash—stands up to daily commercial abuse.
  • 4" adjustable stainless steel legs provide a stable, level cooking platform on any countertop.
  • cETLus & NSF listed for gas safety and sanitation compliance.
  • Backed by Imperial’s 1-year parts & labor warranty.

Perfect For

  • Diners & cafés serving all-day breakfast favorites
  • QSR and fast-casual concepts needing swift ticket times
  • Catering operations or ghost kitchens with limited hood space
  • Food trucks and concessions (mount on a sturdy equipment stand or refrigerated base)

Specifications

Model IMGA-6028-1
Cooking Surface 60" W x 24" D (1524 mm x 610 mm)
Plate Thickness 1" (25 mm) smooth polished steel
Burners / Controls 5 manually-controlled U-shaped burners with continuous pilots
Total Output 150,000 BTU | 44 kW
Gas Type Natural or LP (field convertible)
Gas Connection 3/4" NPT rear manifold
Manifold Pressure 5.0" W.C. Natural | 10.0" W.C. LP
Overall Dimensions 60" W x 32-3/8" D x 14" H (1524 mm x 822 mm x 356 mm)
Shipping Dimensions / Weight 62-1/2" W x 36" D x 16-1/2" H | 540 lb (245 kg)
Certifications cETLus, NSF
Warranty 1 year parts & labor

Popular Options (sold separately)

  • Chrome or grooved steel griddle plates (factory installed)
  • 7" or 9" deep stainless steel front landing ledge
  • Stainless steel equipment stands with or without casters
  • Extra 1 gal. grease can
Installation Clearance: 0" from non-combustible surfaces; 6" (152 mm) from combustible surfaces. Unit must be installed on a non-combustible countertop and connected by a qualified technician.

Need flexible financing? Ask us about Middleby Equipment Financing and turn your purchase into affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, cETLus

Height

14.0in

Width

60.0in

Depth

32.38in

Shipping Weight

540.0lbs

Cooking Surface Width (side - side)

55" - 60"

Griddle Plate Finish

smooth steel

Exterior Finish

stainless steel front & sides

Controls

manual controls

Cooking Surface Depth (front - back)

24" - 29"

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 60" W x 24" D cooking surface, (5) griddle burners, 1" thick, smooth polished steel plate, aeration baffles, manual controls, continuous pilot, 4" wide grease gutter, removable 1 gallon grease can with weep hole, stainless steel front, sides, ledge & splash guards, 4" stainless steel, legs, 150,000 BTU, 44kW, cETLus, NSF
