Imperial (Middleby) IMGA-3628 1 Gas Griddles
Description

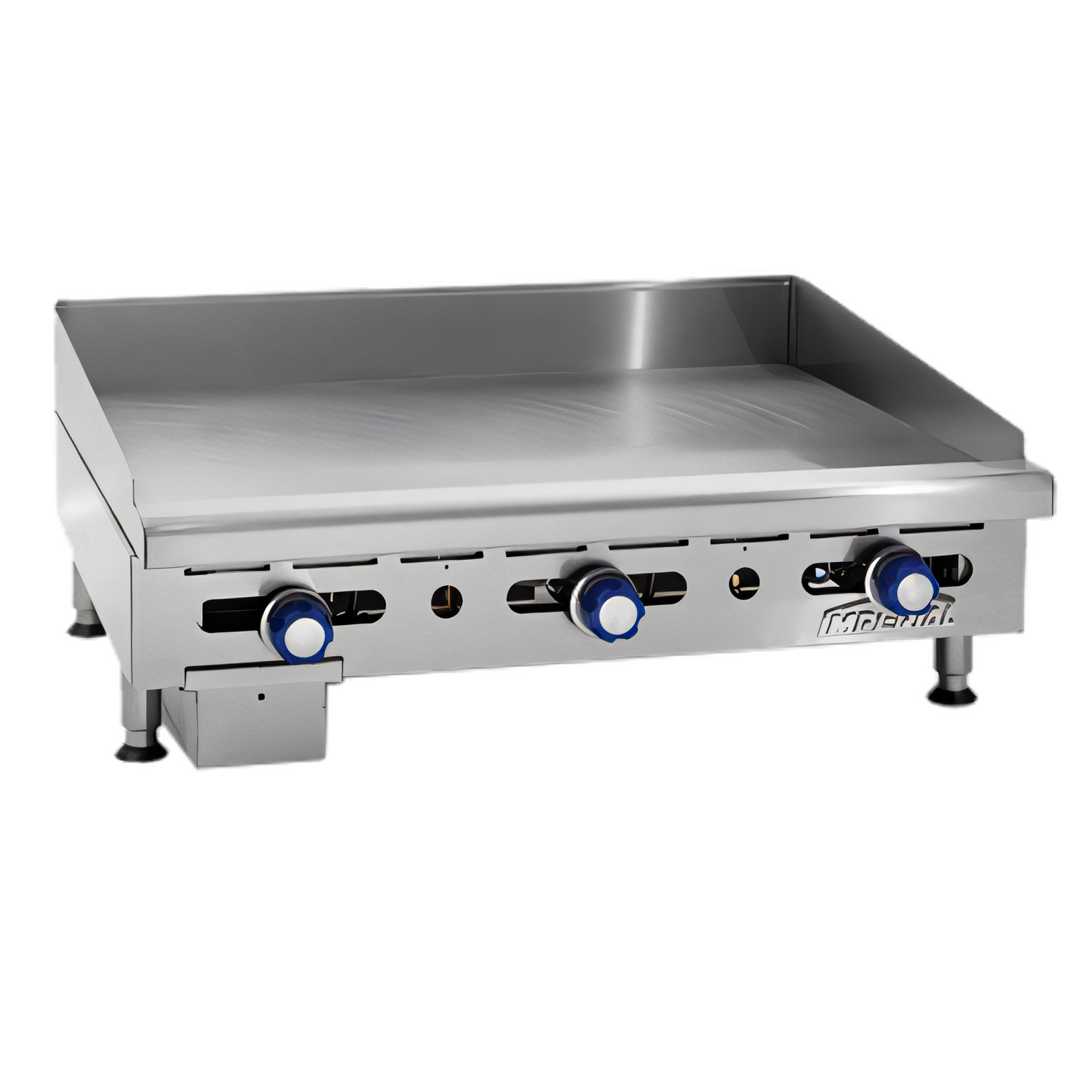

Imperial IMGA-3628-1 Countertop Gas Griddle – 36" | 1" Plate | 90,000 BTU
Heavy-duty, manually controlled 3-burner flat topFrom sunrise breakfasts to late-night burgers, the Imperial IMGA-3628-1 gives chefs the power, plate space and precision they need in a compact countertop footprint. A massive 1-inch polished steel plate stores heat for lightning-fast recovery while aeration baffles and three 30,000 BTU burners blanket the entire surface with even, controllable heat.
Key Features

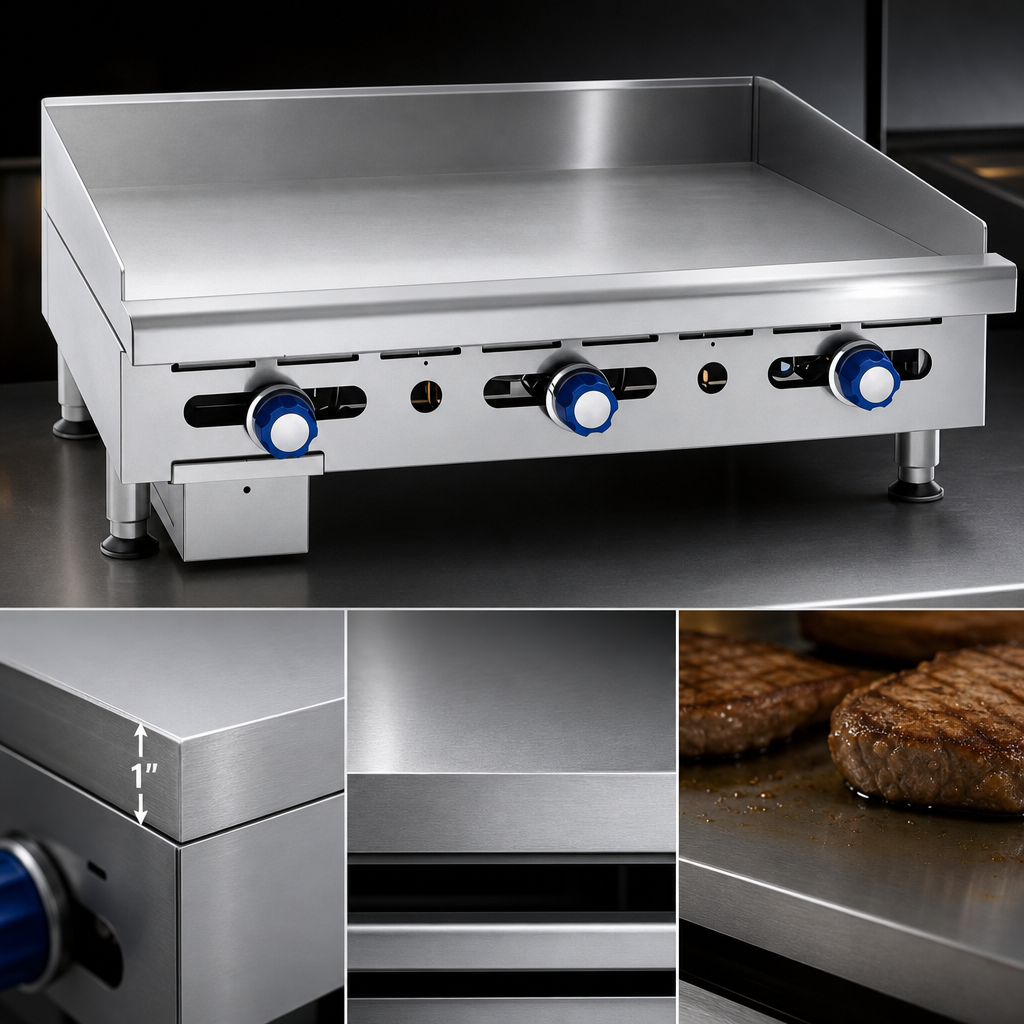

- 1" (25 mm) thick smooth steel griddle plate—polished for easy release and rapid heat recovery

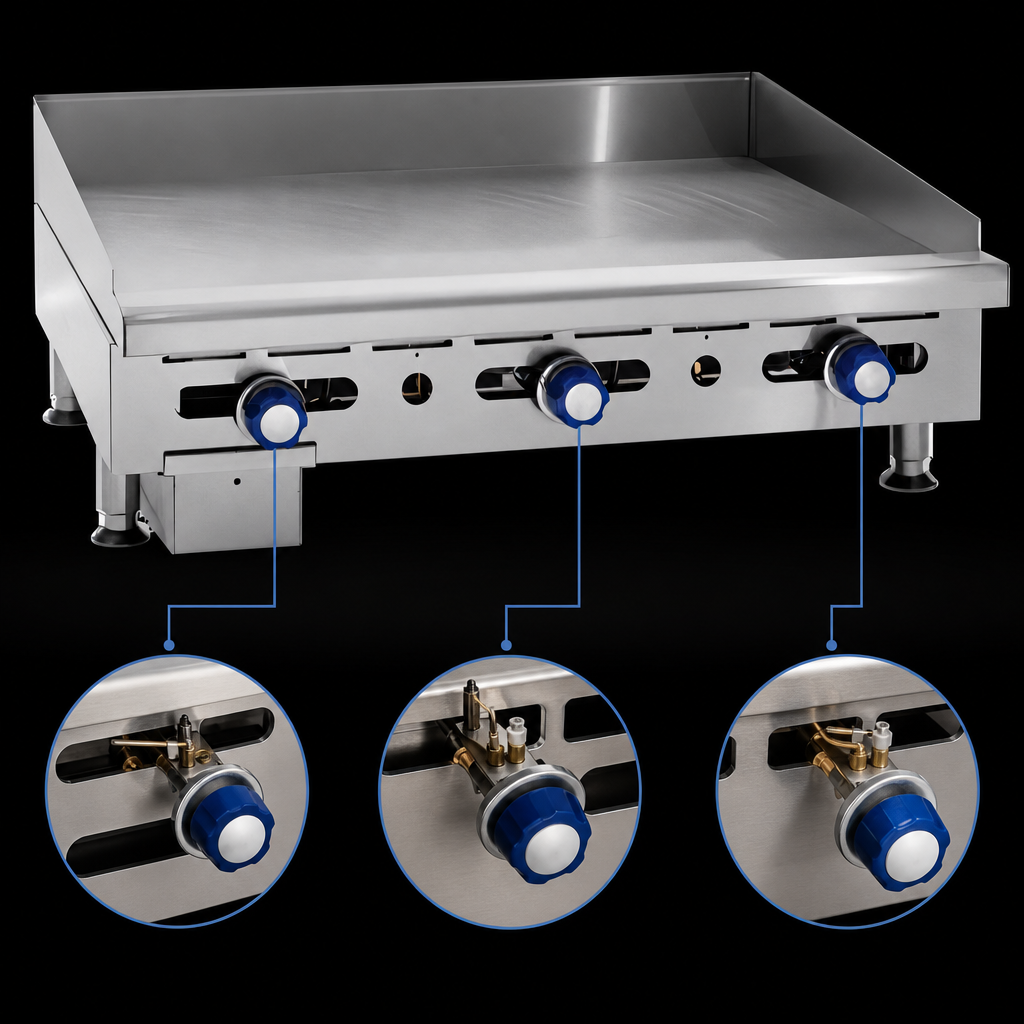

- (3) 30,000 BTU burners (90,000 BTU total) spaced every 12" for uniform zone cooking
- Manual adjustable gas valves with continuous pilots for instant ignition
- Aeration baffles between burners distribute heat evenly across the 24" deep surface
- 4" wide stainless grease gutter feeds a removable 1 gal (3.8 L) grease can with weep-hole level indicator
- All-stainless front, sides, splash guards & one-piece rolled ledge for quick wipe-downs
- Cast-aluminum knobs with Valox™ heat-shield grips stay cool to the touch
- 4" (102 mm) adjustable stainless steel legs included
- Certified cETLus & NSF for gas safety and sanitation
Why You’ll Love It
- Range-match height pairs perfectly with adjacent cooking or refrigerated bases
- Thick plate stores heat, slashing recovery time during peak rushes
- Oversized grease management keeps the workspace cleaner and safer
- No electrical hookup—ideal for cafés, concessions, ghost kitchens and food trucks
Technical Specifications
| Model | IMGA-3628-1 |
|---|---|
| Cooking Surface | 36" W × 24" D (914 mm × 610 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Burners / Controls | 3 manually controlled straight-tube burners with continuous pilots |
| Total Output | 90,000 BTU | 26 kW |
| Gas Connection | 3/4" NPT rear manifold 5" W.C. Natural / 10" W.C. LP |
| Overall Dimensions | 36" W × 32 3⁄8" D × 14" H (914 × 822 × 356 mm) |
| Shipping Weight | ≈ 380 lb (172 kg) |
| Construction | Stainless steel front, sides, splash & ledge; 4" S/S legs |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Optional Accessories (Sold Separately)
- Stainless steel equipment stand – stationary or with 6" casters
- 7" or 9" deep stainless front landing ledge
- Chrome-plated or grooved griddle top (-CG / -GG)
- Additional 1 gal grease can
