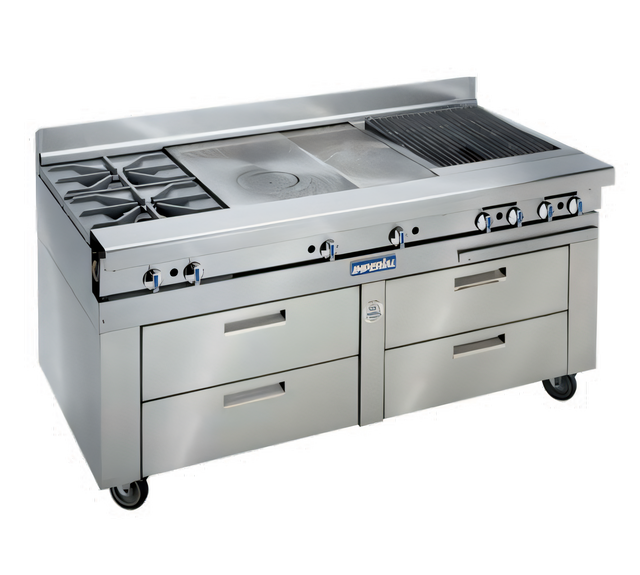

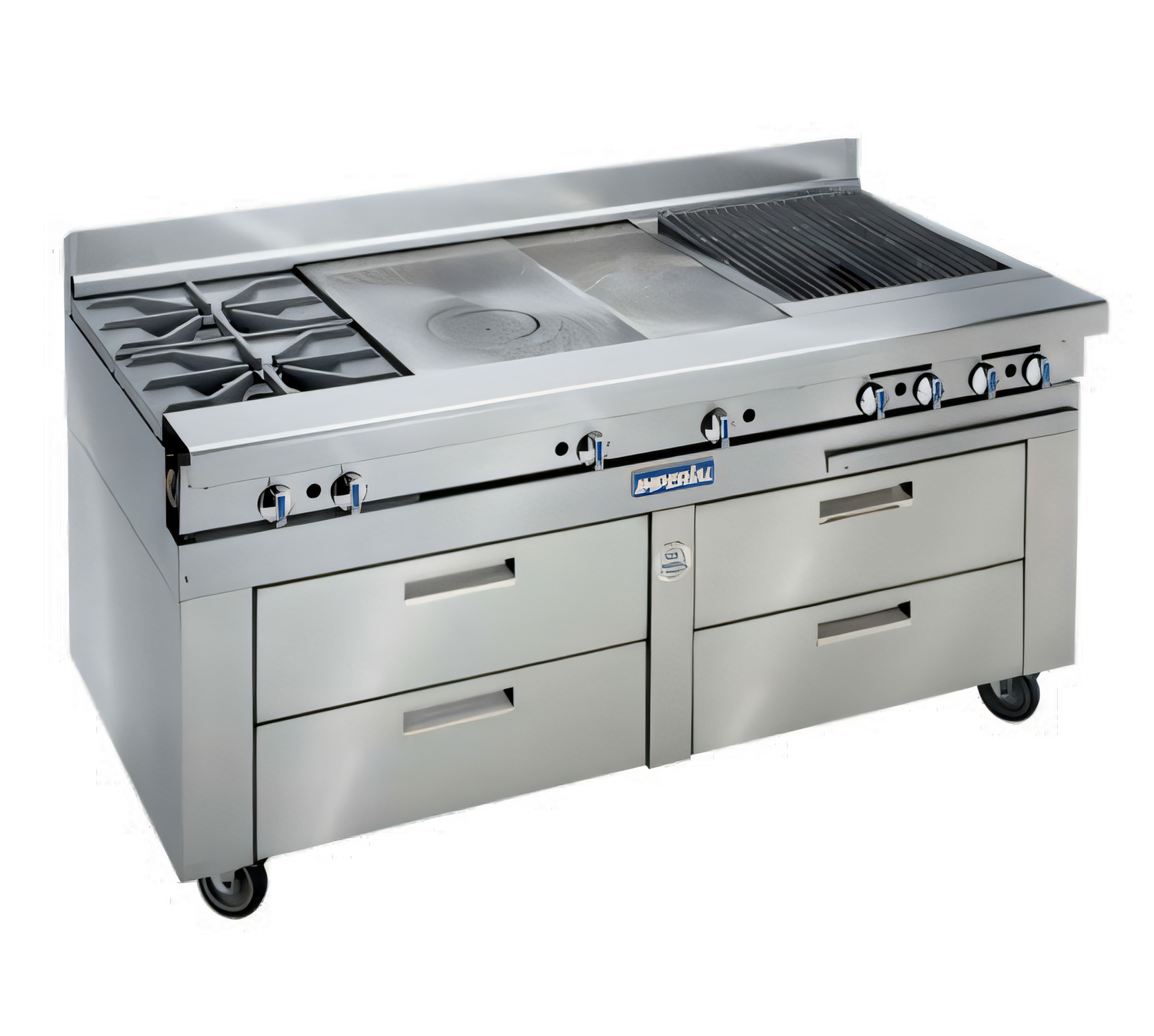

Imperial Spec Series “Sizzle ‘N Chill” 72" Remote Refrigerated Base – 4 Drawer
Model IHR-XX-RM-72 | 8 Full-Size Pan CapacityBring refrigerated storage right to the cookline. Imperial’s heavy-duty Spec Series “Sizzle ‘N Chill” base keeps ingredients at food-safe temperatures in the same footprint that supports your rangetop, griddle or broiler—boosting speed, safety and workflow in any high-volume kitchen.
Key Features

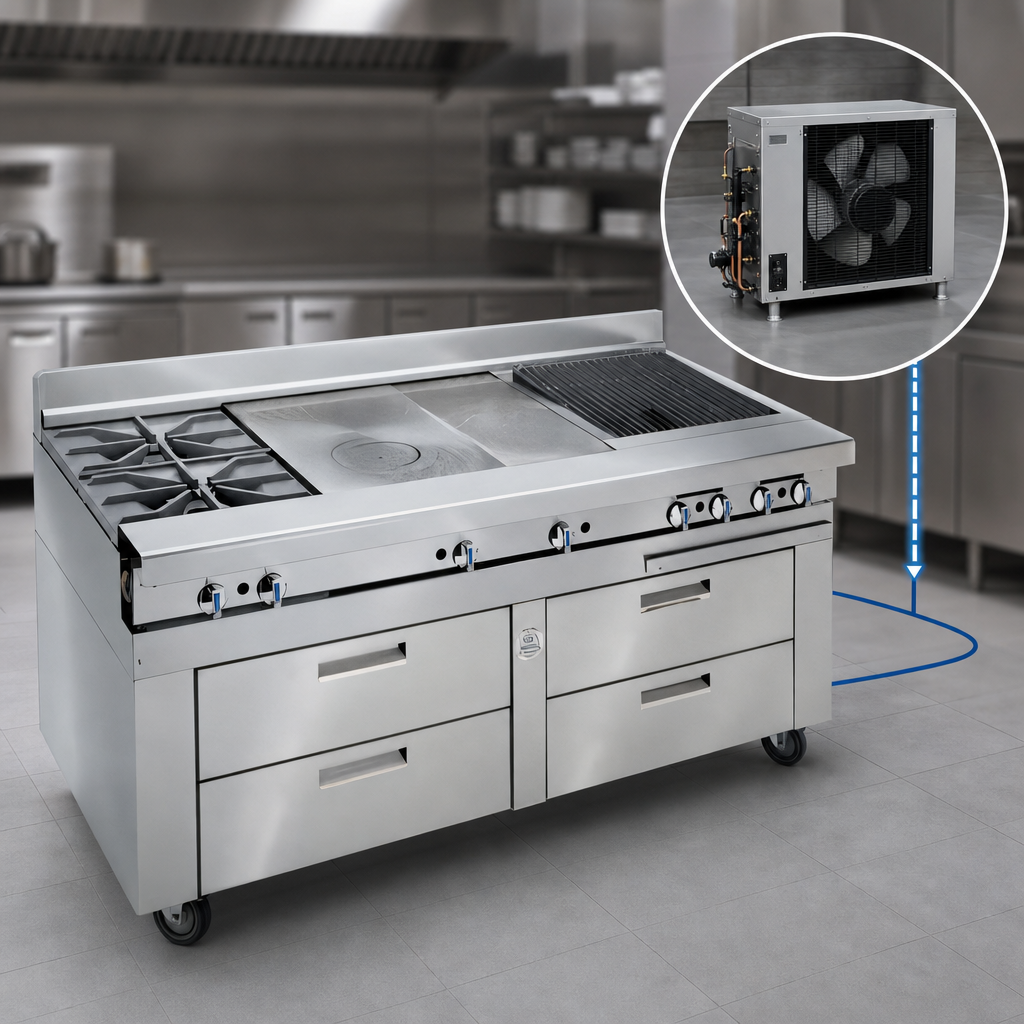

- Remote refrigeration design keeps heat and compressor noise out of the kitchen (condensing unit not included).
- Four self-closing drawers—each holds two full-size (12" × 20") pans up to 6" deep.
- Included drawer dividers support virtually any fractional pan configuration.
- Digital front-mounted thermostat with easy-to-read thermometer maintains 36–40 °F (2.2–4.4 °C) in ambient temperatures up to 100 °F.
- Foamed-in-place polyurethane insulation prevents temperature migration from the hot cooktop above.
- Heavy-duty stainless-steel guides & bearings rated for 275 lb (125 kg) per drawer.
- Full stainless-steel exterior—front, sides, drawer fronts, guides and bearings—for maximum durability and easy cleaning.
- 6" (152 mm) stainless-steel legs provide clearance for floor sanitation.
Performance & Efficiency
- Energy-efficient 1/5 HP refrigeration system (120 V / 60 Hz / 1-ph, 3 A) with 6 ft cord & plug.
- Unitized refrigeration components simplify service access.
- Non-electric condensate pan eliminates excess moisture without additional energy use.
Specifications
| Width | 72" (1829 mm) |
|---|---|
| Depth | 38" (965 mm) |
| Height (to cooktop) | 36" (914 mm) |
| Drawers | 4 self-closing |
| Pan Capacity | 8 full-size pans (or fractional equivalent) |
| Temperature Range | 36–40 °F (2.2–4.4 °C) |
| Horsepower | 1/5 HP (remote system) |
| Electrical | 120 V / 60 Hz / 1-ph, 3 A, NEMA 5-15P |
| Construction | Stainless-steel front, sides, drawers, guides & bearings |
| Certifications | cETLus | ETL-Sanitation |
| Warranty | 1-year parts & labor |
Important: This model is factory-configured for remote refrigeration. A compatible condensing unit and refrigerant line set (not supplied) are required for operation. Follow local codes and Imperial installation guidelines.
Need flexible payment options? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly terms.
Imperial (Middleby)
Imperial (Middleby) IHR-XX-RM-72 Spec Series Undercounter & Worktop Refrigeration
SKU: IHR-XX-RM-72
$17,493.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial 72" Spec Series undercounter refrigerator with 4 drawers, digital thermostat, SS construction, drawer dividers, remote-ready for busy kitchens.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
cETLus, ETL-Sanitation
Height
25.0in
Width
72.0in
Depth
38.0in
Shipping Weight
500.0lbs
Exterior Finish
galvanized & stainless steel exterior
Refrigeration
remote (refrigeration not included)
Width
61" - 72" wide
Compressor HP
1/4 HP
Top Finish
stainless steel top
Drawer Qty
4 drawers
Specifications
Spec Series Sizzle 'N Chill System, 72", (4) drawers, (8) pan capacity, digital thermostat, designed for remote refrigeration, front mount thermostat, includes drawer dividers, stainless steel front, drawer fronts, sides, guides & bearings, 6" legs, 120v/60/1-ph, 1/5 HP, 6' cord & plug, 3.0 amps, cETLus, ETL-Sanitation
