Imperial Spec Series 36" Gas Radiant Charbroiler Range
Model IHR-RB-XB | 90,000 BTU (26 kW) | Open Cabinet BaseServe steak-house quality grill marks and smoky flavor shift after shift. Built for the toughest commercial kitchens, Imperial’s Spec Series Radiant Charbroiler packs 90,000 BTU of controllable heat into a rugged 36" footprint while giving you valuable under-counter storage in its open cabinet base.
Why You’ll Love It
- Six individually controlled 15,000 BTU stainless-steel burners—precise zone cooking every 6"

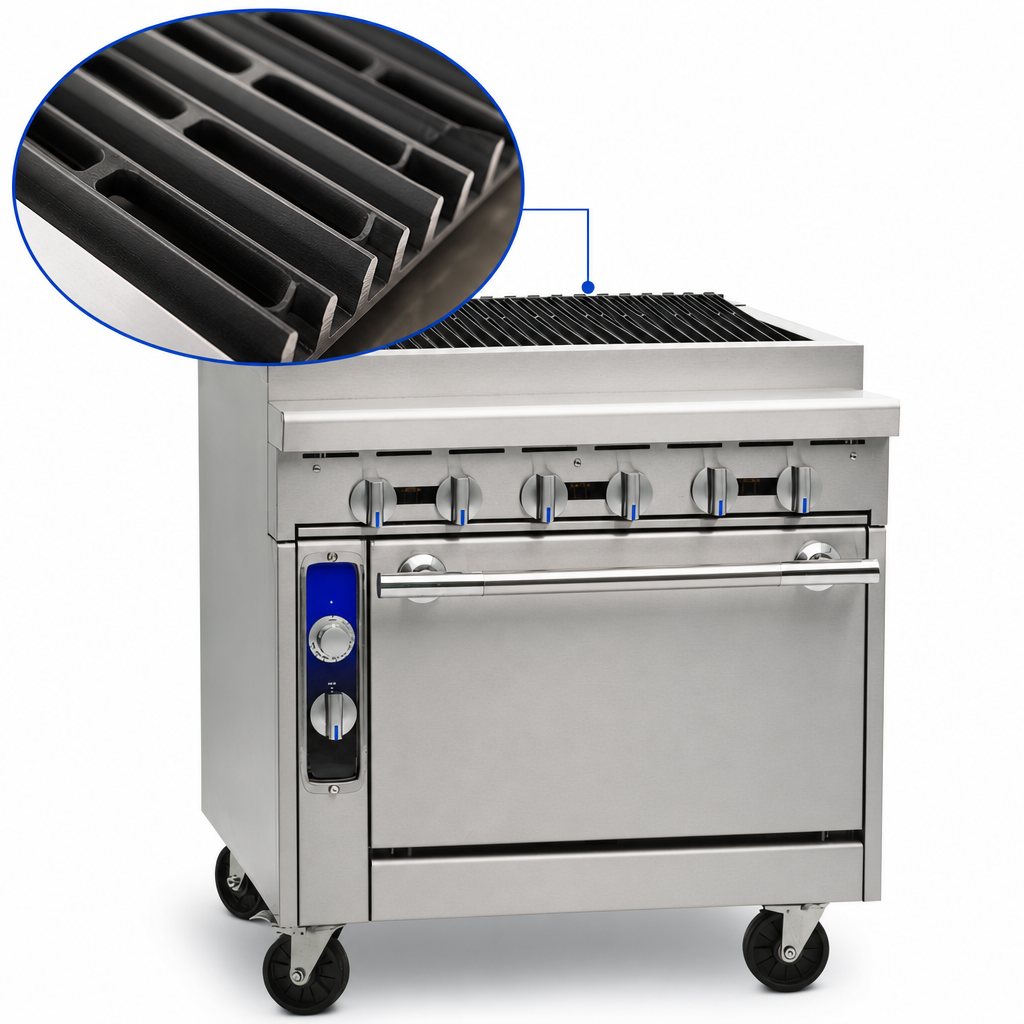

- Reinforced cast-iron radiants spread heat evenly and shield burners from drippings

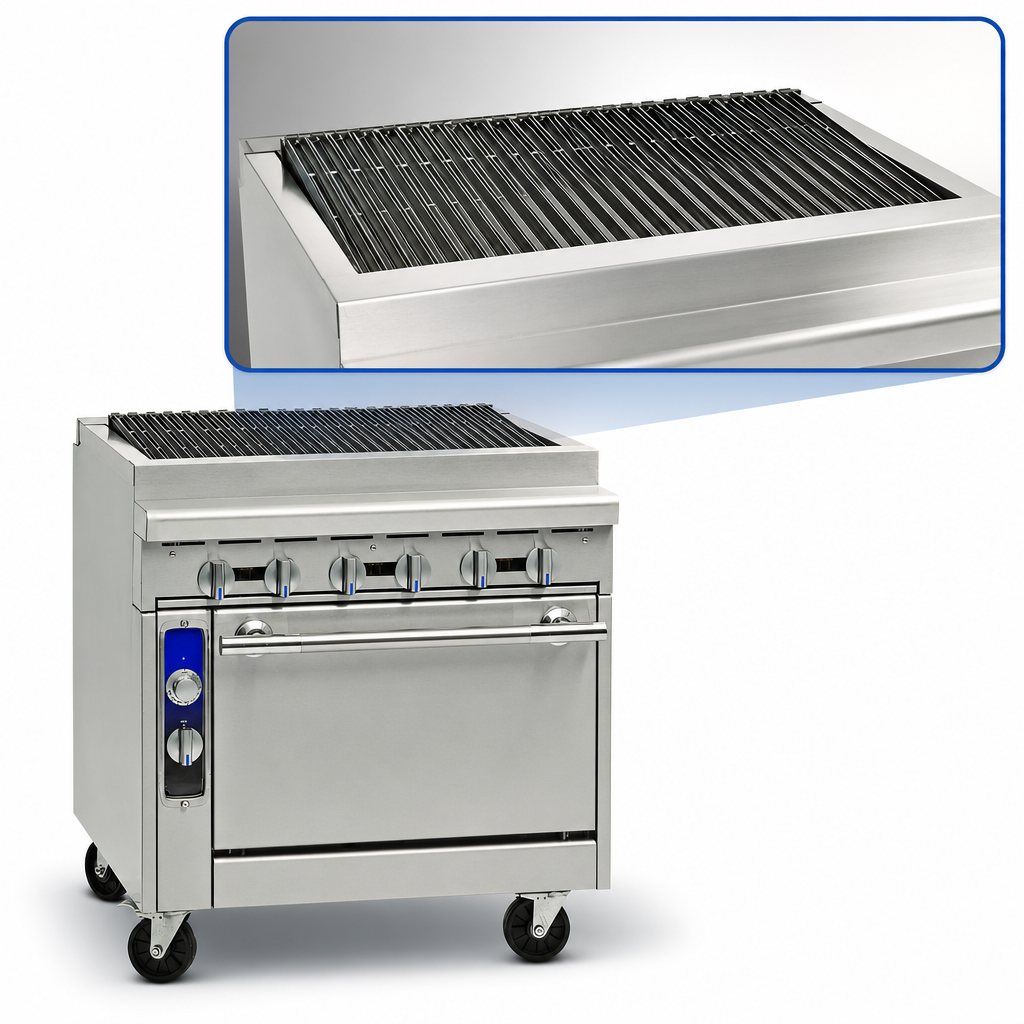

- Slanted, heavy-duty cast-iron top grates create signature char marks and multiple heat zones
- 7" deep stainless-steel landing ledge keeps plating and finishing within arm’s reach
- Full-width front grease gutter plus removable drip pan and crumb tray streamline clean-up
- Fully insulated cooktop conserves energy and keeps the line cooler
- Rugged stainless-steel front, sides, stub back & kick plate with welded, polished seams

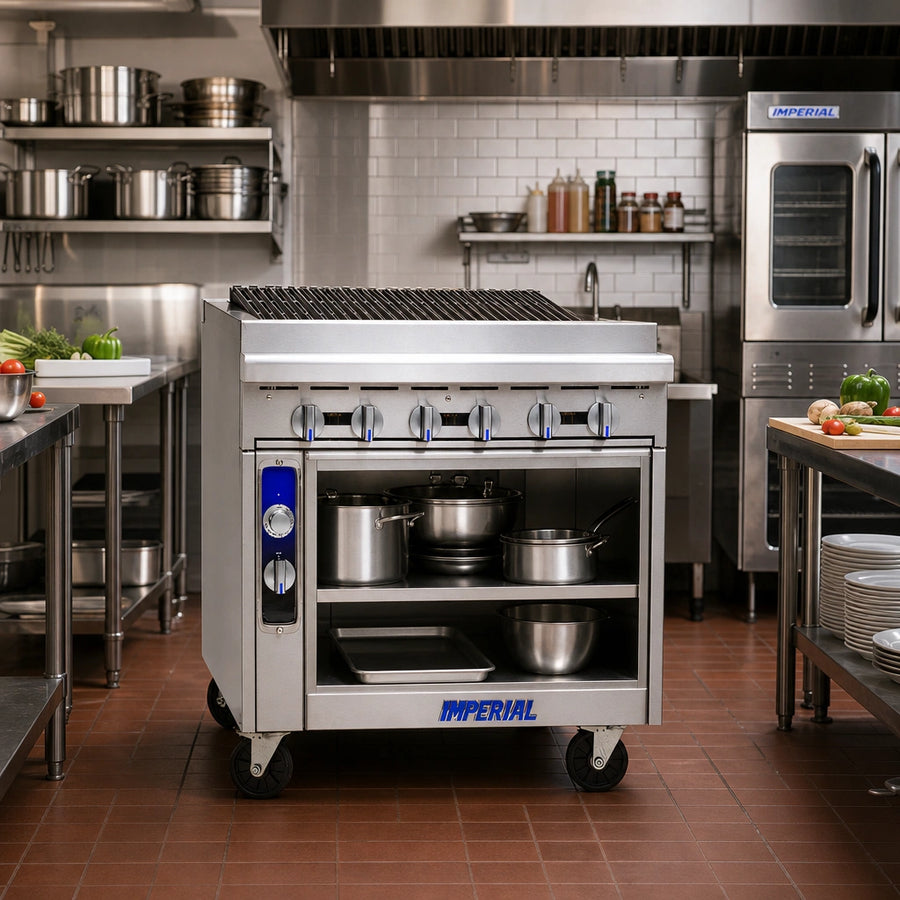

- Open cabinet base stores sheet pans, utensils or cleaning supplies (optional shelf available)
- 6" heavy-duty legs with adjustable feet for quick leveling
- Backed by a 1-year parts & labor warranty from Imperial
Technical Specifications
| Gas Output | 90,000 BTU/hr (26 kW) |
|---|---|
| Burner Configuration | 6 × 15,000 BTU stainless-steel tube burners |
| Cooking Surface | 36" W × 18" D (914 × 457 mm) |
| Overall Dimensions | 36" W × 38" D × 36" H (914 × 965 × 914 mm) |
| Gas Connection | 3/4" NPT rear; 5" W.C. Natural / 10" W.C. LP |
| Ship Weight | 765 lb (347 kg) |
| Certifications | cETLus, NSF |
Installation Requirements
- Legs or optional casters are required on non-combustible floors
- 0" clearance to non-combustible surfaces; maintain 8" (203 mm) from combustibles
- Supply line must deliver 90,000 BTU/hr through a regulated 3/4" connection
Important: Unit ships for natural gas.
Field conversion to propane requires a certified technician and the appropriate Imperial kit.
Looking to build a seamless battery? Matching stainless backguards, common landing ledges, and interior shelves are available—ask your Imperial representative for details.
$12,066.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-RB-XB 36" gas range: heavy-duty charbroiler, cast iron grates, 90,000 BTU, stainless steel cabinet, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
36.0in
Width
36.0in
Depth
38.0in
Shipping Weight
765.0lbs
Top
(1) charbroiler
Base
cabinet(s)
Exterior Finish
stainless steel front & sides
Specifications
Spec Series Heavy Duty Range, gas, 36"W, charbroiler, cast iron radiants, slanted cast iron top grates, open cabinet base, front grease gutter, removable crumb tray & drip pan, stainless steel front, sides, 7"D landing ledge, stub back & kick plate, 6" legs with adjustable feet, 90,000 BTU, 26kW, cETLus, NSF
