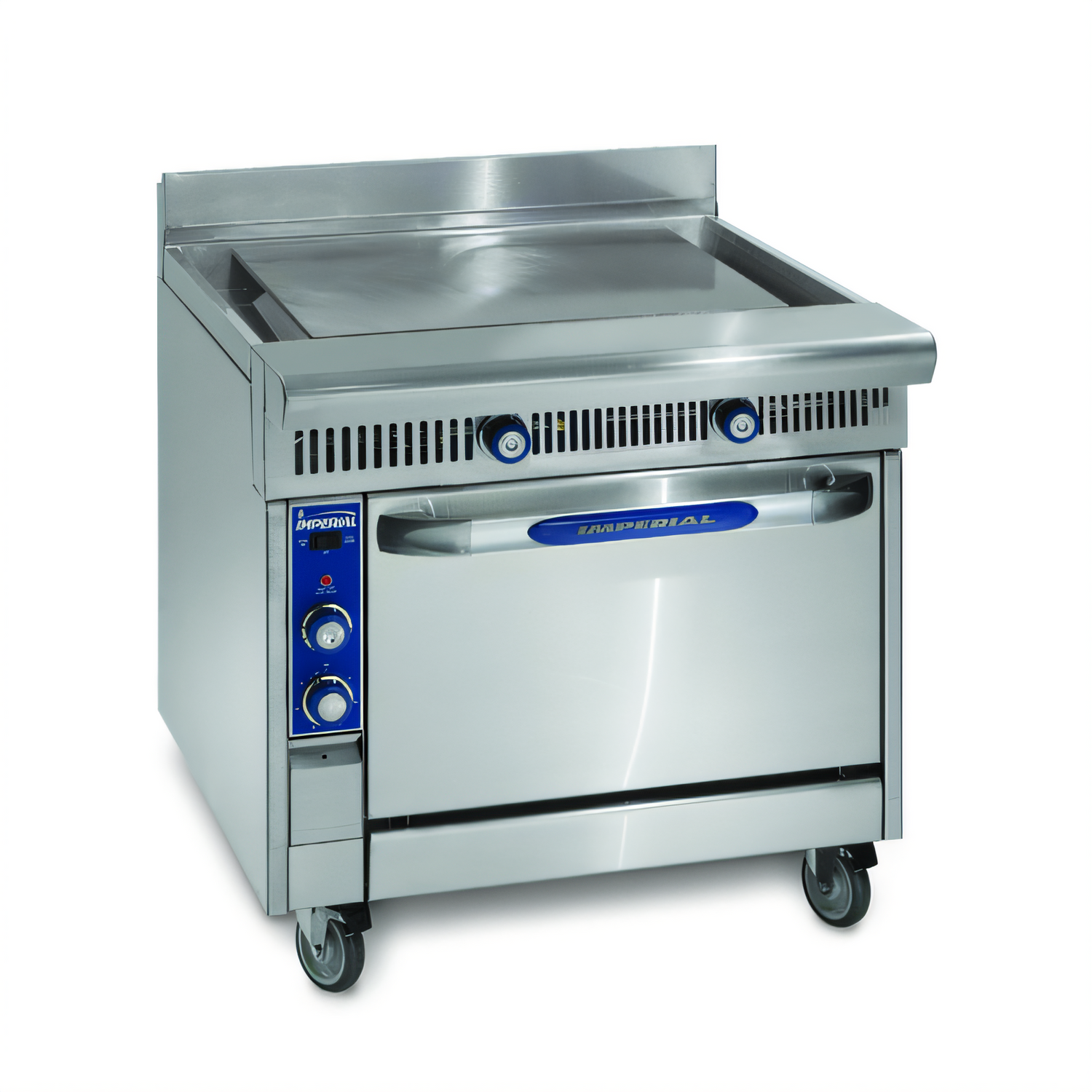

Imperial Spec Series 36" Modular Plancha Top Range
Model IHR-PL-36-M • Gas • 30,000 BTU (9 kW) • NSF & cETLusBuilt for the busiest kitchens, Imperial’s Spec Series plancha range delivers the intense searing power of a traditional Spanish plancha in a space-saving modular format. A ½" thick, highly-polished steel plate heats fast and evenly, while the all-stainless exterior and removable components make clean-up effortless.
Why You’ll Love It

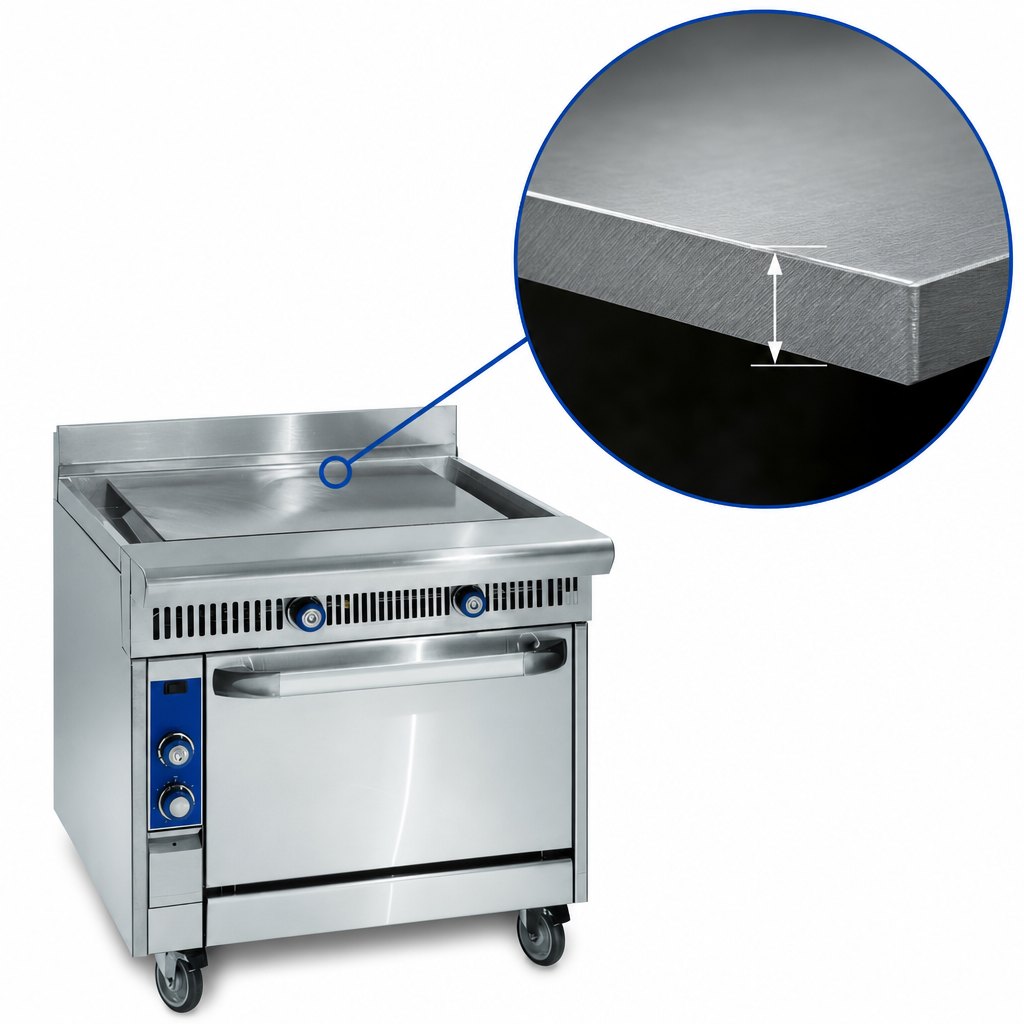

- Single-piece ½" (13 mm) polished steel plancha plate for rapid recovery and uniform heat.
- 30,000 BTU / 9 kW burner system engineered for high-temperature searing, sautéing, or finishing.
- Stainless steel front, sides, landing ledge, and backguard stand up to daily commercial abuse.
- 5" (127 mm) deep front landing ledge keeps plates and tools within easy reach.
- Full-width, slide-out crumb tray speeds daily maintenance.
- Cool-touch cast-aluminum knobs with heat-shield grip for operator comfort.
- Modular 36" (914 mm) width integrates seamlessly with other Imperial Spec Series equipment.
- Certified to NSF and cETLus standards for gas safety and sanitation.
Perfect For
- Tapas & small-plate concepts
- Steak & seafood houses
- Breakfast & brunch service
- Hotel banquet or garde-manger stations
Technical Specifications
| Model | IHR-PL-36-M |
|---|---|
| Cooking surface | 36" wide polished steel plancha, ½" thick |
| Total BTU / kW | 30,000 BTU • 9 kW |
| Gas type | Natural or LP (field convertible) |
| Manifold pressure | 5.0" W.C. Natural • 10.0" W.C. LP |
| Gas connection | 1 ¼" NPT rear (¾" optional) |
| Overall dimensions (W × D × H) | 36" × 38" × 11" (to cooktop) / 914 × 965 × 279 mm |
| Clearances | 0" sides/back (non-combustible) • 6" (152 mm) combustibles |
| Shipping weight | 272 lb (123 kg) |
| Approvals | NSF • cETLus |
| Warranty | 1-year parts & labor (standard) |
Need more peace of mind? Every Imperial Spec Series unit ships with a one-year parts & labor warranty backed by an authorized nationwide service network.
$8,825.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Spec Series 36" gas range with 1/2" plancha, 30,000 BTU, stainless front/sides, 5" landing, NSF/cETLus—durable commercial performance.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
17.0in
Width
36.0in
Depth
38.0in
Shipping Weight
352.0lbs
Plate Thickness
.500" = 1/2"
Base
modular
Exterior Finish
stainless steel front & sides
Top
(1) plancha griddle
Specifications
Spec Series Heavy Duty Range, gas, 36"W, modular, plancha top, 1/2" thick steel plate, stainless steel front, sides, 5"D landing ledge, & backguard, 30,000 BTU, 9kW, cETLus, NSF
